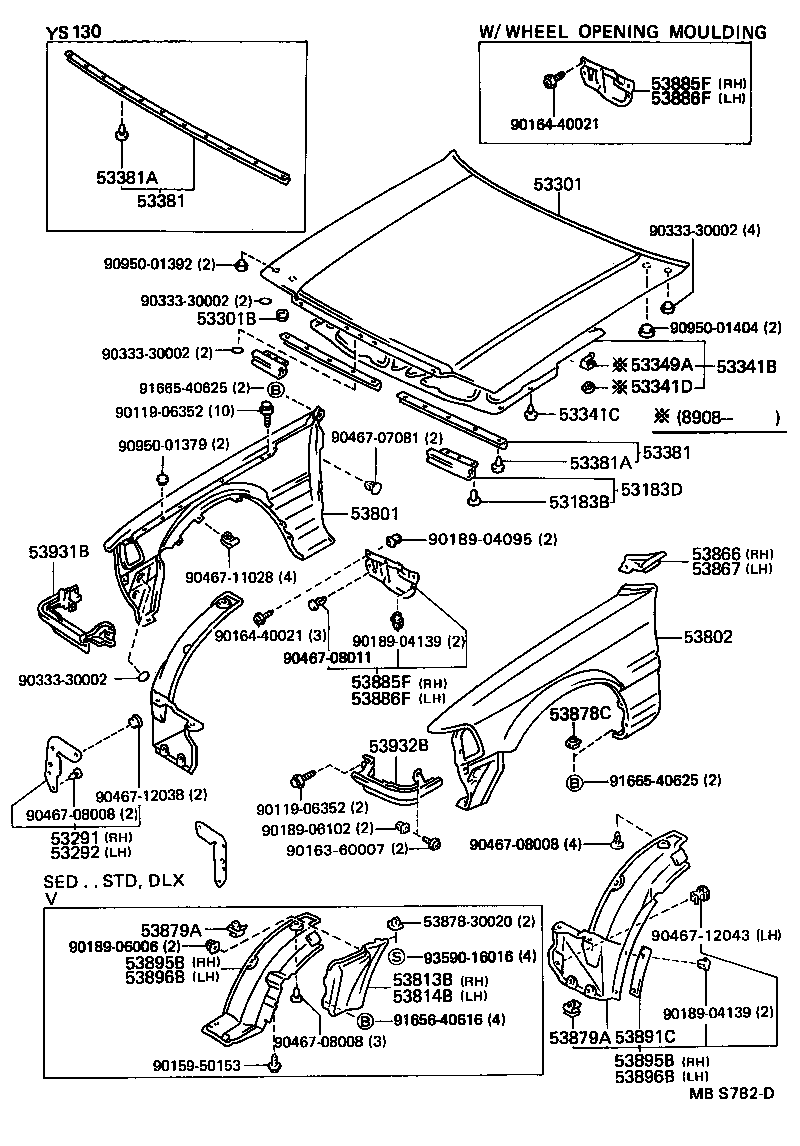

LS130-ATPSJ (1987)
Toyota Crown
(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53183B - CLIP(FOR HEADLAMP COVER SEAL) | ||||
| 90467-08044 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
6 | ||
| 53183D - SEAL, HEADLAMP COVER TO HOOD | ||||
| 53183-30020 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
2 | ||
| 53291 - SEAL, RADIATOR SUPPORT TO FRAME, RH | ||||
| 53291-30040 |
GS130..DLX..TWLPG;GS130..4H..SDX..TWLPG;GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DSL,EFI,HTWC,LPEFI,LPG,SPC,TD,TDE,TWC |
1 | ||
| 53292 - SEAL, RADIATOR SUPPORT TO FRAME, LH | ||||
| 53292-30060 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-30200 |
GS130,131,LS130..HT |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-15004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-30110 |
LS13#;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-0900801 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL BLACK,TRIM3#,4#,8# |
13 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-30070 |
GS13#,JZS13#,LS13#,MS135,137,UZS131,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC 右側 |
1 | ||
| 53382-30080 |
GS13#,JZS13#,LS13#,MS135,137,UZS131,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC 左側 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-30070 |
GS13#,JZS13#,LS13#,MS135,137,UZS131,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC 右側 |
1 | ||
| 53382-30080 |
GS13#,JZS13#,LS13#,MS135,137,UZS131,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC 左側 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
GS13#,JZS13#,LS13#,MS135,137,UZS131,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC |
10 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
GS13#,JZS13#,LS13#,MS135,137,UZS131,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC |
10 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-3A760 |
GS131..HT..NOB;LS130..HT..(SALEX,SSL);GS130,LS131..HT..(HTWC,TD,TDE) |
1 | ||
| 53801-3A770 |
GS130,131,LS130,131..HT..NOB ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-3A590 |
GS131..HT..NOB;LS130..HT..(SALEX,SSL);GS130,LS131..HT..(HTWC,TD,TDE) |
1 | ||
| 53802-3A600 |
GS130,131,LS130,131..HT..NOB ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 53878C - SPACER, FRONT FENDER | ||||
| 53878-14020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
4 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-30010 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
4 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-30010 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
4 | ||
| 53885F - SHIELD, FRONT FENDER SPLASH, REAR RH | ||||
| 53885-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 53885F - SHIELD, FRONT FENDER SPLASH, REAR RH | ||||
| 53885-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 53886F - SHIELD, FRONT FENDER SPLASH, REAR LH | ||||
| 53886-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 53886F - SHIELD, FRONT FENDER SPLASH, REAR LH | ||||
| 53886-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 53891C - SEAL, FRONT FENDER SPLASH SHEILD, FRONT | ||||
| 53891-30020 |
YS130..DLX..LPEFI;GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
2 | ||
| 53895B - SHIELD, FRONT FENDER SPLASH, FRONT RH | ||||
| 53895-30020 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 53895B - SHIELD, FRONT FENDER SPLASH, FRONT RH | ||||
| 53895-30020 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 53896B - SHIELD, FRONT FENDER SPLASH, FRONT LH | ||||
| 53896-30020 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 53896B - SHIELD, FRONT FENDER SPLASH, FRONT LH | ||||
| 53896-30020 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 53931B - PANEL, FRONT END, RH | ||||
| 53903-30200 |
GS130,131,LS130..HT |
1 | ||
| 53932B - PANEL, FRONT END, LH | ||||
| 53904-30200 |
GS130,131,LS130..HT |
1 | ||
| Common parts | ||||
| 53878-30020 | ||||
| 90119-06352 | ||||
| 90159-50153 | ||||
| 90163-60007 | ||||
| 90164-40021 | ||||
| 90189-04095 | ||||
| 90189-04139 | ||||
| 90189-06006 | ||||
| 90189-06102 | ||||
| 90333-30002 | ||||
| 90467-07081 | ||||
| 90467-08008 | ||||
| 90467-08011 | ||||
| 90467-11028 | ||||
| 90467-12038 | ||||
| 90467-12043 | ||||
| 90950-01379 | ||||
| 90950-01392 | ||||
| 90950-01404 | ||||
| 91656-40616 | ||||
| 91665-40625 | ||||
| 93590-16016 | ||||
