LS130-ATPJJ (1987)
Toyota Crown

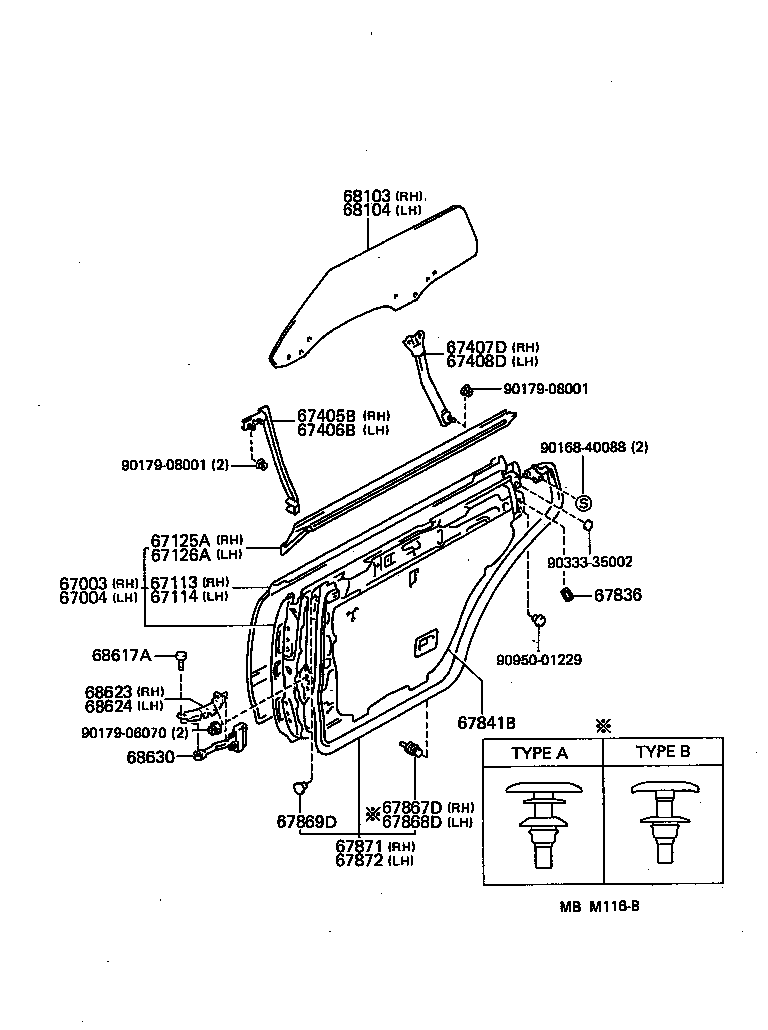

ILLUST NO. 1 OF 3(8709- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-30390 |
GS130,131,LS130,131..HT..NOB |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-30390 |
GS130,131,LS130,131..HT..NOB |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-30230 |
GS130,131,LS130,131..HT..NOB |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-30240 |
GS130,131,LS130,131..HT..NOB |
1 | ||
| 67125A - REINFORCEMENT, REAR DOOR OUTSIDE PANEL, RH | ||||
| 67125-30040 |
GS130,131,LS130,131..HT..NOB |
1 | ||
| 67126A - REINFORCEMENT, REAR DOOR OUTSIDE PANEL, LH | ||||
| 67126-30050 |
GS130,131,LS130,131..HT..NOB |
1 | ||
| 67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH | ||||
| 67405-30090 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
1 | ||
| 67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH | ||||
| 67406-30090 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-30110 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-30100 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
1 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-30270 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT 右側 |
1 | ||
| 67842-30130 |
GS130,131,LS130,MS135,137..HT LH |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-30050 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT TYPE B |
18 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-30050 |
GS130,131,LS130,MS135,137..HT TYPE B |
18 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 67869-30020 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
6 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-30141 |
GS130,131,LS130,MS135,137..HT |
1 | ||
| 67871-30140 |
GS130,131,LS130,MS135,137..HT |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-30141 |
GS130,131,LS130,MS135,137..HT |
1 | ||
| 67872-30140 |
GS130,131,LS130,MS135,137..HT |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-30310 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT *TT,厚さ=5.0 |
1 | ||
| 68113-30320 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-30240 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68114-30230 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT *TT,厚さ=5.0 |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-30030 |
GS13#,JZS130,LS13#,MS130,YS130..NOB |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-30080 |
GS130,131,LS130..HT |
2 | ||
| Common parts | ||||
| 90168-40088 | ||||
| 90179-06070 | ||||
| 90179-08001 | ||||
| 90333-35002 | ||||
| 90950-01229 | ||||

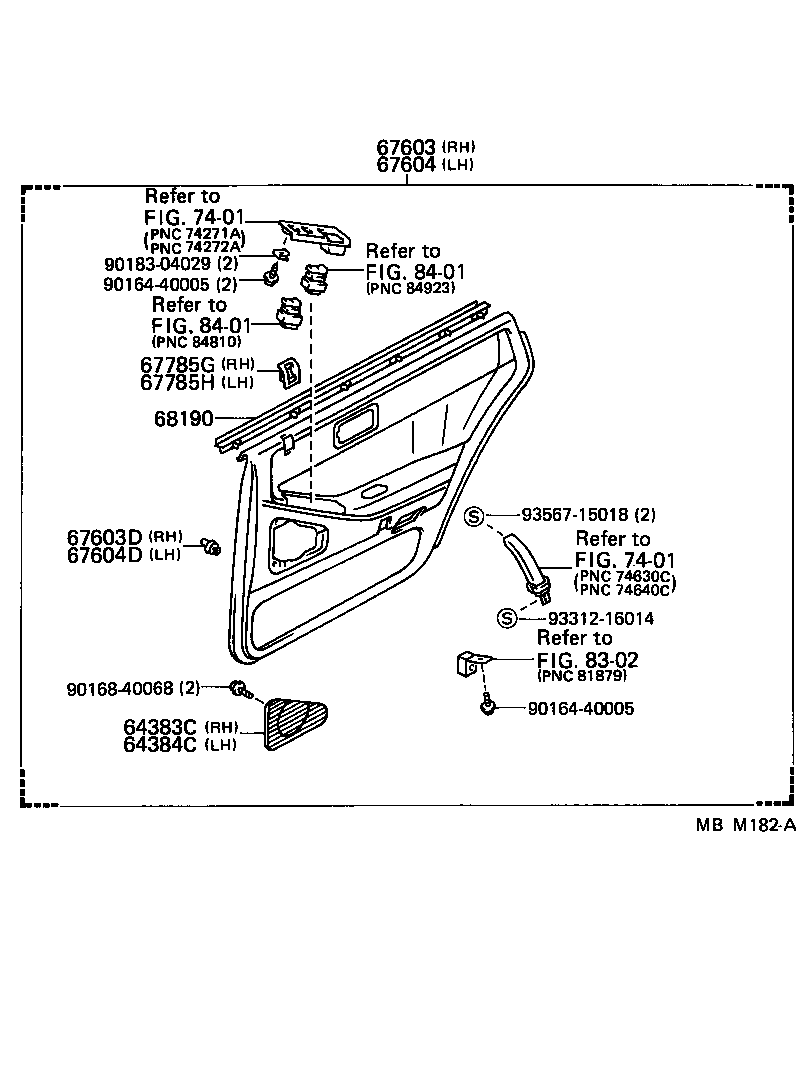

ILLUST NO. 2 OF 3(8709- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64383C - GRILLE, REAR DOOR SPEAKER, RH | ||||
| 64383-3007004 |
GS130,131,JZS131,LS130,131,MS135..HT..(SALEX,SPE,SSL) BLUE,TRIM8# |
1 | ||
| 64383-3008006 |
GS131,JZS131,LS130,131,MS135..HT..(4FC,5F)..SALEX E-2 ﾊﾟﾂｹ-ｼﾞ,SABLE,TRIM4# |
1 | ||
| 64383-3007006 |
GS130,131,JZS131,LS130,131,MS135..HT..(SALEX,SPE,SSL) SABLE,TRIM4# |
1 | ||
| 64383-3008002 |
GS131,JZS131,LS130,131,MS135..HT..(4FC,5F)..SALEX E-2 ﾊﾟﾂｹ-ｼﾞ,MAROON,TRIM3# |
1 | ||
| 64383-3007002 |
GS130,131,JZS131,LS130,131,MS135..HT..(SALEX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 64383-3008004 |
GS131,JZS131,LS130,131,MS135..HT..(4FC,5F)..SALEX E-2 ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 64384C - GRILLE, REAR DOOR SPEAKER, LH | ||||
| 64384-3005004 |
GS130,131,JZS131,LS130,131,MS135..HT..(SALEX,SPE,SSL) BLUE,TRIM8# |
1 | ||
| 64384-3006006 |
GS131,JZS131,LS130,131,MS135..HT..(4FC,5F)..SALEX E-2 ﾊﾟﾂｹ-ｼﾞ,SABLE,TRIM4# |
1 | ||
| 64384-3005002 |
GS130,131,JZS131,LS130,131,MS135..HT..(SALEX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 64384-3006004 |
GS131,JZS131,LS130,131,MS135..HT..(4FC,5F)..SALEX E-2 ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 64384-3005006 |
GS130,131,JZS131,LS130,131,MS135..HT..(SALEX,SPE,SSL) SABLE,TRIM4# |
1 | ||
| 64384-3006002 |
GS131,JZS131,LS130,131,MS135..HT..(4FC,5F)..SALEX E-2 ﾊﾟﾂｹ-ｼﾞ,MAROON,TRIM3# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3A34006 |
GS131,LS130..HT..SALEX SABLE,TRIM4# |
1 | ||
| 67630-3A34002 |
GS131,LS130..HT..SALEX MAROON,TRIM3# |
1 | ||
| 67630-3A34004 |
GS131,LS130..HT..SALEX BLUE,TRIM8# |
1 | ||
| 67630-3A40002 |
GS131,LS130..HT..(4FC,5F)..SALEX E-2 ﾊﾟﾂｹ-ｼﾞ,MAROON,TRIM3# |
1 | ||
| 67630-3A40006 |
GS131,LS130..HT..(4FC,5F)..SALEX E-2 ﾊﾟﾂｹ-ｼﾞ,SABLE,TRIM4# |
1 | ||
| 67630-3A40004 |
GS131,LS130..HT..(4FC,5F)..SALEX E-2 ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
10 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3A34004 |
GS131,LS130..HT..SALEX BLUE,TRIM8# |
1 | ||
| 67640-3A34006 |
GS131,LS130..HT..SALEX SABLE,TRIM4# |
1 | ||
| 67640-3A40002 |
GS131,LS130..HT..(4FC,5F)..SALEX E-2 ﾊﾟﾂｹ-ｼﾞ,MAROON,TRIM3# |
1 | ||
| 67640-3A34002 |
GS131,LS130..HT..SALEX MAROON,TRIM3# |
1 | ||
| 67640-3A40006 |
GS131,LS130..HT..(4FC,5F)..SALEX E-2 ﾊﾟﾂｹ-ｼﾞ,SABLE,TRIM4# |
1 | ||
| 67640-3A40004 |
GS131,LS130..HT..(4FC,5F)..SALEX E-2 ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
10 | ||
| 67785G - HOLDER, REAR DOOR LOCK CONTROL KNOB, RH | ||||
| 67785-3008002 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT MAROON,TRIM3# |
1 | ||
| 67785-3008006 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT SABLE,TRIM4# |
1 | ||
| 67785-3008004 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT BLUE,TRIM8# |
1 | ||
| 67785H - HOLDER, REAR DOOR LOCK CONTROL KNOB, LH | ||||
| 67785-3008004 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT BLUE,TRIM8# |
1 | ||
| 67785-3008002 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT MAROON,TRIM3# |
1 | ||
| 67785-3008006 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT SABLE,TRIM4# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-30160 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT 右側 |
1 | ||
| 68240-30120 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT 左側 |
1 | ||
| Common parts | ||||
| 90164-40005 | ||||
| 90168-40068 | ||||
| 90183-04029 | ||||
| 93312-16014 | ||||
| 93567-15018 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8302 | ||||
| 8401 | ||||
