LS130-ATPJJ (1987)
Toyota Crown
(8709- )2L

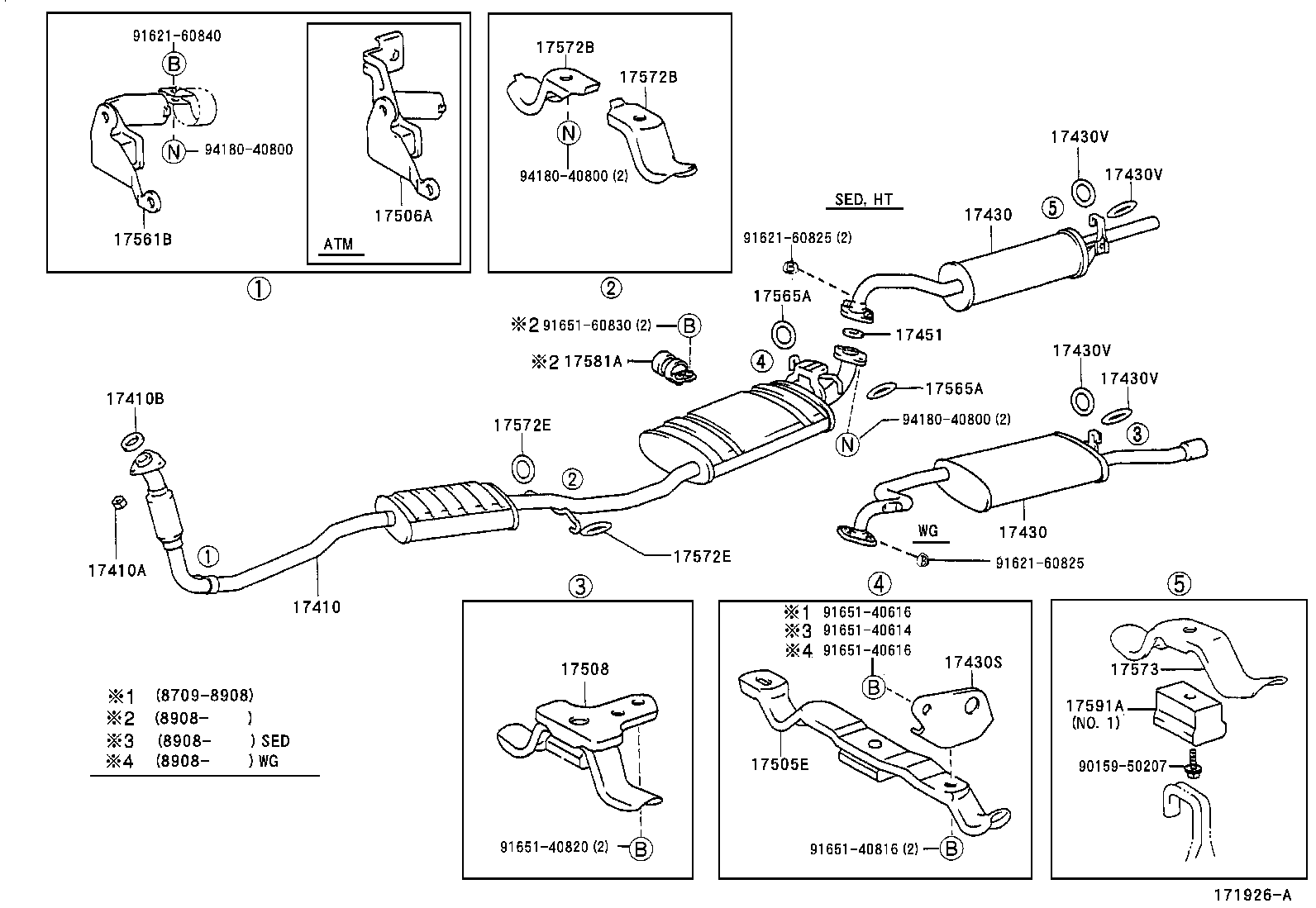

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-54420 |
2L..LS130 |
1 | ||
| 17410-54360 |
2LT#..LS130 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
1GE,1GFE,1GG#,1JZGE,2L,2LT#,7MGE,MP..GS13#,JZS13#,LS13#,MS13# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06005 |
2LT#..LS130 |
1 | ||
| 90917-06004 |
2L,3YP..LS13#,YS130 |
1 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90917-04007 |
2L..LS130,136 |
1 | ||
| 17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90117-08016 |
2L..LS130,136 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-54880 |
2L..LS130 |
1 | ||
| 17430-5B010 |
2LT#..LS130..HT,SED |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-54880 |
2L..LS130 |
1 | ||
| 17430-5B010 |
2LT#..LS130..HT,SED |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17575-54010 |
2L,2LT#..LS130 |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-34207 |
1GE,1GGP,1GGZE,1JZGE,2L,2LT#,MP..GS130,JZS130,LS130,136,MS130 |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-34207 |
1GE,1GGP,1GGZE,1JZGE,2L,2LT#,MP..GS130,JZS130,LS130,136,MS130 |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-34207 |
1GE,1GGP,1GGZE,1JZGE,2L,2LT#,MP..GS130,JZS130,LS130,136,MS130 |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-34207 |
1GE,1GGP,1GGZE,1JZGE,2L,2LT#,MP..GS130,JZS130,LS130,136,MS130 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06012 |
2LT#..LS130,131 |
1 | ||
| 90917-06039 |
2L..LS130,136 |
1 | ||
| 17505E - SUPPORT SUB-ASSY, CATALYTIC CONVERTER | ||||
| 17505-54010 |
2L,2LT#..LS130 |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-54060 |
2LTHE..LS130 |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-54060 |
2LTHE..LS130 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-63020 |
2L,3YP..LS13#,YS130 NO.1 |
2 | ||
| 17565-45010 |
2L,3YP..LS13#,YS130 NO.2 |
2 | ||
| 17565-45010 |
1GE,1GGP,1GGZE,1JZGE,2LT#,MP..GS130,136,JZS130,LS130,MS130 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-63020 |
2L,3YP..LS13#,YS130 NO.1 |
2 | ||
| 17565-45010 |
2L,3YP..LS13#,YS130 NO.2 |
2 | ||
| 17565-45010 |
1GE,1GGP,1GGZE,1JZGE,2LT#,MP..GS130,136,JZS130,LS130,MS130 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-63020 |
2L,3YP..LS13#,YS130 NO.1 |
2 | ||
| 17565-45010 |
2L,3YP..LS13#,YS130 NO.2 |
2 | ||
| 17565-45010 |
1GE,1GGP,1GGZE,1JZGE,2LT#,MP..GS130,136,JZS130,LS130,MS130 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-63020 |
2L,3YP..LS13#,YS130 NO.1 |
2 | ||
| 17565-45010 |
2L,3YP..LS13#,YS130 NO.2 |
2 | ||
| 17565-45010 |
1GE,1GGP,1GGZE,1JZGE,2LT#,MP..GS130,136,JZS130,LS130,MS130 |
2 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-54090 |
2L,3YP#..LS130,136,YS130 NO.1 |
1 | ||
| 17572-54100 |
1GE,1GFE,1GG#,1JZGE,2LT#,7MGE,MP,1UZFE..GS13#,JZS13#,LS130,131,MS13#,UZS131 |
2 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-41040 |
1GE,1GFE,1GG#,1JZGE,2L,2LT#,7MGE,MP,3YP#..GS130,131,JZS131,LS130,131,MS13#,YS130..HT,SED |
1 | ||
| 17591A - STOPPER, EXHAUST PIPE SUPPORT | ||||
| 17591-36010 |
1GE,1GG#,2L,2LT#,7MGE,MP,3YP..GS130,131,LS130,MS13#,YS130..HT,SED |
1 | ||
| 17591A - STOPPER, EXHAUST PIPE SUPPORT | ||||
| 17591-36010 |
1GE,1GG#,2L,2LT#,7MGE,MP,3YP..GS130,131,LS130,MS13#,YS130..HT,SED |
1 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 90159-50207 | ||||
| 91621-60825 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91659-61230 | ||||
| 93319-15010 | ||||
| 93382-15012 | ||||
| 94180-40800 | ||||
| 94180-41000 | ||||
(8709- )2LT#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-54420 |
2L..LS130 |
1 | ||
| 17410-54360 |
2LT#..LS130 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
1GE,1GFE,1GG#,1JZGE,2L,2LT#,7MGE,MP..GS13#,JZS13#,LS13#,MS13# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06005 |
2LT#..LS130 |
1 | ||
| 90917-06004 |
2L,3YP..LS13#,YS130 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-54880 |
2L..LS130 |
1 | ||
| 17430-5B010 |
2LT#..LS130..HT,SED |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-54880 |
2L..LS130 |
1 | ||
| 17430-5B010 |
2LT#..LS130..HT,SED |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17575-54010 |
2L,2LT#..LS130 |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-34207 |
1GE,1GGP,1GGZE,1JZGE,2L,2LT#,MP..GS130,JZS130,LS130,136,MS130 |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-34207 |
1GE,1GGP,1GGZE,1JZGE,2L,2LT#,MP..GS130,JZS130,LS130,136,MS130 |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-34207 |
1GE,1GGP,1GGZE,1JZGE,2L,2LT#,MP..GS130,JZS130,LS130,136,MS130 |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-34207 |
1GE,1GGP,1GGZE,1JZGE,2L,2LT#,MP..GS130,JZS130,LS130,136,MS130 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06012 |
2LT#..LS130,131 |
1 | ||
| 90917-06039 |
2L..LS130,136 |
1 | ||
| 17505E - SUPPORT SUB-ASSY, CATALYTIC CONVERTER | ||||
| 17505-54010 |
2L,2LT#..LS130 |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-54060 |
2LTHE..LS130 |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-54030 |
2LT..LS130,131 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-63020 |
2L,3YP..LS13#,YS130 NO.1 |
2 | ||
| 17565-45010 |
2L,3YP..LS13#,YS130 NO.2 |
2 | ||
| 17565-45010 |
1GE,1GGP,1GGZE,1JZGE,2LT#,MP..GS130,136,JZS130,LS130,MS130 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-63020 |
2L,3YP..LS13#,YS130 NO.1 |
2 | ||
| 17565-45010 |
2L,3YP..LS13#,YS130 NO.2 |
2 | ||
| 17565-45010 |
1GE,1GGP,1GGZE,1JZGE,2LT#,MP..GS130,136,JZS130,LS130,MS130 |
2 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-54090 |
2L,3YP#..LS130,136,YS130 NO.1 |
1 | ||
| 17572-54100 |
1GE,1GFE,1GG#,1JZGE,2LT#,7MGE,MP,1UZFE..GS13#,JZS13#,LS130,131,MS13#,UZS131 |
2 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-54090 |
2L,3YP#..LS130,136,YS130 NO.1 |
1 | ||
| 17572-54100 |
1GE,1GFE,1GG#,1JZGE,2LT#,7MGE,MP,1UZFE..GS13#,JZS13#,LS130,131,MS13#,UZS131 |
2 | ||
| 17572E - RING,O(FOR BRACKET, EXHAUST PIPE SUPPORT, NO.2) | ||||
| 90301-34207 |
1GE,1GFE,1GG#,1JZGE,2LT#,7MGE,MP,1UZFE..GS13#,JZS13#,LS130,131,MS13#,UZS131 |
2 | ||
| 17572E - RING,O(FOR BRACKET, EXHAUST PIPE SUPPORT, NO.2) | ||||
| 90301-34207 |
1GE,1GFE,1GG#,1JZGE,2LT#,7MGE,MP,1UZFE..GS13#,JZS13#,LS130,131,MS13#,UZS131 |
2 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-41040 |
1GE,1GFE,1GG#,1JZGE,2L,2LT#,7MGE,MP,3YP#..GS130,131,JZS131,LS130,131,MS13#,YS130..HT,SED |
1 | ||
| 17591A - STOPPER, EXHAUST PIPE SUPPORT | ||||
| 17591-36010 |
1GE,1GG#,2L,2LT#,7MGE,MP,3YP..GS130,131,LS130,MS13#,YS130..HT,SED |
1 | ||
| Common parts | ||||
| 90159-50207 | ||||
| 91621-60825 | ||||
| 91621-60840 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-60830 | ||||
| 94180-40800 | ||||
(9110-9409)2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91621-60825 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-60825 | ||||
| 91659-61230 | ||||
| 93319-15010 | ||||
| 94180-40800 | ||||
