LS130-ATPEJ (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 2LTHE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )TDE

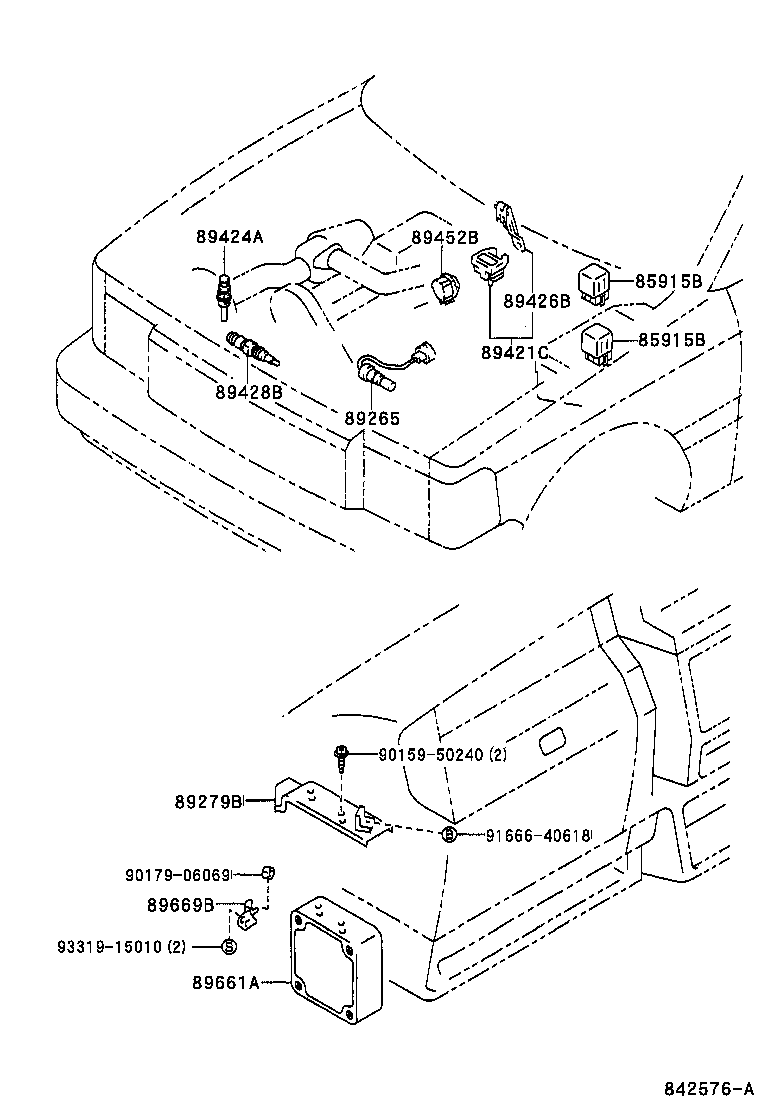

Click highlighted areas on diagram

diagram 85915B 85915B 89265 89279B 89421C 89424A 89426B 89428B 89452B 89661A 89669B 9015950240 9017906069 9166640618 9331915010
Part # Description Qty Price
85915B - RELAY, MAIN (FOR DIESEL TURBO)
85915-30050

LS130,131..TDE

 2
85915B - RELAY, MAIN (FOR DIESEL TURBO)
85915-30050

LS130,131..TDE

 2
89265 - SENSOR, DIESEL ENGINE REVOLUTION, NO.2
89265-30010

LS130..TDE

 1
89279B - COVER, DIESEL ENGINE CONTROL COMPUTOR
89279-30030

LS130,131..TDE

 1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89420-30020

LS130..TDE

 1
89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89424-30010

LS130..TDE

 1
89426B - BRACKET, VACUUM SENSOR
89426-30040

LS130..TDE

 1
89452B - SENSOR, THROTTLE POSITION
89452-30051

LS130..TDE

 1
89452-30052

LS130..TDE

 1
89661A - COMPUTER, ENGINE CONTROL
89661-30280

LS130..TDE

 1
89669B - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-30020

LS130,131..TDE

 1
Common parts
90159-50240
90179-06069
91666-40618
93319-15010
