LS130-ATPEJ (1987)
Toyota Crown

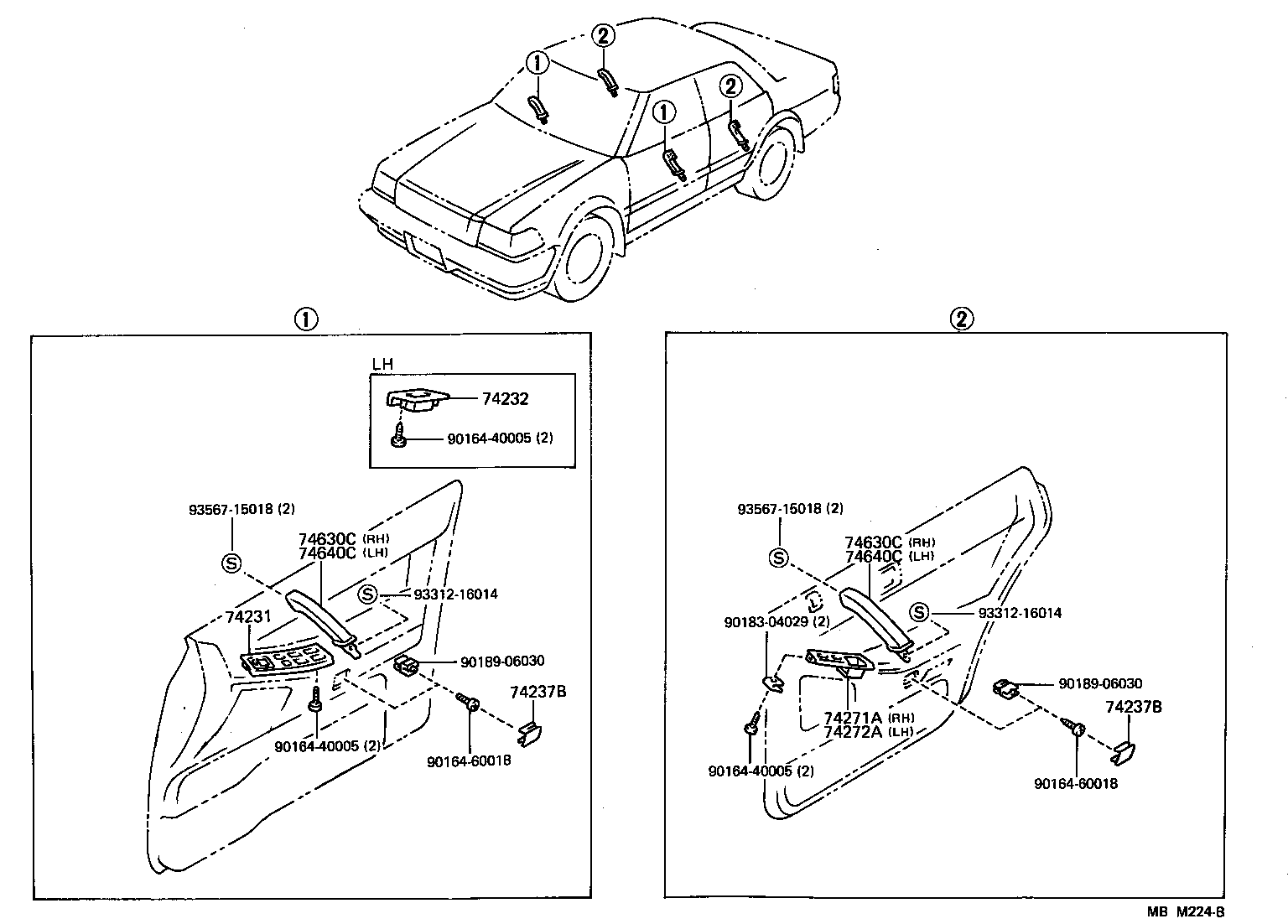

ILLUST NO. 1 OF 2(8709- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-3019002 |
GS130,131,LS130,131..SPE MAROON,TRIM3# |
1 | ||
| 74231-3019006 |
GS130,131,LS130,131..SPE SABLE,TRIM4# |
1 | ||
| 74231-3020006 |
GS130,131,LS130,131..SPE ｱﾘ(ﾄﾞｱ ﾐﾗ-),SABLE,TRIM4# |
1 | ||
| 74231-3020002 |
GS130,131,LS130,131..SPE ｱﾘ(ﾄﾞｱ ﾐﾗ-),MAROON,TRIM3# |
1 | ||
| 74231-3019004 |
GS130,131,LS130,131..SPE BLUE,TRIM8# |
1 | ||
| 74231-3020004 |
GS130,131,LS130,131..SPE ｱﾘ(ﾄﾞｱ ﾐﾗ-),BLUE,TRIM8# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-3017002 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F) MAROON,TRIM3# |
1 | ||
| 74232-3017004 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F) BLUE,TRIM8# |
1 | ||
| 74232-3017006 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F) SABLE,TRIM4# |
1 | ||
| 74237B - CAP, DOOR ARMREST BASE | ||||
| 74237-3201004 |
GS136..SDX..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL DARK BLUE,TRIM8# |
4 | ||
| 74237-3201002 |
GS136..SDX..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL MAROON,TRIM3# |
4 | ||
| 74237-3201006 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL SABLE,TRIM4# |
4 | ||
| 74237B - CAP, DOOR ARMREST BASE | ||||
| 74237-3201004 |
GS136..SDX..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL DARK BLUE,TRIM8# |
4 | ||
| 74237-3201002 |
GS136..SDX..HTWC;GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL MAROON,TRIM3# |
4 | ||
| 74237-3201006 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL SABLE,TRIM4# |
4 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-3013002 |
MS135..SALEX;GS130,131,JZS131,LS130,131..HT MAROON,TRIM3# |
1 | ||
| 74271-3013006 |
MS135..SALEX;GS130,131,JZS131,LS130,131..HT SABLE,TRIM4# |
1 | ||
| 74271-3013004 |
MS135..SALEX;GS130,131,JZS131,LS130,131..HT BLUE,TRIM8# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-3013002 |
MS135..SALEX;GS130,131,JZS131,LS130,131..HT MAROON,TRIM3# |
1 | ||
| 74272-3013006 |
MS135..SALEX;GS130,131,JZS131,LS130,131..HT SABLE,TRIM4# |
1 | ||
| 74272-3013004 |
MS135..SALEX;GS130,131,JZS131,LS130,131..HT BLUE,TRIM8# |
1 | ||
| 74630C - GRIP ASSY, DOOR ASSIST, RH | ||||
| 74630-3004006 |
GS130,131,LS130,131,MS135,137,UZS131..HT SABLE,TRIM4#,FRONT |
1 | ||
| 74630-3004002 |
GS130,131,LS130,131,MS135,137,UZS131..HT MAROON,TRIM3#,FRONT |
1 | ||
| 74630-3004004 |
GS130,131,LS130,131,MS135,137,UZS131..HT BLUE,TRIM8#,FRONT |
1 | ||
| 74630-3005002 |
GS130,131,LS130,131,MS135,137,UZS131..HT MAROON,TRIM3#,REAR |
1 | ||
| 74630-3005006 |
GS130,131,LS130,131,MS135,137,UZS131..HT SABLE,TRIM4#,REAR |
1 | ||
| 74630-3005004 |
GS130,131,LS130,131,MS135,137,UZS131..HT BLUE,TRIM8#,REAR |
1 | ||
| 74630C - GRIP ASSY, DOOR ASSIST, RH | ||||
| 74630-3004006 |
GS130,131,LS130,131,MS135,137,UZS131..HT SABLE,TRIM4#,FRONT |
1 | ||
| 74630-3004002 |
GS130,131,LS130,131,MS135,137,UZS131..HT MAROON,TRIM3#,FRONT |
1 | ||
| 74630-3004004 |
GS130,131,LS130,131,MS135,137,UZS131..HT BLUE,TRIM8#,FRONT |
1 | ||
| 74630-3005002 |
GS130,131,LS130,131,MS135,137,UZS131..HT MAROON,TRIM3#,REAR |
1 | ||
| 74630-3005006 |
GS130,131,LS130,131,MS135,137,UZS131..HT SABLE,TRIM4#,REAR |
1 | ||
| 74630-3005004 |
GS130,131,LS130,131,MS135,137,UZS131..HT BLUE,TRIM8#,REAR |
1 | ||
| 74640C - GRIP ASSY, DOOR ASSIST, LH | ||||
| 74640-3003004 |
GS130,131,LS130,131,MS135,137,UZS131..HT BLUE,TRIM8#,FRONT |
1 | ||
| 74640-3003002 |
GS130,131,LS130,131,MS135,137,UZS131..HT MAROON,TRIM3#,FRONT |
1 | ||
| 74640-3003006 |
GS130,131,LS130,131,MS135,137,UZS131..HT SABLE,TRIM4#,FRONT |
1 | ||
| 74640-3004004 |
GS130,131,LS130,131,MS135,137,UZS131..HT BLUE,TRIM8#,REAR |
1 | ||
| 74640-3004006 |
GS130,131,LS130,131,MS135,137,UZS131..HT SABLE,TRIM4#,REAR |
1 | ||
| 74640-3004002 |
GS130,131,LS130,131,MS135,137,UZS131..HT MAROON,TRIM3#,REAR |
1 | ||
| 74640C - GRIP ASSY, DOOR ASSIST, LH | ||||
| 74640-3003004 |
GS130,131,LS130,131,MS135,137,UZS131..HT BLUE,TRIM8#,FRONT |
1 | ||
| 74640-3003002 |
GS130,131,LS130,131,MS135,137,UZS131..HT MAROON,TRIM3#,FRONT |
1 | ||
| 74640-3003006 |
GS130,131,LS130,131,MS135,137,UZS131..HT SABLE,TRIM4#,FRONT |
1 | ||
| 74640-3004004 |
GS130,131,LS130,131,MS135,137,UZS131..HT BLUE,TRIM8#,REAR |
1 | ||
| 74640-3004006 |
GS130,131,LS130,131,MS135,137,UZS131..HT SABLE,TRIM4#,REAR |
1 | ||
| 74640-3004002 |
GS130,131,LS130,131,MS135,137,UZS131..HT MAROON,TRIM3#,REAR |
1 | ||
| Common parts | ||||
| 90164-40005 | ||||
| 90164-60018 | ||||
| 90183-04029 | ||||
| 90189-06030 | ||||
| 93312-16014 | ||||
| 93567-15018 | ||||

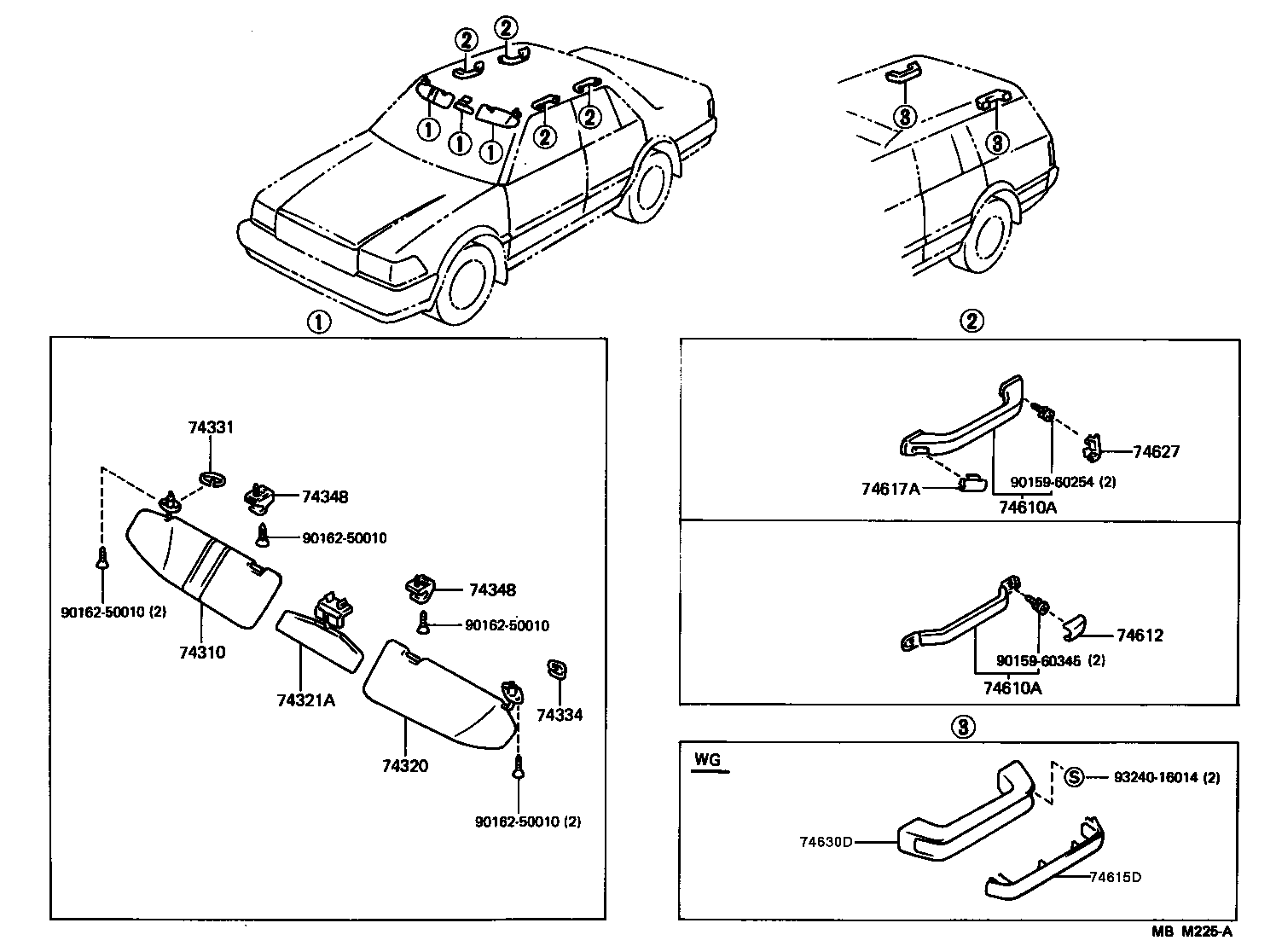

ILLUST NO. 2 OF 2(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-3052004 |
GS130,131,JZS131,LS130,131,MS135..HT..(SALEX,SPE,SSL) BLUE,TRIM8# |
1 | ||
| 74310-3052006 |
GS130,131,JZS131,LS130,131,MS135..HT..(SALEX,SPE,SSL) SABLE,TRIM3#,4# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-3047004 |
GS130,131,JZS131,LS130,131,MS135..HT..(SALEX,SPE,SSL) BLUE,TRIM8# |
1 | ||
| 74320-3047006 |
GS130,131,JZS131,LS130,131,MS135..HT..(SALEX,SPE,SSL) SABLE,TRIM3#,4# |
1 | ||
| 74321A - VISOR, FRONT | ||||
| 74321-3001004 |
GS130,131,JZS131,LS130,131,MS135..SAL,SALEX,SPE,SSL BLUE,TRIM8# |
1 | ||
| 74321-3001006 |
GS130,131,JZS131,LS130,131,MS135..SAL,SALEX,SPE,SSL SABLE,TRIM3#,4# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-3001004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 BLUE,TRIM8# |
2 | ||
| 74348-3001006 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL SABLE,TRIM3#,4# |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-3001004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 BLUE,TRIM8# |
2 | ||
| 74348-3001006 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL SABLE,TRIM3#,4# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-3011006 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL SABLE,TRIM3#,4# |
3 | ||
| 74610-3011004 |
GS130..WG..(ROY,SALEX);GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL BLUE,TRIM8# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-3011006 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL SABLE,TRIM3#,4# |
3 | ||
| 74610-3011004 |
GS130..WG..(ROY,SALEX);GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL BLUE,TRIM8# |
3 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-3011004 |
GS130..WG..(ROY,SALEX);GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL BLUE,TRIM8# |
6 | ||
| 74612-3011006 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL SABLE,TRIM3#,4# |
6 | ||
| Common parts | ||||
| 90159-60254 | ||||
| 90159-60345 | ||||
| 90162-50010 | ||||
| 93240-16014 | ||||
