LS130-ATPEJ (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 2LTHE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )HT

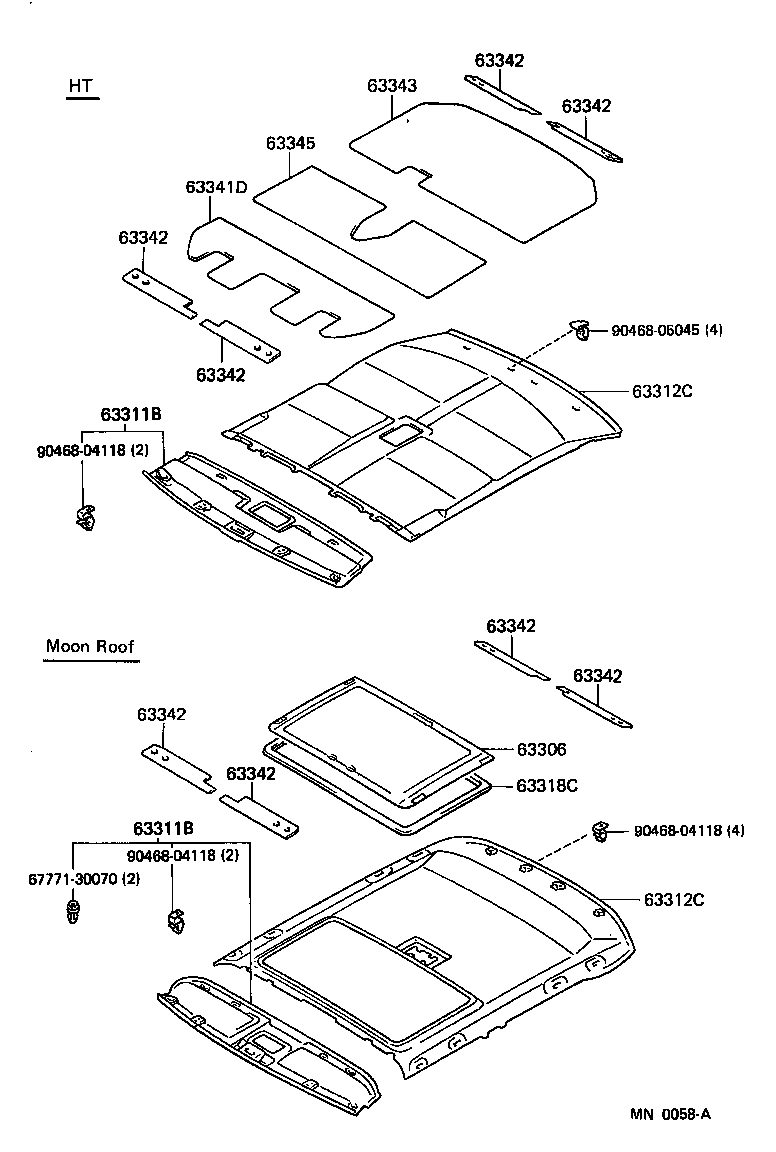

Click highlighted areas on diagram

diagram 63306 63311B 63311B 63312C 63312C 63318C 63341D 63342 63342 63342 63342 63342 63342 63342 63342 63343 63345 6777130070 9046804118 9046804118 9046804118 9046805045
Part # Description Qty Price
63311B - HEADLINING, ROOF, FRONT
63311-3021004

GS130,131,LS130..HT..(SALEX,SPE,SSL)

BLUE,TRIM8#

 1
63311-3021006

GS130,131,LS130..HT..(SALEX,SPE,SSL)

SABLE,TRIM3#,4#

 1
63311B - HEADLINING, ROOF, FRONT
63311-3021004

GS130,131,LS130..HT..(SALEX,SPE,SSL)

BLUE,TRIM8#

 1
63311-3021006

GS130,131,LS130..HT..(SALEX,SPE,SSL)

SABLE,TRIM3#,4#

 1
63312C - HEADLINING, ROOF, REAR
63312-3003006

GS130,131,LS130,MS135,137..HT

SABLE,TRIM3#,4#

 1
63312-3003004

GS130,131,LS130,MS135,137..HT

BLUE,TRIM8#

 1
63312C - HEADLINING, ROOF, REAR
63312-3003006

GS130,131,LS130,MS135,137..HT

SABLE,TRIM3#,4#

 1
63312-3003004

GS130,131,LS130,MS135,137..HT

BLUE,TRIM8#

 1
63341D - PAD, ROOF SILENCER, FRONT
63341-30130

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-30070

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT

 4
63342 - PAD, ROOF SILENCER, NO.2
63342-30070

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT

 4
63342 - PAD, ROOF SILENCER, NO.2
63342-30070

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT

 4
63342 - PAD, ROOF SILENCER, NO.2
63342-30070

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT

 4
63342 - PAD, ROOF SILENCER, NO.2
63342-30070

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT

 4
63342 - PAD, ROOF SILENCER, NO.2
63342-30070

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT

 4
63342 - PAD, ROOF SILENCER, NO.2
63342-30070

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT

 4
63342 - PAD, ROOF SILENCER, NO.2
63342-30070

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT

 4
63343 - PAD, ROOF SILENCER, NO.3
63343-30090

GS130,131,LS130,MS135,137..HT

 1
63345 - PAD, ROOF SILENCER, NO.5
63345-30040

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT

 1
Common parts
67771-30070
90468-04118
90468-05045
