Toyota Crown LS130 ROOF PANEL & BACK WINDOW GLASS

Manufacturers Home
Toyota
JP
CROWN
LS130-ATPEJ (1987)
6104 - ROOF PANEL & BACK WINDOW GLASS

LS130-ATPEJ (1987)

Toyota Crown

Production Sep 1987 - Aug 1989

Engine 2LTHE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8709- )HT

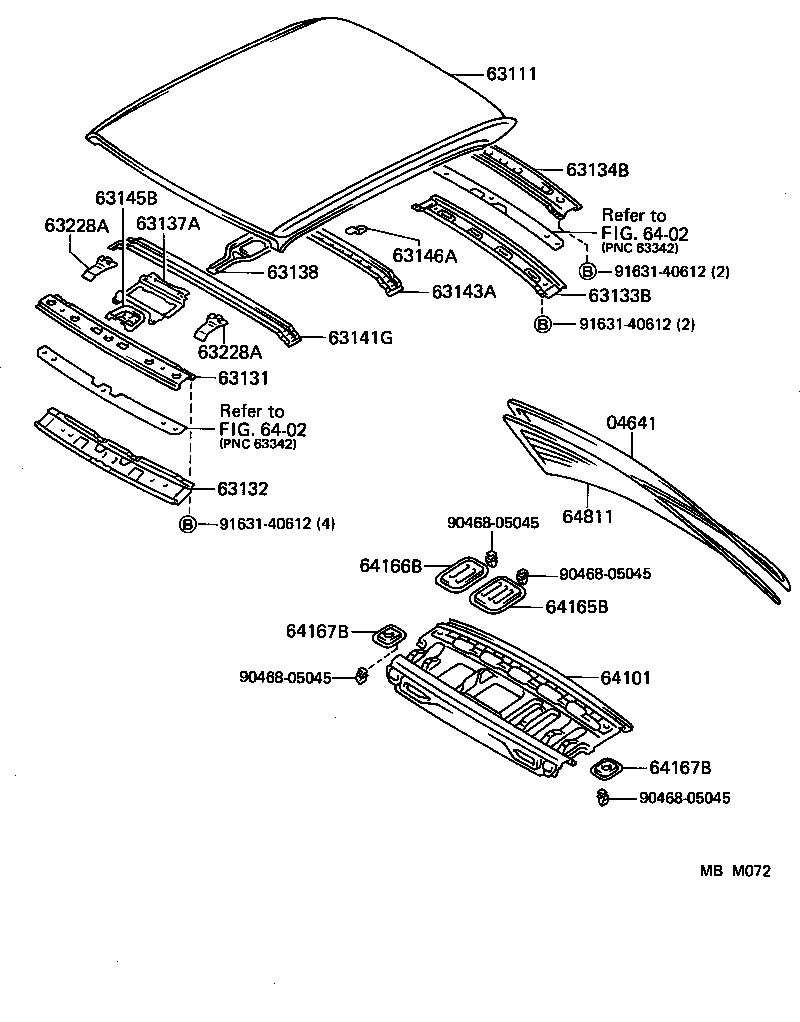

Click highlighted areas on diagram

Part #	Description	Period	Qty
04641 - DAM KIT, BACK WINDOW GLASS
04562-30040	GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED	09/1987 - 10/1991	1
63111 - PANEL, ROOF
63111-30210	GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT	09/1987 - 10/1991	1
63131 - PANEL, WINDSHIELD HEADER, OUTER
63131-30040	GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT	09/1987 - 10/1991	1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-30150	GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT	09/1987 - 10/1991	1
63133B - FRAME, BACK WINDOW
63133-30140	GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT	09/1987 - 10/1991	1
63134B - PANEL, BACK WINDOW, UPR OUTER
63134-30020	GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT	09/1987 - 10/1991	1
63137A - BRACKET, DOME LAMP, NO.1
63137-30090	GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT	09/1987 - 10/1991	1
63138 - BRACKET, DOME LAMP, NO.2
63138-30060	GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT	09/1987 - 10/1991	1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-30070	GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT	09/1987 - 10/1991	1
63143A - REINFORCEMENT, ROOF PANEL
63143-30080	GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT	09/1987 - 10/1991	1
63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL
63145-30070	GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT	09/1987 - 10/1991	1
63228A - BRACKET, ROOF HEADLINING, NO.1
63228-30010	GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT	09/1987 - 10/1991	2
63228A - BRACKET, ROOF HEADLINING, NO.1
63228-30010	GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT	09/1987 - 10/1991	2
64101 - PANEL SUB-ASSY, UPPER BACK
64101-30180	GS130,131,JZS131,LS130,131,MS135..HT..(SALEX,SPE,SSL)	09/1987 - 10/1991	1
64165B - COVER, UPPER BACK PANEL HOLE, NO.1
64165-30020	GS131..SSL..SPC;GS131..EFI,HTWC,TWC;GS130,JZS131,LS130,131,MS130,135,YS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD)	09/1987 - 10/1991	1
64166B - COVER, UPPER BACK PANEL HOLE, NO.2
64166-30020	GS131..SSL..SPC;GS131..EFI,HTWC,TWC;GS130,JZS131,LS130,131,MS130,135,YS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD)	09/1987 - 10/1991	1
64167B - COVER, UPPER BACK PANEL HOLE, NO.3
64167-30020	GS130,131,JZS131,LS130,131,MS130,135,YS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD)	09/1987 - 10/1991	2
64167B - COVER, UPPER BACK PANEL HOLE, NO.3
64167-30020	GS130,131,JZS131,LS130,131,MS130,135,YS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD)	09/1987 - 10/1991	2
64811 - GLASS, BACK WINDOW
64801-30420	GS130,131,LS130,MS135..HT *EHTT,厚さ=4.0	09/1987 - 08/1989	1
64801-30430	GS130,131,LS130,MS135..HT *EHTT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ	09/1987 - 08/1989	1
Common parts
90468-05045
91631-40612
Linked diagrams
6402

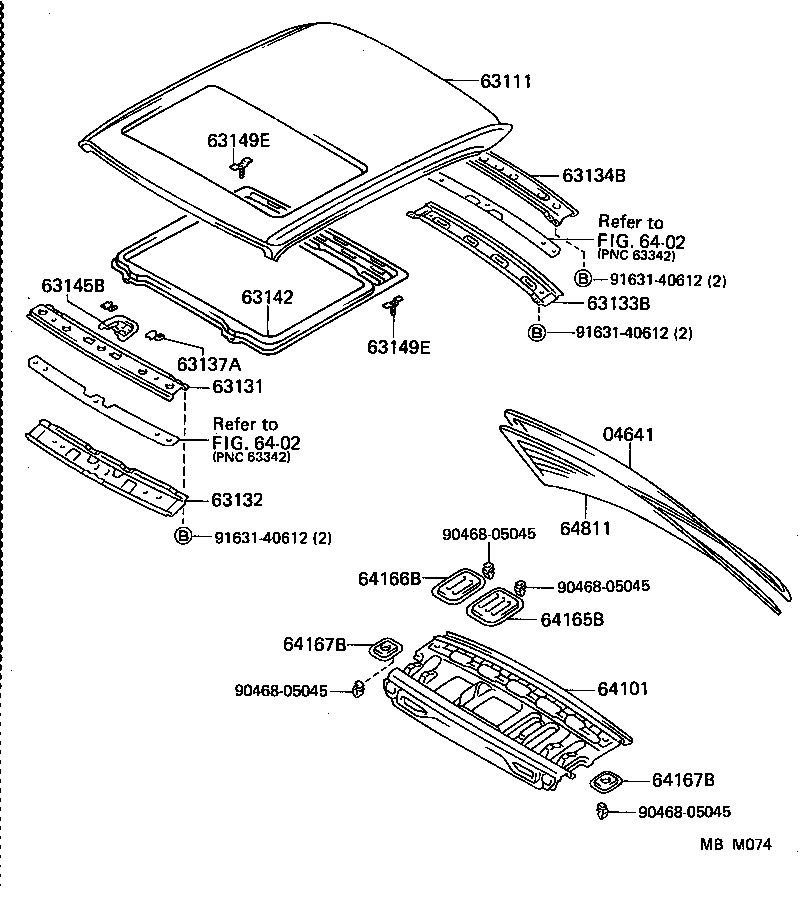

ILLUST NO. 1 OF 2(8709- )HT

Click highlighted areas on diagram

Part #	Description	Period	Qty
04641 - DAM KIT, BACK WINDOW GLASS
04562-30040	GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED	09/1987 - 10/1991	1
63111 - PANEL, ROOF
63111-30210	GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT	09/1987 - 10/1991	1
63131 - PANEL, WINDSHIELD HEADER, OUTER
63131-30040	GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT	09/1987 - 10/1991	1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-30150	GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT	09/1987 - 10/1991	1
63133B - FRAME, BACK WINDOW
63133-30140	GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT	09/1987 - 10/1991	1
63134B - PANEL, BACK WINDOW, UPR OUTER
63134-30020	GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT	09/1987 - 10/1991	1
63137A - BRACKET, DOME LAMP, NO.1
63137-30090	GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT	09/1987 - 10/1991	1
63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL
63145-30070	GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT	09/1987 - 10/1991	1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-30180	GS130,131,JZS131,LS130,131,MS135..HT..(SALEX,SPE,SSL)	09/1987 - 10/1991	1
64165B - COVER, UPPER BACK PANEL HOLE, NO.1
64165-30020	GS131..SSL..SPC;GS131..EFI,HTWC,TWC;GS130,JZS131,LS130,131,MS130,135,YS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD)	09/1987 - 10/1991	1
64166B - COVER, UPPER BACK PANEL HOLE, NO.2
64166-30020	GS131..SSL..SPC;GS131..EFI,HTWC,TWC;GS130,JZS131,LS130,131,MS130,135,YS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD)	09/1987 - 10/1991	1
64167B - COVER, UPPER BACK PANEL HOLE, NO.3
64167-30020	GS130,131,JZS131,LS130,131,MS130,135,YS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD)	09/1987 - 10/1991	2
64167B - COVER, UPPER BACK PANEL HOLE, NO.3
64167-30020	GS130,131,JZS131,LS130,131,MS130,135,YS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD)	09/1987 - 10/1991	2
64811 - GLASS, BACK WINDOW
64801-30420	GS130,131,LS130,MS135..HT *EHTT,厚さ=4.0	09/1987 - 08/1989	1
64801-30430	GS130,131,LS130,MS135..HT *EHTT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ	09/1987 - 08/1989	1
Common parts
90468-05045
91631-40612
Linked diagrams
6402

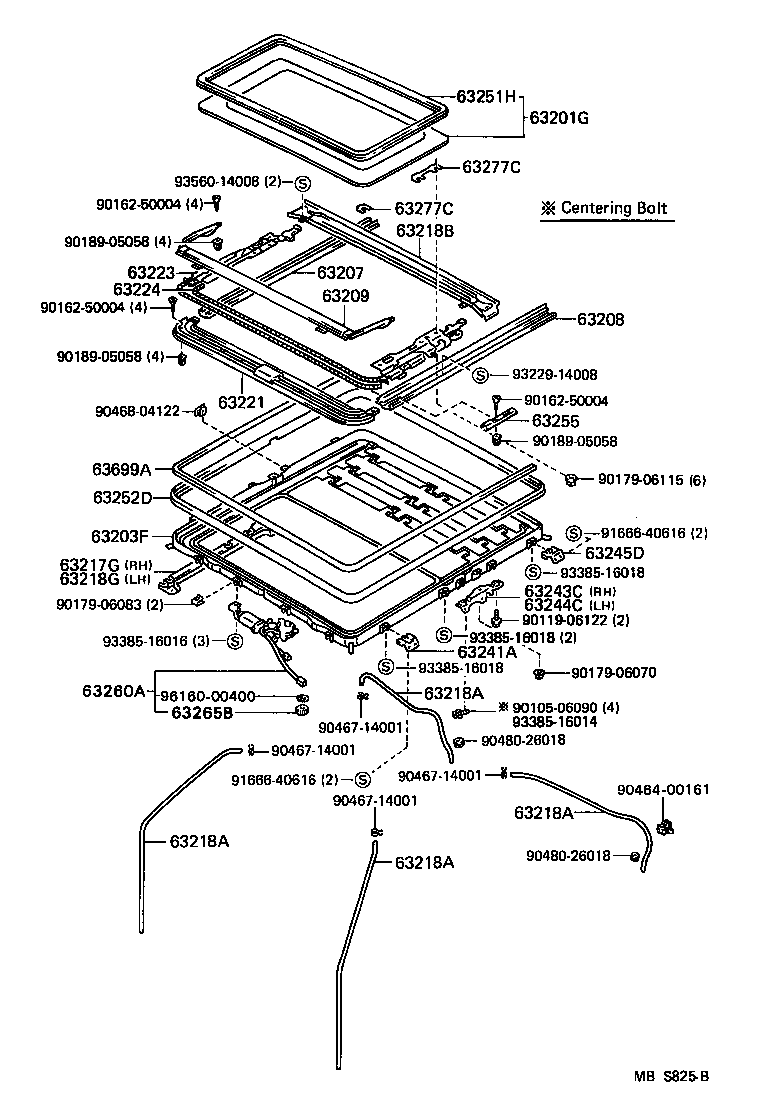

ILLUST NO. 2 OF 2(8709- )HT

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90105-06090
90119-06122
90162-50004
90179-06070
90179-06083
90179-06115
90189-05058
90464-00161
90467-14001
90468-04122
90480-26018
91666-40616
93229-14008
93385-16014
93385-16016
93385-16018
93560-14008
96160-00400

LS130-ATPEJ (1987)

(8709- )HT

ILLUST NO. 1 OF 2(8709- )HT

ILLUST NO. 2 OF 2(8709- )HT
