LS130-ATPEJ (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 2LTHE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

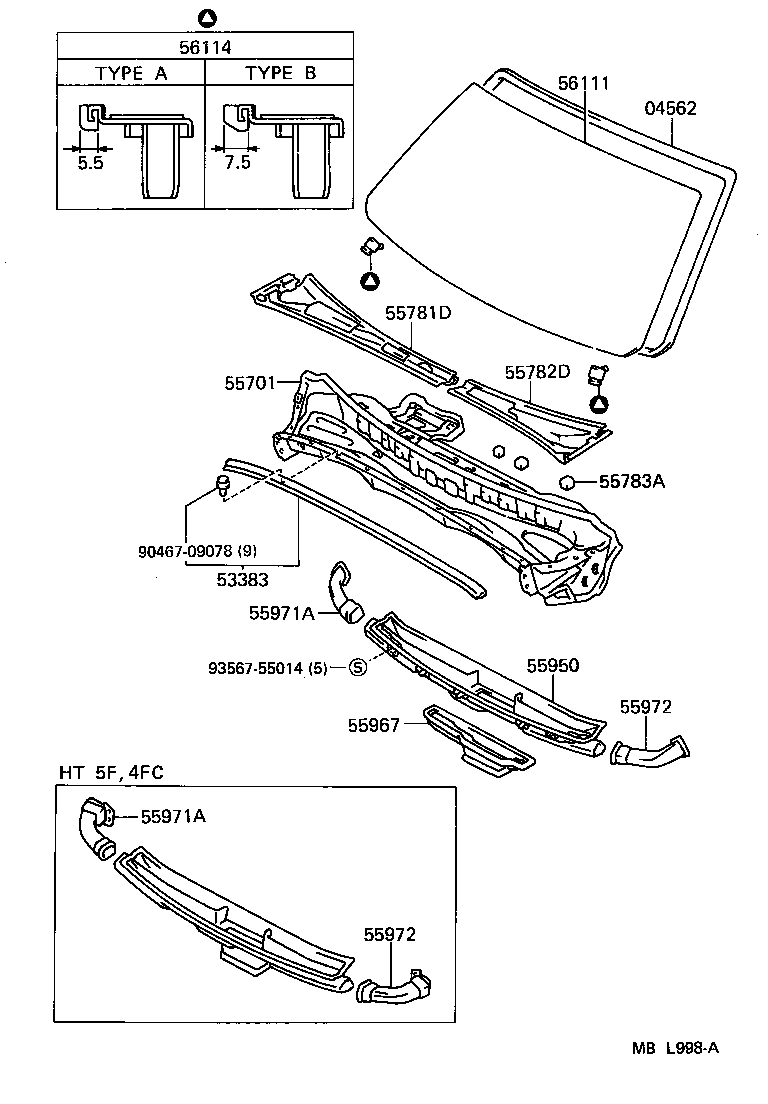

Click highlighted areas on diagram

diagram 04562 53383 55701 55781D 55782D 55783A 55950 55967 55971A 55971A 55972 55972 56111 56114 9046709078 9356755014
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-30040

GS13#,LS13#,MS13#,YS130

 1
53383 - SEAL, HOOD TO COWL TOP
53383-30080

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 1
55701 - PANEL SUB-ASSY, COWL
55700-30340

LS13#

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-30080

GS13#,LS13#,MS13#,YS130

 1
55781-30100

GS13#,LS13#,MS13#,YS130

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-30060

GS13#,LS13#,MS13#,YS130

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55782-30040

GS13#,LS13#,MS13#,YS130

 1
55783A - PAD, COWL TOP SILENCER
55783-30020

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 6
55950 - NOZZLE ASSY, DEFROSTER
55950-30070

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)

 1
55967 - NOZZLE, DEFROSTER, LOWER
55967-30010

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 1
55971A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-30070

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)

 1
55971A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-30070

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)

 1
55972 - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-30070

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)

 1
55972 - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-30070

GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT..(4FC,5F)

 1
56111 - GLASS, WINDSHIELD
56111-30670

GS130,131,JZS131,LS130,131..SPE,SSL

*LAM,T=5.3,ﾌﾞﾛﾝｽﾞ

 1
56111-30680

GS130,131,JZS131,LS130,131..SPE,SSL

*LAM,T=5.3,ﾌﾞﾙｰ

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-30070

GS13#,LS13#,MS13#,YS130

ﾀｲﾌﾟ A

 2
56114-30080

GS13#,LS13#,MS13#,YS130

ﾀｲﾌﾟ B

 2
Common parts
90467-09078
93567-55014
