LS130-ATPEJ (1987)
Toyota Crown
(8709- )LS130,MS130,YS130 ; (8908- )TWLPG
SOLID TYPE,3 ｼﾞﾖｲﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

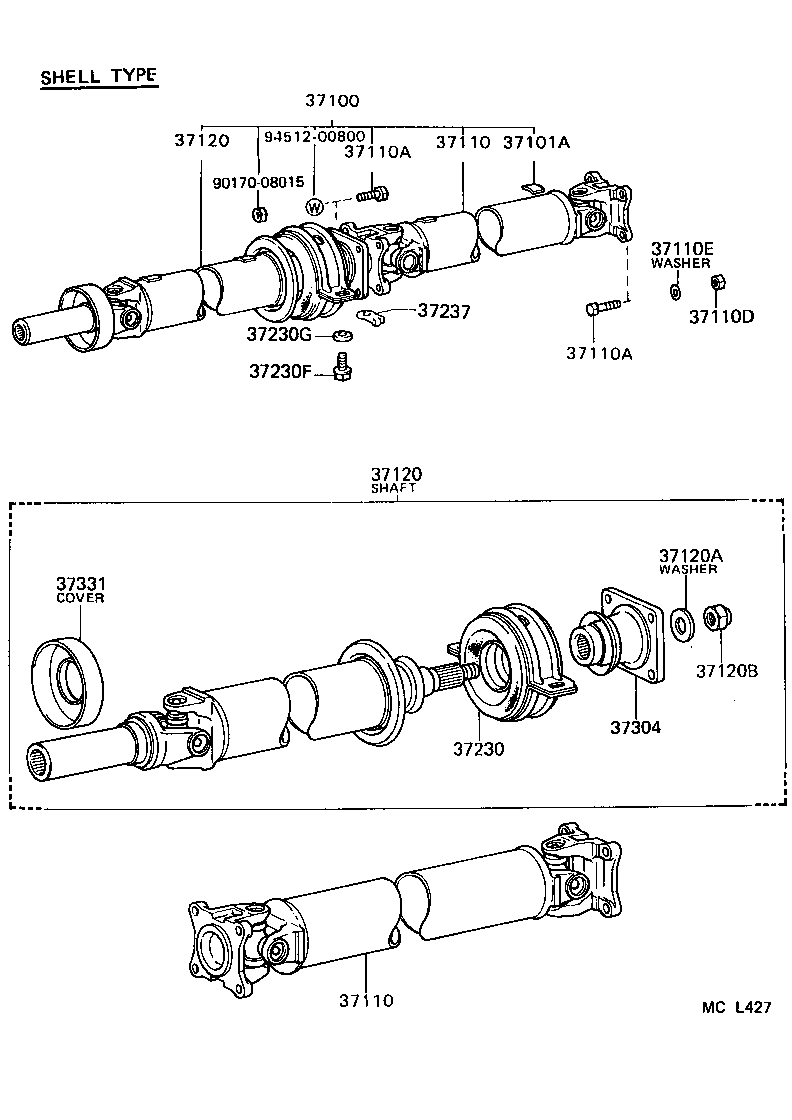

| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-30110 |
GS130,LS13#..ATM..(DSL,EFI,TDE) |
1 | ||
| 37100-30111 |
GS130,LS13#..ATM..(DSL,EFI,HTWC,TDE) |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01148 |
GS13#,LS13#,MS13#,YS130 4G,厚さ=2.0 |
1 | ||
| 90937-01132 |
GS13#,LS13#,MS13#,YS130 10G,長さ=20.7 |
1 | ||
| 90937-01147 |
GS13#,LS13#,MS13#,YS130 2G,厚さ=2.0 |
1 | ||
| 90937-01150 |
GS13#,LS13#,MS13#,YS130 8G,長さ=16.6 |
1 | ||
| 90937-01151 |
GS13#,LS13#,MS13#,YS130 12G,長さ=24.9 |
1 | ||
| 90937-01152 |
GS13#,LS13#,MS13#,YS130 14G,長さ=29.0 |
1 | ||
| 90937-01314 |
GS13#,LS13#,MS13#,YS130 9G,長さ=18.5 |
1 | ||
| 90937-01132 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 10G,長さ=20.7 |
1 | ||
| 90937-01311 |
GS13#,LS13#,MS13#,YS130 3G |
1 | ||
| 90937-01149 |
GS13#,LS13#,MS13#,YS130 6G,長さ=12.4 |
1 | ||
| 90937-01312 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 5G |
1 | ||
| 90937-01151 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 12G,長さ=24.9 |
1 | ||
| 90937-01149 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 6G,長さ=12.4 |
1 | ||
| 90937-01312 |
GS13#,LS13#,MS13#,YS130 5G |
1 | ||
| 90937-01313 |
GS13#,LS13#,MS13#,YS130 7G,長さ=14.4 |
1 | ||
| 90937-01147 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 2G,厚さ=2.0 |
1 | ||
| 90937-01311 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 3G |
1 | ||
| 90937-01152 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 14G,長さ=29.0 |
1 | ||
| 90937-01313 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 7G,長さ=14.4 |
1 | ||
| 90937-01150 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 4G,厚さ=2.0 |
1 | ||
| 90937-01314 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 9G,長さ=18.5 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-30070 |
GS13#,LS13#..DSL,EFI,TD,TDE,TWC |
1 | ||
| 37110-30071 |
GS13#,LS13#..DSL,EFI,HTWC,TD,TDE,TWC |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-30070 |
GS13#,LS13#..DSL,EFI,TD,TDE,TWC |
1 | ||
| 37110-30071 |
GS13#,LS13#..DSL,EFI,HTWC,TD,TDE,TWC |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08082 |
GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,TD,TDE,TWC *8−1.25PX25−12 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-08015 |
GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,TD,TDE,TWC |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-00800 |
GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,TD,TDE,TWC |
4 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-30110 |
GS130,LS13#..ATM..(DSL,EFI,TDE) |
1 | ||
| 37120-30111 |
GS130,LS13#..ATM..(DSL,EFI,HTWC,TDE) |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-30110 |
GS130,LS13#..ATM..(DSL,EFI,TDE) |
1 | ||
| 37120-30111 |
GS130,LS13#..ATM..(DSL,EFI,HTWC,TDE) |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=33.5,厚さ=4.0,RR,T=4.0 |
1 | ||
| 90201-26005 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 90201-18182 |
GS130,136,LS13#,MS13#;GS131,YS130..(4FC,4HC,5F)..(EFI,LPG,TWC);GS131,YS130..(4FC,4H)..(DLX,SSL)..(LPG,SPC) 外径=33.5,厚さ=4.0,RR,T=4.0 |
1 | ||
| 90201-26005 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 90201-26005 |
GS130,136,LS13#,MS13#;GS131,YS130..(4FC,4HC,5F)..(EFI,LPG,TWC);GS131,YS130..(4FC,4H)..(DLX,SSL)..(LPG,SPC) 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18009 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# |
1 | ||
| 90179-18009 |
GS130,136,LS13#,MS13#;GS131,YS130..(4FC,4HC,5F)..(EFI,LPG,TWC);GS131,YS130..(4FC,4H)..(DLX,SSL)..(LPG,SPC) |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-30040 |
YS130..4HC,5F;YS130..4H..DLX;GS130,136,JZS130,LS130,136,MS130 |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10033 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 *10-1.25PX27-19 |
2 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-30010 |
GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWC,TWLPG |
1 | ||
(8709- )SPC ; (8709- )JZS130,MS135,137 ; (8908- )TD,TDE
SOLID TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-30110 |
GS130,LS13#..ATM..(DSL,EFI,TDE) |
1 | ||
| 37100-30111 |
GS130,LS13#..ATM..(DSL,EFI,HTWC,TDE) |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01148 |
GS13#,LS13#,MS13#,YS130 4G,厚さ=2.0 |
1 | ||
| 90937-01132 |
GS13#,LS13#,MS13#,YS130 10G,長さ=20.7 |
1 | ||
| 90937-01147 |
GS13#,LS13#,MS13#,YS130 2G,厚さ=2.0 |
1 | ||
| 90937-01150 |
GS13#,LS13#,MS13#,YS130 8G,長さ=16.6 |
1 | ||
| 90937-01151 |
GS13#,LS13#,MS13#,YS130 12G,長さ=24.9 |
1 | ||
| 90937-01152 |
GS13#,LS13#,MS13#,YS130 14G,長さ=29.0 |
1 | ||
| 90937-01314 |
GS13#,LS13#,MS13#,YS130 9G,長さ=18.5 |
1 | ||
| 90937-01132 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 10G,長さ=20.7 |
1 | ||
| 90937-01311 |
GS13#,LS13#,MS13#,YS130 3G |
1 | ||
| 90937-01149 |
GS13#,LS13#,MS13#,YS130 6G,長さ=12.4 |
1 | ||
| 90937-01312 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 5G |
1 | ||
| 90937-01151 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 12G,長さ=24.9 |
1 | ||
| 90937-01149 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 6G,長さ=12.4 |
1 | ||
| 90937-01312 |
GS13#,LS13#,MS13#,YS130 5G |
1 | ||
| 90937-01313 |
GS13#,LS13#,MS13#,YS130 7G,長さ=14.4 |
1 | ||
| 90937-01147 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 2G,厚さ=2.0 |
1 | ||
| 90937-01311 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 3G |
1 | ||
| 90937-01152 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 14G,長さ=29.0 |
1 | ||
| 90937-01313 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 7G,長さ=14.4 |
1 | ||
| 90937-01150 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 4G,厚さ=2.0 |
1 | ||
| 90937-01314 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 9G,長さ=18.5 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01148 |
GS13#,LS13#,MS13#,YS130 4G,厚さ=2.0 |
1 | ||
| 90937-01132 |
GS13#,LS13#,MS13#,YS130 10G,長さ=20.7 |
1 | ||
| 90937-01147 |
GS13#,LS13#,MS13#,YS130 2G,厚さ=2.0 |
1 | ||
| 90937-01150 |
GS13#,LS13#,MS13#,YS130 8G,長さ=16.6 |
1 | ||
| 90937-01151 |
GS13#,LS13#,MS13#,YS130 12G,長さ=24.9 |
1 | ||
| 90937-01152 |
GS13#,LS13#,MS13#,YS130 14G,長さ=29.0 |
1 | ||
| 90937-01314 |
GS13#,LS13#,MS13#,YS130 9G,長さ=18.5 |
1 | ||
| 90937-01132 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 10G,長さ=20.7 |
1 | ||
| 90937-01311 |
GS13#,LS13#,MS13#,YS130 3G |
1 | ||
| 90937-01149 |
GS13#,LS13#,MS13#,YS130 6G,長さ=12.4 |
1 | ||
| 90937-01312 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 5G |
1 | ||
| 90937-01151 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 12G,長さ=24.9 |
1 | ||
| 90937-01149 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 6G,長さ=12.4 |
1 | ||
| 90937-01312 |
GS13#,LS13#,MS13#,YS130 5G |
1 | ||
| 90937-01313 |
GS13#,LS13#,MS13#,YS130 7G,長さ=14.4 |
1 | ||
| 90937-01147 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 2G,厚さ=2.0 |
1 | ||
| 90937-01311 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 3G |
1 | ||
| 90937-01152 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 14G,長さ=29.0 |
1 | ||
| 90937-01313 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 7G,長さ=14.4 |
1 | ||
| 90937-01150 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 4G,厚さ=2.0 |
1 | ||
| 90937-01314 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 9G,長さ=18.5 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-30070 |
GS13#,LS13#..DSL,EFI,TD,TDE,TWC |
1 | ||
| 37110-30071 |
GS13#,LS13#..DSL,EFI,HTWC,TD,TDE,TWC |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08082 |
GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,TD,TDE,TWC *8−1.25PX25−12 |
4 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08082 |
GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,TD,TDE,TWC *8−1.25PX25−12 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-08015 |
GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,TD,TDE,TWC |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-00800 |
GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,TD,TDE,TWC |
4 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-30110 |
GS130,LS13#..ATM..(DSL,EFI,TDE) |
1 | ||
| 37120-30111 |
GS130,LS13#..ATM..(DSL,EFI,HTWC,TDE) |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=33.5,厚さ=4.0,RR,T=4.0 |
1 | ||
| 90201-26005 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 90201-18182 |
GS130,136,LS13#,MS13#;GS131,YS130..(4FC,4HC,5F)..(EFI,LPG,TWC);GS131,YS130..(4FC,4H)..(DLX,SSL)..(LPG,SPC) 外径=33.5,厚さ=4.0,RR,T=4.0 |
1 | ||
| 90201-26005 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 90201-26005 |
GS130,136,LS13#,MS13#;GS131,YS130..(4FC,4HC,5F)..(EFI,LPG,TWC);GS131,YS130..(4FC,4H)..(DLX,SSL)..(LPG,SPC) 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=33.5,厚さ=4.0,RR,T=4.0 |
1 | ||
| 90201-26005 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 90201-18182 |
GS130,136,LS13#,MS13#;GS131,YS130..(4FC,4HC,5F)..(EFI,LPG,TWC);GS131,YS130..(4FC,4H)..(DLX,SSL)..(LPG,SPC) 外径=33.5,厚さ=4.0,RR,T=4.0 |
1 | ||
| 90201-26005 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 90201-26005 |
GS130,136,LS13#,MS13#;GS131,YS130..(4FC,4HC,5F)..(EFI,LPG,TWC);GS131,YS130..(4FC,4H)..(DLX,SSL)..(LPG,SPC) 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18009 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# |
1 | ||
| 90179-18009 |
GS130,136,LS13#,MS13#;GS131,YS130..(4FC,4HC,5F)..(EFI,LPG,TWC);GS131,YS130..(4FC,4H)..(DLX,SSL)..(LPG,SPC) |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-30040 |
YS130..4HC,5F;YS130..4H..DLX;GS130,136,JZS130,LS130,136,MS130 |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10033 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 *10-1.25PX27-19 |
2 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-22013 |
GS13#,LS13#..DSL,EFI,HTWC,TD,TDE,TWC |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-30010 |
GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWC,TWLPG |
1 | ||
| Common parts | ||||
| 90179-10059 | ||||
| 90204-10002 | ||||
(8709- )LS130..HT..TD ; (8709- )GS13#,LS13#..DSL,EFI,HTWC,SPC,TDE,TWC
SHELL TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-30110 |
GS130,LS13#..ATM..(DSL,EFI,TDE) |
1 | ||
| 37100-30111 |
GS130,LS13#..ATM..(DSL,EFI,HTWC,TDE) |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01148 |
GS13#,LS13#,MS13#,YS130 4G,厚さ=2.0 |
1 | ||
| 90937-01132 |
GS13#,LS13#,MS13#,YS130 10G,長さ=20.7 |
1 | ||
| 90937-01147 |
GS13#,LS13#,MS13#,YS130 2G,厚さ=2.0 |
1 | ||
| 90937-01150 |
GS13#,LS13#,MS13#,YS130 8G,長さ=16.6 |
1 | ||
| 90937-01151 |
GS13#,LS13#,MS13#,YS130 12G,長さ=24.9 |
1 | ||
| 90937-01152 |
GS13#,LS13#,MS13#,YS130 14G,長さ=29.0 |
1 | ||
| 90937-01314 |
GS13#,LS13#,MS13#,YS130 9G,長さ=18.5 |
1 | ||
| 90937-01132 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 10G,長さ=20.7 |
1 | ||
| 90937-01311 |
GS13#,LS13#,MS13#,YS130 3G |
1 | ||
| 90937-01149 |
GS13#,LS13#,MS13#,YS130 6G,長さ=12.4 |
1 | ||
| 90937-01312 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 5G |
1 | ||
| 90937-01151 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 12G,長さ=24.9 |
1 | ||
| 90937-01149 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 6G,長さ=12.4 |
1 | ||
| 90937-01312 |
GS13#,LS13#,MS13#,YS130 5G |
1 | ||
| 90937-01313 |
GS13#,LS13#,MS13#,YS130 7G,長さ=14.4 |
1 | ||
| 90937-01147 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 2G,厚さ=2.0 |
1 | ||
| 90937-01311 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 3G |
1 | ||
| 90937-01152 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 14G,長さ=29.0 |
1 | ||
| 90937-01313 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 7G,長さ=14.4 |
1 | ||
| 90937-01150 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 4G,厚さ=2.0 |
1 | ||
| 90937-01314 |
GS131..EFI,TWC;GS131..SSL..SPC;GS130,136,LS13#,MS13#,YS130 9G,長さ=18.5 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-30070 |
GS13#,LS13#..DSL,EFI,TD,TDE,TWC |
1 | ||
| 37110-30071 |
GS13#,LS13#..DSL,EFI,HTWC,TD,TDE,TWC |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-30070 |
GS13#,LS13#..DSL,EFI,TD,TDE,TWC |
1 | ||
| 37110-30071 |
GS13#,LS13#..DSL,EFI,HTWC,TD,TDE,TWC |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08082 |
GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,TD,TDE,TWC *8−1.25PX25−12 |
4 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08082 |
GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,TD,TDE,TWC *8−1.25PX25−12 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-08015 |
GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,TD,TDE,TWC |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-00800 |
GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,TD,TDE,TWC |
4 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-30110 |
GS130,LS13#..ATM..(DSL,EFI,TDE) |
1 | ||
| 37120-30111 |
GS130,LS13#..ATM..(DSL,EFI,HTWC,TDE) |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-30110 |
GS130,LS13#..ATM..(DSL,EFI,TDE) |
1 | ||
| 37120-30111 |
GS130,LS13#..ATM..(DSL,EFI,HTWC,TDE) |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=33.5,厚さ=4.0,RR,T=4.0 |
1 | ||
| 90201-26005 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 90201-18182 |
GS130,136,LS13#,MS13#;GS131,YS130..(4FC,4HC,5F)..(EFI,LPG,TWC);GS131,YS130..(4FC,4H)..(DLX,SSL)..(LPG,SPC) 外径=33.5,厚さ=4.0,RR,T=4.0 |
1 | ||
| 90201-26005 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 90201-26005 |
GS130,136,LS13#,MS13#;GS131,YS130..(4FC,4HC,5F)..(EFI,LPG,TWC);GS131,YS130..(4FC,4H)..(DLX,SSL)..(LPG,SPC) 外径=36.6,厚さ=0.8,FR,T=0.8 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18009 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,LS13#,MS13# |
1 | ||
| 90179-18009 |
GS130,136,LS13#,MS13#;GS131,YS130..(4FC,4HC,5F)..(EFI,LPG,TWC);GS131,YS130..(4FC,4H)..(DLX,SSL)..(LPG,SPC) |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-30040 |
YS130..4HC,5F;YS130..4H..DLX;GS130,136,JZS130,LS130,136,MS130 |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10033 |
YS130..4HC,5F;YS130..4H..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131 *10-1.25PX27-19 |
2 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-22013 |
GS13#,LS13#..DSL,EFI,HTWC,TD,TDE,TWC |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-30010 |
GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWC,TWLPG |
1 | ||
| Common parts | ||||
| 90170-08015 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
