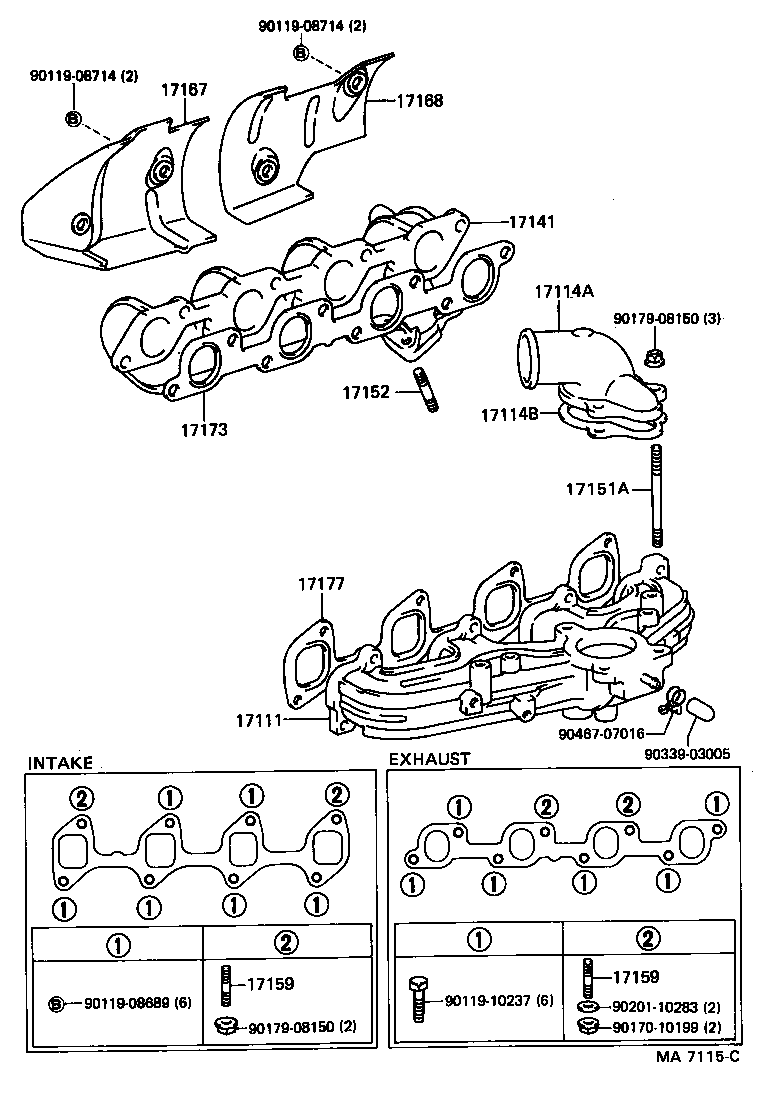

LS130-ATPEJ (1987)
Toyota Crown
(8709-8908)2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-54080 |
2L,2LT#..LS130 |
1 | ||
| 17114A - FLANGE, INTAKE | ||||
| 17114-54030 |
2L,2LT#..LS13# |
1 | ||
| 17114B - GASKET, INTAKE FLANGE | ||||
| 17116-54010 |
2L,2LT#..LS13# |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-54030 |
2L..LS130 |
1 | ||
| 17141-54050 |
2LT#..LS130 |
1 | ||
| 17151A - BOLT, STUD(FOR MANIFOLD TO VENTURI) | ||||
| 90116-08123 |
2L,2LT#..LS13# |
3 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10088 |
2L,2LT#..LS13# |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08220 |
2L,2LT#..LS13# INTAKE MANIFOLD SIDE |
2 | ||
| 90116-10141 |
2L..LS130,136 EXHAUST MANIFOLD |
2 | ||
| 90116-10140 |
2LT#..LS130,131 EXHAUST MANIFOLD |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08220 |
2L,2LT#..LS13# INTAKE MANIFOLD SIDE |
2 | ||
| 90116-10141 |
2L..LS130,136 EXHAUST MANIFOLD |
2 | ||
| 90116-10140 |
2LT#..LS130,131 EXHAUST MANIFOLD |
4 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17107-54011 |
2LT#..LS130 |
1 | ||
| 17167-54041 |
2L..LS13# |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-54011 |
2L..LS13# |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-54020 |
2LT#..LS130 |
1 | ||
| 17173-54011 |
2L..LS13# |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-54012 |
2L,2LT#..LS13# |
1 | ||
| Common parts | ||||
| 90119-08689 | ||||
| 90119-08714 | ||||
| 90119-10237 | ||||
| 90170-10199 | ||||
| 90179-08150 | ||||
| 90201-10283 | ||||
| 90339-03005 | ||||
| 90467-07016 | ||||
ILLUST NO. 2 OF 2(8709-8908)2LT#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-54010 |
2LT#..LS130 |
1 | ||
| 04176 - SEAL KIT, TURBOCHARGER | ||||
| 04176-54010 |
2LT#..LS130 |
1 | ||
| 17021 - HOUSING SUB-ASSY, BEARING | ||||
| 17021-54020 |
2LT#..LS130 |
1 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
2LT#..LS130,131 |
2 | ||
| 17021C - RING, HOLE SNAP(FOR BEARING HOUSING) | ||||
| 90521-99007 |
2LT#..LS130,131 |
1 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-08200 |
2LT#..LS130,131 |
4 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-54020 |
2LTHE..LS130 |
1 | ||
| 17201-54011 |
2LT..LS130 |
1 | ||
| 17224 - HOUSING, COMPRESSOR | ||||
| 17224-54010 |
2LT#..LS130 |
1 | ||
| 17224A - UNION(FOR COMPRESSOR HOUSING) | ||||
| 90404-51040 |
2LT#..LS130 |
1 | ||
| 17224B - PLUG, TAPER SCREW | ||||
| 90344-51014 |
2LT#..LS130,131 |
1 | ||
| 17229 - BAND, V | ||||
| 17229-28010 |
2LT#..LS130,131 |
1 | ||
| 17239 - CLAMP, V, NO.2 | ||||
| 17239-28010 |
2LT..LS130 |
1 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 90445-12111 |
2LT#..LS130 |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-30600 |
2LTHE..LS130 |
2 | ||
| 96132-30600 |
2LT#..LS130 |
2 | ||
| 96132-41100 |
2LT..LS130 |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-30600 |
2LTHE..LS130 |
2 | ||
| 96132-30600 |
2LT#..LS130 |
2 | ||
| 96132-41100 |
2LT..LS130 |
2 | ||
| Common parts | ||||
| 90179-08012 | ||||
| 90254-03013 | ||||
| 90523-04002 | ||||
| 91651-B0820 | ||||

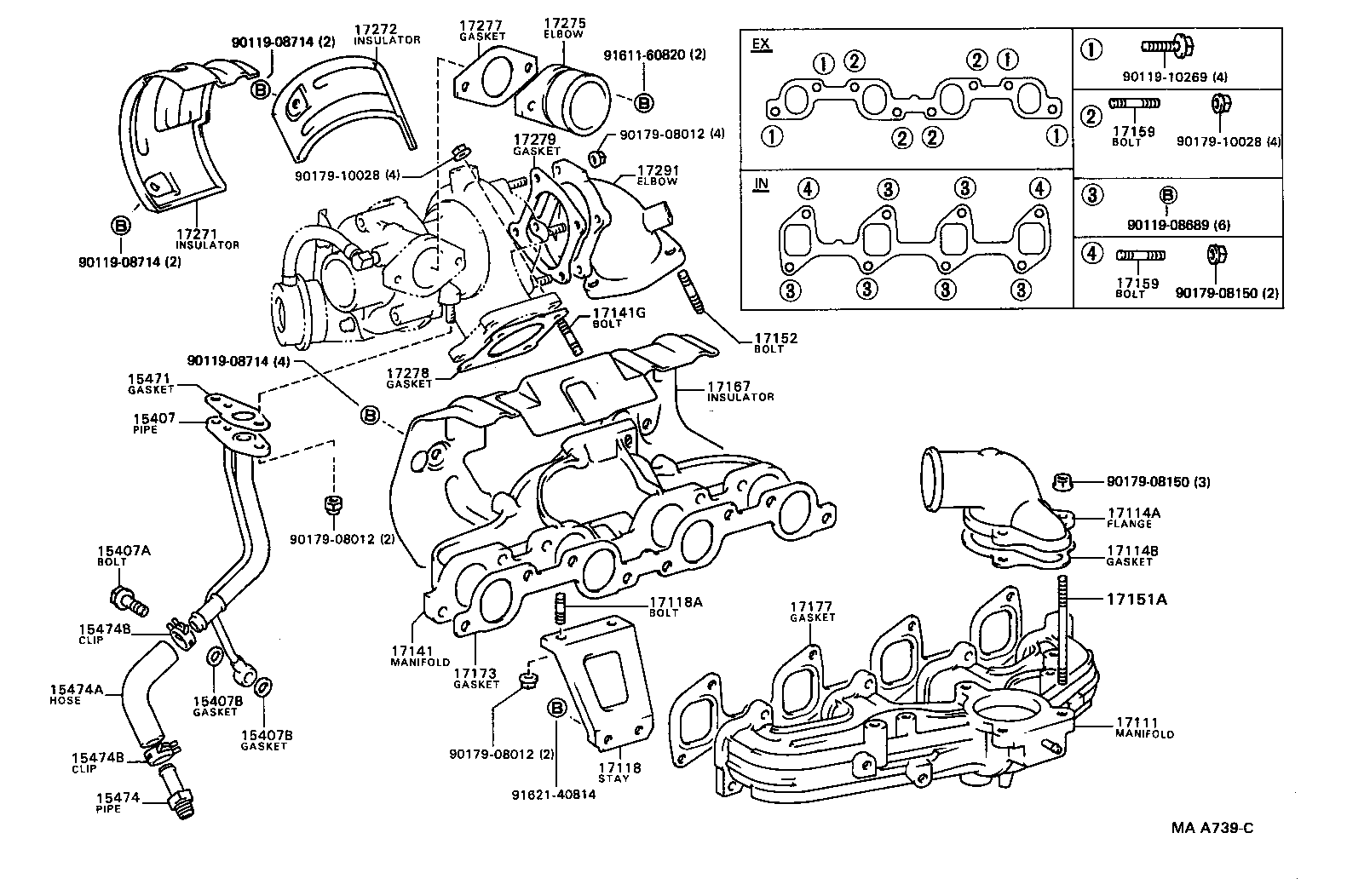

ILLUST NO. 1 OF 2(8709-8908)2LT#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-54011 |
2LT#..LS130 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-10006 |
2LT#..LS130 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-10035 |
2LT#..LS130,131 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-10035 |
2LT#..LS130,131 |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-54010 |
2LT#..LS130 |
1 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 15476-54010 |
2LT#..LS130 |
1 | ||
| 15474A - HOSE, TURBO OIL OUTLET | ||||
| 90923-02080 |
2LT#..LS130 |
1 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-26002 |
2LT#..LS130,131 |
2 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-26002 |
2LT#..LS130,131 |
2 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-54080 |
2L,2LT#..LS130 |
1 | ||
| 17114A - FLANGE, INTAKE | ||||
| 17114-54030 |
2L,2LT#..LS13# |
1 | ||
| 17114B - GASKET, INTAKE FLANGE | ||||
| 17116-54010 |
2L,2LT#..LS13# |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-54011 |
2LT#..LS130 |
1 | ||
| 17118A - BOLT, STUD(FOR MANIFOLD STAY) | ||||
| 90116-08056 |
2LT#..LS130 |
2 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-54030 |
2L..LS130 |
1 | ||
| 17141-54050 |
2LT#..LS130 |
1 | ||
| 17141G - BOLT, STUD(FOR TURBOCHARGER) | ||||
| 90116-10094 |
2LT#..LS130,131 |
4 | ||
| 17151A - BOLT, STUD(FOR MANIFOLD TO VENTURI) | ||||
| 90116-08123 |
2L,2LT#..LS13# |
3 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10088 |
2L,2LT#..LS13# |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08220 |
2L,2LT#..LS13# INTAKE MANIFOLD SIDE |
2 | ||
| 90116-10141 |
2L..LS130,136 EXHAUST MANIFOLD |
2 | ||
| 90116-10140 |
2LT#..LS130,131 EXHAUST MANIFOLD |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08220 |
2L,2LT#..LS13# INTAKE MANIFOLD SIDE |
2 | ||
| 90116-10141 |
2L..LS130,136 EXHAUST MANIFOLD |
2 | ||
| 90116-10140 |
2LT#..LS130,131 EXHAUST MANIFOLD |
4 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17107-54011 |
2LT#..LS130 |
1 | ||
| 17167-54041 |
2L..LS13# |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-54020 |
2LT#..LS130 |
1 | ||
| 17173-54011 |
2L..LS13# |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-54012 |
2L,2LT#..LS13# |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-54010 |
2LT#..LS130 |
1 | ||
| 17271-54040 |
2LT#..LS130 |
1 | ||
| 17272 - INSULATOR, TURBO, NO.2 | ||||
| 17272-54010 |
2LT#..LS130 |
1 | ||
| 17275 - ELBOW, COMPRESSOR OUTLET | ||||
| 17275-54010 |
2LT#..LS130 |
1 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| 17277-54010 |
2LT#..LS130 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-54010 |
2LT#..LS130 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-64010 |
2LT#..LS130,131 |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-54010 |
2LT#..LS130 |
1 | ||
| Common parts | ||||
| 90119-08689 | ||||
| 90119-08714 | ||||
| 90119-10269 | ||||
| 90179-08012 | ||||
| 90179-08150 | ||||
| 90179-10028 | ||||
| 91611-60820 | ||||
| 91621-40814 | ||||

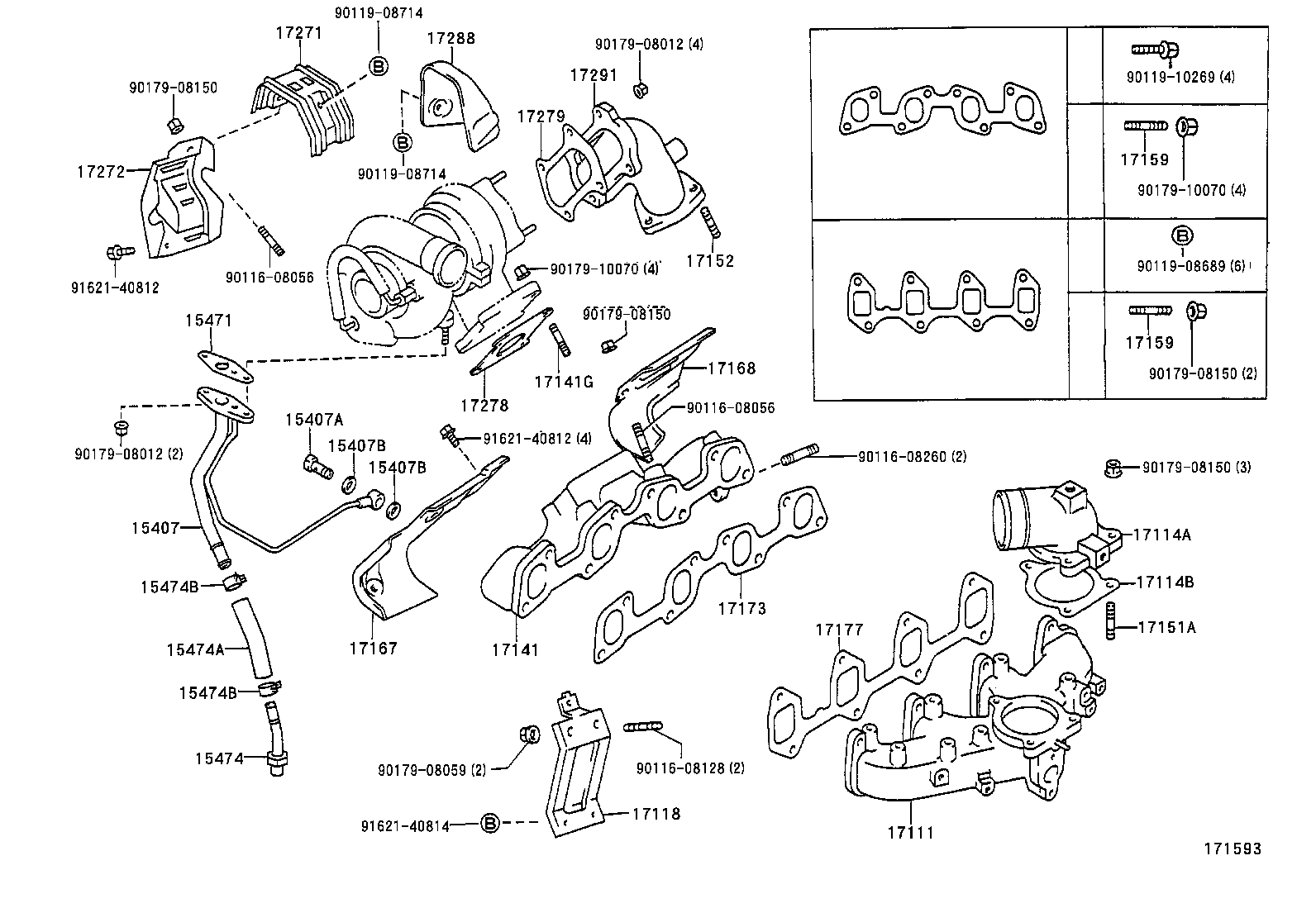

ILLUST NO. 1 OF 2(9110-9512)2LT#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-08056 | ||||
| 90116-08128 | ||||
| 90116-08260 | ||||
| 90119-08689 | ||||
| 90119-08714 | ||||
| 90119-10269 | ||||
| 90179-08012 | ||||
| 90179-08059 | ||||
| 90179-08150 | ||||
| 90179-10070 | ||||
| 91621-40812 | ||||
| 91621-40814 | ||||

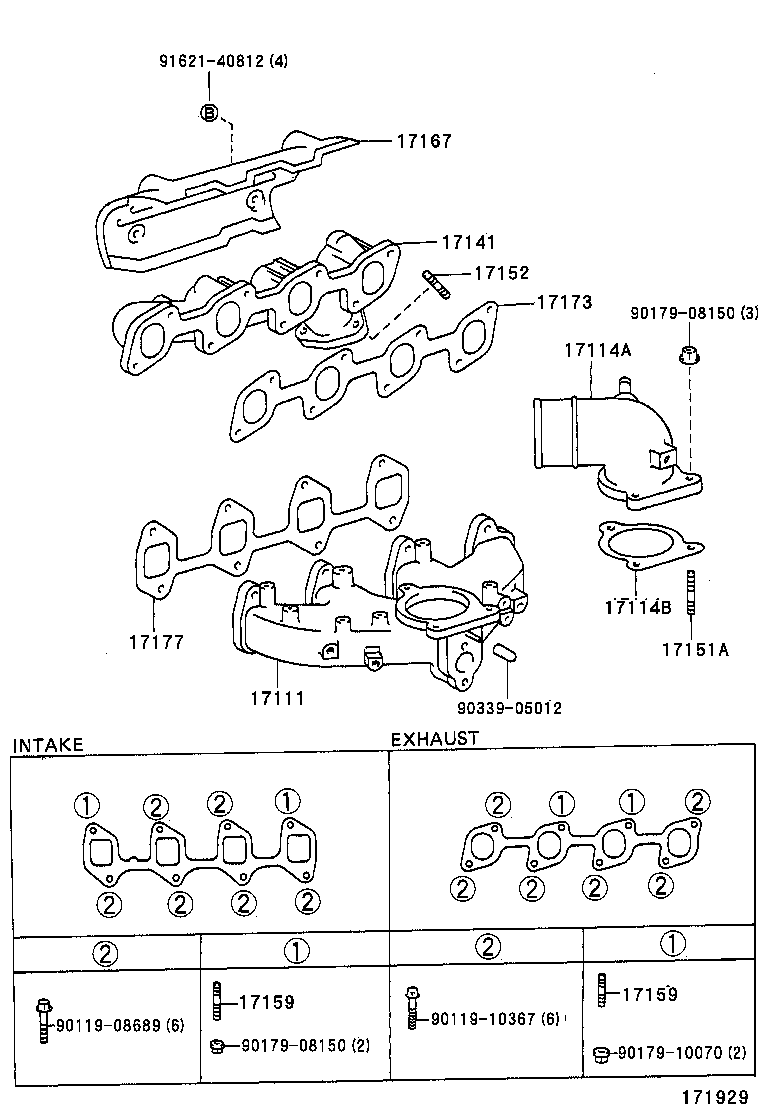

(9110-9409)2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08689 | ||||
| 90119-10367 | ||||
| 90179-08150 | ||||
| 90179-10070 | ||||
| 90339-05012 | ||||
| 91621-40812 | ||||

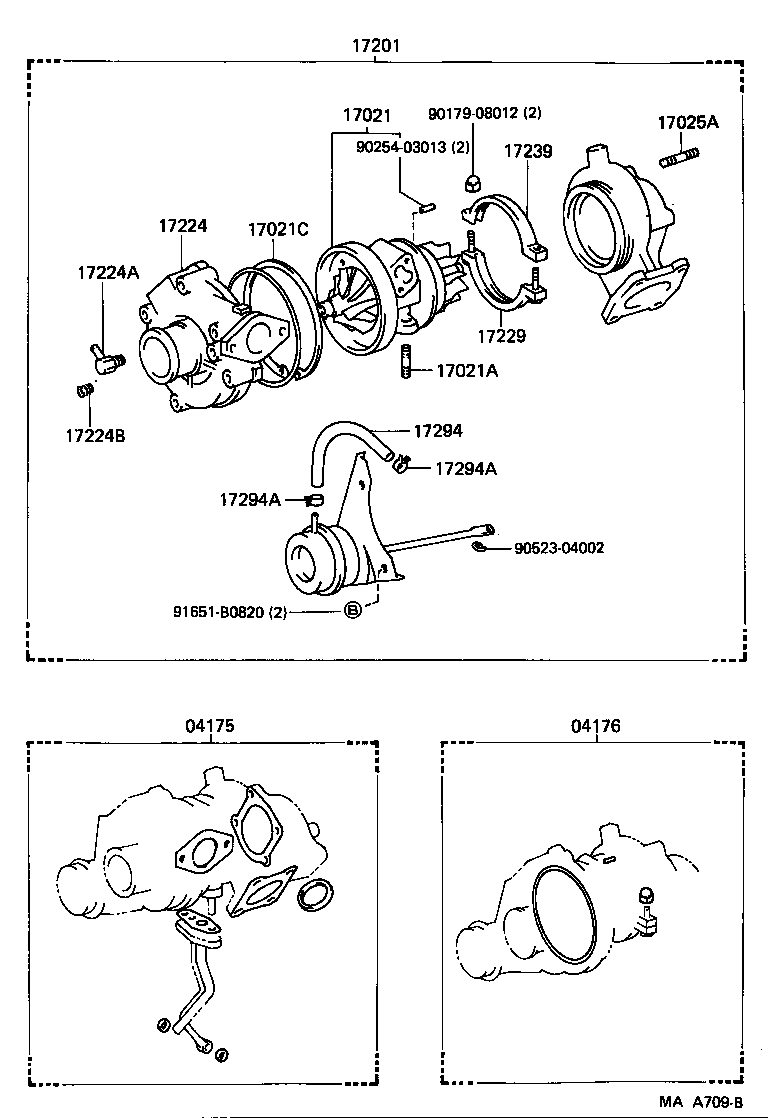

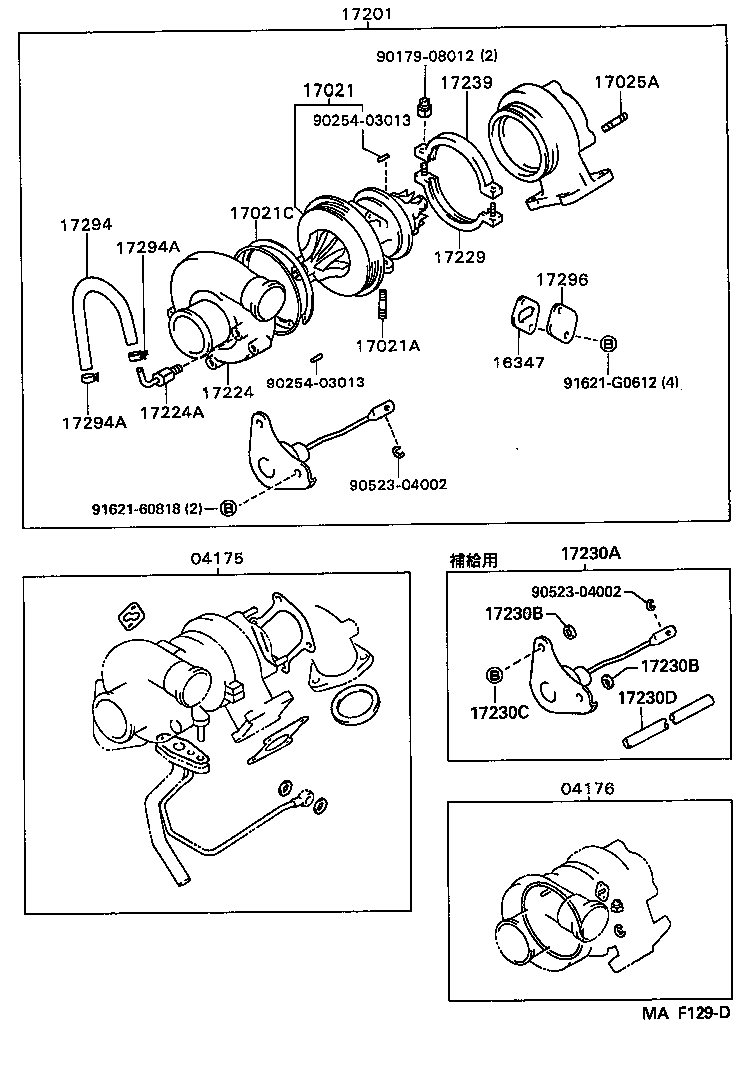

ILLUST NO. 2 OF 2(9110-9512)2LT#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08012 | ||||
| 90254-03013 | ||||
| 90523-04002 | ||||
| 91621-60818 | ||||
| 91621-G0612 | ||||
