LS130-ATPEJ (1987)
Toyota Crown
Production
Sep 1987
-
Aug 1989
Engine
2LTHE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

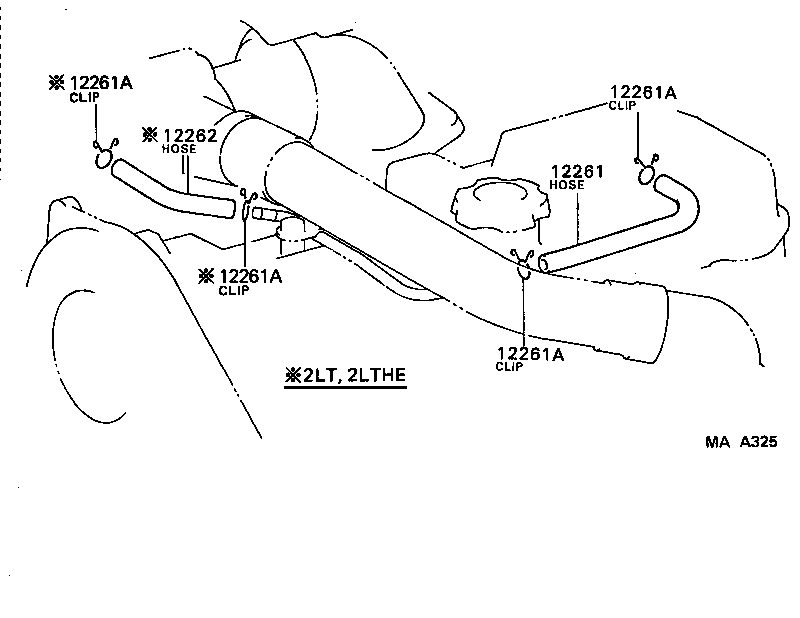

(8709- )2L,2LT#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12261 - HOSE, VENTILATION | ||||
| 12261-54020 |
2L,2LT#..LS13# |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15120 |
2LT#..LS130 |
4 | ||
| 90467-15120 |
2L..LS13# |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15120 |
2LT#..LS130 |
4 | ||
| 90467-15120 |
2L..LS13# |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15120 |
2LT#..LS130 |
4 | ||
| 90467-15120 |
2L..LS13# |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15120 |
2LT#..LS130 |
4 | ||
| 90467-15120 |
2L..LS13# |
2 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-54010 |
2LT#..LS130 |
1 | ||

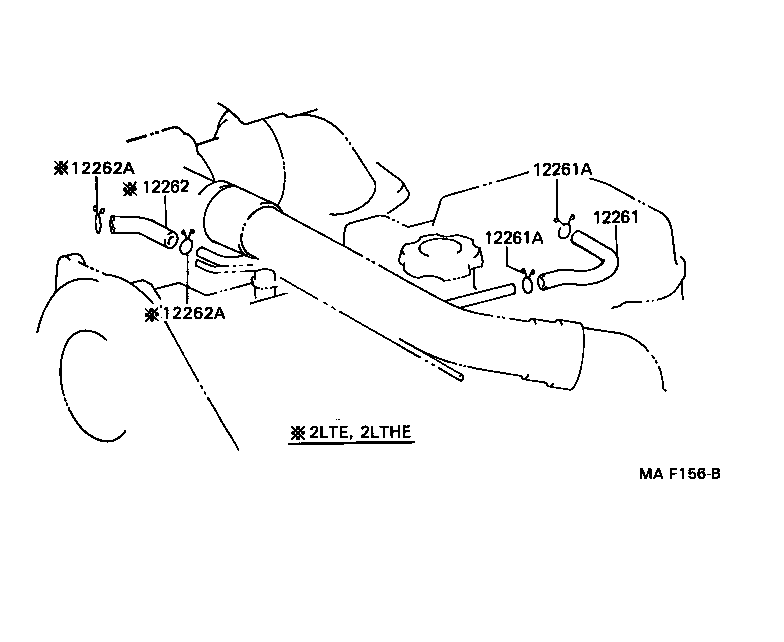

(9110-9512)2LT#,2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
