LS130-ATMSX (1987)
Toyota Crown

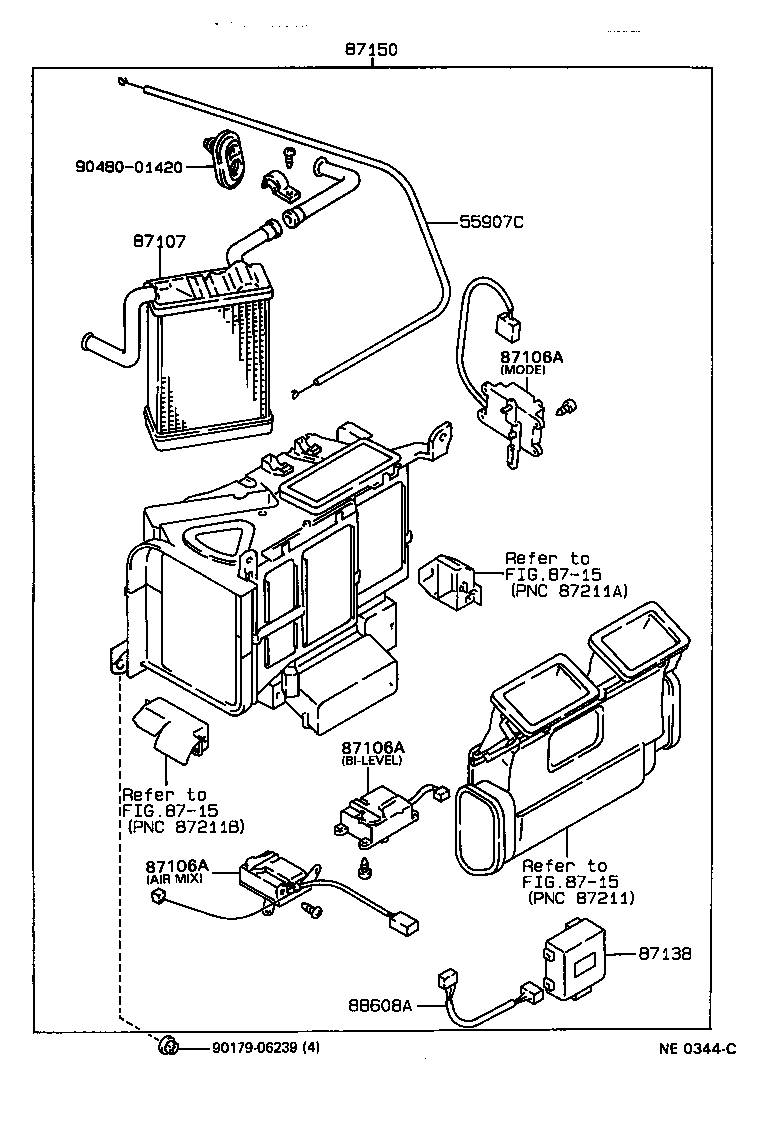

ILLUST NO. 2 OF 2(8709-8908)GS13#,LS13#,MS130..DLX,SAL,SALEX,SDX,SPE,SSL ; (8908- )GS130,136,LS13
HEATER UNIT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907C - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 87286-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-30070 |
GS13#,LS13#,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL FRESH-RECIRC |
1 | ||
| 87106-30090 |
GS13#,LS13#,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ｴｱﾐｯｸｽ |
1 | ||
| 87106-30020 |
GS13#,LS13#,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL BI-LEVEL |
1 | ||
| 87106-30010 |
GS13#,LS13#,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾓｰﾄﾞ |
1 | ||
| 87106-30020 |
GS130,131,LS130..HT..(4FC,5F)..(SALEX,SPE,SSL) BI-LEVE |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-30070 |
GS13#,LS13#,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL FRESH-RECIRC |
1 | ||
| 87106-30090 |
GS13#,LS13#,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ｴｱﾐｯｸｽ |
1 | ||
| 87106-30020 |
GS13#,LS13#,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL BI-LEVEL |
1 | ||
| 87106-30010 |
GS13#,LS13#,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾓｰﾄﾞ |
1 | ||
| 87106-30020 |
GS130,131,LS130..HT..(4FC,5F)..(SALEX,SPE,SSL) BI-LEVE |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-30070 |
GS13#,LS13#,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL FRESH-RECIRC |
1 | ||
| 87106-30090 |
GS13#,LS13#,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ｴｱﾐｯｸｽ |
1 | ||
| 87106-30020 |
GS13#,LS13#,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL BI-LEVEL |
1 | ||
| 87106-30010 |
GS13#,LS13#,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾓｰﾄﾞ |
1 | ||
| 87106-30020 |
GS130,131,LS130..HT..(4FC,5F)..(SALEX,SPE,SSL) BI-LEVE |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-30390 |
GS13#,JZS13#,LS13#,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-30330 |
GS13#,JZS13#,LS13#,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ=517,ﾌﾞﾛﾜ |
1 | ||
| 87138-30360 |
GS13#,LS13#,MS130..DLX,SAL,SALEX,SDX,SPE,SSL RADIATOR |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-30520 |
GS130,131,LS130..HT..(4FC,5F)..(EFI,TD,TDE) |
1 | ||
| 87150-30521 |
GS130,131,LS130..HT..(4FC,5F)..(SALEX,SPE,SSL) |
1 | ||
| 88608A - HARNESS SUB-ASSY, WIRING AIR CONDITIONER, NO.2 | ||||
| 88608-30640 |
GS13#,LS13#,MS130..DLX,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| Common parts | ||||
| 90179-06239 | ||||
| 90480-01420 | ||||
| Linked diagrams | ||||
| 8715 | ||||

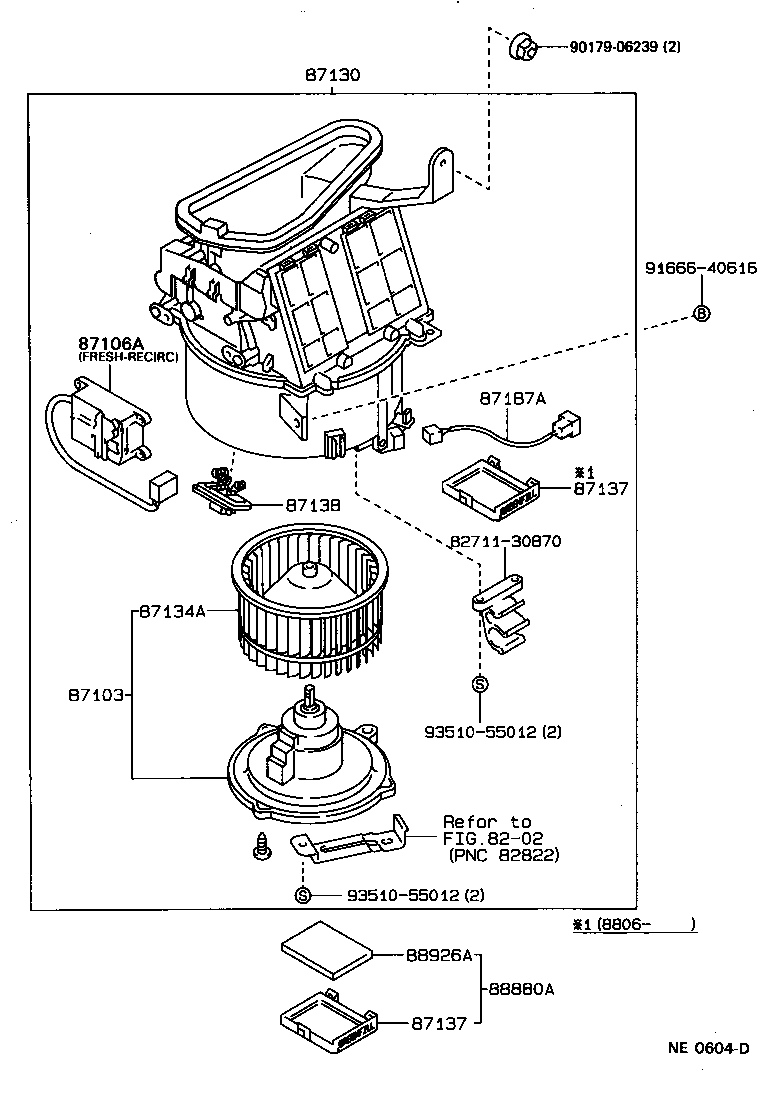

ILLUST NO. 1 OF 2(8709- )GS13#,JZS13#,LS13#,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL
BLOWER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-30280 |
GS13#,LS13#,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-30070 |
GS13#,LS13#,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL FRESH-RECIRC |
1 | ||
| 87106-30090 |
GS13#,LS13#,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ｴｱﾐｯｸｽ |
1 | ||
| 87106-30020 |
GS13#,LS13#,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL BI-LEVEL |
1 | ||
| 87106-30010 |
GS13#,LS13#,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾓｰﾄﾞ |
1 | ||
| 87106-30020 |
GS130,131,LS130..HT..(4FC,5F)..(SALEX,SPE,SSL) BI-LEVE |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-30410 |
GS13#,LS13#,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 87134A - FAN, BLOWER, NO.2 | ||||
| 87134-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 87137 - COVER, HEATER BLOWER | ||||
| 87137-30010 |
GS13#,JZS13#,LS13#,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 87137 - COVER, HEATER BLOWER | ||||
| 87137-30010 |
GS13#,JZS13#,LS13#,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-30330 |
GS13#,JZS13#,LS13#,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ=517,ﾌﾞﾛﾜ |
1 | ||
| 87138-30360 |
GS13#,LS13#,MS130..DLX,SAL,SALEX,SDX,SPE,SSL RADIATOR |
1 | ||
| 87187A - WIRE, BLOWER MOTOR LEAD | ||||
| 87187-30010 |
GS13#,JZS13#,LS13#,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 88880A - FILTER & ACCESSORY ASSY, AIR | ||||
| 88880-30010 |
GS13#,JZS13#,LS13#,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 88926A - ODOR, CARTRIDGE | ||||
| 88926-30110 |
GS13#,JZS13#,LS13#,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| Common parts | ||||
| 82711-30870 | ||||
| 90179-06239 | ||||
| 91666-40616 | ||||
| 93510-55012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
