LS130-ATMSX (1987)
Toyota Crown
Production
Sep 1987
-
Aug 1989
Engine
2LT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8709- )ATM

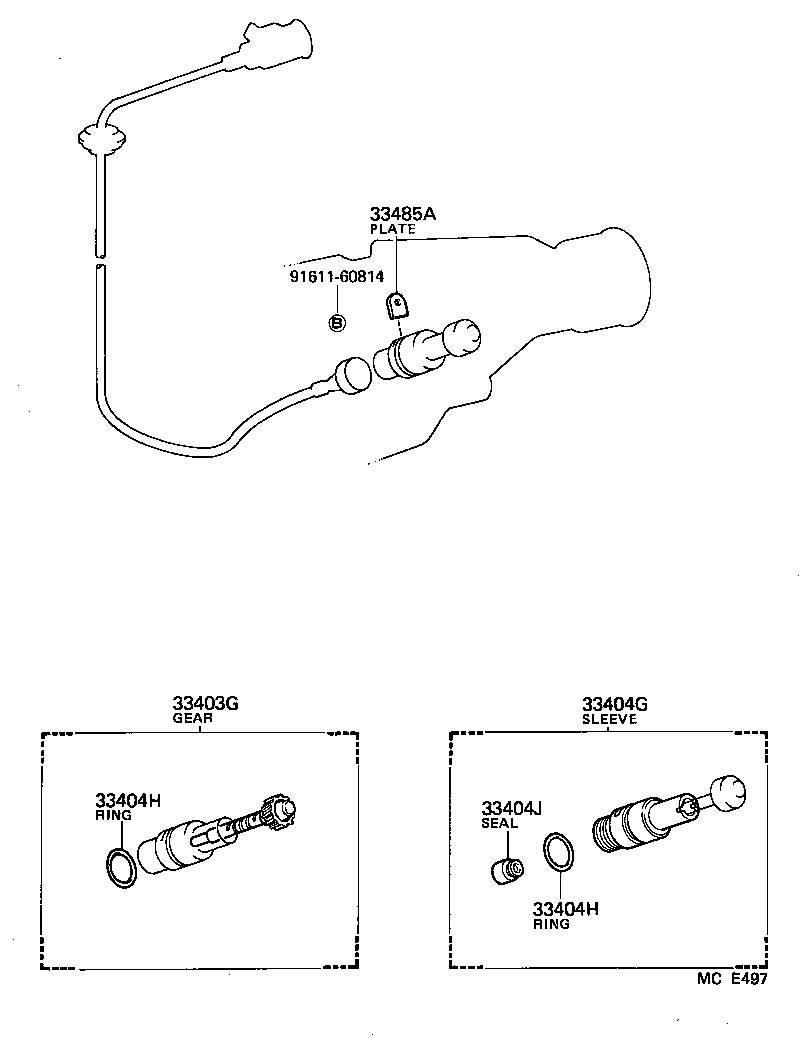

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33404G - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM) | ||||
| 33404-30040 |
GS130,131,JZS13#,LS13#,MS13#,UZS131,YS130..ATM |
1 | ||
| 33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18004 |
GS130,131,JZS13#,LS13#,MS13#,UZS131,YS130..ATM |
1 | ||
| 33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18004 |
GS130,131,JZS13#,LS13#,MS13#,UZS131,YS130..ATM |
1 | ||
| 33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
GS130,131,LS13#,MS13#,YS130..ATM |
1 | ||
| 33485A - PLATE, SPEEDOMETER SLEEVE LOCK (ATM) | ||||
| 33485-30020 |
GS130,131,JZS13#,LS13#,MS13#,UZS131,YS130..ATM |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
