LS130-ATMEX (1987)
Toyota Crown
Production
Sep 1987
-
Aug 1989
Engine
2LT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8709- )GS130,LS130,MS130,YS130..HT,SED

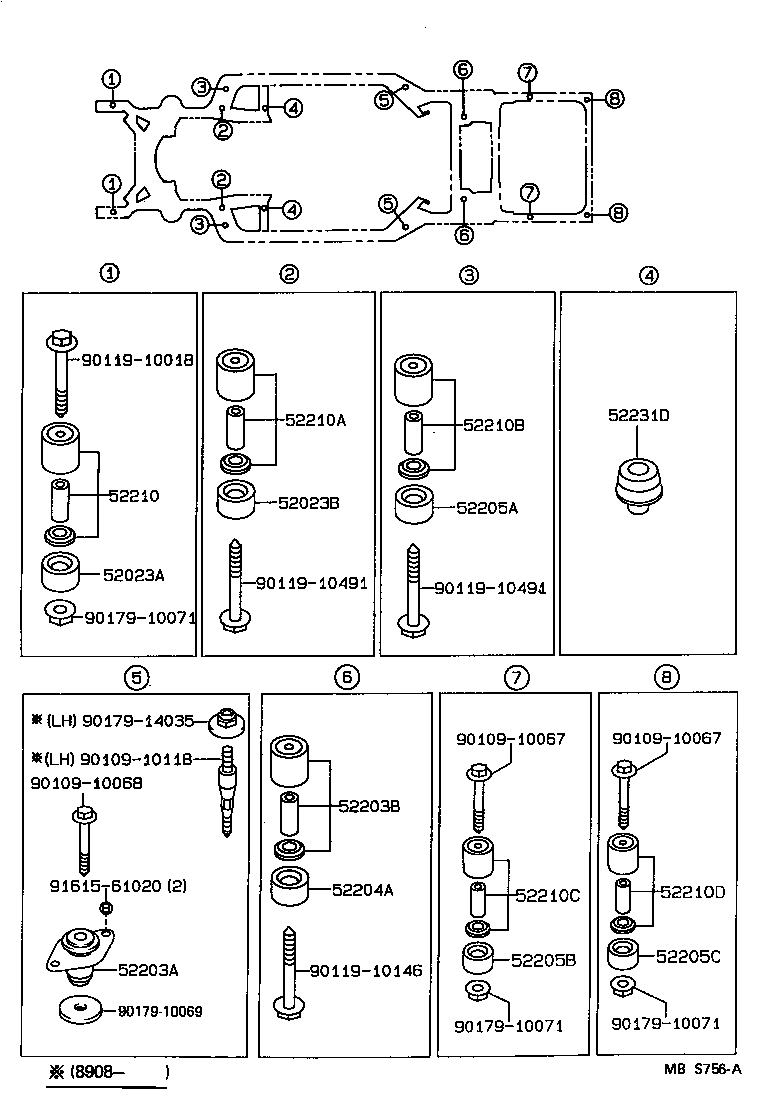

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023A - CUSHION SUB-ASSY, BODY MOUNTING, REAR LOWER | ||||
| 52023-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 52023B - CUSHION SUB-ASSY, BODY MOUNTING, REAR LOWER | ||||
| 52023-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 52203A - CUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER | ||||
| 52203-30050 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130 |
2 | ||
| 52203B - CUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER | ||||
| 52203-30040 |
GS130,JZS130,LS130,MS130,YS130 |
2 | ||
| 52204A - CUSHION SUB-ASSY, BODY MOUNTING, REAR LOWER | ||||
| 52204-30020 |
GS130,JZS130,LS130,MS130,YS130 |
2 | ||
| 52205A - CUSHION SUB-ASSY, BODY MOUNTING, LOWER | ||||
| 52205-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 52205B - CUSHION SUB-ASSY, BODY MOUNTING, LOWER | ||||
| 52023-30030 |
GS130,JZS130,LS130,MS130,YS130 |
2 | ||
| 52205C - CUSHION SUB-ASSY, BODY MOUNTING, LOWER | ||||
| 52205-30060 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130 |
2 | ||
| 52210 - CUSHION ASSY, BODY MOUNTING, UPPER | ||||
| 52210-30010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 52210A - CUSHION ASSY, BODY MOUNTING, UPPER | ||||
| 52210-30010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 52210B - CUSHION ASSY, BODY MOUNTING, UPPER | ||||
| 52210-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 52210C - CUSHION ASSY, BODY MOUNTING, UPPER | ||||
| 52210-30010 |
GS130,JZS130,LS130,MS130,YS130 |
2 | ||
| 52210D - CUSHION ASSY, BODY MOUNTING, UPPER | ||||
| 52210-30040 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130 |
2 | ||
| 52231D - CUSHION, BODY MOUNTING, REAR UPPER | ||||
| 52231-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| Common parts | ||||
| 90109-10067 | ||||
| 90109-10068 | ||||
| 90109-10118 | ||||
| 90119-10018 | ||||
| 90119-10146 | ||||
| 90119-10491 | ||||
| 90179-10069 | ||||
| 90179-10071 | ||||
| 90179-14035 | ||||
| 91615-61020 | ||||
