LS130-AEPJJ (1987)
Toyota Crown

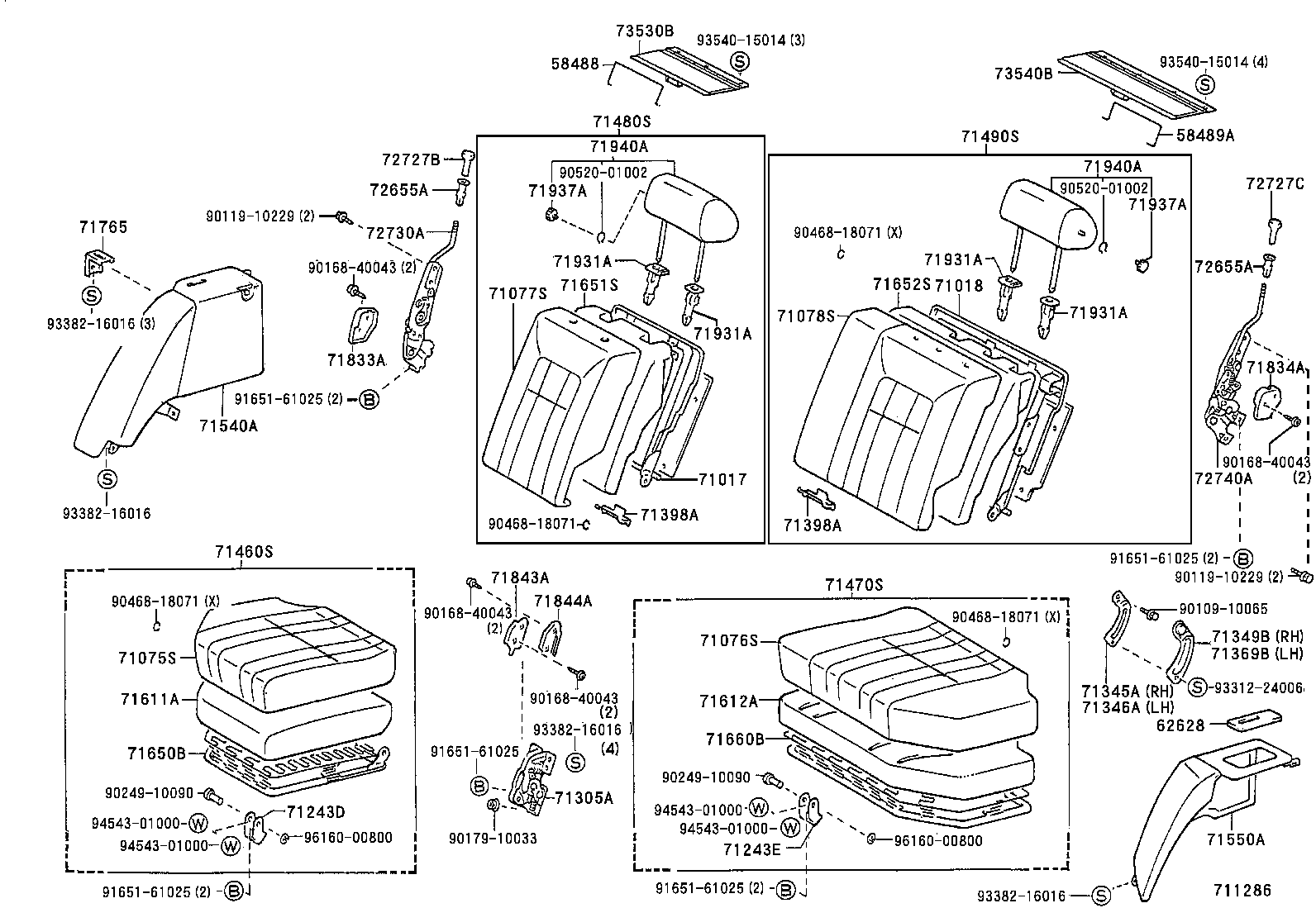

ILLUST NO. 1 OF 4(8709- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-3007006 |
GS130,131,LS130,131..SED..SALEX SABLE,TRIM4# |
1 | ||
| 71065-3007002 |
GS130,131,LS130,131..SED..SALEX MAROON,TRIM3# |
1 | ||
| 71065-3007004 |
GS130,131,LS130,131..SED..SALEX BLUE,TRIM8# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3A29002 |
GS130,LS130..SED..SALEX MAROON,TRIM3# |
1 | ||
| 71077-3A29004 |
GS130,LS130..SED..SALEX BLUE,TRIM8# |
1 | ||
| 71077-3A29006 |
GS130,LS130..SED..SALEX SABLE,TRIM4# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-3052004 |
GS130,131,LS130,131..SED..SALEX ***,BLUE,TRIM8# |
1 | ||
| 71560-3052006 |
GS130,131,LS130,131..SED..SALEX ***,SABLE,TRIM4# |
1 | ||
| 71560-3052002 |
GS130,131,LS130,131..SED..SALEX ***,MAROON,TRIM3# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3A40004 |
GS130,LS130..SED..SALEX ***,BLUE,TRIM8# |
1 | ||
| 71480-3A40006 |
GS130,LS130..SED..SALEX ***,SABLE,TRIM4# |
1 | ||
| 71480-3A40002 |
GS130,LS130..SED..SALEX ***,MAROON,TRIM3# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30580 |
GS130,131,LS130,MS130,YS130..SED..(DLX,SAL,SDX,STD) |
1 | ||
| 71611-30480 |
GS130,131,LS130,131..SED..SALEX |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30380 |
GS130,131,LS130,MS130,YS130..SED..(DLX,SAL,SDX,STD) |
1 | ||
| 71650-30360 |
GS130,131,LS130,131..SED..SALEX |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30590 |
GS130,LS130..SED..SALEX |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30430 |
GS130,LS130..SED..SALEX |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30011 |
GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) |
2 | ||
| Common parts | ||||
| 90119-08076 | ||||
| 90468-18071 | ||||
ILLUST NO. 1 OF 4(8709- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-3007006 |
GS130,131,LS130,131..SED..SALEX SABLE,TRIM4# |
1 | ||
| 71065-3007002 |
GS130,131,LS130,131..SED..SALEX MAROON,TRIM3# |
1 | ||
| 71065-3007004 |
GS130,131,LS130,131..SED..SALEX BLUE,TRIM8# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3A29002 |
GS130,LS130..SED..SALEX MAROON,TRIM3# |
1 | ||
| 71077-3A29004 |
GS130,LS130..SED..SALEX BLUE,TRIM8# |
1 | ||
| 71077-3A29006 |
GS130,LS130..SED..SALEX SABLE,TRIM4# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-3052004 |
GS130,131,LS130,131..SED..SALEX ***,BLUE,TRIM8# |
1 | ||
| 71560-3052006 |
GS130,131,LS130,131..SED..SALEX ***,SABLE,TRIM4# |
1 | ||
| 71560-3052002 |
GS130,131,LS130,131..SED..SALEX ***,MAROON,TRIM3# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3A40004 |
GS130,LS130..SED..SALEX ***,BLUE,TRIM8# |
1 | ||
| 71480-3A40006 |
GS130,LS130..SED..SALEX ***,SABLE,TRIM4# |
1 | ||
| 71480-3A40002 |
GS130,LS130..SED..SALEX ***,MAROON,TRIM3# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30580 |
GS130,131,LS130,MS130,YS130..SED..(DLX,SAL,SDX,STD) |
1 | ||
| 71611-30480 |
GS130,131,LS130,131..SED..SALEX |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30380 |
GS130,131,LS130,MS130,YS130..SED..(DLX,SAL,SDX,STD) |
1 | ||
| 71650-30360 |
GS130,131,LS130,131..SED..SALEX |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30590 |
GS130,LS130..SED..SALEX |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30430 |
GS130,LS130..SED..SALEX |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30011 |
GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3038002 |
GS130,LS130..SED..SALEX MAROON,TRIM3# |
1 | ||
| 72830-3038004 |
GS130,LS130..SED..SALEX BLUE,TRIM8# |
1 | ||
| 72830-3038006 |
GS130,LS130..SED..SALEX SABLE,TRIM4# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SALEX,SDX,SPE,SSL) |
2 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SALEX,SDX,SPE,SSL) |
2 | ||
| 72830C - CLIP, REAR SEAT CENTER ARMREST | ||||
| 90468-12070 |
GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| Common parts | ||||
| 90119-06100 | ||||
| 90119-08076 | ||||
| 90468-18071 | ||||
ILLUST NO. 3 OF 4(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72159-3003002 |
GS131..4HC..SPC;MS13#..ROY,ROYG,SDX;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130..(HT,SED)..SALEX MAROON,TRIM3#,右側 |
1 | ||
| 72159-3004002 |
GS131..4HC..SPC;MS13#..ROY,ROYG,SDX;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130..(HT,SED)..SALEX MAROON,TRIM3#,左側 |
1 | ||
| 72159-3004006 |
GS131..4HC..SPC;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SALEX) SABLE,TRIM4#,左側 |
1 | ||
| 72159-3004004 |
GS131..4HC..SPC;MS13#..ROY,ROYG,SDX;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130..(HT,SED)..SALEX BLUE,TRIM8#,左側 |
1 | ||
| 72159-3003004 |
GS131..4HC..SPC;MS13#..ROY,ROYG,SDX;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130..(HT,SED)..SALEX BLUE,TRIM8#,右側 |
1 | ||
| 72159-3003006 |
GS131..4HC..SPC;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SALEX) SABLE,TRIM4#,右側 |
1 | ||
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72159-3003002 |
GS131..4HC..SPC;MS13#..ROY,ROYG,SDX;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130..(HT,SED)..SALEX MAROON,TRIM3#,右側 |
1 | ||
| 72159-3004002 |
GS131..4HC..SPC;MS13#..ROY,ROYG,SDX;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130..(HT,SED)..SALEX MAROON,TRIM3#,左側 |
1 | ||
| 72159-3004006 |
GS131..4HC..SPC;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SALEX) SABLE,TRIM4#,左側 |
1 | ||
| 72159-3004004 |
GS131..4HC..SPC;MS13#..ROY,ROYG,SDX;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130..(HT,SED)..SALEX BLUE,TRIM8#,左側 |
1 | ||
| 72159-3003004 |
GS131..4HC..SPC;MS13#..ROY,ROYG,SDX;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130..(HT,SED)..SALEX BLUE,TRIM8#,右側 |
1 | ||
| 72159-3003006 |
GS131..4HC..SPC;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SALEX) SABLE,TRIM4#,右側 |
1 | ||
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72159-3003002 |
GS131..4HC..SPC;MS13#..ROY,ROYG,SDX;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130..(HT,SED)..SALEX MAROON,TRIM3#,右側 |
1 | ||
| 72159-3004002 |
GS131..4HC..SPC;MS13#..ROY,ROYG,SDX;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130..(HT,SED)..SALEX MAROON,TRIM3#,左側 |
1 | ||
| 72159-3004006 |
GS131..4HC..SPC;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SALEX) SABLE,TRIM4#,左側 |
1 | ||
| 72159-3004004 |
GS131..4HC..SPC;MS13#..ROY,ROYG,SDX;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130..(HT,SED)..SALEX BLUE,TRIM8#,左側 |
1 | ||
| 72159-3003004 |
GS131..4HC..SPC;MS13#..ROY,ROYG,SDX;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130..(HT,SED)..SALEX BLUE,TRIM8#,右側 |
1 | ||
| 72159-3003006 |
GS131..4HC..SPC;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SALEX) SABLE,TRIM4#,右側 |
1 | ||
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72159-3003002 |
GS131..4HC..SPC;MS13#..ROY,ROYG,SDX;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130..(HT,SED)..SALEX MAROON,TRIM3#,右側 |
1 | ||
| 72159-3004002 |
GS131..4HC..SPC;MS13#..ROY,ROYG,SDX;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130..(HT,SED)..SALEX MAROON,TRIM3#,左側 |
1 | ||
| 72159-3004006 |
GS131..4HC..SPC;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SALEX) SABLE,TRIM4#,左側 |
1 | ||
| 72159-3004004 |
GS131..4HC..SPC;MS13#..ROY,ROYG,SDX;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130..(HT,SED)..SALEX BLUE,TRIM8#,左側 |
1 | ||
| 72159-3003004 |
GS131..4HC..SPC;MS13#..ROY,ROYG,SDX;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130..(HT,SED)..SALEX BLUE,TRIM8#,右側 |
1 | ||
| 72159-3003006 |
GS131..4HC..SPC;GS131..(4FC,5F)..(ROY,SALEX);GS130,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SALEX) SABLE,TRIM4#,右側 |
1 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-30060 |
MS130..SDX;GS131..HT..4HC..SPC;GS130,LS130..(HT,SED)..SALEX;GS131..HT..(4FC,5F)..(ROY,SALEX) |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-30060 |
MS130..SDX;GS131..HT..4HC..SPC;GS130,LS130..(HT,SED)..SALEX;GS131..HT..(4FC,5F)..(ROY,SALEX) |
1 | ||
| 72211B - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-30100 |
MS130..SDX;GS131..HT..4HC..SPC;GS130,LS130..(HT,SED)..SALEX;GS131..HT..(4FC,5F)..(ROY,SALEX) |
1 | ||
| 72213A - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-2201012 |
MS130..SDX;GS131..HT..4HC..SPC;GS130,LS130..(HT,SED)..SALEX;GS131..HT..(4FC,5F)..(ROY,SALEX) MAROON,TRIM3# |
1 | ||
| 72213-2201014 |
MS130..SDX;GS131..HT..4HC..SPC;GS130,LS130..(HT,SED)..SALEX;GS131..HT..(4FC,5F)..(ROY,SALEX) BLUE,TRIM8# |
1 | ||
| 72213-2201016 |
GS131..HT..4HC..SPC;GS130,LS130..(HT,SED)..SALEX;GS131..HT..(4FC,5F)..(ROY,SALEX) SABLE,TRIM4# |
1 | ||
| 72302B - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING | ||||
| 72302-30030 |
MS130..SDX;GS131..HT..4HC..SPC;GS130,LS130..(HT,SED)..SALEX;GS131..HT..(4FC,5F)..(ROY,SALEX) |
2 | ||
| 72302B - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING | ||||
| 72302-30030 |
MS130..SDX;GS131..HT..4HC..SPC;GS130,LS130..(HT,SED)..SALEX;GS131..HT..(4FC,5F)..(ROY,SALEX) |
2 | ||
| Common parts | ||||
| 90119-08076 | ||||
| 90179-10105 | ||||
| 90389-06003 | ||||
| 90506-08006 | ||||
| 90506-14053 | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
| 91612-40616 | ||||
| 94543-01000 | ||||
ILLUST NO. 1 OF 4(8709- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-3007006 |
GS130,131,LS130,131..SED..SALEX SABLE,TRIM4# |
1 | ||
| 71065-3007002 |
GS130,131,LS130,131..SED..SALEX MAROON,TRIM3# |
1 | ||
| 71065-3007004 |
GS130,131,LS130,131..SED..SALEX BLUE,TRIM8# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3A29002 |
GS130,LS130..SED..SALEX MAROON,TRIM3# |
1 | ||
| 71077-3A29004 |
GS130,LS130..SED..SALEX BLUE,TRIM8# |
1 | ||
| 71077-3A29006 |
GS130,LS130..SED..SALEX SABLE,TRIM4# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-3052004 |
GS130,131,LS130,131..SED..SALEX ***,BLUE,TRIM8# |
1 | ||
| 71560-3052006 |
GS130,131,LS130,131..SED..SALEX ***,SABLE,TRIM4# |
1 | ||
| 71560-3052002 |
GS130,131,LS130,131..SED..SALEX ***,MAROON,TRIM3# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3A40004 |
GS130,LS130..SED..SALEX ***,BLUE,TRIM8# |
1 | ||
| 71480-3A40006 |
GS130,LS130..SED..SALEX ***,SABLE,TRIM4# |
1 | ||
| 71480-3A40002 |
GS130,LS130..SED..SALEX ***,MAROON,TRIM3# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30580 |
GS130,131,LS130,MS130,YS130..SED..(DLX,SAL,SDX,STD) |
1 | ||
| 71611-30480 |
GS130,131,LS130,131..SED..SALEX |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30380 |
GS130,131,LS130,MS130,YS130..SED..(DLX,SAL,SDX,STD) |
1 | ||
| 71650-30360 |
GS130,131,LS130,131..SED..SALEX |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30590 |
GS130,LS130..SED..SALEX |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30430 |
GS130,LS130..SED..SALEX |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006042 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-1006054 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001042 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71931-1001054 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001040 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-1006040 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71930-10060D0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-10060J0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-10010D0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71931-10010J0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006042 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-1006054 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001042 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71931-1001054 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001040 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-1006040 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71930-10060D0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-10060J0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-10010D0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71931-10010J0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-3025004 |
GS130,131,LS130,131..SED..SALEX BLUE,TRIM8# |
1 | ||
| 71940-3025006 |
GS130,131,LS130,131..SED..SALEX SABLE,TRIM4# |
1 | ||
| 71940-3025002 |
GS130,131,LS130,131..SED..SALEX MAROON,TRIM3# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30011 |
GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3038002 |
GS130,LS130..SED..SALEX MAROON,TRIM3# |
1 | ||
| 72830-3038004 |
GS130,LS130..SED..SALEX BLUE,TRIM8# |
1 | ||
| 72830-3038006 |
GS130,LS130..SED..SALEX SABLE,TRIM4# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SALEX,SDX,SPE,SSL) |
2 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SALEX,SDX,SPE,SSL) |
2 | ||
| 72830C - CLIP, REAR SEAT CENTER ARMREST | ||||
| 90468-12070 |
GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| Common parts | ||||
| 90119-06100 | ||||
| 90119-08076 | ||||
| 90468-18071 | ||||
ILLUST NO. 1 OF 4(8709- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58908C - LOCK SUB-ASSY, REAR SEAT ARMREST | ||||
| 58908-22010 |
GS130,LS130..SED..SALEX;GS131,MS135,137..ROY,ROYG |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-3007006 |
GS130,131,LS130,131..SED..SALEX SABLE,TRIM4# |
1 | ||
| 71065-3007002 |
GS130,131,LS130,131..SED..SALEX MAROON,TRIM3# |
1 | ||
| 71065-3007004 |
GS130,131,LS130,131..SED..SALEX BLUE,TRIM8# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3A29002 |
GS130,LS130..SED..SALEX MAROON,TRIM3# |
1 | ||
| 71077-3A29004 |
GS130,LS130..SED..SALEX BLUE,TRIM8# |
1 | ||
| 71077-3A29006 |
GS130,LS130..SED..SALEX SABLE,TRIM4# |
1 | ||
| 71349D - COVER, REAR SEAT BACK HINGE, RH | ||||
| 71349-3004002 |
GS130,LS130..SED..SALEX;GS131,MS135,137..ROY,ROYG MAROON,TRIM3# |
1 | ||
| 71349-3004006 |
GS130,LS130..SED..SALEX;GS131,MS135,137..ROY,ROYG SABLE,TRIM4# |
1 | ||
| 71349-3004004 |
GS130,LS130..SED..SALEX;GS131,MS135,137..ROY,ROYG BLUE,TRIM8# |
1 | ||
| 71379B - COVER, REAR SEAT BACK HINGE, LH | ||||
| 71349-3004004 |
GS131,JZS131..HT..ROY;GS130,131,LS130,131..SED..SALEX BLUE,TRIM8# |
1 | ||
| 71349-3004002 |
GS131,JZS131..HT..ROY;GS130,131,LS130,131..SED..SALEX MAROON,TRIM3# |
1 | ||
| 71349-3004006 |
GS131,JZS131..HT..ROY;GS130,131,LS130,131..SED..SALEX SABLE,TRIM4# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-3052004 |
GS130,131,LS130,131..SED..SALEX ***,BLUE,TRIM8# |
1 | ||
| 71560-3052006 |
GS130,131,LS130,131..SED..SALEX ***,SABLE,TRIM4# |
1 | ||
| 71560-3052002 |
GS130,131,LS130,131..SED..SALEX ***,MAROON,TRIM3# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3A40004 |
GS130,LS130..SED..SALEX ***,BLUE,TRIM8# |
1 | ||
| 71480-3A40006 |
GS130,LS130..SED..SALEX ***,SABLE,TRIM4# |
1 | ||
| 71480-3A40002 |
GS130,LS130..SED..SALEX ***,MAROON,TRIM3# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30580 |
GS130,131,LS130,MS130,YS130..SED..(DLX,SAL,SDX,STD) |
1 | ||
| 71611-30480 |
GS130,131,LS130,131..SED..SALEX |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30380 |
GS130,131,LS130,MS130,YS130..SED..(DLX,SAL,SDX,STD) |
1 | ||
| 71650-30360 |
GS130,131,LS130,131..SED..SALEX |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30590 |
GS130,LS130..SED..SALEX |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30430 |
GS130,LS130..SED..SALEX |
1 | ||
| 71730A - SPRING ASSY, REAR SEAT BACK, LOWER RH | ||||
| 71730-30060 |
GS130,131,LS130,131..SED..SALEX |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006042 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-1006054 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001042 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71931-1001054 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001040 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-1006040 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71930-10060D0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-10060J0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-10010D0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71931-10010J0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006042 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-1006054 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001042 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71931-1001054 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001040 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-1006040 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71930-10060D0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-10060J0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-10010D0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71931-10010J0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-3025004 |
GS130,131,LS130,131..SED..SALEX BLUE,TRIM8# |
1 | ||
| 71940-3025006 |
GS130,131,LS130,131..SED..SALEX SABLE,TRIM4# |
1 | ||
| 71940-3025002 |
GS130,131,LS130,131..SED..SALEX MAROON,TRIM3# |
1 | ||
| 72802A - HINGE SUB-ASSY, ARMREST CONSOLE | ||||
| 72802-30010 |
GS130,LS130..SED..SALEX;GS131,MS135,137..ROY,ROYG |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3038002 |
GS130,LS130..SED..SALEX MAROON,TRIM3# |
1 | ||
| 72830-3038004 |
GS130,LS130..SED..SALEX BLUE,TRIM8# |
1 | ||
| 72830-3038006 |
GS130,LS130..SED..SALEX SABLE,TRIM4# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SALEX,SDX,SPE,SSL) |
2 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SALEX,SDX,SPE,SSL) |
2 | ||
| 72830C - CLIP, REAR SEAT CENTER ARMREST | ||||
| 90468-12070 |
GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| Common parts | ||||
| 90119-06100 | ||||
| 90119-08076 | ||||
| 90386-12027 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 93520-54014 | ||||
| 94110-40800 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 1 OF 4(8709- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58908C - LOCK SUB-ASSY, REAR SEAT ARMREST | ||||
| 58908-22010 |
GS130,LS130..SED..SALEX;GS131,MS135,137..ROY,ROYG |
1 | ||
| 71349D - COVER, REAR SEAT BACK HINGE, RH | ||||
| 71349-3004002 |
GS130,LS130..SED..SALEX;GS131,MS135,137..ROY,ROYG MAROON,TRIM3# |
1 | ||
| 71349-3004006 |
GS130,LS130..SED..SALEX;GS131,MS135,137..ROY,ROYG SABLE,TRIM4# |
1 | ||
| 71349-3004004 |
GS130,LS130..SED..SALEX;GS131,MS135,137..ROY,ROYG BLUE,TRIM8# |
1 | ||
| 71379B - COVER, REAR SEAT BACK HINGE, LH | ||||
| 71349-3004004 |
GS131,JZS131..HT..ROY;GS130,131,LS130,131..SED..SALEX BLUE,TRIM8# |
1 | ||
| 71349-3004002 |
GS131,JZS131..HT..ROY;GS130,131,LS130,131..SED..SALEX MAROON,TRIM3# |
1 | ||
| 71349-3004006 |
GS131,JZS131..HT..ROY;GS130,131,LS130,131..SED..SALEX SABLE,TRIM4# |
1 | ||
| 71730A - SPRING ASSY, REAR SEAT BACK, LOWER RH | ||||
| 71730-30060 |
GS130,131,LS130,131..SED..SALEX |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006042 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-1006054 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001042 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71931-1001054 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001040 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-1006040 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71930-10060D0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-10060J0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-10010D0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71931-10010J0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006042 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-1006054 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001042 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71931-1001054 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001040 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-1006040 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71930-10060D0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-10060J0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-10010D0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71931-10010J0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006042 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-1006054 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001042 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71931-1001054 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001040 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-1006040 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71930-10060D0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-10060J0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-10010D0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71931-10010J0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006042 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-1006054 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001042 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71931-1001054 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001040 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-1006040 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71930-10060D0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-10060J0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-10010D0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71931-10010J0 |
GS130..SPC;GS131..HT..(ROY,SALEX);GS130,LS130..(HT,SED)..(SAL,SALEX) ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-3025004 |
GS130,131,LS130,131..SED..SALEX BLUE,TRIM8# |
1 | ||
| 71940-3025006 |
GS130,131,LS130,131..SED..SALEX SABLE,TRIM4# |
1 | ||
| 71940-3025002 |
GS130,131,LS130,131..SED..SALEX MAROON,TRIM3# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-3025004 |
GS130,131,LS130,131..SED..SALEX BLUE,TRIM8# |
1 | ||
| 71940-3025006 |
GS130,131,LS130,131..SED..SALEX SABLE,TRIM4# |
1 | ||
| 71940-3025002 |
GS130,131,LS130,131..SED..SALEX MAROON,TRIM3# |
1 | ||
| 72802A - HINGE SUB-ASSY, ARMREST CONSOLE | ||||
| 72802-30010 |
GS130,LS130..SED..SALEX;GS131,MS135,137..ROY,ROYG |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3038002 |
GS130,LS130..SED..SALEX MAROON,TRIM3# |
1 | ||
| 72830-3038004 |
GS130,LS130..SED..SALEX BLUE,TRIM8# |
1 | ||
| 72830-3038006 |
GS130,LS130..SED..SALEX SABLE,TRIM4# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SALEX,SDX,SPE,SSL) |
2 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SALEX,SDX,SPE,SSL) |
2 | ||
| 72830C - CLIP, REAR SEAT CENTER ARMREST | ||||
| 90468-12070 |
GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90119-08076 | ||||
| 90386-12027 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 93520-54014 | ||||
| 94110-40800 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8513 | ||||
ILLUST NO. 2 OF 4(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30280 |
LS130..HT..SALEX;GS131,MS130,YS130..DLX,SALEX,SDX,SSL,STD;GS130,LS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) |
2 | ||
| 71621-30300 |
GS130,131,LS130,131..SED..SALEX |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30280 |
LS130..HT..SALEX;GS131,MS130,YS130..DLX,SALEX,SDX,SSL,STD;GS130,LS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) |
2 | ||
| 71621-30300 |
GS130,131,LS130,131..SED..SALEX |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30280 |
LS130..HT..SALEX;GS131,MS130,YS130..DLX,SALEX,SDX,SSL,STD;GS130,LS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) |
2 | ||
| 71621-30300 |
GS130,131,LS130,131..SED..SALEX |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30280 |
LS130..HT..SALEX;GS131,MS130,YS130..DLX,SALEX,SDX,SSL,STD;GS130,LS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) |
2 | ||
| 71621-30300 |
GS130,131,LS130,131..SED..SALEX |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30280 |
LS130..HT..SALEX;GS131,MS130,YS130..DLX,SALEX,SDX,SSL,STD;GS130,LS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) |
2 | ||
| 71621-30300 |
GS130,131,LS130,131..SED..SALEX |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30280 |
LS130..HT..SALEX;GS131,MS130,YS130..DLX,SALEX,SDX,SSL,STD;GS130,LS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) |
2 | ||
| 71621-30300 |
GS130,131,LS130,131..SED..SALEX |
2 | ||
| 71622A - PAD, REAR SEAT CUSHION SILENCER, B | ||||
| 71622-30140 |
GS130,131,LS130,131..SED..SALEX |
2 | ||
| 71622-30130 |
GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) |
2 | ||
| 71622A - PAD, REAR SEAT CUSHION SILENCER, B | ||||
| 71622-30140 |
GS130,131,LS130,131..SED..SALEX |
2 | ||
| 71622-30130 |
GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) |
2 | ||
| 71622A - PAD, REAR SEAT CUSHION SILENCER, B | ||||
| 71622-30140 |
GS130,131,LS130,131..SED..SALEX |
2 | ||
| 71622-30130 |
GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) |
2 | ||
| 71622A - PAD, REAR SEAT CUSHION SILENCER, B | ||||
| 71622-30140 |
GS130,131,LS130,131..SED..SALEX |
2 | ||
| 71622-30130 |
GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) |
2 | ||
| 71622A - PAD, REAR SEAT CUSHION SILENCER, B | ||||
| 71622-30140 |
GS130,131,LS130,131..SED..SALEX |
2 | ||
| 71622-30130 |
GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) |
2 | ||
| 71622A - PAD, REAR SEAT CUSHION SILENCER, B | ||||
| 71622-30140 |
GS130,131,LS130,131..SED..SALEX |
2 | ||
| 71622-30130 |
GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) |
2 | ||
| 71623A - PAD, REAR SEAT CUSHION SILENCER, C | ||||
| 71623-30090 |
GS130,131,LS130,131..SED..SALEX |
2 | ||
| 71623A - PAD, REAR SEAT CUSHION SILENCER, C | ||||
| 71623-30090 |
GS130,131,LS130,131..SED..SALEX |
2 | ||
| 71623A - PAD, REAR SEAT CUSHION SILENCER, C | ||||
| 71623-30090 |
GS130,131,LS130,131..SED..SALEX |
2 | ||
| 71623A - PAD, REAR SEAT CUSHION SILENCER, C | ||||
| 71623-30090 |
GS130,131,LS130,131..SED..SALEX |
2 | ||
| 71665 - PAD, REAR SEAT BACK SIDE, RH | ||||
| 71665-30040 |
GS130,LS130,MS130,YS130..SED..(DLX,SAL,SDX) |
1 | ||
| 71666 - PAD, REAR SEAT BACK SIDE, LH | ||||
| 71666-30030 |
GS130,LS130,MS130,YS130..SED..(DLX,SAL,SDX) |
1 | ||
| 71667A - PAD, REAR SEAT BACK, CENTER A | ||||
| 71667-30060 |
GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) |
1 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
JZS131..ROY;GS131..HT..ROY;GS130,131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX) 90 X 130 |
4 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
JZS131..ROY;GS131..HT..ROY;GS130,131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX) 90 X 130 |
4 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
JZS131..ROY;GS131..HT..ROY;GS130,131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX) 90 X 130 |
4 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
JZS131..ROY;GS131..HT..ROY;GS130,131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX) 90 X 130 |
4 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
JZS131..ROY;GS131..HT..ROY;GS130,131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX) 90 X 130 |
4 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
JZS131..ROY;GS131..HT..ROY;GS130,131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX) 90 X 130 |
4 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
JZS131..ROY;GS131..HT..ROY;GS130,131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX) 90 X 130 |
4 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
JZS131..ROY;GS131..HT..ROY;GS130,131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX) 90 X 130 |
4 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
JZS131..ROY;GS131..HT..ROY;GS130,131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX) 90 X 130 |
4 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
JZS131..ROY;GS131..HT..ROY;GS130,131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX) 90 X 130 |
4 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
JZS131..ROY;GS131..HT..ROY;GS130,131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX) 90 X 130 |
4 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
JZS131..ROY;GS131..HT..ROY;GS130,131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX) 90 X 130 |
4 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
JZS131..ROY;GS131..HT..ROY;GS130,131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX) 90 X 130 |
4 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
JZS131..ROY;GS131..HT..ROY;GS130,131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX) 90 X 130 |
4 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
JZS131..ROY;GS131..HT..ROY;GS130,131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX) 90 X 130 |
4 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
JZS131..ROY;GS131..HT..ROY;GS130,131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX) 90 X 130 |
4 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
JZS131..ROY;GS131..HT..ROY;GS130,131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX) 90 X 130 |
4 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
JZS131..ROY;GS131..HT..ROY;GS130,131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX) 90 X 130 |
4 | ||
ILLUST NO. 4 OF 4(8709-8908)SED
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 4(9110-9512)JZS130,LS130..WG ; (9512- )JZS130,LS130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-10065 | ||||
| 90119-10229 | ||||
| 90168-40043 | ||||
| 90179-10033 | ||||
| 90249-10090 | ||||
| 90468-18071 | ||||
| 90520-01002 | ||||
| 91651-61025 | ||||
| 93312-24006 | ||||
| 93382-16016 | ||||
| 93540-15014 | ||||
| 94543-01000 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
