LS130-AEPJJ (1987)
Toyota Crown
ILLUST NO. 4 OF 4(8709-8908)SED
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 4(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3053002 |
GS130,131,LS130,131..(SED,WG)..SALEX MAROON,TRIM3#,右側 |
1 | ||
| 71910-3053004 |
GS130,131,LS130,131..(SED,WG)..SALEX BLUE,TRIM8#,右側 |
1 | ||
| 71910-3053006 |
GS130,131,LS130,131..(SED,WG)..SALEX SABLE,TRIM4#,右側 |
1 | ||
| 71920-3029002 |
GS130,131,LS130,131..(SED,WG)..SALEX MAROON,TRIM3#,左側 |
1 | ||
| 71920-3029004 |
GS130,131,LS130,131..(SED,WG)..SALEX BLUE,TRIM8#,左側 |
1 | ||
| 71920-3029006 |
GS130,131,LS130,131..(SED,WG)..SALEX SABLE,TRIM4#,左側 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006042 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-1006054 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001042 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71930-1006040 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1001054 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001040 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-10060D0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71931-10010J0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-10010D0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71930-10060J0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006042 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-1006054 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001042 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71930-1006040 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1001054 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001040 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-10060D0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71931-10010J0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-10010D0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71930-10060J0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30120 |
GS131..SED..4FC..SPC;GS131,JZS131,MS135..(SALEX,SSL)..(SPC,TWC);GS13#,JZS131,LS13#,MS13#,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWC,TWLPG)..NOB |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-22020D0 |
GS130..4H..DLX;GS131..SED..SPC;GS131..SSL..SPC;GS130..4FC..DLX..HTWC;GS130..(4FC,4HC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,4HC,5F)..(DLX,SAL,SALEX,SDX,SPE)..EFI;GS131,136,LS13#,MS13#,YS130..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,LPG,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 72791-2202032 |
GS130..4H..DLX;GS131..SED..SPC;GS131..SSL..SPC;GS130..(4FC,4HC,5F)..(DLX,SAL,SALEX,SDX,SPE);GS131,136,LS13#,MS13#,YS130..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 72791-2202034 |
GS130..SED..4H;GS131..SED..SPC;GS130..(4FC,4HC,5F)..EFI;GS131,LS130,YS130..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,LPG,SPC,TD,TDE);GS131,136,LS136,MS13#..(DLX,ROY,ROYG,SALEX,SDX,SSL)..(DSL,EFI,LPG,TWC)..NOB DARK BLUE,TRIM8# |
1 | ||
| 72791-2202036 |
GS131..SED..SPC;GS131,JZS131,MS135..(SALEX,SSL)..(SPC,TWC);GS130,131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SAL,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 72791-22020J0 |
GS130..SED..4H;GS131..SED..SPC;GS130..(4FC,4HC,5F)..(EFI,HTWC);GS131,LS130,YS130..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,LPG,SPC,TD,TDE);GS131,136,LS136,MS13#..(DLX,ROY,ROYG,SALEX,SDX,SSL)..(DSL,EFI,HTWC,LPG,TWC)..NOB DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-10229 | ||||
| 90151-50002 | ||||
| 90468-18071 | ||||
| 93319-15010 | ||||
| 93560-14014 | ||||
ILLUST NO. 3 OF 4(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-3003006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 71867-3003002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 71867-3003004 |
GS130,YS130..4FC,5F;MS130,YS130..DLX,SDX;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;GS131,136,JZS13#,LS13#,MS135,137,UZS131..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-3003006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 71867-3003002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 71867-3003004 |
GS130,YS130..4FC,5F;MS130,YS130..DLX,SDX;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;GS131,136,JZS13#,LS13#,MS135,137,UZS131..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-3005004 |
GS130,YS130..4FC,5F;MS130,YS130..DLX,SDX;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;GS131,136,JZS13#,LS13#,MS135,137,UZS131..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 71868-3005002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 71868-3005006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-3005004 |
GS130,YS130..4FC,5F;MS130,YS130..DLX,SDX;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;GS131,136,JZS13#,LS13#,MS135,137,UZS131..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 71868-3005002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 71868-3005006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72043B - LEVER SUB-ASSY, SEAT LIFTER, RH | ||||
| 72043-3001012 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 72043-3001016 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 72043-3001014 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB DARK BLUE,TRIM8# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-30450 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-30450 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-30450 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-30320 |
JZS131,MS135..NOB;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL);GS131,JZS131,MS135..SALEX,SPE,SSL;GS130,136,JZS130,LS13#..(4FC,5F)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-30320 |
JZS131,MS135..NOB;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL);GS131,JZS131,MS135..SALEX,SPE,SSL;GS130,136,JZS130,LS13#..(4FC,5F)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-30320 |
JZS131,MS135..NOB;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL);GS131,JZS131,MS135..SALEX,SPE,SSL;GS130,136,JZS130,LS13#..(4FC,5F)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-3004004 |
GS130..DLX..TWLPG;MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,JZS13#,LS13#,MS135,137,UZS131..4FC,4HC,5F BLUE,TRIM8# |
1 | ||
| 72123-3004002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..(4FC,5F)..DLX..EFI;GS130..ROY,SAL,SALEX,SDX,SPE;GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72123-3004006 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-3004004 |
GS130..DLX..TWLPG;MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,JZS13#,LS13#,MS135,137,UZS131..4FC,4HC,5F BLUE,TRIM8# |
1 | ||
| 72123-3004002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..(4FC,5F)..DLX..EFI;GS130..ROY,SAL,SALEX,SDX,SPE;GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72123-3004006 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-3004004 |
GS130..DLX..TWLPG;MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,JZS13#,LS13#,MS135,137,UZS131..4FC,4HC,5F BLUE,TRIM8# |
1 | ||
| 72123-3004002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..(4FC,5F)..DLX..EFI;GS130..ROY,SAL,SALEX,SDX,SPE;GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72123-3004006 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-3004004 |
GS130..DLX..TWLPG;MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,JZS13#,LS13#,MS135,137,UZS131..4FC,4HC,5F BLUE,TRIM8# |
1 | ||
| 72124-3004006 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72124-3004002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..(4FC,5F)..DLX..EFI;GS130..ROY,SAL,SALEX,SDX,SPE;GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-3004004 |
GS130..DLX..TWLPG;MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,JZS13#,LS13#,MS135,137,UZS131..4FC,4HC,5F BLUE,TRIM8# |
1 | ||
| 72124-3004006 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72124-3004002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..(4FC,5F)..DLX..EFI;GS130..ROY,SAL,SALEX,SDX,SPE;GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-3004004 |
GS130..DLX..TWLPG;MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,JZS13#,LS13#,MS135,137,UZS131..4FC,4HC,5F BLUE,TRIM8# |
1 | ||
| 72124-3004006 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72124-3004002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..(4FC,5F)..DLX..EFI;GS130..ROY,SAL,SALEX,SDX,SPE;GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-3001004 |
GS130,YS130..4FC,5F;MS130,YS130..DLX,SDX;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;GS131,136,JZS13#,LS13#,MS135,137,UZS131..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 72127-3001006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72127-3001002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-3001004 |
GS130,YS130..4FC,5F;MS130,YS130..DLX,SDX;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;GS131,136,JZS13#,LS13#,MS135,137,UZS131..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 72127-3001006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72127-3001002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-3001002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72128-3001006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72128-3001004 |
GS130,YS130..4FC,5F;MS130,YS130..DLX,SDX;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;GS131,136,JZS13#,LS13#,MS135,137,UZS131..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-3001002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72128-3001006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72128-3001004 |
GS130,YS130..4FC,5F;MS130,YS130..DLX,SDX;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;GS131,136,JZS13#,LS13#,MS135,137,UZS131..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-30140 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-30140 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3004006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SSL SABLE,TRIM4# |
1 | ||
| 72137-3004002 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SSL MAROON,TRIM3# |
1 | ||
| 72137-3004004 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SSL BLUE,TRIM8# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3004006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SSL SABLE,TRIM4# |
1 | ||
| 72137-3004002 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SSL MAROON,TRIM3# |
1 | ||
| 72137-3004004 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SSL BLUE,TRIM8# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3004006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SSL SABLE,TRIM4# |
1 | ||
| 72137-3004002 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SSL MAROON,TRIM3# |
1 | ||
| 72137-3004004 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SSL BLUE,TRIM8# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-3002004 |
GS131..SED..ROY;GS131,JZS131,MS135..SAL,SALEX,SPE,SSL;GS130,136,JZS13#,LS13#,MS130,135,YS130..NOB BLUE,TRIM8# |
1 | ||
| 72138-3002006 |
GS131..SED..ROY;GS131,JZS131,MS135..SAL,SALEX,SPE,SSL;GS130,JZS13#,LS130,131,MS135..(ROY,SAL,SALEX,SPE,SSL)..NOB SABLE,TRIM4# |
1 | ||
| 72138-3002002 |
GS131..SED;GS131..SALEX,SSL;GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX,SPE)..HTWC;GS130,136,LS13#,MS130,135,YS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,SPC,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-3002004 |
GS131..SED..ROY;GS131,JZS131,MS135..SAL,SALEX,SPE,SSL;GS130,136,JZS13#,LS13#,MS130,135,YS130..NOB BLUE,TRIM8# |
1 | ||
| 72138-3002006 |
GS131..SED..ROY;GS131,JZS131,MS135..SAL,SALEX,SPE,SSL;GS130,JZS13#,LS130,131,MS135..(ROY,SAL,SALEX,SPE,SSL)..NOB SABLE,TRIM4# |
1 | ||
| 72138-3002002 |
GS131..SED;GS131..SALEX,SSL;GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX,SPE)..HTWC;GS130,136,LS13#,MS130,135,YS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,SPC,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-3002004 |
GS131..SED..ROY;GS131,JZS131,MS135..SAL,SALEX,SPE,SSL;GS130,136,JZS13#,LS13#,MS130,135,YS130..NOB BLUE,TRIM8# |
1 | ||
| 72138-3002006 |
GS131..SED..ROY;GS131,JZS131,MS135..SAL,SALEX,SPE,SSL;GS130,JZS13#,LS130,131,MS135..(ROY,SAL,SALEX,SPE,SSL)..NOB SABLE,TRIM4# |
1 | ||
| 72138-3002002 |
GS131..SED;GS131..SALEX,SSL;GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX,SPE)..HTWC;GS130,136,LS13#,MS130,135,YS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,SPC,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-30130 |
JZS131,MS135..NOB;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL);GS130,136,JZS130,LS13#,YS130..4FC,5F;GS130,131..SED..(4H,4HC)..(SPC,TWLPG);GS131,JZS131,MS130,135,YS130..DLX,SALEX,SDX,SPE,SSL |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-30130 |
JZS131,MS135..NOB;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL);GS130,136,JZS130,LS13#,YS130..4FC,5F;GS130,131..SED..(4H,4HC)..(SPC,TWLPG);GS131,JZS131,MS130,135,YS130..DLX,SALEX,SDX,SPE,SSL |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-3002004 |
GS130,YS130..4FC,5F;MS130,YS130..DLX,SDX;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;GS131,136,JZS13#,LS13#,MS135,137,UZS131..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 72157-3002002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72157-3002006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-3002004 |
GS130,YS130..4FC,5F;MS130,YS130..DLX,SDX;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;GS131,136,JZS13#,LS13#,MS135,137,UZS131..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 72157-3002002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72157-3002006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-3002004 |
GS130,YS130..4FC,5F;MS130,YS130..DLX,SDX;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;GS131,136,JZS13#,LS13#,MS135,137,UZS131..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 72158-3002006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72158-3002002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-3002004 |
GS130,YS130..4FC,5F;MS130,YS130..DLX,SDX;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;GS131,136,JZS13#,LS13#,MS135,137,UZS131..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 72158-3002006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72158-3002002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72213B - KNOB, SEAT TRACK ADJUSTING HANDLE, RH | ||||
| 72213-12040 |
GS130..SED..4HC..SALEX;GS130,131..SED..(4H,4HC)..(SPC,TWLPG);GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS131,MS130,YS130..(DLX,SDX,SSL)..(LPEFI,LPG,SPC);GS130,136,JZS131,MS135,YS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD);GS131,JZS131,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB |
1 | ||
| 72213B - KNOB, SEAT TRACK ADJUSTING HANDLE, RH | ||||
| 72213-12040 |
GS130..SED..4HC..SALEX;GS130,131..SED..(4H,4HC)..(SPC,TWLPG);GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS131,MS130,YS130..(DLX,SDX,SSL)..(LPEFI,LPG,SPC);GS130,136,JZS131,MS135,YS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD);GS131,JZS131,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB |
1 | ||
| 72213C - KNOB, SEAT TRACK ADJUSTING HANDLE, LH | ||||
| 72213-12040 |
GS130,YS130..4FC,5F;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;MS130,137,YS130..(DLX,ROYG,SDX)..NOB;GS131,136,JZS13#,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL,STD) |
1 | ||
| 72213C - KNOB, SEAT TRACK ADJUSTING HANDLE, LH | ||||
| 72213-12040 |
GS130,YS130..4FC,5F;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;MS130,137,YS130..(DLX,ROYG,SDX)..NOB;GS131,136,JZS13#,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL,STD) |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-30140 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-30140 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-30140 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-30120 |
JZS131,MS135..NOB;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL);GS131,JZS131,MS135..SALEX,SPE,SSL;GS130,136,JZS130,LS13#,MS130,YS130..4FC,5F |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-30120 |
JZS131,MS135..NOB;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL);GS131,JZS131,MS135..SALEX,SPE,SSL;GS130,136,JZS130,LS13#,MS130,YS130..4FC,5F |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-30120 |
JZS131,MS135..NOB;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL);GS131,JZS131,MS135..SALEX,SPE,SSL;GS130,136,JZS130,LS13#,MS130,YS130..4FC,5F |
1 | ||
| 72310A - ADJUSTER ASSY, FRONT SEAT VERTICAL | ||||
| 72310-30050 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB |
1 | ||
| 72459A - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-3002014 |
MS137..NOB;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX);GS131,LS130,MS135..ROY,SALEX,SSL BLUE,TRIM8# |
1 | ||
| 72459-3002012 |
MS137..NOB;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX);GS131,LS130,MS135..ROY,SALEX,SSL MAROON,TRIM3# |
1 | ||
| 72459-3002016 |
MS137..NOB;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX);GS131,LS130,MS135..ROY,SALEX,SSL SABLE,TRIM4# |
1 | ||
| 72480 - ADJUSTER ASSY, FRONT SEAT VERTICAL, NO.2 RH | ||||
| 72480-30020 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB |
1 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-06230 | ||||
| 90119-10349 | ||||
| 90119-11016 | ||||
| 90168-40049 | ||||
| 90179-10015 | ||||
| 90389-06003 | ||||
| 90506-04002 | ||||
| 90506-08006 | ||||
| 90506-18043 | ||||
| 90507-18007 | ||||
| 90540-17004 | ||||
| 91611-60816 | ||||
| 91612-40616 | ||||
| 94543-01000 | ||||
ILLUST NO. 3 OF 4(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-3003006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 71867-3003002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 71867-3003004 |
GS130,YS130..4FC,5F;MS130,YS130..DLX,SDX;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;GS131,136,JZS13#,LS13#,MS135,137,UZS131..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-3005004 |
GS130,YS130..4FC,5F;MS130,YS130..DLX,SDX;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;GS131,136,JZS13#,LS13#,MS135,137,UZS131..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 71868-3005002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 71868-3005006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-3004004 |
GS130..DLX..TWLPG;MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,JZS13#,LS13#,MS135,137,UZS131..4FC,4HC,5F BLUE,TRIM8# |
1 | ||
| 72123-3004002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..(4FC,5F)..DLX..EFI;GS130..ROY,SAL,SALEX,SDX,SPE;GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72123-3004006 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-3004004 |
GS130..DLX..TWLPG;MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,JZS13#,LS13#,MS135,137,UZS131..4FC,4HC,5F BLUE,TRIM8# |
1 | ||
| 72124-3004006 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72124-3004002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..(4FC,5F)..DLX..EFI;GS130..ROY,SAL,SALEX,SDX,SPE;GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-3001004 |
GS130,YS130..4FC,5F;MS130,YS130..DLX,SDX;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;GS131,136,JZS13#,LS13#,MS135,137,UZS131..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 72127-3001006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72127-3001002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-3001002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72128-3001006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72128-3001004 |
GS130,YS130..4FC,5F;MS130,YS130..DLX,SDX;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;GS131,136,JZS13#,LS13#,MS135,137,UZS131..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3004006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SSL SABLE,TRIM4# |
1 | ||
| 72137-3004002 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SSL MAROON,TRIM3# |
1 | ||
| 72137-3004004 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SSL BLUE,TRIM8# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-3002004 |
GS131..SED..ROY;GS131,JZS131,MS135..SAL,SALEX,SPE,SSL;GS130,136,JZS13#,LS13#,MS130,135,YS130..NOB BLUE,TRIM8# |
1 | ||
| 72138-3002006 |
GS131..SED..ROY;GS131,JZS131,MS135..SAL,SALEX,SPE,SSL;GS130,JZS13#,LS130,131,MS135..(ROY,SAL,SALEX,SPE,SSL)..NOB SABLE,TRIM4# |
1 | ||
| 72138-3002002 |
GS131..SED;GS131..SALEX,SSL;GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX,SPE)..HTWC;GS130,136,LS13#,MS130,135,YS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,SPC,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-3002004 |
GS130,YS130..4FC,5F;MS130,YS130..DLX,SDX;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;GS131,136,JZS13#,LS13#,MS135,137,UZS131..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 72157-3002002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72157-3002006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-3002004 |
GS130,YS130..4FC,5F;MS130,YS130..DLX,SDX;GS131..(4FC,5F)..SAL;GS130..(4H,4HC)..TWLPG;GS130..SED..4HC..SALEX;GS131,136,JZS13#,LS13#,MS135,137,UZS131..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 72158-3002006 |
GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72158-3002002 |
MS130,YS130..DLX,SDX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-10349 | ||||
| 90119-11016 | ||||
| 90168-40049 | ||||
| 90168-40081 | ||||
| 90179-10015 | ||||
| 91611-60816 | ||||

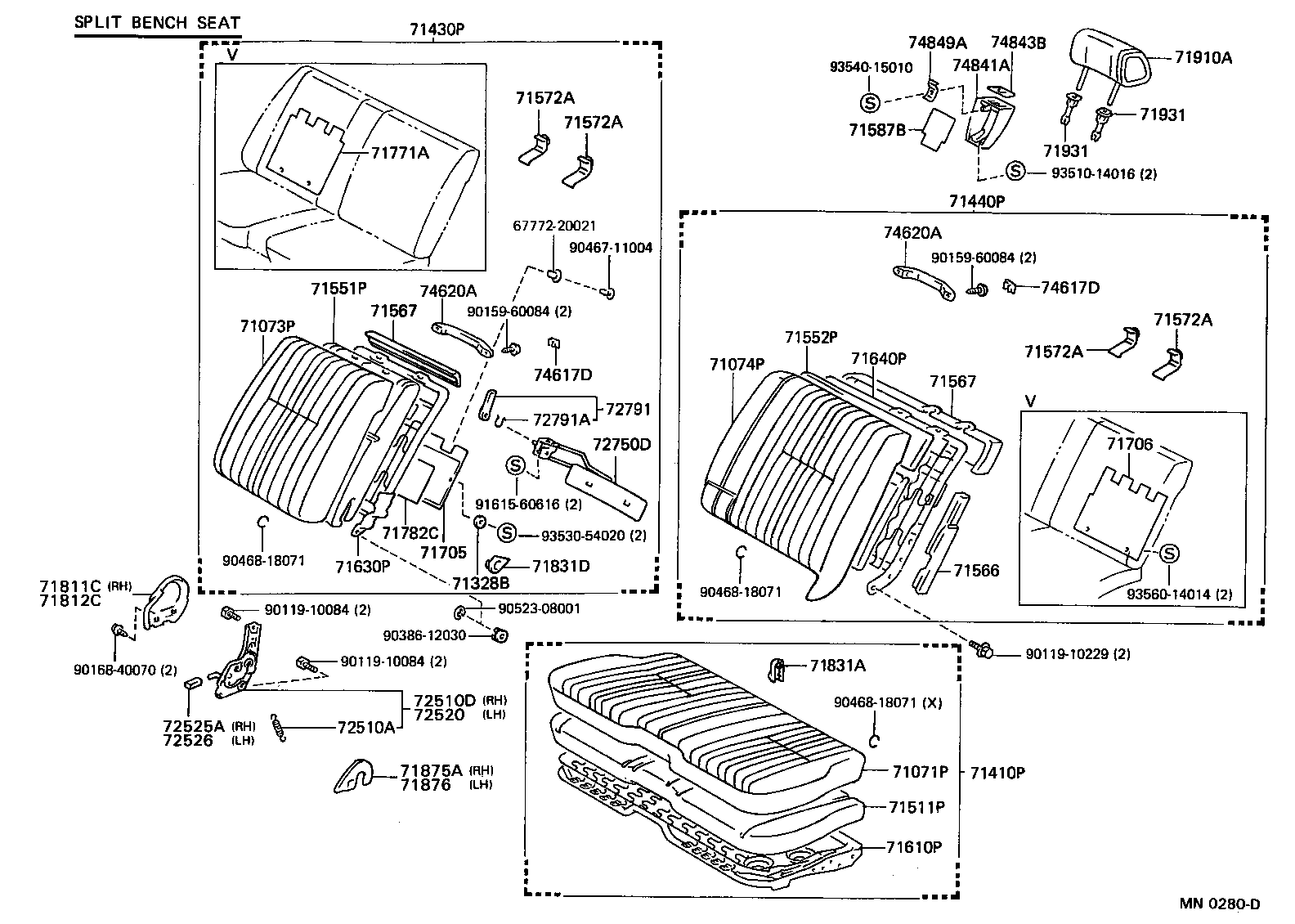

ILLUST NO. 1 OF 4(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71328B - WASHER, FRONT SEAT BACK POCKET SETTING, RH | ||||
| 71328-30010 |
MS137..WIB;MS130,YS130..DLX;GS130..ROY,SAL,SALEX,SDX,SPE;GS131,136,LS13#,MS135..4FC,4HC,5F;GS130,MS137,YS130..(4FC,5F)..(DLX,ROYG,STD)..NOB |
2 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
4 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
4 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
4 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
4 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3028004 |
MS137..WIB;MS137..4FC..NOB;GS130,131,LS130,MS135..ROY,SALEX BLUE,TRIM8# |
1 | ||
| 71705-3028006 |
MS137..WIB;MS137..4FC..NOB;GS130,131,LS130,MS135..ROY,SALEX SABLE,TRIM4# |
1 | ||
| 71705-3028002 |
MS137..WIB;MS137..4FC..NOB;GS130,131,LS130,MS135..ROY,SALEX MAROON,TRIM3# |
1 | ||
| 71705-3027004 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL BLUE,TRIM8# |
1 | ||
| 71705-3027002 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL MAROON,TRIM3# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3028004 |
MS137..WIB;MS137..4FC..NOB;UZS131..4FC..WIB;GS130,131,JZS13#,LS130,131,MS135..ROY,SALEX BLUE,TRIM8# |
1 | ||
| 71705-3028002 |
MS137..4FC..NOB;MS137,UZS131..WIB;GS130,131,JZS13#,LS130,131,MS135..ROY,SALEX MAROON,TRIM3# |
1 | ||
| 71705-3027004 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL BLUE,TRIM8# |
1 | ||
| 71705-3028006 |
MS137..4FC..NOB;MS137,UZS131..WIB;GS130,131,JZS13#,LS130,131,MS135..ROY,SALEX SABLE,TRIM4# |
1 | ||
| 71705-3027002 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL MAROON,TRIM3# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-3023002 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(HT,SED)..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 71811-3023004 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(HT,SED)..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB BLUE,TRIM8# |
1 | ||
| 71811-3023006 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(HT,SED)..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-3013002 |
GS130..WG..(4H,4HC);GS130..4FC..DLX..HTWC;GS130..(4FC,5F)..DLX..EFI;GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,MS130,YS130..DLX,SALEX,SDX,SSL;GS131,136,LS136,MS135..(SED,V)..(4FC,4HC,5F);LS130..(HT,SED)..(4FC,5F)..(DLX,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 71812-3013006 |
GS130..WG..4HC;GS131,JZS131,MS135..SED..ROY;GS130,131,JZS131,LS130,131,MS135..(HT,SED)..(SAL,SALEX,SPE,SSL) SABLE,TRIM4# |
1 | ||
| 71812-3013004 |
YS130..5F;GS130..DLX..TWLPG;GS130..WG..(4H,4HC);GS130..(4FC,5F)..DLX;GS130..4H..SDX..TWLPG;GS131,JZS131,MS130,135,YS130..SED..(DLX,ROY,SDX);GS130..(HT,SED)..(4FC,4HC,5F)..(SAL,SALEX,SDX,SPE,STD);GS131,136,JZS131,LS13#,MS135..(HT,SED,V)..(4FC,4HC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-3003002 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130,MS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE)..(EFI,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB MAROON,TRIM3#,SEAT CUSHION |
1 | ||
| 71831-3003004 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130,MS130,YS130..(4FC,5F)..(EFI,HTWC,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB BLUE,TRIM8#,SEAT CUSHION |
1 | ||
| 71831-3004002 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130,MS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE)..(EFI,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB MAROON,TRIM3#,SEAT BACK |
1 | ||
| 71831-3004004 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130,MS130,YS130..(4FC,5F)..(EFI,HTWC,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB BLUE,TRIM8#,SEAT BACK |
1 | ||
| 71831-3003006 |
GS131..SED..SPC;GS131..SSL..SPC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SPE);GS131,LS130,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4#,SEAT CUSHION |
1 | ||
| 71831-3004006 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SPE,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4#,SEAT BACK |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-3004004 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS131,JZS131,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TWC)..NOB;GS130,136,JZS131,LS13#,MS130,135,YS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 71875-3004002 |
GS131..SED..SPC;GS131..SSL..SPC;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS131,MS135,137..(EFI,HTWC,TWC)..NOB;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130,136,LS13#,MS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE) MAROON,TRIM3# |
1 | ||
| 71875-3004006 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SPE,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-3004004 |
GS131..(4FC,5F)..SAL;MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS130,MS137,YS130..(DLX,ROYG)..(LPEFI,LPG,TWC,TWLPG)..NOB;GS131,136,JZS13#,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 71876-3004006 |
MS137..NOB;GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135..ROY,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 71876-3004002 |
MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;MS137,YS130..(DLX,ROYG)..NOB;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL);GS130,MS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,LPG,SPC) MAROON,TRIM3# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3053002 |
GS130,131,LS130,131..(SED,WG)..SALEX MAROON,TRIM3#,右側 |
1 | ||
| 71910-3053004 |
GS130,131,LS130,131..(SED,WG)..SALEX BLUE,TRIM8#,右側 |
1 | ||
| 71910-3053006 |
GS130,131,LS130,131..(SED,WG)..SALEX SABLE,TRIM4#,右側 |
1 | ||
| 71920-3029002 |
GS130,131,LS130,131..(SED,WG)..SALEX MAROON,TRIM3#,左側 |
1 | ||
| 71920-3029004 |
GS130,131,LS130,131..(SED,WG)..SALEX BLUE,TRIM8#,左側 |
1 | ||
| 71920-3029006 |
GS130,131,LS130,131..(SED,WG)..SALEX SABLE,TRIM4#,左側 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006042 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-1006054 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001042 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71930-1006040 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1001054 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001040 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-10060D0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71931-10010J0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-10010D0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71930-10060J0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006042 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-1006054 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001042 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71930-1006040 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1001054 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001040 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-10060D0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71931-10010J0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-10010D0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71930-10060J0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90507-15002 |
GS130,131,LS130,MS130,135,YS130;GS136,LS136,MS137..(4FC,4HC,5F)..NOB |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-30300 |
MS130..4FC;GS131,MS130..SED..(4H,4HC)..(DLX,ROY);GS130,131..SED..(4FC,5F)..(ROY,SAL,SDX)..(EFI,HTWC,SPC,TWLPG);GS131,JZS131,LS130,131,MS135..(HT,SED)..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,SPC,TD,TDE,TWC);GS130,131,JZS131,MS135,137,YS130..(HT,SED)..(DLX,ROY,ROYG,SALEX,SPE,SSL,STD)..(EFI,HTWC,LPEFI,LPG,TWC,TWLPG)..NOB |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-30250 |
GS130..WG..(4H,4HC);GS130..(4FC,5F)..DLX;LS130,YS130..(HT,SED)..(4FC,5F);GS131,MS130,135,YS130..DLX,ROY,SALEX,SDX,SSL;GS130,MS137..(HT,SED)..(4FC,4HC,5F)..(ROYG,SAL,SALEX,SDX,SPE,STD)..NOB |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-3008004 |
GS130..HT,SED;GS131..SED..SPC;GS130..WG..(4H,4HC)..HTWC;GS130..WG..(4FC,5F)..(EFI,HTWC);GS131,136,LS136,MS135,137..(4FC,4HC,5F)..(DSL,EFI,HTWC,TWC)..NOB;GS131,LS130,MS130,YS130..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,LPG,SPC,TD,TDE) BLUE,TRIM8# |
1 | ||
| 72525-3008002 |
GS131..SED..SPC;GS130..SED..5F..SDX..HTWC;GS130..(4H,4HC)..SDX..HTWC;GS130..WG..(4FC,5F)..(EFI,HTWC);GS130..(4HC,5F)..(SAL,SALEX,SPE)..HTWC;GS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE)..EFI;GS130..(HT,SED)..(4FC,4H)..(DLX,SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS136,MS135,137..(4FC,4HC,5F)..(DSL,EFI,HTWC,TWC)..NOB;GS131,LS130,MS130,YS130..(DLX,SALEX,SDX,SPE,SSL)..(DSL,LPG,SPC,TD,TDE) MAROON,TRIM3# |
1 | ||
| 72525-3008006 |
GS131..SED..SPC;GS131..SSL..SPC;GS130..WG..4HC..HTWC;GS130..WG..4FC..SALEX;GS130..(HT,SED)..(SAL,SALEX,SPE);GS131,LS130,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-3005002 |
GS130..4FC..DLX..HTWC;GS130..(4FC,5F)..DLX..EFI;GS130..ROY,SAL,SALEX,SDX,SPE;MS130,137,YS130..(DLX,ROYG,SDX)..NOB;GS131,136,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72526-3005006 |
MS137..NOB;GS130,131,LS130,MS135..ROY,SAL,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72526-3005004 |
GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135..4FC,4HC,5F;MS130,137,YS130..(DLX,ROYG,SDX)..NOB BLUE,TRIM8# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30120 |
GS131..SED..4FC..SPC;GS131,JZS131,MS135..(SALEX,SSL)..(SPC,TWC);GS13#,JZS131,LS13#,MS13#,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWC,TWLPG)..NOB |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-22020D0 |
GS130..4H..DLX;GS131..SED..SPC;GS131..SSL..SPC;GS130..4FC..DLX..HTWC;GS130..(4FC,4HC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,4HC,5F)..(DLX,SAL,SALEX,SDX,SPE)..EFI;GS131,136,LS13#,MS13#,YS130..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,LPG,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 72791-2202032 |
GS130..4H..DLX;GS131..SED..SPC;GS131..SSL..SPC;GS130..(4FC,4HC,5F)..(DLX,SAL,SALEX,SDX,SPE);GS131,136,LS13#,MS13#,YS130..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 72791-2202034 |
GS130..SED..4H;GS131..SED..SPC;GS130..(4FC,4HC,5F)..EFI;GS131,LS130,YS130..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,LPG,SPC,TD,TDE);GS131,136,LS136,MS13#..(DLX,ROY,ROYG,SALEX,SDX,SSL)..(DSL,EFI,LPG,TWC)..NOB DARK BLUE,TRIM8# |
1 | ||
| 72791-2202036 |
GS131..SED..SPC;GS131,JZS131,MS135..(SALEX,SSL)..(SPC,TWC);GS130,131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SAL,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 72791-22020J0 |
GS130..SED..4H;GS131..SED..SPC;GS130..(4FC,4HC,5F)..(EFI,HTWC);GS131,LS130,YS130..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,LPG,SPC,TD,TDE);GS131,136,LS136,MS13#..(DLX,ROY,ROYG,SALEX,SDX,SSL)..(DSL,EFI,HTWC,LPG,TWC)..NOB DARK BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
GS130..SED..4H;GS131..SED..SPC;GS130..(4FC,4HC,5F)..(EFI,HTWC);GS131,LS130,YS130..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,LPG,SPC,TD,TDE);GS131,136,LS136,MS13#..(DLX,ROY,ROYG,SALEX,SDX,SSL)..(DSL,EFI,HTWC,LPG,TWC)..NOB |
1 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74617-3002022 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) MAROON,TRIM3# |
4 | ||
| 74617-3002026 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) SABLE,TRIM4# |
4 | ||
| 74617-3002034 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) DARK BLUE,TRIM8# |
4 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74617-3002022 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) MAROON,TRIM3# |
4 | ||
| 74617-3002026 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) SABLE,TRIM4# |
4 | ||
| 74617-3002034 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) DARK BLUE,TRIM8# |
4 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-3005014 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) BLUE,TRIM8# |
2 | ||
| 74620-3005016 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) SABLE,TRIM4# |
2 | ||
| 74620-3005022 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) MAROON,TRIM3# |
2 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-3005014 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) BLUE,TRIM8# |
2 | ||
| 74620-3005016 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) SABLE,TRIM4# |
2 | ||
| 74620-3005022 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) MAROON,TRIM3# |
2 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 90119-10084 | ||||
| 90119-10229 | ||||
| 90159-60084 | ||||
| 90168-40070 | ||||
| 90386-12030 | ||||
| 90467-11004 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91615-60616 | ||||
| 93510-14016 | ||||
| 93530-54020 | ||||
| 93540-15010 | ||||
| 93560-14014 | ||||
ILLUST NO. 1 OF 4(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71328B - WASHER, FRONT SEAT BACK POCKET SETTING, RH | ||||
| 71328-30010 |
MS137..WIB;MS130,YS130..DLX;GS130..ROY,SAL,SALEX,SDX,SPE;GS131,136,LS13#,MS135..4FC,4HC,5F;GS130,MS137,YS130..(4FC,5F)..(DLX,ROYG,STD)..NOB |
2 | ||
| 71328C - WASHER, FRONT SEAT BACK POCKET SETTING, LH | ||||
| 71328-30010 |
MS130,YS130..DLX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
2 | ||
| 71328-30010 |
MS137..WIB;MS130,YS130..DLX;GS130..ROY,SAL,SALEX,SDX,SPE;GS131,136,LS13#,MS135..4FC,4HC,5F;GS130,MS137,YS130..(4FC,5F)..(DLX,ROYG,STD)..NOB |
2 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
4 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
4 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
4 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
4 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3028004 |
MS137..WIB;MS137..4FC..NOB;GS130,131,LS130,MS135..ROY,SALEX BLUE,TRIM8# |
1 | ||
| 71705-3028006 |
MS137..WIB;MS137..4FC..NOB;GS130,131,LS130,MS135..ROY,SALEX SABLE,TRIM4# |
1 | ||
| 71705-3028002 |
MS137..WIB;MS137..4FC..NOB;GS130,131,LS130,MS135..ROY,SALEX MAROON,TRIM3# |
1 | ||
| 71705-3027004 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL BLUE,TRIM8# |
1 | ||
| 71705-3027002 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL MAROON,TRIM3# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3028004 |
MS137..WIB;MS137..4FC..NOB;UZS131..4FC..WIB;GS130,131,JZS13#,LS130,131,MS135..ROY,SALEX BLUE,TRIM8# |
1 | ||
| 71705-3028002 |
MS137..4FC..NOB;MS137,UZS131..WIB;GS130,131,JZS13#,LS130,131,MS135..ROY,SALEX MAROON,TRIM3# |
1 | ||
| 71705-3027004 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL BLUE,TRIM8# |
1 | ||
| 71705-3028006 |
MS137..4FC..NOB;MS137,UZS131..WIB;GS130,131,JZS13#,LS130,131,MS135..ROY,SALEX SABLE,TRIM4# |
1 | ||
| 71705-3027002 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL MAROON,TRIM3# |
1 | ||
| 71708B - STRAP SUB-ASSY, SEAT COVER | ||||
| 71708-30010 |
LS130..SED..SALEX;GS130,131..(4FC,5F)..(DLX,SSL);GS131,MS13#,YS130..SED..(DLX,ROY,ROYG,SDX);LS130,YS130..(4FC,5F)..(DLX,SDX,SPE,SSL,STD);GS130..(HT,SED)..(4FC,4HC,5F)..(SAL,SALEX,SDX,SPE,STD) |
2 | ||
| 71708B - STRAP SUB-ASSY, SEAT COVER | ||||
| 71708-30010 |
LS130..SED..SALEX;GS130,131..(4FC,5F)..(DLX,SSL);GS131,MS13#,YS130..SED..(DLX,ROY,ROYG,SDX);LS130,YS130..(4FC,5F)..(DLX,SDX,SPE,SSL,STD);GS130..(HT,SED)..(4FC,4HC,5F)..(SAL,SALEX,SDX,SPE,STD) |
2 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-3023002 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(HT,SED)..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 71811-3023004 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(HT,SED)..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB BLUE,TRIM8# |
1 | ||
| 71811-3023006 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(HT,SED)..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-3013002 |
GS130..WG..(4H,4HC);GS130..4FC..DLX..HTWC;GS130..(4FC,5F)..DLX..EFI;GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,MS130,YS130..DLX,SALEX,SDX,SSL;GS131,136,LS136,MS135..(SED,V)..(4FC,4HC,5F);LS130..(HT,SED)..(4FC,5F)..(DLX,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 71812-3013006 |
GS130..WG..4HC;GS131,JZS131,MS135..SED..ROY;GS130,131,JZS131,LS130,131,MS135..(HT,SED)..(SAL,SALEX,SPE,SSL) SABLE,TRIM4# |
1 | ||
| 71812-3013004 |
YS130..5F;GS130..DLX..TWLPG;GS130..WG..(4H,4HC);GS130..(4FC,5F)..DLX;GS130..4H..SDX..TWLPG;GS131,JZS131,MS130,135,YS130..SED..(DLX,ROY,SDX);GS130..(HT,SED)..(4FC,4HC,5F)..(SAL,SALEX,SDX,SPE,STD);GS131,136,JZS131,LS13#,MS135..(HT,SED,V)..(4FC,4HC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-3003002 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130,MS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE)..(EFI,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB MAROON,TRIM3#,SEAT CUSHION |
1 | ||
| 71831-3003004 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130,MS130,YS130..(4FC,5F)..(EFI,HTWC,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB BLUE,TRIM8#,SEAT CUSHION |
1 | ||
| 71831-3004002 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130,MS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE)..(EFI,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB MAROON,TRIM3#,SEAT BACK |
1 | ||
| 71831-3004004 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130,MS130,YS130..(4FC,5F)..(EFI,HTWC,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB BLUE,TRIM8#,SEAT BACK |
1 | ||
| 71831-3003006 |
GS131..SED..SPC;GS131..SSL..SPC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SPE);GS131,LS130,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4#,SEAT CUSHION |
1 | ||
| 71831-3004006 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SPE,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4#,SEAT BACK |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-3002004 |
MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;MS137,YS130..(DLX,ROYG)..NOB;GS131,136,LS13#,MS135..4FC,4HC,5F BLUE,TRIM8#,SEAT BACK |
1 | ||
| 71832-3001004 |
MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;MS137,YS130..(DLX,ROYG)..NOB;GS131,136,LS13#,MS135..4FC,4HC,5F BLUE,TRIM8#,SEAT CUSHION |
1 | ||
| 71832-3002002 |
MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;MS137,YS130..(DLX,ROYG)..NOB;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL);GS130,MS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,LPG,SPC) MAROON,TRIM3#,SEAT BACK |
1 | ||
| 71832-3001006 |
MS137..NOB;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,LS130,MS135..ROY,SALEX,SPE,SSL SABLE,TRIM4#,SEAT CUSHION |
1 | ||
| 71832-3001002 |
MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;MS137,YS130..(DLX,ROYG)..NOB;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL);GS130,MS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,LPG,SPC) MAROON,TRIM3#,SEAT CUSHION |
1 | ||
| 71832-3002006 |
MS137..NOB;GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135..ROY,SALEX,SPE,SSL SABLE,TRIM4#,SEAT BACK |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-3002006 |
JZS131,MS135..NOB;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL);GS131,JZS131,MS135..SALEX,SPE,SSL;GS130,JZS130,LS130,131..(4FC,5F)..(ROY,SAL,SALEX,SPE,SSL) SABLE,TRIM4# |
1 | ||
| 71873-3002004 |
JZS131,MS135..NOB;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL);GS131,JZS131,MS135..SALEX,SPE,SSL;GS130,136,JZS130,LS13#,MS130,YS130..4FC,5F;GS130,131,MS130,YS130..SED..(4H,4HC)..(DLX,ROY)..(LPEFI,LPG,SPC,TWLPG) BLUE,TRIM8# |
1 | ||
| 71873-3002002 |
MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS131,YS130..DLX,SALEX,SSL;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS136,MS135..(SED,V)..(4FC,4HC,5F);GS130,LS130,MS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,SPC,TD,TDE) MAROON,TRIM3# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-3004004 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS131,JZS131,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TWC)..NOB;GS130,136,JZS131,LS13#,MS130,135,YS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 71875-3004002 |
GS131..SED..SPC;GS131..SSL..SPC;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS131,MS135,137..(EFI,HTWC,TWC)..NOB;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130,136,LS13#,MS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE) MAROON,TRIM3# |
1 | ||
| 71875-3004006 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SPE,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-3004004 |
GS131..(4FC,5F)..SAL;MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS130,MS137,YS130..(DLX,ROYG)..(LPEFI,LPG,TWC,TWLPG)..NOB;GS131,136,JZS13#,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 71876-3004006 |
MS137..NOB;GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135..ROY,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 71876-3004002 |
MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;MS137,YS130..(DLX,ROYG)..NOB;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL);GS130,MS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,LPG,SPC) MAROON,TRIM3# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3053002 |
GS130,131,LS130,131..(SED,WG)..SALEX MAROON,TRIM3#,右側 |
1 | ||
| 71910-3053004 |
GS130,131,LS130,131..(SED,WG)..SALEX BLUE,TRIM8#,右側 |
1 | ||
| 71910-3053006 |
GS130,131,LS130,131..(SED,WG)..SALEX SABLE,TRIM4#,右側 |
1 | ||
| 71920-3029002 |
GS130,131,LS130,131..(SED,WG)..SALEX MAROON,TRIM3#,左側 |
1 | ||
| 71920-3029004 |
GS130,131,LS130,131..(SED,WG)..SALEX BLUE,TRIM8#,左側 |
1 | ||
| 71920-3029006 |
GS130,131,LS130,131..(SED,WG)..SALEX SABLE,TRIM4#,左側 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006042 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-1006054 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001042 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71930-1006040 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1001054 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001040 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-10060D0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71931-10010J0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-10010D0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71930-10060J0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006042 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-1006054 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001042 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71930-1006040 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1001054 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001040 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-10060D0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71931-10010J0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-10010D0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71930-10060J0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71937 - HANDLE, FRONT SEAT HEADREST REGULATOR | ||||
| 71937-3001012 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL MAROON,TRIM3# |
1 | ||
| 71937-3001046 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 71937-3001024 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL BLUE,TRIM8# |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90507-15002 |
GS130,131,LS130,MS130,135,YS130;GS136,LS136,MS137..(4FC,4HC,5F)..NOB |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-30300 |
MS130..4FC;GS131,MS130..SED..(4H,4HC)..(DLX,ROY);GS130,131..SED..(4FC,5F)..(ROY,SAL,SDX)..(EFI,HTWC,SPC,TWLPG);GS131,JZS131,LS130,131,MS135..(HT,SED)..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,SPC,TD,TDE,TWC);GS130,131,JZS131,MS135,137,YS130..(HT,SED)..(DLX,ROY,ROYG,SALEX,SPE,SSL,STD)..(EFI,HTWC,LPEFI,LPG,TWC,TWLPG)..NOB |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-30250 |
GS130..WG..(4H,4HC);GS130..(4FC,5F)..DLX;LS130,YS130..(HT,SED)..(4FC,5F);GS131,MS130,135,YS130..DLX,ROY,SALEX,SDX,SSL;GS130,MS137..(HT,SED)..(4FC,4HC,5F)..(ROYG,SAL,SALEX,SDX,SPE,STD)..NOB |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-3008004 |
GS130..HT,SED;GS131..SED..SPC;GS130..WG..(4H,4HC)..HTWC;GS130..WG..(4FC,5F)..(EFI,HTWC);GS131,136,LS136,MS135,137..(4FC,4HC,5F)..(DSL,EFI,HTWC,TWC)..NOB;GS131,LS130,MS130,YS130..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,LPG,SPC,TD,TDE) BLUE,TRIM8# |
1 | ||
| 72525-3008002 |
GS131..SED..SPC;GS130..SED..5F..SDX..HTWC;GS130..(4H,4HC)..SDX..HTWC;GS130..WG..(4FC,5F)..(EFI,HTWC);GS130..(4HC,5F)..(SAL,SALEX,SPE)..HTWC;GS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE)..EFI;GS130..(HT,SED)..(4FC,4H)..(DLX,SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS136,MS135,137..(4FC,4HC,5F)..(DSL,EFI,HTWC,TWC)..NOB;GS131,LS130,MS130,YS130..(DLX,SALEX,SDX,SPE,SSL)..(DSL,LPG,SPC,TD,TDE) MAROON,TRIM3# |
1 | ||
| 72525-3008006 |
GS131..SED..SPC;GS131..SSL..SPC;GS130..WG..4HC..HTWC;GS130..WG..4FC..SALEX;GS130..(HT,SED)..(SAL,SALEX,SPE);GS131,LS130,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-3005002 |
GS130..4FC..DLX..HTWC;GS130..(4FC,5F)..DLX..EFI;GS130..ROY,SAL,SALEX,SDX,SPE;MS130,137,YS130..(DLX,ROYG,SDX)..NOB;GS131,136,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72526-3005006 |
MS137..NOB;GS130,131,LS130,MS135..ROY,SAL,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72526-3005004 |
GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135..4FC,4HC,5F;MS130,137,YS130..(DLX,ROYG,SDX)..NOB BLUE,TRIM8# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30120 |
GS131..SED..4FC..SPC;GS131,JZS131,MS135..(SALEX,SSL)..(SPC,TWC);GS13#,JZS131,LS13#,MS13#,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWC,TWLPG)..NOB |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-22020D0 |
GS130..4H..DLX;GS131..SED..SPC;GS131..SSL..SPC;GS130..4FC..DLX..HTWC;GS130..(4FC,4HC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,4HC,5F)..(DLX,SAL,SALEX,SDX,SPE)..EFI;GS131,136,LS13#,MS13#,YS130..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,LPG,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 72791-2202032 |
GS130..4H..DLX;GS131..SED..SPC;GS131..SSL..SPC;GS130..(4FC,4HC,5F)..(DLX,SAL,SALEX,SDX,SPE);GS131,136,LS13#,MS13#,YS130..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 72791-2202034 |
GS130..SED..4H;GS131..SED..SPC;GS130..(4FC,4HC,5F)..EFI;GS131,LS130,YS130..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,LPG,SPC,TD,TDE);GS131,136,LS136,MS13#..(DLX,ROY,ROYG,SALEX,SDX,SSL)..(DSL,EFI,LPG,TWC)..NOB DARK BLUE,TRIM8# |
1 | ||
| 72791-2202036 |
GS131..SED..SPC;GS131,JZS131,MS135..(SALEX,SSL)..(SPC,TWC);GS130,131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SAL,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 72791-22020J0 |
GS130..SED..4H;GS131..SED..SPC;GS130..(4FC,4HC,5F)..(EFI,HTWC);GS131,LS130,YS130..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,LPG,SPC,TD,TDE);GS131,136,LS136,MS13#..(DLX,ROY,ROYG,SALEX,SDX,SSL)..(DSL,EFI,HTWC,LPG,TWC)..NOB DARK BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
GS130..SED..4H;GS131..SED..SPC;GS130..(4FC,4HC,5F)..(EFI,HTWC);GS131,LS130,YS130..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,LPG,SPC,TD,TDE);GS131,136,LS136,MS13#..(DLX,ROY,ROYG,SALEX,SDX,SSL)..(DSL,EFI,HTWC,LPG,TWC)..NOB |
1 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74617-3002022 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) MAROON,TRIM3# |
4 | ||
| 74617-3002026 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) SABLE,TRIM4# |
4 | ||
| 74617-3002034 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) DARK BLUE,TRIM8# |
4 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74617-3002022 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) MAROON,TRIM3# |
4 | ||
| 74617-3002026 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) SABLE,TRIM4# |
4 | ||
| 74617-3002034 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) DARK BLUE,TRIM8# |
4 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-3005014 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) BLUE,TRIM8# |
2 | ||
| 74620-3005016 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) SABLE,TRIM4# |
2 | ||
| 74620-3005022 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) MAROON,TRIM3# |
2 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-3005014 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) BLUE,TRIM8# |
2 | ||
| 74620-3005016 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) SABLE,TRIM4# |
2 | ||
| 74620-3005022 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) MAROON,TRIM3# |
2 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) |
4 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) |
4 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 90101-06022 | ||||
| 90116-06075 | ||||
| 90119-10084 | ||||
| 90159-60084 | ||||
| 90168-40049 | ||||
| 90168-40070 | ||||
| 90179-06032 | ||||
| 90386-12030 | ||||
| 90389-06024 | ||||
| 90467-11004 | ||||
| 90468-18071 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91615-60616 | ||||
| 93530-54020 | ||||

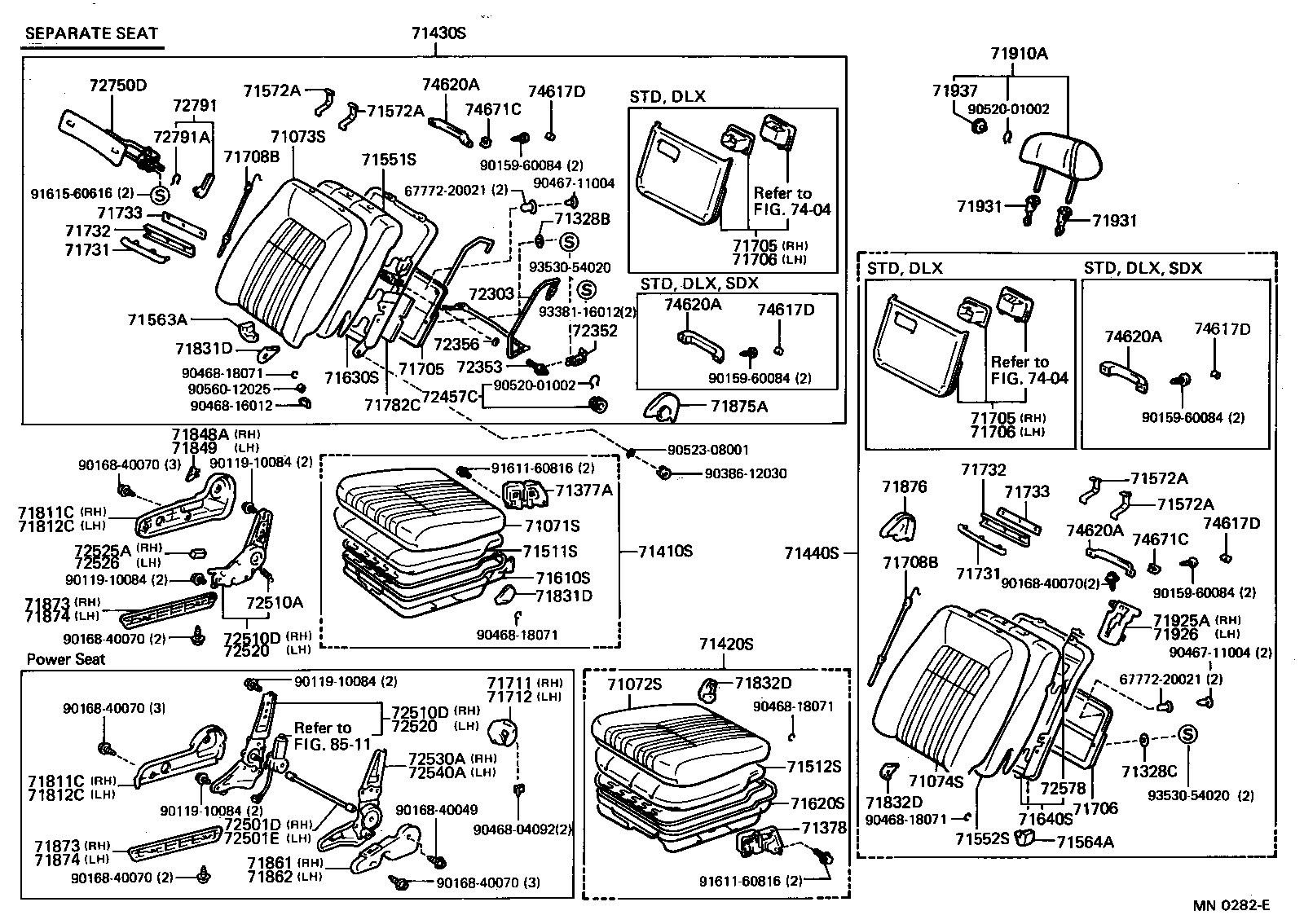

ILLUST NO. 1 OF 4(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3A81002 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX MAROON,TRIM3# |
1 | ||
| 71071-3A81006 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX SABLE,TRIM4# |
1 | ||
| 71071-3A81004 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3A13002 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX MAROON,TRIM3# |
1 | ||
| 71072-3A13004 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX BLUE,TRIM8# |
1 | ||
| 71072-3A13006 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX SABLE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3A61002 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX MAROON,TRIM3# |
1 | ||
| 71073-3A61006 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX SABLE,TRIM4# |
1 | ||
| 71073-3A61004 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-3A08004 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX BLUE,TRIM8# |
1 | ||
| 71074-3A08006 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX SABLE,TRIM4# |
1 | ||
| 71074-3A08002 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX MAROON,TRIM3# |
1 | ||
| 71328B - WASHER, FRONT SEAT BACK POCKET SETTING, RH | ||||
| 71328-30010 |
MS137..WIB;MS130,YS130..DLX;GS130..ROY,SAL,SALEX,SDX,SPE;GS131,136,LS13#,MS135..4FC,4HC,5F;GS130,MS137,YS130..(4FC,5F)..(DLX,ROYG,STD)..NOB |
2 | ||
| 71328C - WASHER, FRONT SEAT BACK POCKET SETTING, LH | ||||
| 71328-30010 |
MS130,YS130..DLX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
2 | ||
| 71328-30010 |
MS137..WIB;MS130,YS130..DLX;GS130..ROY,SAL,SALEX,SDX,SPE;GS131,136,LS13#,MS135..4FC,4HC,5F;GS130,MS137,YS130..(4FC,5F)..(DLX,ROYG,STD)..NOB |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3A81002 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,MAROON,TRIM3# |
1 | ||
| 71410-3A81006 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,SABLE,TRIM4# |
1 | ||
| 71410-3A81004 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3A21004 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,BLUE,TRIM8# |
1 | ||
| 71420-3A21006 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,SABLE,TRIM4# |
1 | ||
| 71420-3A21002 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,MAROON,TRIM3# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-3F32002 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,MAROON,TRIM3# |
1 | ||
| 71430-3F32004 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,BLUE,TRIM8# |
1 | ||
| 71430-3F32006 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,SABLE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-3F04006 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,SABLE,TRIM4# |
1 | ||
| 71440-3F04002 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,MAROON,TRIM3# |
1 | ||
| 71440-3F04004 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-30680 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..(SED,WG)..(4FC,5F)..(ROY,ROYG,SAL,SALEX) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-30680 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..(SED,WG)..(4FC,5F)..(ROY,ROYG,SAL,SALEX) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-30590 |
GS130,131,LS130,MS135,137..(SED,WG)..(4FC,5F)..(ROY,ROYG,SAL,SALEX) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-30590 |
GS130,131,LS130,MS135,137..(SED,WG)..(4FC,5F)..(ROY,ROYG,SAL,SALEX) |
1 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
4 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
4 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
4 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
4 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-30510 |
GS131..SED..4FC..SPC;GS131,JZS131,MS135..(SALEX,SSL)..(SPC,TWC);GS130,131,JZS131,LS130,131,MS135,137..(4FC,5F)..(ROY,ROYG,SAL,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-30190 |
GS131..SED..4FC..ROY;MS130..(4H,4HC)..DLX;GS131..(4FC,5F)..(SAL,SALEX,SPE,SSL);GS130,136,JZS13#,LS13#,MS130,135,YS130..(4FC,5F)..NOB;GS130,JZS131,MS135,YS130..(DLX,SALEX,SSL)..(LPEFI,LPG,TWC,TWLPG) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-30740 |
GS130,131,JZS131,LS130,131..(4FC,5F)..(SAL,SPE,SSL) |
1 | ||
| 71630-30730 |
GS131..SED..(4FC,5F)..(ROY,SALEX);GS130,JZS131,LS130,131,MS135,137..(SED,WG)..(4FC,5F)..(ROY,ROYG,SALEX)..(EFI,HTWC,TDE,TWC) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-30460 |
GS130..(4H,4HC)..(SAL,SDX);GS130,131,LS130..(4FC,5F)..(SAL,SPE,SSL) |
1 | ||
| 71640-30450 |
GS130,131,JZS13#,LS130,131,MS135,137..(SED,WG)..(4FC,5F)..(ROY,ROYG,SALEX) |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3028004 |
MS137..WIB;MS137..4FC..NOB;GS130,131,LS130,MS135..ROY,SALEX BLUE,TRIM8# |
1 | ||
| 71705-3028006 |
MS137..WIB;MS137..4FC..NOB;GS130,131,LS130,MS135..ROY,SALEX SABLE,TRIM4# |
1 | ||
| 71705-3028002 |
MS137..WIB;MS137..4FC..NOB;GS130,131,LS130,MS135..ROY,SALEX MAROON,TRIM3# |
1 | ||
| 71705-3027004 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL BLUE,TRIM8# |
1 | ||
| 71705-3027002 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL MAROON,TRIM3# |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3028004 |
MS137..WIB;MS137..4FC..NOB;GS130,131,LS130,MS135..ROY,SALEX BLUE,TRIM8# |
1 | ||
| 71705-3028006 |
MS137..WIB;MS137..4FC..NOB;GS130,131,LS130,MS135..ROY,SALEX SABLE,TRIM4# |
1 | ||
| 71705-3028002 |
MS137..WIB;MS137..4FC..NOB;GS130,131,LS130,MS135..ROY,SALEX MAROON,TRIM3# |
1 | ||
| 71705-3027004 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL BLUE,TRIM8# |
1 | ||
| 71705-3027002 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL MAROON,TRIM3# |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3028004 |
MS137..WIB;MS137..4FC..NOB;GS130,131,LS130,MS135..ROY,SALEX BLUE,TRIM8# |
1 | ||
| 71705-3028006 |
MS137..WIB;MS137..4FC..NOB;GS130,131,LS130,MS135..ROY,SALEX SABLE,TRIM4# |
1 | ||
| 71705-3028002 |
MS137..WIB;MS137..4FC..NOB;GS130,131,LS130,MS135..ROY,SALEX MAROON,TRIM3# |
1 | ||
| 71705-3027004 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL BLUE,TRIM8# |
1 | ||
| 71705-3027002 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL MAROON,TRIM3# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3028004 |
MS137..WIB;MS137..4FC..NOB;UZS131..4FC..WIB;GS130,131,JZS13#,LS130,131,MS135..ROY,SALEX BLUE,TRIM8# |
1 | ||
| 71705-3028002 |
MS137..4FC..NOB;MS137,UZS131..WIB;GS130,131,JZS13#,LS130,131,MS135..ROY,SALEX MAROON,TRIM3# |
1 | ||
| 71705-3027004 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL BLUE,TRIM8# |
1 | ||
| 71705-3028006 |
MS137..4FC..NOB;MS137,UZS131..WIB;GS130,131,JZS13#,LS130,131,MS135..ROY,SALEX SABLE,TRIM4# |
1 | ||
| 71705-3027002 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL MAROON,TRIM3# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3028004 |
MS137..WIB;MS137..4FC..NOB;UZS131..4FC..WIB;GS130,131,JZS13#,LS130,131,MS135..ROY,SALEX BLUE,TRIM8# |
1 | ||
| 71705-3028002 |
MS137..4FC..NOB;MS137,UZS131..WIB;GS130,131,JZS13#,LS130,131,MS135..ROY,SALEX MAROON,TRIM3# |
1 | ||
| 71705-3027004 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL BLUE,TRIM8# |
1 | ||
| 71705-3028006 |
MS137..4FC..NOB;MS137,UZS131..WIB;GS130,131,JZS13#,LS130,131,MS135..ROY,SALEX SABLE,TRIM4# |
1 | ||
| 71705-3027002 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL MAROON,TRIM3# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3028004 |
MS137..WIB;MS137..4FC..NOB;UZS131..4FC..WIB;GS130,131,JZS13#,LS130,131,MS135..ROY,SALEX BLUE,TRIM8# |
1 | ||
| 71705-3028002 |
MS137..4FC..NOB;MS137,UZS131..WIB;GS130,131,JZS13#,LS130,131,MS135..ROY,SALEX MAROON,TRIM3# |
1 | ||
| 71705-3027004 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL BLUE,TRIM8# |
1 | ||
| 71705-3028006 |
MS137..4FC..NOB;MS137,UZS131..WIB;GS130,131,JZS13#,LS130,131,MS135..ROY,SALEX SABLE,TRIM4# |
1 | ||
| 71705-3027002 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL MAROON,TRIM3# |
1 | ||
| 71708B - STRAP SUB-ASSY, SEAT COVER | ||||
| 71708-30010 |
LS130..SED..SALEX;GS130,131..(4FC,5F)..(DLX,SSL);GS131,MS13#,YS130..SED..(DLX,ROY,ROYG,SDX);LS130,YS130..(4FC,5F)..(DLX,SDX,SPE,SSL,STD);GS130..(HT,SED)..(4FC,4HC,5F)..(SAL,SALEX,SDX,SPE,STD) |
2 | ||
| 71708B - STRAP SUB-ASSY, SEAT COVER | ||||
| 71708-30010 |
LS130..SED..SALEX;GS130,131..(4FC,5F)..(DLX,SSL);GS131,MS13#,YS130..SED..(DLX,ROY,ROYG,SDX);LS130,YS130..(4FC,5F)..(DLX,SDX,SPE,SSL,STD);GS130..(HT,SED)..(4FC,4HC,5F)..(SAL,SALEX,SDX,SPE,STD) |
2 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-3023002 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(HT,SED)..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 71811-3023004 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(HT,SED)..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB BLUE,TRIM8# |
1 | ||
| 71811-3023006 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(HT,SED)..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-3023002 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(HT,SED)..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 71811-3023004 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(HT,SED)..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB BLUE,TRIM8# |
1 | ||
| 71811-3023006 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(HT,SED)..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-3013002 |
GS130..WG..(4H,4HC);GS130..4FC..DLX..HTWC;GS130..(4FC,5F)..DLX..EFI;GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,MS130,YS130..DLX,SALEX,SDX,SSL;GS131,136,LS136,MS135..(SED,V)..(4FC,4HC,5F);LS130..(HT,SED)..(4FC,5F)..(DLX,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 71812-3013006 |
GS130..WG..4HC;GS131,JZS131,MS135..SED..ROY;GS130,131,JZS131,LS130,131,MS135..(HT,SED)..(SAL,SALEX,SPE,SSL) SABLE,TRIM4# |
1 | ||
| 71812-3013004 |
YS130..5F;GS130..DLX..TWLPG;GS130..WG..(4H,4HC);GS130..(4FC,5F)..DLX;GS130..4H..SDX..TWLPG;GS131,JZS131,MS130,135,YS130..SED..(DLX,ROY,SDX);GS130..(HT,SED)..(4FC,4HC,5F)..(SAL,SALEX,SDX,SPE,STD);GS131,136,JZS131,LS13#,MS135..(HT,SED,V)..(4FC,4HC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-3013002 |
GS130..WG..(4H,4HC);GS130..4FC..DLX..HTWC;GS130..(4FC,5F)..DLX..EFI;GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,MS130,YS130..DLX,SALEX,SDX,SSL;GS131,136,LS136,MS135..(SED,V)..(4FC,4HC,5F);LS130..(HT,SED)..(4FC,5F)..(DLX,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 71812-3013006 |
GS130..WG..4HC;GS131,JZS131,MS135..SED..ROY;GS130,131,JZS131,LS130,131,MS135..(HT,SED)..(SAL,SALEX,SPE,SSL) SABLE,TRIM4# |
1 | ||
| 71812-3013004 |
YS130..5F;GS130..DLX..TWLPG;GS130..WG..(4H,4HC);GS130..(4FC,5F)..DLX;GS130..4H..SDX..TWLPG;GS131,JZS131,MS130,135,YS130..SED..(DLX,ROY,SDX);GS130..(HT,SED)..(4FC,4HC,5F)..(SAL,SALEX,SDX,SPE,STD);GS131,136,JZS131,LS13#,MS135..(HT,SED,V)..(4FC,4HC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-3003002 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130,MS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE)..(EFI,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB MAROON,TRIM3#,SEAT CUSHION |
1 | ||
| 71831-3003004 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130,MS130,YS130..(4FC,5F)..(EFI,HTWC,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB BLUE,TRIM8#,SEAT CUSHION |
1 | ||
| 71831-3004002 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130,MS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE)..(EFI,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB MAROON,TRIM3#,SEAT BACK |
1 | ||
| 71831-3004004 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130,MS130,YS130..(4FC,5F)..(EFI,HTWC,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB BLUE,TRIM8#,SEAT BACK |
1 | ||
| 71831-3003006 |
GS131..SED..SPC;GS131..SSL..SPC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SPE);GS131,LS130,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4#,SEAT CUSHION |
1 | ||
| 71831-3004006 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SPE,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4#,SEAT BACK |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-3003002 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130,MS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE)..(EFI,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB MAROON,TRIM3#,SEAT CUSHION |
1 | ||
| 71831-3003004 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130,MS130,YS130..(4FC,5F)..(EFI,HTWC,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB BLUE,TRIM8#,SEAT CUSHION |
1 | ||
| 71831-3004002 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130,MS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE)..(EFI,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB MAROON,TRIM3#,SEAT BACK |
1 | ||
| 71831-3004004 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130,MS130,YS130..(4FC,5F)..(EFI,HTWC,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB BLUE,TRIM8#,SEAT BACK |
1 | ||
| 71831-3003006 |
GS131..SED..SPC;GS131..SSL..SPC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SPE);GS131,LS130,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4#,SEAT CUSHION |
1 | ||
| 71831-3004006 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SPE,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4#,SEAT BACK |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-3002004 |
MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;MS137,YS130..(DLX,ROYG)..NOB;GS131,136,LS13#,MS135..4FC,4HC,5F BLUE,TRIM8#,SEAT BACK |
1 | ||
| 71832-3001004 |
MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;MS137,YS130..(DLX,ROYG)..NOB;GS131,136,LS13#,MS135..4FC,4HC,5F BLUE,TRIM8#,SEAT CUSHION |
1 | ||
| 71832-3002002 |
MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;MS137,YS130..(DLX,ROYG)..NOB;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL);GS130,MS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,LPG,SPC) MAROON,TRIM3#,SEAT BACK |
1 | ||
| 71832-3001006 |
MS137..NOB;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,LS130,MS135..ROY,SALEX,SPE,SSL SABLE,TRIM4#,SEAT CUSHION |
1 | ||
| 71832-3001002 |
MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;MS137,YS130..(DLX,ROYG)..NOB;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL);GS130,MS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,LPG,SPC) MAROON,TRIM3#,SEAT CUSHION |
1 | ||
| 71832-3002006 |
MS137..NOB;GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135..ROY,SALEX,SPE,SSL SABLE,TRIM4#,SEAT BACK |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-3002004 |
MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;MS137,YS130..(DLX,ROYG)..NOB;GS131,136,LS13#,MS135..4FC,4HC,5F BLUE,TRIM8#,SEAT BACK |
1 | ||
| 71832-3001004 |
MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;MS137,YS130..(DLX,ROYG)..NOB;GS131,136,LS13#,MS135..4FC,4HC,5F BLUE,TRIM8#,SEAT CUSHION |
1 | ||
| 71832-3002002 |
MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;MS137,YS130..(DLX,ROYG)..NOB;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL);GS130,MS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,LPG,SPC) MAROON,TRIM3#,SEAT BACK |
1 | ||
| 71832-3001006 |
MS137..NOB;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,LS130,MS135..ROY,SALEX,SPE,SSL SABLE,TRIM4#,SEAT CUSHION |
1 | ||
| 71832-3001002 |
MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;MS137,YS130..(DLX,ROYG)..NOB;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL);GS130,MS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,LPG,SPC) MAROON,TRIM3#,SEAT CUSHION |
1 | ||
| 71832-3002006 |
MS137..NOB;GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135..ROY,SALEX,SPE,SSL SABLE,TRIM4#,SEAT BACK |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-3001002 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 71848-3001006 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 71848-3001004 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB BLUE,TRIM8# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-3002006 |
JZS131,MS135..NOB;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL);GS131,JZS131,MS135..SALEX,SPE,SSL;GS130,JZS130,LS130,131..(4FC,5F)..(ROY,SAL,SALEX,SPE,SSL) SABLE,TRIM4# |
1 | ||
| 71873-3002004 |
JZS131,MS135..NOB;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL);GS131,JZS131,MS135..SALEX,SPE,SSL;GS130,136,JZS130,LS13#,MS130,YS130..4FC,5F;GS130,131,MS130,YS130..SED..(4H,4HC)..(DLX,ROY)..(LPEFI,LPG,SPC,TWLPG) BLUE,TRIM8# |
1 | ||
| 71873-3002002 |
MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS131,YS130..DLX,SALEX,SSL;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS136,MS135..(SED,V)..(4FC,4HC,5F);GS130,LS130,MS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,SPC,TD,TDE) MAROON,TRIM3# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-3002006 |
JZS131,MS135..NOB;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL);GS131,JZS131,MS135..SALEX,SPE,SSL;GS130,JZS130,LS130,131..(4FC,5F)..(ROY,SAL,SALEX,SPE,SSL) SABLE,TRIM4# |
1 | ||
| 71873-3002004 |
JZS131,MS135..NOB;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL);GS131,JZS131,MS135..SALEX,SPE,SSL;GS130,136,JZS130,LS13#,MS130,YS130..4FC,5F;GS130,131,MS130,YS130..SED..(4H,4HC)..(DLX,ROY)..(LPEFI,LPG,SPC,TWLPG) BLUE,TRIM8# |
1 | ||
| 71873-3002002 |
MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS131,YS130..DLX,SALEX,SSL;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS136,MS135..(SED,V)..(4FC,4HC,5F);GS130,LS130,MS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,SPC,TD,TDE) MAROON,TRIM3# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-3004004 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS131,JZS131,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TWC)..NOB;GS130,136,JZS131,LS13#,MS130,135,YS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 71875-3004002 |
GS131..SED..SPC;GS131..SSL..SPC;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS131,MS135,137..(EFI,HTWC,TWC)..NOB;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130,136,LS13#,MS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE) MAROON,TRIM3# |
1 | ||
| 71875-3004006 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SPE,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-3004004 |
GS131..(4FC,5F)..SAL;MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS130,MS137,YS130..(DLX,ROYG)..(LPEFI,LPG,TWC,TWLPG)..NOB;GS131,136,JZS13#,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 71876-3004006 |
MS137..NOB;GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135..ROY,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 71876-3004002 |
MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;MS137,YS130..(DLX,ROYG)..NOB;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL);GS130,MS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,LPG,SPC) MAROON,TRIM3# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3053002 |
GS130,131,LS130,131..(SED,WG)..SALEX MAROON,TRIM3#,右側 |
1 | ||
| 71910-3053004 |
GS130,131,LS130,131..(SED,WG)..SALEX BLUE,TRIM8#,右側 |
1 | ||
| 71910-3053006 |
GS130,131,LS130,131..(SED,WG)..SALEX SABLE,TRIM4#,右側 |
1 | ||
| 71920-3029002 |
GS130,131,LS130,131..(SED,WG)..SALEX MAROON,TRIM3#,左側 |
1 | ||
| 71920-3029004 |
GS130,131,LS130,131..(SED,WG)..SALEX BLUE,TRIM8#,左側 |
1 | ||
| 71920-3029006 |
GS130,131,LS130,131..(SED,WG)..SALEX SABLE,TRIM4#,左側 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006042 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-1006054 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001042 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71930-1006040 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1001054 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001040 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-10060D0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71931-10010J0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-10010D0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71930-10060J0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006042 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-1006054 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001042 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71930-1006040 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1001054 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001040 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-10060D0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71931-10010J0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-10010D0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71930-10060J0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71937 - HANDLE, FRONT SEAT HEADREST REGULATOR | ||||
| 71937-3001012 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL MAROON,TRIM3# |
1 | ||
| 71937-3001046 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 71937-3001024 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL BLUE,TRIM8# |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90507-15002 |
GS130,131,LS130,MS130,135,YS130;GS136,LS136,MS137..(4FC,4HC,5F)..NOB |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-30300 |
MS130..4FC;GS131,MS130..SED..(4H,4HC)..(DLX,ROY);GS130,131..SED..(4FC,5F)..(ROY,SAL,SDX)..(EFI,HTWC,SPC,TWLPG);GS131,JZS131,LS130,131,MS135..(HT,SED)..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,SPC,TD,TDE,TWC);GS130,131,JZS131,MS135,137,YS130..(HT,SED)..(DLX,ROY,ROYG,SALEX,SPE,SSL,STD)..(EFI,HTWC,LPEFI,LPG,TWC,TWLPG)..NOB |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-30300 |
MS130..4FC;GS131,MS130..SED..(4H,4HC)..(DLX,ROY);GS130,131..SED..(4FC,5F)..(ROY,SAL,SDX)..(EFI,HTWC,SPC,TWLPG);GS131,JZS131,LS130,131,MS135..(HT,SED)..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,SPC,TD,TDE,TWC);GS130,131,JZS131,MS135,137,YS130..(HT,SED)..(DLX,ROY,ROYG,SALEX,SPE,SSL,STD)..(EFI,HTWC,LPEFI,LPG,TWC,TWLPG)..NOB |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-30250 |
GS130..WG..(4H,4HC);GS130..(4FC,5F)..DLX;LS130,YS130..(HT,SED)..(4FC,5F);GS131,MS130,135,YS130..DLX,ROY,SALEX,SDX,SSL;GS130,MS137..(HT,SED)..(4FC,4HC,5F)..(ROYG,SAL,SALEX,SDX,SPE,STD)..NOB |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-30250 |
GS130..WG..(4H,4HC);GS130..(4FC,5F)..DLX;LS130,YS130..(HT,SED)..(4FC,5F);GS131,MS130,135,YS130..DLX,ROY,SALEX,SDX,SSL;GS130,MS137..(HT,SED)..(4FC,4HC,5F)..(ROYG,SAL,SALEX,SDX,SPE,STD)..NOB |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-3008004 |
GS130..HT,SED;GS131..SED..SPC;GS130..WG..(4H,4HC)..HTWC;GS130..WG..(4FC,5F)..(EFI,HTWC);GS131,136,LS136,MS135,137..(4FC,4HC,5F)..(DSL,EFI,HTWC,TWC)..NOB;GS131,LS130,MS130,YS130..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,LPG,SPC,TD,TDE) BLUE,TRIM8# |
1 | ||
| 72525-3008002 |
GS131..SED..SPC;GS130..SED..5F..SDX..HTWC;GS130..(4H,4HC)..SDX..HTWC;GS130..WG..(4FC,5F)..(EFI,HTWC);GS130..(4HC,5F)..(SAL,SALEX,SPE)..HTWC;GS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE)..EFI;GS130..(HT,SED)..(4FC,4H)..(DLX,SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS136,MS135,137..(4FC,4HC,5F)..(DSL,EFI,HTWC,TWC)..NOB;GS131,LS130,MS130,YS130..(DLX,SALEX,SDX,SPE,SSL)..(DSL,LPG,SPC,TD,TDE) MAROON,TRIM3# |
1 | ||
| 72525-3008006 |
GS131..SED..SPC;GS131..SSL..SPC;GS130..WG..4HC..HTWC;GS130..WG..4FC..SALEX;GS130..(HT,SED)..(SAL,SALEX,SPE);GS131,LS130,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-3005002 |
GS130..4FC..DLX..HTWC;GS130..(4FC,5F)..DLX..EFI;GS130..ROY,SAL,SALEX,SDX,SPE;MS130,137,YS130..(DLX,ROYG,SDX)..NOB;GS131,136,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72526-3005006 |
MS137..NOB;GS130,131,LS130,MS135..ROY,SAL,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72526-3005004 |
GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135..4FC,4HC,5F;MS130,137,YS130..(DLX,ROYG,SDX)..NOB BLUE,TRIM8# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30120 |
GS131..SED..4FC..SPC;GS131,JZS131,MS135..(SALEX,SSL)..(SPC,TWC);GS13#,JZS131,LS13#,MS13#,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWC,TWLPG)..NOB |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-22020D0 |
GS130..4H..DLX;GS131..SED..SPC;GS131..SSL..SPC;GS130..4FC..DLX..HTWC;GS130..(4FC,4HC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,4HC,5F)..(DLX,SAL,SALEX,SDX,SPE)..EFI;GS131,136,LS13#,MS13#,YS130..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,LPG,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 72791-2202032 |
GS130..4H..DLX;GS131..SED..SPC;GS131..SSL..SPC;GS130..(4FC,4HC,5F)..(DLX,SAL,SALEX,SDX,SPE);GS131,136,LS13#,MS13#,YS130..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 72791-2202034 |
GS130..SED..4H;GS131..SED..SPC;GS130..(4FC,4HC,5F)..EFI;GS131,LS130,YS130..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,LPG,SPC,TD,TDE);GS131,136,LS136,MS13#..(DLX,ROY,ROYG,SALEX,SDX,SSL)..(DSL,EFI,LPG,TWC)..NOB DARK BLUE,TRIM8# |
1 | ||
| 72791-2202036 |
GS131..SED..SPC;GS131,JZS131,MS135..(SALEX,SSL)..(SPC,TWC);GS130,131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SAL,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 72791-22020J0 |
GS130..SED..4H;GS131..SED..SPC;GS130..(4FC,4HC,5F)..(EFI,HTWC);GS131,LS130,YS130..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,LPG,SPC,TD,TDE);GS131,136,LS136,MS13#..(DLX,ROY,ROYG,SALEX,SDX,SSL)..(DSL,EFI,HTWC,LPG,TWC)..NOB DARK BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
GS130..SED..4H;GS131..SED..SPC;GS130..(4FC,4HC,5F)..(EFI,HTWC);GS131,LS130,YS130..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,LPG,SPC,TD,TDE);GS131,136,LS136,MS13#..(DLX,ROY,ROYG,SALEX,SDX,SSL)..(DSL,EFI,HTWC,LPG,TWC)..NOB |
1 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74617-3002022 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) MAROON,TRIM3# |
4 | ||
| 74617-3002026 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) SABLE,TRIM4# |
4 | ||
| 74617-3002034 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) DARK BLUE,TRIM8# |
4 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74617-3002022 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) MAROON,TRIM3# |
4 | ||
| 74617-3002026 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) SABLE,TRIM4# |
4 | ||
| 74617-3002034 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) DARK BLUE,TRIM8# |
4 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74617-3002022 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) MAROON,TRIM3# |
4 | ||
| 74617-3002026 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) SABLE,TRIM4# |
4 | ||
| 74617-3002034 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) DARK BLUE,TRIM8# |
4 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74617-3002022 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) MAROON,TRIM3# |
4 | ||
| 74617-3002026 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) SABLE,TRIM4# |
4 | ||
| 74617-3002034 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) DARK BLUE,TRIM8# |
4 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-3005014 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) BLUE,TRIM8# |
2 | ||
| 74620-3005016 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) SABLE,TRIM4# |
2 | ||
| 74620-3005022 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) MAROON,TRIM3# |
2 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-3005014 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) BLUE,TRIM8# |
2 | ||
| 74620-3005016 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) SABLE,TRIM4# |
2 | ||
| 74620-3005022 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) MAROON,TRIM3# |
2 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-3005014 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) BLUE,TRIM8# |
2 | ||
| 74620-3005016 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) SABLE,TRIM4# |
2 | ||
| 74620-3005022 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) MAROON,TRIM3# |
2 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-3005014 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) BLUE,TRIM8# |
2 | ||
| 74620-3005016 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) SABLE,TRIM4# |
2 | ||
| 74620-3005022 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) MAROON,TRIM3# |
2 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) |
4 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) |
4 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 90119-10084 | ||||
| 90159-60084 | ||||
| 90168-40049 | ||||
| 90168-40070 | ||||
| 90386-12030 | ||||
| 90467-11004 | ||||
| 90468-04092 | ||||
| 90468-16012 | ||||
| 90468-18071 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 90560-12025 | ||||
| 91611-60816 | ||||
| 91615-60616 | ||||
| 93381-16012 | ||||
| 93530-54020 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 8511 | ||||
ILLUST NO. 1 OF 4(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3A81002 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX MAROON,TRIM3# |
1 | ||
| 71071-3A81006 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX SABLE,TRIM4# |
1 | ||
| 71071-3A81004 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3A13002 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX MAROON,TRIM3# |
1 | ||
| 71072-3A13004 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX BLUE,TRIM8# |
1 | ||
| 71072-3A13006 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX SABLE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3A61002 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX MAROON,TRIM3# |
1 | ||
| 71073-3A61006 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX SABLE,TRIM4# |
1 | ||
| 71073-3A61004 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-3A08004 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX BLUE,TRIM8# |
1 | ||
| 71074-3A08006 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX SABLE,TRIM4# |
1 | ||
| 71074-3A08002 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX MAROON,TRIM3# |
1 | ||
| 71328B - WASHER, FRONT SEAT BACK POCKET SETTING, RH | ||||
| 71328-30010 |
MS137..WIB;MS130,YS130..DLX;GS130..ROY,SAL,SALEX,SDX,SPE;GS131,136,LS13#,MS135..4FC,4HC,5F;GS130,MS137,YS130..(4FC,5F)..(DLX,ROYG,STD)..NOB |
2 | ||
| 71328C - WASHER, FRONT SEAT BACK POCKET SETTING, LH | ||||
| 71328-30010 |
MS130,YS130..DLX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
2 | ||
| 71328-30010 |
MS137..WIB;MS130,YS130..DLX;GS130..ROY,SAL,SALEX,SDX,SPE;GS131,136,LS13#,MS135..4FC,4HC,5F;GS130,MS137,YS130..(4FC,5F)..(DLX,ROYG,STD)..NOB |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3A81002 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,MAROON,TRIM3# |
1 | ||
| 71410-3A81006 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,SABLE,TRIM4# |
1 | ||
| 71410-3A81004 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3A21004 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,BLUE,TRIM8# |
1 | ||
| 71420-3A21006 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,SABLE,TRIM4# |
1 | ||
| 71420-3A21002 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,MAROON,TRIM3# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-3F32002 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,MAROON,TRIM3# |
1 | ||
| 71430-3F32004 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,BLUE,TRIM8# |
1 | ||
| 71430-3F32006 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,SABLE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-3F04006 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,SABLE,TRIM4# |
1 | ||
| 71440-3F04002 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,MAROON,TRIM3# |
1 | ||
| 71440-3F04004 |
GS130,131,LS130,131..SED..(4FC,5F)..SALEX ***,BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-30680 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..(SED,WG)..(4FC,5F)..(ROY,ROYG,SAL,SALEX) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-30680 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..(SED,WG)..(4FC,5F)..(ROY,ROYG,SAL,SALEX) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-30590 |
GS130,131,LS130,MS135,137..(SED,WG)..(4FC,5F)..(ROY,ROYG,SAL,SALEX) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-30590 |
GS130,131,LS130,MS135,137..(SED,WG)..(4FC,5F)..(ROY,ROYG,SAL,SALEX) |
1 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
4 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
4 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
4 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
4 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-30510 |
GS131..SED..4FC..SPC;GS131,JZS131,MS135..(SALEX,SSL)..(SPC,TWC);GS130,131,JZS131,LS130,131,MS135,137..(4FC,5F)..(ROY,ROYG,SAL,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-30190 |
GS131..SED..4FC..ROY;MS130..(4H,4HC)..DLX;GS131..(4FC,5F)..(SAL,SALEX,SPE,SSL);GS130,136,JZS13#,LS13#,MS130,135,YS130..(4FC,5F)..NOB;GS130,JZS131,MS135,YS130..(DLX,SALEX,SSL)..(LPEFI,LPG,TWC,TWLPG) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-30740 |
GS130,131,JZS131,LS130,131..(4FC,5F)..(SAL,SPE,SSL) |
1 | ||
| 71630-30730 |
GS131..SED..(4FC,5F)..(ROY,SALEX);GS130,JZS131,LS130,131,MS135,137..(SED,WG)..(4FC,5F)..(ROY,ROYG,SALEX)..(EFI,HTWC,TDE,TWC) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-30460 |
GS130..(4H,4HC)..(SAL,SDX);GS130,131,LS130..(4FC,5F)..(SAL,SPE,SSL) |
1 | ||
| 71640-30450 |
GS130,131,JZS13#,LS130,131,MS135,137..(SED,WG)..(4FC,5F)..(ROY,ROYG,SALEX) |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3028004 |
MS137..WIB;MS137..4FC..NOB;GS130,131,LS130,MS135..ROY,SALEX BLUE,TRIM8# |
1 | ||
| 71705-3028006 |
MS137..WIB;MS137..4FC..NOB;GS130,131,LS130,MS135..ROY,SALEX SABLE,TRIM4# |
1 | ||
| 71705-3028002 |
MS137..WIB;MS137..4FC..NOB;GS130,131,LS130,MS135..ROY,SALEX MAROON,TRIM3# |
1 | ||
| 71705-3027004 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL BLUE,TRIM8# |
1 | ||
| 71705-3027002 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL MAROON,TRIM3# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3028004 |
MS137..WIB;MS137..4FC..NOB;UZS131..4FC..WIB;GS130,131,JZS13#,LS130,131,MS135..ROY,SALEX BLUE,TRIM8# |
1 | ||
| 71705-3028002 |
MS137..4FC..NOB;MS137,UZS131..WIB;GS130,131,JZS13#,LS130,131,MS135..ROY,SALEX MAROON,TRIM3# |
1 | ||
| 71705-3027004 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL BLUE,TRIM8# |
1 | ||
| 71705-3028006 |
MS137..4FC..NOB;MS137,UZS131..WIB;GS130,131,JZS13#,LS130,131,MS135..ROY,SALEX SABLE,TRIM4# |
1 | ||
| 71705-3027002 |
GS131,LS131..SAL,SSL;GS130,JZS131,LS130..SAL,SPE,SSL MAROON,TRIM3# |
1 | ||
| 71708B - STRAP SUB-ASSY, SEAT COVER | ||||
| 71708-30010 |
LS130..SED..SALEX;GS130,131..(4FC,5F)..(DLX,SSL);GS131,MS13#,YS130..SED..(DLX,ROY,ROYG,SDX);LS130,YS130..(4FC,5F)..(DLX,SDX,SPE,SSL,STD);GS130..(HT,SED)..(4FC,4HC,5F)..(SAL,SALEX,SDX,SPE,STD) |
2 | ||
| 71708B - STRAP SUB-ASSY, SEAT COVER | ||||
| 71708-30010 |
LS130..SED..SALEX;GS130,131..(4FC,5F)..(DLX,SSL);GS131,MS13#,YS130..SED..(DLX,ROY,ROYG,SDX);LS130,YS130..(4FC,5F)..(DLX,SDX,SPE,SSL,STD);GS130..(HT,SED)..(4FC,4HC,5F)..(SAL,SALEX,SDX,SPE,STD) |
2 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-3023002 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(HT,SED)..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 71811-3023004 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(HT,SED)..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB BLUE,TRIM8# |
1 | ||
| 71811-3023006 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(HT,SED)..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-3023002 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(HT,SED)..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 71811-3023004 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(HT,SED)..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB BLUE,TRIM8# |
1 | ||
| 71811-3023006 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(HT,SED)..(4FC,5F)..(SAL,SALEX,SSL);GS131,JZS131,LS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SALEX,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-3013002 |
GS130..WG..(4H,4HC);GS130..4FC..DLX..HTWC;GS130..(4FC,5F)..DLX..EFI;GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,MS130,YS130..DLX,SALEX,SDX,SSL;GS131,136,LS136,MS135..(SED,V)..(4FC,4HC,5F);LS130..(HT,SED)..(4FC,5F)..(DLX,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 71812-3013006 |
GS130..WG..4HC;GS131,JZS131,MS135..SED..ROY;GS130,131,JZS131,LS130,131,MS135..(HT,SED)..(SAL,SALEX,SPE,SSL) SABLE,TRIM4# |
1 | ||
| 71812-3013004 |
YS130..5F;GS130..DLX..TWLPG;GS130..WG..(4H,4HC);GS130..(4FC,5F)..DLX;GS130..4H..SDX..TWLPG;GS131,JZS131,MS130,135,YS130..SED..(DLX,ROY,SDX);GS130..(HT,SED)..(4FC,4HC,5F)..(SAL,SALEX,SDX,SPE,STD);GS131,136,JZS131,LS13#,MS135..(HT,SED,V)..(4FC,4HC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-3013002 |
GS130..WG..(4H,4HC);GS130..4FC..DLX..HTWC;GS130..(4FC,5F)..DLX..EFI;GS130..(HT,SED)..(SAL,SALEX,SDX,SPE);GS131,MS130,YS130..DLX,SALEX,SDX,SSL;GS131,136,LS136,MS135..(SED,V)..(4FC,4HC,5F);LS130..(HT,SED)..(4FC,5F)..(DLX,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 71812-3013006 |
GS130..WG..4HC;GS131,JZS131,MS135..SED..ROY;GS130,131,JZS131,LS130,131,MS135..(HT,SED)..(SAL,SALEX,SPE,SSL) SABLE,TRIM4# |
1 | ||
| 71812-3013004 |
YS130..5F;GS130..DLX..TWLPG;GS130..WG..(4H,4HC);GS130..(4FC,5F)..DLX;GS130..4H..SDX..TWLPG;GS131,JZS131,MS130,135,YS130..SED..(DLX,ROY,SDX);GS130..(HT,SED)..(4FC,4HC,5F)..(SAL,SALEX,SDX,SPE,STD);GS131,136,JZS131,LS13#,MS135..(HT,SED,V)..(4FC,4HC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-3003002 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130,MS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE)..(EFI,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB MAROON,TRIM3#,SEAT CUSHION |
1 | ||
| 71831-3003004 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130,MS130,YS130..(4FC,5F)..(EFI,HTWC,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB BLUE,TRIM8#,SEAT CUSHION |
1 | ||
| 71831-3004002 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130,MS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE)..(EFI,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB MAROON,TRIM3#,SEAT BACK |
1 | ||
| 71831-3004004 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130,MS130,YS130..(4FC,5F)..(EFI,HTWC,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB BLUE,TRIM8#,SEAT BACK |
1 | ||
| 71831-3003006 |
GS131..SED..SPC;GS131..SSL..SPC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SPE);GS131,LS130,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4#,SEAT CUSHION |
1 | ||
| 71831-3004006 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SPE,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4#,SEAT BACK |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-3003002 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130,MS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE)..(EFI,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB MAROON,TRIM3#,SEAT CUSHION |
1 | ||
| 71831-3003004 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130,MS130,YS130..(4FC,5F)..(EFI,HTWC,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB BLUE,TRIM8#,SEAT CUSHION |
1 | ||
| 71831-3004002 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130,MS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE)..(EFI,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB MAROON,TRIM3#,SEAT BACK |
1 | ||
| 71831-3004004 |
GS131..SSL..SPC;MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS131,YS130..SED..(DLX,ROY)..(LPG,SPC);GS130,MS130,YS130..(4FC,5F)..(EFI,HTWC,LPG);GS131,136,LS13#,MS135,137..(4FC,4HC,5F)..(DSL,EFI,HTWC,TD,TDE,TWC)..NOB BLUE,TRIM8#,SEAT BACK |
1 | ||
| 71831-3003006 |
GS131..SED..SPC;GS131..SSL..SPC;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(SAL,SALEX,SPE);GS131,LS130,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4#,SEAT CUSHION |
1 | ||
| 71831-3004006 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SPE,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4#,SEAT BACK |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-3002004 |
MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;MS137,YS130..(DLX,ROYG)..NOB;GS131,136,LS13#,MS135..4FC,4HC,5F BLUE,TRIM8#,SEAT BACK |
1 | ||
| 71832-3001004 |
MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;MS137,YS130..(DLX,ROYG)..NOB;GS131,136,LS13#,MS135..4FC,4HC,5F BLUE,TRIM8#,SEAT CUSHION |
1 | ||
| 71832-3002002 |
MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;MS137,YS130..(DLX,ROYG)..NOB;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL);GS130,MS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,LPG,SPC) MAROON,TRIM3#,SEAT BACK |
1 | ||
| 71832-3001006 |
MS137..NOB;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,LS130,MS135..ROY,SALEX,SPE,SSL SABLE,TRIM4#,SEAT CUSHION |
1 | ||
| 71832-3001002 |
MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;MS137,YS130..(DLX,ROYG)..NOB;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL);GS130,MS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,LPG,SPC) MAROON,TRIM3#,SEAT CUSHION |
1 | ||
| 71832-3002006 |
MS137..NOB;GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135..ROY,SALEX,SPE,SSL SABLE,TRIM4#,SEAT BACK |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-3002004 |
MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;MS137,YS130..(DLX,ROYG)..NOB;GS131,136,LS13#,MS135..4FC,4HC,5F BLUE,TRIM8#,SEAT BACK |
1 | ||
| 71832-3001004 |
MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;MS137,YS130..(DLX,ROYG)..NOB;GS131,136,LS13#,MS135..4FC,4HC,5F BLUE,TRIM8#,SEAT CUSHION |
1 | ||
| 71832-3002002 |
MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;MS137,YS130..(DLX,ROYG)..NOB;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL);GS130,MS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,LPG,SPC) MAROON,TRIM3#,SEAT BACK |
1 | ||
| 71832-3001006 |
MS137..NOB;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,LS130,MS135..ROY,SALEX,SPE,SSL SABLE,TRIM4#,SEAT CUSHION |
1 | ||
| 71832-3001002 |
MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;MS137,YS130..(DLX,ROYG)..NOB;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL);GS130,MS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,LPG,SPC) MAROON,TRIM3#,SEAT CUSHION |
1 | ||
| 71832-3002006 |
MS137..NOB;GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135..ROY,SALEX,SPE,SSL SABLE,TRIM4#,SEAT BACK |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-3002006 |
JZS131,MS135..NOB;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL);GS131,JZS131,MS135..SALEX,SPE,SSL;GS130,JZS130,LS130,131..(4FC,5F)..(ROY,SAL,SALEX,SPE,SSL) SABLE,TRIM4# |
1 | ||
| 71873-3002004 |
JZS131,MS135..NOB;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL);GS131,JZS131,MS135..SALEX,SPE,SSL;GS130,136,JZS130,LS13#,MS130,YS130..4FC,5F;GS130,131,MS130,YS130..SED..(4H,4HC)..(DLX,ROY)..(LPEFI,LPG,SPC,TWLPG) BLUE,TRIM8# |
1 | ||
| 71873-3002002 |
MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS131,YS130..DLX,SALEX,SSL;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS136,MS135..(SED,V)..(4FC,4HC,5F);GS130,LS130,MS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,SPC,TD,TDE) MAROON,TRIM3# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-3004004 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS131,JZS131,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TWC)..NOB;GS130,136,JZS131,LS13#,MS130,135,YS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 71875-3004002 |
GS131..SED..SPC;GS131..SSL..SPC;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;GS131,MS135,137..(EFI,HTWC,TWC)..NOB;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130,136,LS13#,MS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE) MAROON,TRIM3# |
1 | ||
| 71875-3004006 |
GS131..SSL..SPC;GS131..SED..4HC..SPC;GS130..SED..4HC..SALEX;GS131..SED..(4FC,5F)..(ROY,SAL)..(HTWC,SPC);GS130,JZS131,MS135..(4FC,5F)..(SAL,SALEX,SPE,SSL);GS131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-3004004 |
GS131..(4FC,5F)..SAL;MS130..(4H,4HC)..DLX;GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS130,MS137,YS130..(DLX,ROYG)..(LPEFI,LPG,TWC,TWLPG)..NOB;GS131,136,JZS13#,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 71876-3004006 |
MS137..NOB;GS131..(4FC,5F)..SAL;GS130..SED..4HC..SALEX;GS130..(4FC,5F)..(ROY,SAL,SALEX,SPE);GS131,JZS13#,LS130,131,MS135..ROY,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 71876-3004002 |
MS130..(4H,4HC)..DLX;GS130..4FC..DLX..HTWC;GS130..SED..4HC..SALEX;MS137,YS130..(DLX,ROYG)..NOB;GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL);GS130,MS130..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,LPG,SPC) MAROON,TRIM3# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3053002 |
GS130,131,LS130,131..(SED,WG)..SALEX MAROON,TRIM3#,右側 |
1 | ||
| 71910-3053004 |
GS130,131,LS130,131..(SED,WG)..SALEX BLUE,TRIM8#,右側 |
1 | ||
| 71910-3053006 |
GS130,131,LS130,131..(SED,WG)..SALEX SABLE,TRIM4#,右側 |
1 | ||
| 71920-3029002 |
GS130,131,LS130,131..(SED,WG)..SALEX MAROON,TRIM3#,左側 |
1 | ||
| 71920-3029004 |
GS130,131,LS130,131..(SED,WG)..SALEX BLUE,TRIM8#,左側 |
1 | ||
| 71920-3029006 |
GS130,131,LS130,131..(SED,WG)..SALEX SABLE,TRIM4#,左側 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006042 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-1006054 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001042 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71930-1006040 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1001054 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001040 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-10060D0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71931-10010J0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-10010D0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71930-10060J0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006042 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71930-1006054 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001042 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71930-1006040 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1001054 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-1001040 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-10060D0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,MAROON,TRIM3# |
1 | ||
| 71931-10010J0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71931-10010D0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ無,MAROON,TRIM3# |
1 | ||
| 71930-10060J0 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71937 - HANDLE, FRONT SEAT HEADREST REGULATOR | ||||
| 71937-3001012 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL MAROON,TRIM3# |
1 | ||
| 71937-3001046 |
GS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 71937-3001024 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL BLUE,TRIM8# |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90507-15002 |
GS130,131,LS130,MS130,135,YS130;GS136,LS136,MS137..(4FC,4HC,5F)..NOB |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-30300 |
MS130..4FC;GS131,MS130..SED..(4H,4HC)..(DLX,ROY);GS130,131..SED..(4FC,5F)..(ROY,SAL,SDX)..(EFI,HTWC,SPC,TWLPG);GS131,JZS131,LS130,131,MS135..(HT,SED)..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,SPC,TD,TDE,TWC);GS130,131,JZS131,MS135,137,YS130..(HT,SED)..(DLX,ROY,ROYG,SALEX,SPE,SSL,STD)..(EFI,HTWC,LPEFI,LPG,TWC,TWLPG)..NOB |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-30300 |
MS130..4FC;GS131,MS130..SED..(4H,4HC)..(DLX,ROY);GS130,131..SED..(4FC,5F)..(ROY,SAL,SDX)..(EFI,HTWC,SPC,TWLPG);GS131,JZS131,LS130,131,MS135..(HT,SED)..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,SPC,TD,TDE,TWC);GS130,131,JZS131,MS135,137,YS130..(HT,SED)..(DLX,ROY,ROYG,SALEX,SPE,SSL,STD)..(EFI,HTWC,LPEFI,LPG,TWC,TWLPG)..NOB |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-30250 |
GS130..WG..(4H,4HC);GS130..(4FC,5F)..DLX;LS130,YS130..(HT,SED)..(4FC,5F);GS131,MS130,135,YS130..DLX,ROY,SALEX,SDX,SSL;GS130,MS137..(HT,SED)..(4FC,4HC,5F)..(ROYG,SAL,SALEX,SDX,SPE,STD)..NOB |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-30250 |
GS130..WG..(4H,4HC);GS130..(4FC,5F)..DLX;LS130,YS130..(HT,SED)..(4FC,5F);GS131,MS130,135,YS130..DLX,ROY,SALEX,SDX,SSL;GS130,MS137..(HT,SED)..(4FC,4HC,5F)..(ROYG,SAL,SALEX,SDX,SPE,STD)..NOB |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-3008004 |
GS130..HT,SED;GS131..SED..SPC;GS130..WG..(4H,4HC)..HTWC;GS130..WG..(4FC,5F)..(EFI,HTWC);GS131,136,LS136,MS135,137..(4FC,4HC,5F)..(DSL,EFI,HTWC,TWC)..NOB;GS131,LS130,MS130,YS130..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,LPG,SPC,TD,TDE) BLUE,TRIM8# |
1 | ||
| 72525-3008002 |
GS131..SED..SPC;GS130..SED..5F..SDX..HTWC;GS130..(4H,4HC)..SDX..HTWC;GS130..WG..(4FC,5F)..(EFI,HTWC);GS130..(4HC,5F)..(SAL,SALEX,SPE)..HTWC;GS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE)..EFI;GS130..(HT,SED)..(4FC,4H)..(DLX,SAL,SALEX,SDX,SPE)..HTWC;GS131,136,LS136,MS135,137..(4FC,4HC,5F)..(DSL,EFI,HTWC,TWC)..NOB;GS131,LS130,MS130,YS130..(DLX,SALEX,SDX,SPE,SSL)..(DSL,LPG,SPC,TD,TDE) MAROON,TRIM3# |
1 | ||
| 72525-3008006 |
GS131..SED..SPC;GS131..SSL..SPC;GS130..WG..4HC..HTWC;GS130..WG..4FC..SALEX;GS130..(HT,SED)..(SAL,SALEX,SPE);GS131,LS130,MS135,137..(ROY,ROYG,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-3005002 |
GS130..4FC..DLX..HTWC;GS130..(4FC,5F)..DLX..EFI;GS130..ROY,SAL,SALEX,SDX,SPE;MS130,137,YS130..(DLX,ROYG,SDX)..NOB;GS131,136,LS13#,MS135..(4FC,4HC,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 72526-3005006 |
MS137..NOB;GS130,131,LS130,MS135..ROY,SAL,SALEX,SPE,SSL SABLE,TRIM4# |
1 | ||
| 72526-3005004 |
GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135..4FC,4HC,5F;MS130,137,YS130..(DLX,ROYG,SDX)..NOB BLUE,TRIM8# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30120 |
GS131..SED..4FC..SPC;GS131,JZS131,MS135..(SALEX,SSL)..(SPC,TWC);GS13#,JZS131,LS13#,MS13#,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWC,TWLPG)..NOB |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-22020D0 |
GS130..4H..DLX;GS131..SED..SPC;GS131..SSL..SPC;GS130..4FC..DLX..HTWC;GS130..(4FC,4HC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(4FC,4HC,5F)..(DLX,SAL,SALEX,SDX,SPE)..EFI;GS131,136,LS13#,MS13#,YS130..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,LPG,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 72791-2202032 |
GS130..4H..DLX;GS131..SED..SPC;GS131..SSL..SPC;GS130..(4FC,4HC,5F)..(DLX,SAL,SALEX,SDX,SPE);GS131,136,LS13#,MS13#,YS130..(DLX,ROY,ROYG,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE,TWC)..NOB MAROON,TRIM3# |
1 | ||
| 72791-2202034 |
GS130..SED..4H;GS131..SED..SPC;GS130..(4FC,4HC,5F)..EFI;GS131,LS130,YS130..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,LPG,SPC,TD,TDE);GS131,136,LS136,MS13#..(DLX,ROY,ROYG,SALEX,SDX,SSL)..(DSL,EFI,LPG,TWC)..NOB DARK BLUE,TRIM8# |
1 | ||
| 72791-2202036 |
GS131..SED..SPC;GS131,JZS131,MS135..(SALEX,SSL)..(SPC,TWC);GS130,131,JZS131,LS130,131,MS135,137..(ROY,ROYG,SAL,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE,TWC)..NOB SABLE,TRIM4# |
1 | ||
| 72791-22020J0 |
GS130..SED..4H;GS131..SED..SPC;GS130..(4FC,4HC,5F)..(EFI,HTWC);GS131,LS130,YS130..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,LPG,SPC,TD,TDE);GS131,136,LS136,MS13#..(DLX,ROY,ROYG,SALEX,SDX,SSL)..(DSL,EFI,HTWC,LPG,TWC)..NOB DARK BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
GS130..SED..4H;GS131..SED..SPC;GS130..(4FC,4HC,5F)..(EFI,HTWC);GS131,LS130,YS130..(DLX,SALEX,SDX,SPE,SSL,STD)..(DSL,LPG,SPC,TD,TDE);GS131,136,LS136,MS13#..(DLX,ROY,ROYG,SALEX,SDX,SSL)..(DSL,EFI,HTWC,LPG,TWC)..NOB |
1 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74617-3002022 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) MAROON,TRIM3# |
4 | ||
| 74617-3002026 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) SABLE,TRIM4# |
4 | ||
| 74617-3002034 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) DARK BLUE,TRIM8# |
4 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74617-3002022 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) MAROON,TRIM3# |
4 | ||
| 74617-3002026 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) SABLE,TRIM4# |
4 | ||
| 74617-3002034 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) DARK BLUE,TRIM8# |
4 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-3005014 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) BLUE,TRIM8# |
2 | ||
| 74620-3005016 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) SABLE,TRIM4# |
2 | ||
| 74620-3005022 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) MAROON,TRIM3# |
2 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-3005014 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) BLUE,TRIM8# |
2 | ||
| 74620-3005016 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) SABLE,TRIM4# |
2 | ||
| 74620-3005022 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) MAROON,TRIM3# |
2 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) |
4 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
MS135,137..4HC;GS131..HT..4HC..SPC;GS130,131..SED..(ROY,SALEX);GS130..WG..4FC..(ROY,SALEX);LS130,MS135,137..(SED,WG)..4FC..(ROY,ROYG,SALEX) |
4 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 90119-10084 | ||||
| 90119-10229 | ||||
| 90159-60084 | ||||
| 90168-40070 | ||||
| 90176-06012 | ||||
| 90201-06311 | ||||
| 90386-12030 | ||||
| 90467-11004 | ||||
| 90468-04092 | ||||
| 90468-18071 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91611-60816 | ||||
| 91615-60616 | ||||
| 93530-54020 | ||||
ILLUST NO. 2 OF 4(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30270 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;MS130,YS130..(4H,4HC)..DLX;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30270 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;MS130,YS130..(4H,4HC)..DLX;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71522-30140 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;MS130,YS130..(4H,4HC)..DLX;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71522-30140 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;MS130,YS130..(4H,4HC)..DLX;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
1 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30040 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30040 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30040 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30040 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30040 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30040 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30040 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30040 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30040 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30040 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30040 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30040 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30040 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30040 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30060 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
1 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30060 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
1 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30060 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
1 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30060 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
1 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30060 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
1 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30060 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
1 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30060 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
1 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30060 |
GS130..SED..4HC..SALEX;GS130,MS130,YS130..4FC,5F;GS131,136,LS13#,MS135,137..4FC,4HC,5F |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30140 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30140 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30140 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30140 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30140 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30140 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30140 |
MS130,YS130..DLX,SDX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131,136,LS13#,MS135,137..4FC,4HC,5F |
1 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30060 |
GS131..4HC..SALEX;MS130,YS130..DLX,SDX;LS130..(SED,WG)..SALEX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131..HT..(ROY,SSL)..(EFI,HTWC,SPC);LS130..(4FC,5F)..(DLX,SDX,SPE,SSL,STD);GS136,LS136,MS135,137..(HT,V)..(4FC,4HC,5F) |
2 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30060 |
GS131..4HC..SALEX;MS130,YS130..DLX,SDX;LS130..(SED,WG)..SALEX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131..HT..(ROY,SSL)..(EFI,HTWC,SPC);LS130..(4FC,5F)..(DLX,SDX,SPE,SSL,STD);GS136,LS136,MS135,137..(HT,V)..(4FC,4HC,5F) |
2 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30060 |
GS131..4HC..SALEX;MS130,YS130..DLX,SDX;LS130..(SED,WG)..SALEX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131..HT..(ROY,SSL)..(EFI,HTWC,SPC);LS130..(4FC,5F)..(DLX,SDX,SPE,SSL,STD);GS136,LS136,MS135,137..(HT,V)..(4FC,4HC,5F) |
2 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30060 |
GS131..4HC..SALEX;MS130,YS130..DLX,SDX;LS130..(SED,WG)..SALEX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131..HT..(ROY,SSL)..(EFI,HTWC,SPC);LS130..(4FC,5F)..(DLX,SDX,SPE,SSL,STD);GS136,LS136,MS135,137..(HT,V)..(4FC,4HC,5F) |
2 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30060 |
GS131..4HC..SALEX;MS130,YS130..DLX,SDX;LS130..(SED,WG)..SALEX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131..HT..(ROY,SSL)..(EFI,HTWC,SPC);LS130..(4FC,5F)..(DLX,SDX,SPE,SSL,STD);GS136,LS136,MS135,137..(HT,V)..(4FC,4HC,5F) |
2 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30060 |
GS131..4HC..SALEX;MS130,YS130..DLX,SDX;LS130..(SED,WG)..SALEX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131..HT..(ROY,SSL)..(EFI,HTWC,SPC);LS130..(4FC,5F)..(DLX,SDX,SPE,SSL,STD);GS136,LS136,MS135,137..(HT,V)..(4FC,4HC,5F) |
2 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30060 |
GS131..4HC..SALEX;MS130,YS130..DLX,SDX;LS130..(SED,WG)..SALEX;GS130..ROY,SAL,SALEX,SDX,SPE;GS130,YS130..(4FC,5F)..(DLX,STD);GS131..HT..(ROY,SSL)..(EFI,HTWC,SPC);LS130..(4FC,5F)..(DLX,SDX,SPE,SSL,STD);GS136,LS136,MS135,137..(HT,V)..(4FC,4HC,5F) |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
