LS130-AEPJJ (1987)
Toyota Crown
(8709- )4FC..SAL,SALEX,SDX,SPE,SSL

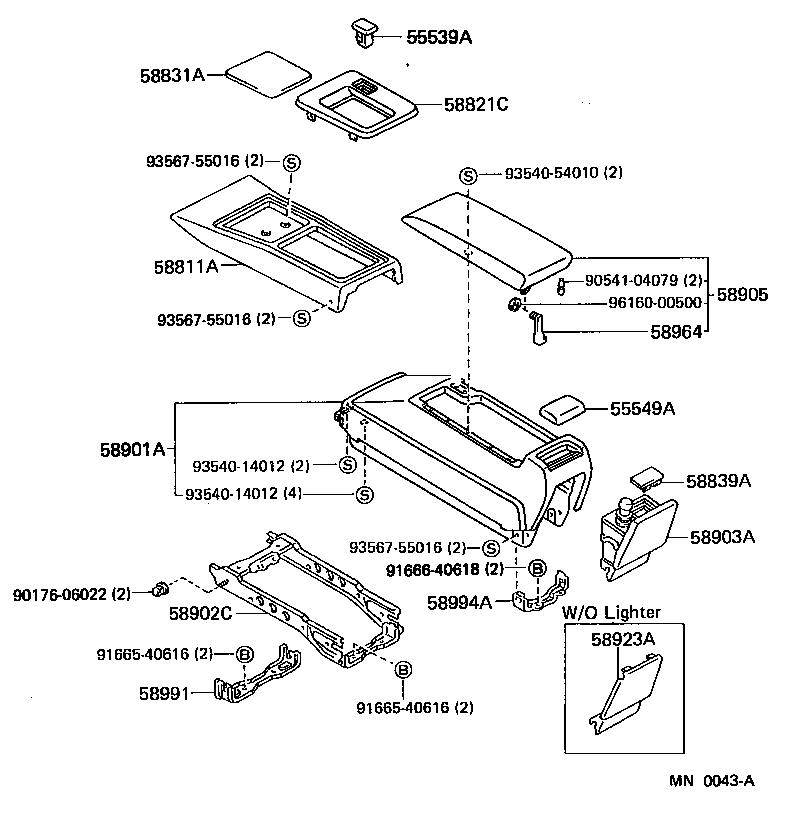

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55549A - COVER, REAR COOLER SWITCH HOLE | ||||
| 55549-3008002 |
GS130,131,LS130,131,MS130..4FC..(EFI,HTWC,LPG,TDE,TWLPG) MAROON,TRIM3# |
1 | ||
| 55549-3008004 |
GS130,131,LS130,131,MS130..4FC..(EFI,HTWC,LPG,TDE,TWLPG) BLUE,TRIM8# |
1 | ||
| 55549-3008006 |
GS130,131,LS130,131..4FC..(SAL,SALEX,SPE,SSL)..(EFI,HTWC,TDE) SABLE,TRIM4# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-3024006 |
GS131..5F..TWC;GS130,131,LS130,131..(4FC,5F)..(SAL,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE) SABLE,TRIM4# |
1 | ||
| 58811-3024004 |
GS131..5F..TWC;GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWLPG) BLUE,TRIM8# |
1 | ||
| 58811-3024002 |
GS131..5F..TWC;GS130..4FC..DLX..HTWC;GS131..(4FC,5F)..(EFI,HTWC);GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130,136,LS13#,MS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE) MAROON,TRIM3# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-3018004 |
GS130,131,LS13#,MS130..4FC..(DSL,EFI,LPG,TDE) BLUE,TRIM8# |
1 | ||
| 58821-3018002 |
GS130,131,LS13#,MS130..4FC..(DSL,EFI,LPG,TDE) MAROON,TRIM3# |
1 | ||
| 58821-3018006 |
GS130,131,LS130..4FC..(SAL,SALEX,SPE,SSL)..(EFI,TDE) SABLE,TRIM4# |
1 | ||
| 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT | ||||
| 58831-3006002 |
GS131..5F..TWC;GS130,131,LS130,131,MS130..(4FC,5F)..(SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,LPG,TD,TDE,TWLPG) MAROON,TRIM3# |
1 | ||
| 58831-3006006 |
GS131..5F..TWC;GS130,131,LS130,131..(4FC,5F)..(SAL,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE) SABLE,TRIM4# |
1 | ||
| 58831-3006004 |
GS131..5F..TWC;GS130,131,LS130,131,MS130..(4FC,5F)..(SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,LPG,TD,TDE,TWLPG) BLUE,TRIM8# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-3007002 |
GS130,131,LS130,131,MS130..4FC..(EFI,HTWC,LPG,TDE,TWLPG) MAROON,TRIM3# |
1 | ||
| 58901-3007006 |
GS130,131,LS130,131..4FC..(SAL,SALEX,SPE,SSL)..(EFI,HTWC,TDE) SABLE,TRIM4# |
1 | ||
| 58901-3007004 |
GS130,131,LS130,131,MS130..4FC..(EFI,HTWC,LPG,TDE,TWLPG) BLUE,TRIM8# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-30030 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,HTWC,TWC);GS130,136,LS13#,MS13#,YS130..4FC,5F |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-3009002 |
GS131..5F..TWC;GS130..4FC..DLX..HTWC;GS130..(4FC,5F)..(SAL,SALEX,SDX)..HTWC;GS130,136,LS13#,MS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX)..(DSL,EFI,LPG,TD,TDE) MAROON,TRIM3# |
1 | ||
| 58903-3009006 |
GS131..5F..TWC;GS130,131,LS130,131..(SED,WG)..(4FC,5F)..(SAL,SALEX) SABLE,TRIM4# |
1 | ||
| 58903-3009004 |
GS131..5F..TWC;GS13#,LS13#,MS130,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) BLUE,TRIM8# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-3014004 |
GS130,131,LS130,131,MS130..4FC..(EFI,HTWC,LPG,TDE,TWLPG) BLUE,TRIM8# |
1 | ||
| 58905-3014002 |
GS130,131,LS130,131,MS130..4FC..(EFI,HTWC,LPG,TDE,TWLPG) MAROON,TRIM3# |
1 | ||
| 58905-3014006 |
GS130,131,LS130,131..4FC..(SAL,SALEX,SPE,SSL)..(EFI,HTWC,TDE) SABLE,TRIM4# |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30050 |
GS131..5F..TWC;GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWLPG) |
1 | ||
| 58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER | ||||
| 58991-30080 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,HTWC,TWC);GS130,136,LS13#,MS13#,YS130..4FC,5F |
1 | ||
| 58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4 | ||||
| 58994-30020 |
GS131..5F..TWC;GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWLPG) |
1 | ||
| Common parts | ||||
| 90176-06022 | ||||
| 90541-04079 | ||||
| 91665-40616 | ||||
| 91666-40618 | ||||
| 93540-14012 | ||||
| 93540-54010 | ||||
| 93567-55016 | ||||
| 96160-00500 | ||||
