LS130-AEPJJ (1987)
Toyota Crown
(8709- )GS13#,JZS13#,LS13#,MS130,135,YS130

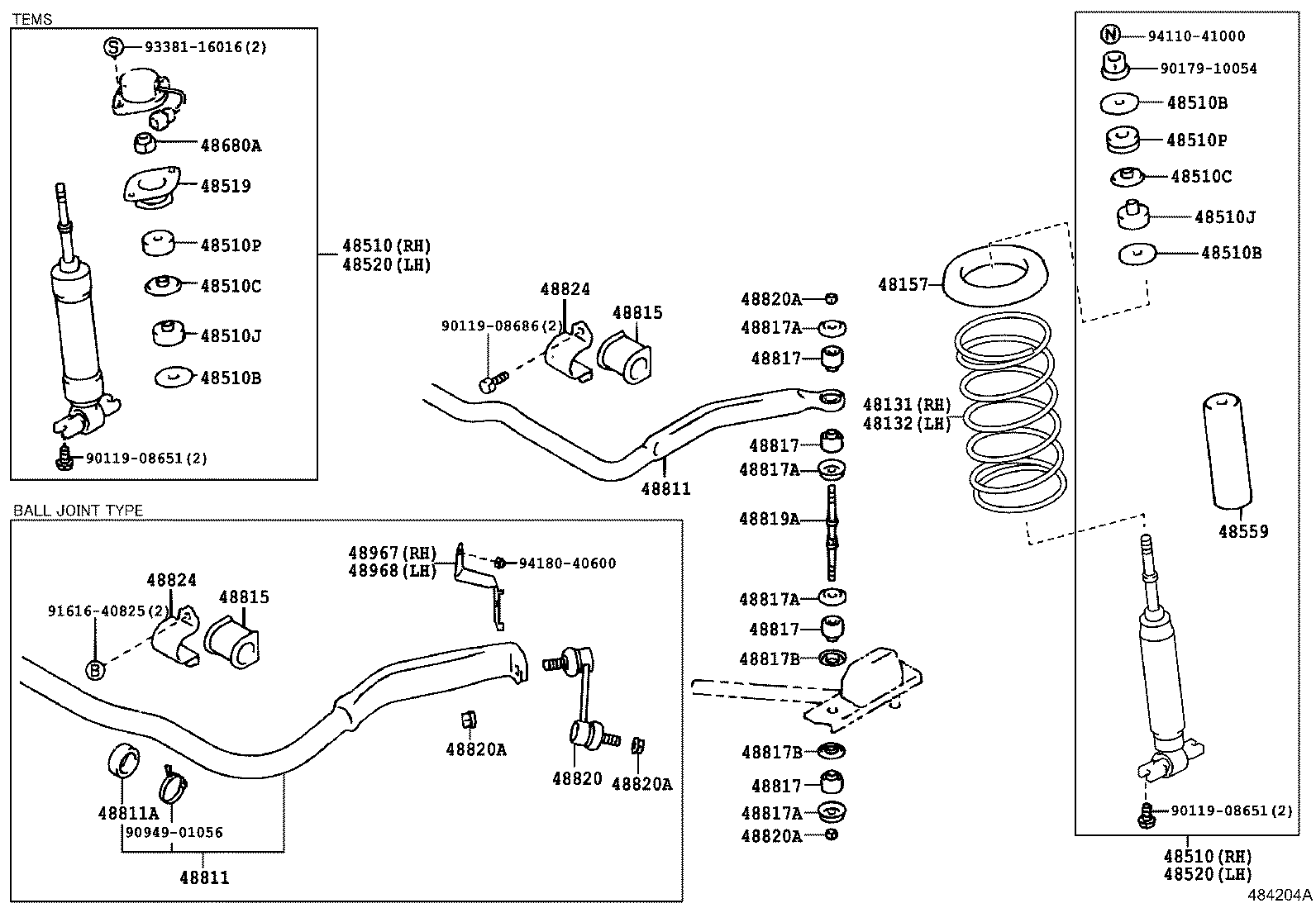

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-30670 |
GS131,LS130..SPC,TD,TDE |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-30670 |
GS131,LS130..SPC,TD,TDE |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-30030 |
GS13#,JZS13#,LS13#,MS130,135,YS130 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-39055 |
GS130,JZS130,LS130..DSL,EFI,HTWC,SPC,TD,TDE,TWC ﾏｰｸ 30010 OR 30020 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-39055 |
GS130,JZS130,LS130..DSL,EFI,HTWC,SPC,TD,TDE,TWC ﾏｰｸ 30010 OR 30020 |
1 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02116 |
JZS131,MS135..ROY,SSL;GS13#,JZS130,LS13#,MS130,YS130 上側 |
2 | ||
| 90948-02072 |
JZS131,MS135..ROY,SSL;GS13#,JZS130,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC 下側 |
2 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02116 |
JZS131,MS135..ROY,SSL;GS13#,JZS130,LS13#,MS130,YS130 上側 |
2 | ||
| 90948-02072 |
JZS131,MS135..ROY,SSL;GS13#,JZS130,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC 下側 |
2 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02116 |
JZS131,MS135..ROY,SSL;GS13#,JZS130,LS13#,MS130,YS130 上側 |
2 | ||
| 90948-02072 |
JZS131,MS135..ROY,SSL;GS13#,JZS130,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC 下側 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02092 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02092 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC |
2 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01038 |
JZS131,MS135..ROY,SSL;GS13#,JZS130,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC |
2 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01038 |
JZS131,MS135..ROY,SSL;GS13#,JZS130,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC |
2 | ||
| 48510P - CUSHION, FRONT SHOCK ABSORBER, NO.2 | ||||
| 90948-01037 |
JZS131,MS135..ROY,SSL;GS13#,JZS130,LS13#,MS130,YS130 |
2 | ||
| 48510P - CUSHION, FRONT SHOCK ABSORBER, NO.2 | ||||
| 90948-01037 |
JZS131,MS135..ROY,SSL;GS13#,JZS130,LS13#,MS130,YS130 |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-39055 |
GS130,JZS130,LS130..DSL,EFI,HTWC,SPC,TD,TDE,TWC ﾏｰｸ 30010 OR 30020 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-39055 |
GS130,JZS130,LS130..DSL,EFI,HTWC,SPC,TD,TDE,TWC ﾏｰｸ 30010 OR 30020 |
1 | ||
| 48559 - COVER, SHOCK ABSORBER, DUST | ||||
| 48559-30020 |
GS13#,JZS13#,LS13#,MS130,135,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-30270 |
LS130..(HT,SED)..(DLX,SALEX,SDX,SPE,SSL) |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-30270 |
LS130..(HT,SED)..(DLX,SALEX,SDX,SPE,SSL) |
1 | ||
| 48811A - BUSH(FOR FRONT STABILIZER BAR) | ||||
| 90385-28002 |
LS13#..HT,SED,V |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-30161 |
LS130..(HT,SED)..(DLX,SALEX,SDX,SPE,SSL) |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-30161 |
LS130..(HT,SED)..(DLX,SALEX,SDX,SPE,SSL) |
2 | ||
| 48820 - LINK ASSY, FRONT STABILIZER | ||||
| 48820-30010 |
GS131,136,JZS13#,LS13#,MS135,137,UZS131 右側 |
1 | ||
| 48820-30020 |
GS131,136,JZS13#,LS13#,MS135,137,UZS131;GS130..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,HTWC,SPC) 左側 |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12047 |
GS130..ATM..(EFI,HTWC,SPC);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12047 |
GS130..ATM..(EFI,HTWC,SPC);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12047 |
GS130..ATM..(EFI,HTWC,SPC);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12047 |
GS130..ATM..(EFI,HTWC,SPC);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
4 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-30061 |
LS130..4FC,5F;LS130..4H..DLX;GS13#,LS136,MS13#,YS130 |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-30061 |
LS130..4FC,5F;LS130..4H..DLX;GS13#,LS136,MS13#,YS130 |
2 | ||
| Common parts | ||||
| 90119-08651 | ||||
| 90119-08686 | ||||
| 90179-10054 | ||||
| 90949-01056 | ||||
| 91616-40825 | ||||
| 93381-16016 | ||||
| 94110-41000 | ||||
| 94180-40600 | ||||

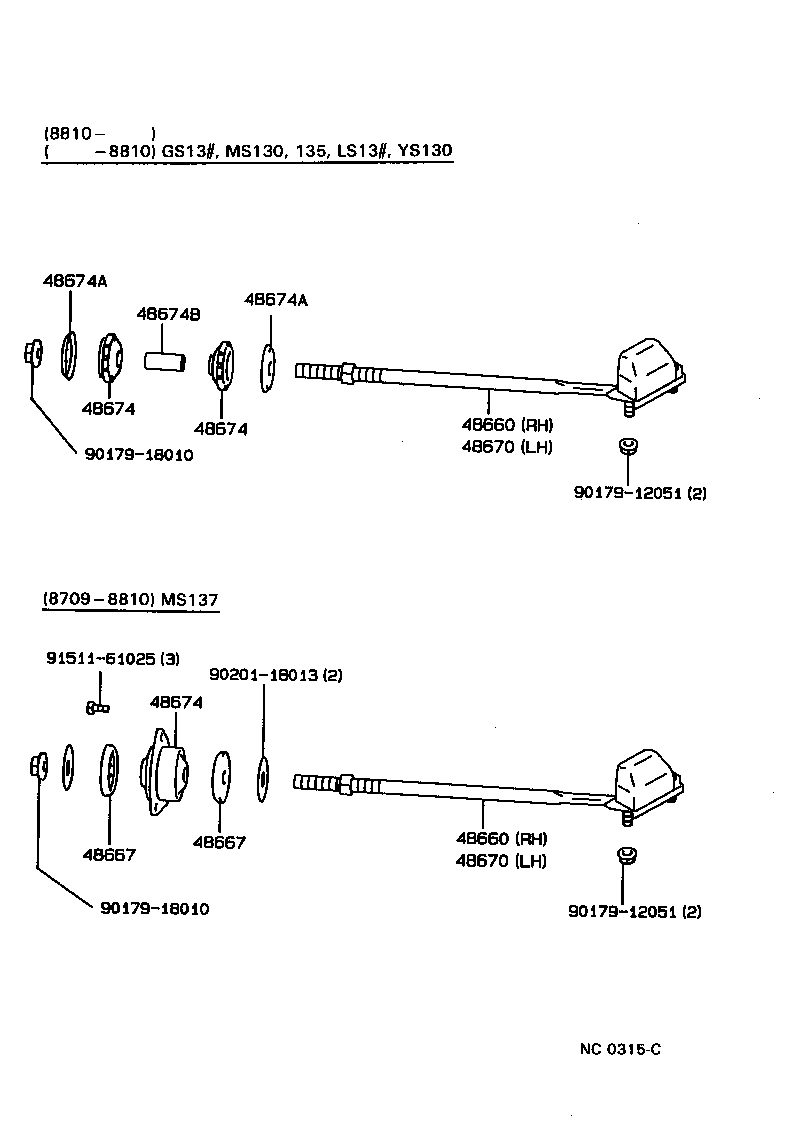

(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48660 - BAR ASSY, STRUT, RH | ||||
| 48660-30060 |
GS130..ATM;GS131,LS130,MS135..DLX,ROY,SALEX,SDX,SPE,SSL;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE) |
1 | ||
| 48660 - BAR ASSY, STRUT, RH | ||||
| 48660-30060 |
GS130..ATM;GS131,LS130,MS135..DLX,ROY,SALEX,SDX,SPE,SSL;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE) |
1 | ||
| 48670 - BAR ASSY, STRUT, LH | ||||
| 48670-30070 |
GS130..ATM;GS131,LS130,MS135..DLX,ROY,SALEX,SDX,SPE,SSL;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE) |
1 | ||
| 48670 - BAR ASSY, STRUT, LH | ||||
| 48670-30070 |
GS130..ATM;GS131,LS130,MS135..DLX,ROY,SALEX,SDX,SPE,SSL;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE) |
1 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-30060 |
GS13#,LS13#,MS135 ﾘﾔ |
2 | ||
| 48674-30070 |
GS13#,LS13#,MS135 ﾌﾛﾝﾄ |
2 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-30060 |
GS13#,LS13#,MS135 ﾘﾔ |
2 | ||
| 48674-30070 |
GS13#,LS13#,MS135 ﾌﾛﾝﾄ |
2 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-30060 |
GS13#,LS13#,MS135 ﾘﾔ |
2 | ||
| 48674-30070 |
GS13#,LS13#,MS135 ﾌﾛﾝﾄ |
2 | ||
| 48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION) | ||||
| 90948-02071 |
GS13#,LS13#,MS135 |
4 | ||
| 48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION) | ||||
| 90948-02071 |
GS13#,LS13#,MS135 |
4 | ||
| 48674B - COLLAR(FOR STRUT BAR CUSHION) | ||||
| 90387-18013 |
GS13#,LS13#,MS135 |
2 | ||
| Common parts | ||||
| 90179-12051 | ||||
| 90179-18010 | ||||
| 90201-18013 | ||||
| 91511-61025 | ||||
