LS130-AEPFJ (1991)
Toyota Crown
Production
Oct 1991
-
Aug 1993
Engine
2LTHE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9110- )LS130,131

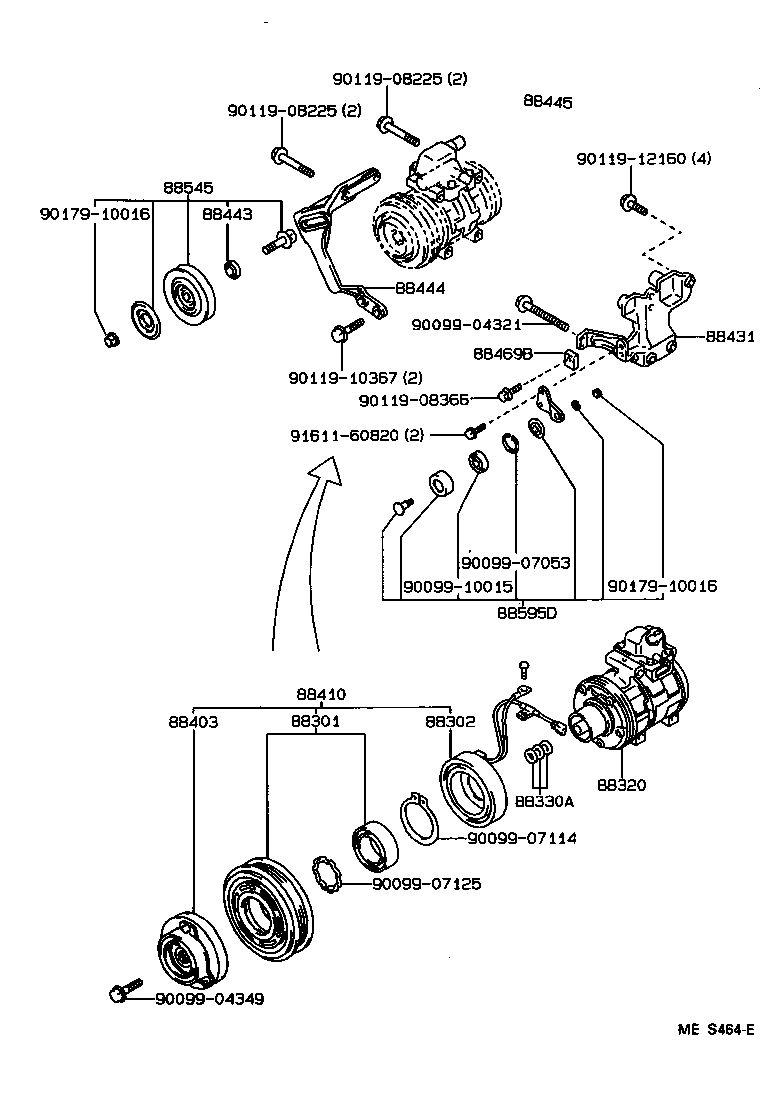

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-30430 |
LS130,131 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-30560 |
LS130,131 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-30550 |
LS130,131 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
GS13#,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
GS13#,JZS130,131,LS130,131..(DLX,ROY,SALEX,SDX)..(HTWC,TDEC,TWC) |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-30740 |
LS130,131 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-22330 |
LS13# |
1 | ||
| 88431-22331 |
LS13# |
1 | ||
| 88443 - COLLAR, IDLE PULLEY | ||||
| 88443-36010 |
LS130,131 |
1 | ||
| 88443-36010 |
LS130,131 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-30280 |
LS130,131 |
1 | ||
| 88445 - BRACKET, IDLE PULLEY | ||||
| 88444-22100 |
LS13# |
1 | ||
| 88469B - COLLAR | ||||
| 88469-30280 |
LS13# |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-35010 |
LS130,131 |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-26070 |
LS13# |
1 | ||
| Common parts | ||||
| 90099-04321 | ||||
| 90099-04349 | ||||
| 90099-07053 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90099-10015 | ||||
| 90119-08225 | ||||
| 90119-08366 | ||||
| 90119-10367 | ||||
| 90119-12160 | ||||
| 90179-10016 | ||||
| 91611-60820 | ||||
