LS130-AEPFJ (1991)
Toyota Crown

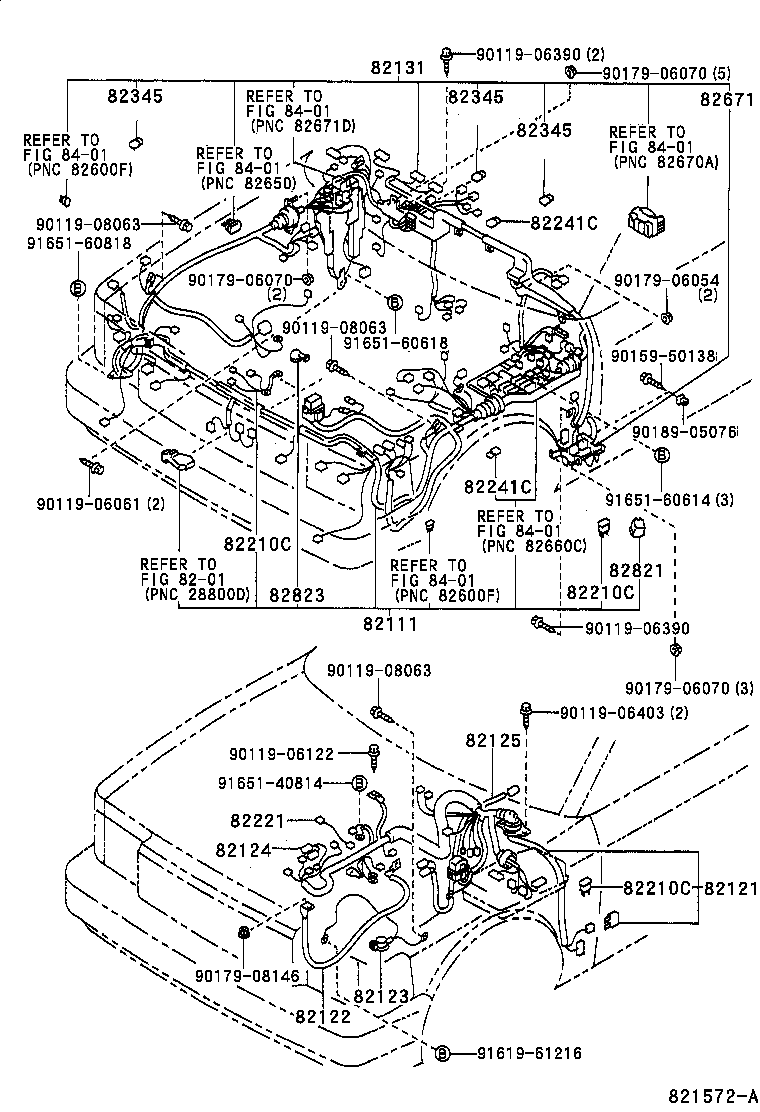

ILLUST NO. 1 OF 8(9110- )LS13#
ｴﾝｼﾞﾝ & ｶｳﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3A720 |
LS130,131 |
1 | ||
| 82111-3A741 |
LS130,131 ｱﾘ(140E41L BATTERY) |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-30620 |
LS130,131 |
1 | ||
| 82121-30621 |
LS130,131 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-30420 |
LS13#..4FC |
1 | ||
| 82122-30430 |
LS13# ｱﾘ(140E41L BATTERY) |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-30220 |
LS13# |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-3K480 |
LS130,131 ｱﾘ(*80) |
1 | ||
| 82131-3K470 |
LS130,131 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
GS13#,JZS13#,LS13# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08169 |
GS13#,JZS13#,LS13# 長さ=110,1.0Y |
1 | ||
| 90982-08257 |
GS13#,JZS130,131,133,LS13# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08261 |
LS13#..SED,V;LS130..SALEX..TDEC 長さ=110,0.5 ｸﾞﾘｰﾝ |
1 | ||
| 90982-08246 |
GS130,131,JZS13#,LS13# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08203 |
GS136,LS13#,YS130 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08203 |
GS136,LS13# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08188 |
GS13#,JZS13#,LS13#,YS130 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08227 |
GS13#,JZS13#,LS13# 50A,ﾒｽ端子,赤 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
GS13#,JZS13#,LS13# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08169 |
GS13#,JZS13#,LS13# 長さ=110,1.0Y |
1 | ||
| 90982-08257 |
GS13#,JZS130,131,133,LS13# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08261 |
LS13#..SED,V;LS130..SALEX..TDEC 長さ=110,0.5 ｸﾞﾘｰﾝ |
1 | ||
| 90982-08246 |
GS130,131,JZS13#,LS13# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08203 |
GS136,LS13#,YS130 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08203 |
GS136,LS13# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08188 |
GS13#,JZS13#,LS13#,YS130 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08227 |
GS13#,JZS13#,LS13# 50A,ﾒｽ端子,赤 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
GS13#,JZS13#,LS13# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08169 |
GS13#,JZS13#,LS13# 長さ=110,1.0Y |
1 | ||
| 90982-08257 |
GS13#,JZS130,131,133,LS13# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08261 |
LS13#..SED,V;LS130..SALEX..TDEC 長さ=110,0.5 ｸﾞﾘｰﾝ |
1 | ||
| 90982-08246 |
GS130,131,JZS13#,LS13# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08203 |
GS136,LS13#,YS130 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08203 |
GS136,LS13# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08188 |
GS13#,JZS13#,LS13#,YS130 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08227 |
GS13#,JZS13#,LS13# 50A,ﾒｽ端子,赤 |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-30030 |
LS13# |
1 | ||

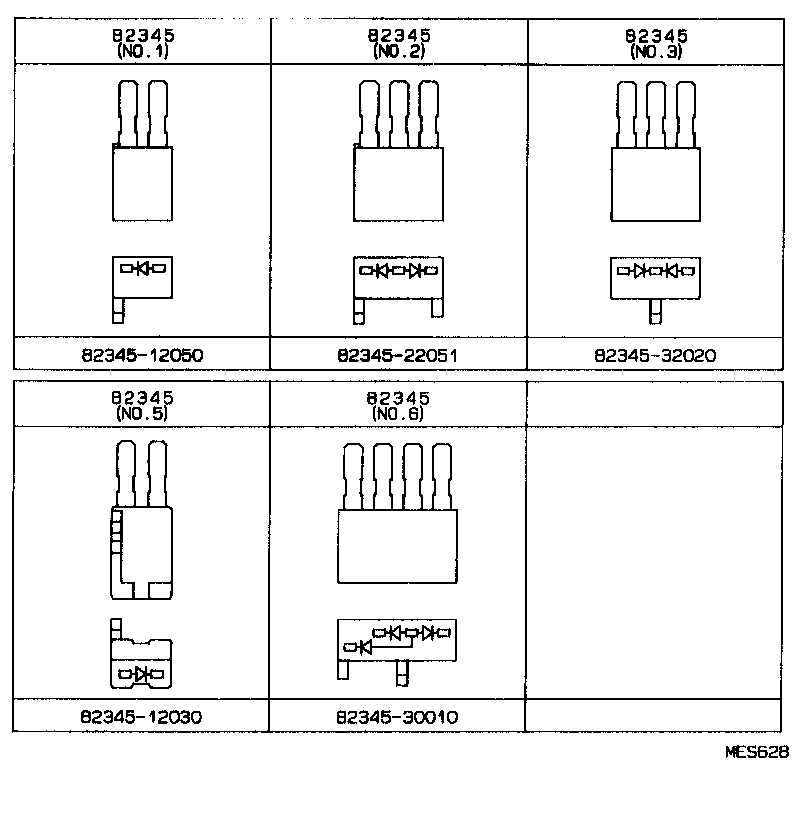

| 82345 - DIODE | ||||
| 82345-32020 |
GS130..DLX,ROY,STD;JZS131..4HC..SALEX;GS130,JZS130,LS130,131,YS130..(DLX,DLXA,SALEX,SDX,STD)..(LPEFI,TDEC,TWC,TWLPG) NO.3 |
1 | ||
| 82345-32020 |
LS130;JZS131..4HC..SALEX;GS130,JZS130,LS131..DLX,SALEX,STD NO.3 |
1 | ||
| 82345-30010 |
GS130,131,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC NO.6 |
1 | ||
| 82345-12030 |
GS130,131,JZS13#,LS130,131 NO.5 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
GS130..DLX,ROY,STD;JZS131..4HC..SALEX;GS130,JZS130,LS130,131,YS130..(DLX,DLXA,SALEX,SDX,STD)..(LPEFI,TDEC,TWC,TWLPG) NO.3 |
1 | ||
| 82345-32020 |
LS130;JZS131..4HC..SALEX;GS130,JZS130,LS131..DLX,SALEX,STD NO.3 |
1 | ||
| 82345-30010 |
GS130,131,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC NO.6 |
1 | ||
| 82345-12030 |
GS130,131,JZS13#,LS130,131 NO.5 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
GS130..DLX,ROY,STD;JZS131..4HC..SALEX;GS130,JZS130,LS130,131,YS130..(DLX,DLXA,SALEX,SDX,STD)..(LPEFI,TDEC,TWC,TWLPG) NO.3 |
1 | ||
| 82345-32020 |
LS130;JZS131..4HC..SALEX;GS130,JZS130,LS131..DLX,SALEX,STD NO.3 |
1 | ||
| 82345-30010 |
GS130,131,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC NO.6 |
1 | ||
| 82345-12030 |
GS130,131,JZS13#,LS130,131 NO.5 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,JZS13#,LS13# |
1 | ||
| Common parts | ||||
| 90119-06061 | ||||
| 90119-06122 | ||||
| 90119-06390 | ||||
| 90119-06403 | ||||
| 90119-08063 | ||||
| 90159-50138 | ||||
| 90179-06054 | ||||
| 90179-06070 | ||||
| 90179-08146 | ||||
| 90189-05076 | ||||
| 91619-61216 | ||||
| 91651-40814 | ||||
| 91651-60614 | ||||
| 91651-60618 | ||||
| 91651-60818 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||

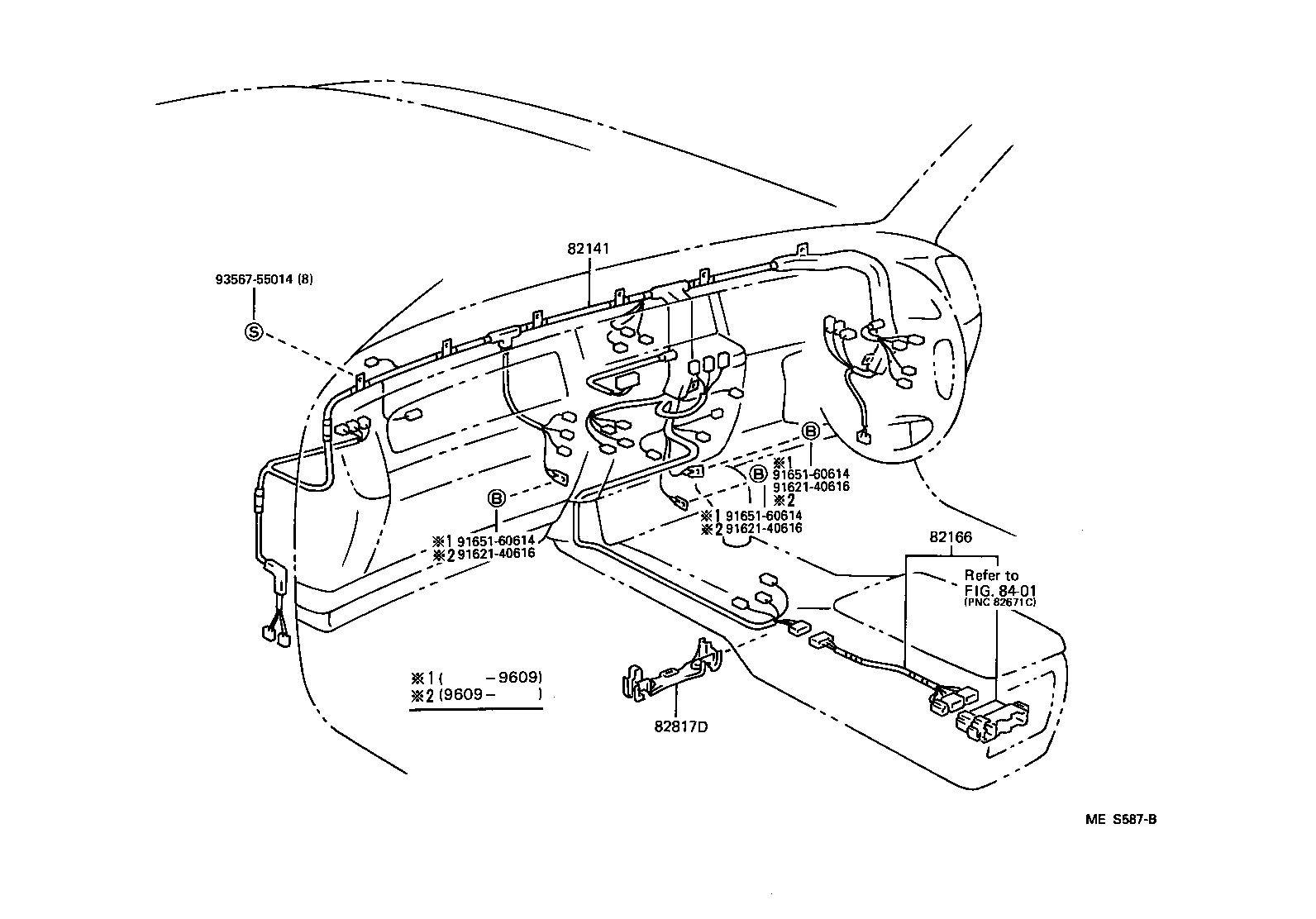

ILLUST NO. 2 OF 8(9110- )
ｲﾝﾊﾟﾈ & ｺﾝｿ-ﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-3A050 |
GS131,LS130..SED;GS130..(4FC,5F)..(DLX,SALEX,SDX)..HTWC |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-30110 |
GS130,131,JZS130,131,LS130,131..(4FC,5F)..(SALEX,SDX) |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-3A450 |
GS13#,JZS130,131,LS13#,YS130..(4FC,5F)..(DLX,SALEX,SDX,STD) |
1 | ||
| Common parts | ||||
| 91621-40616 | ||||
| 91651-60614 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 8(9110- )

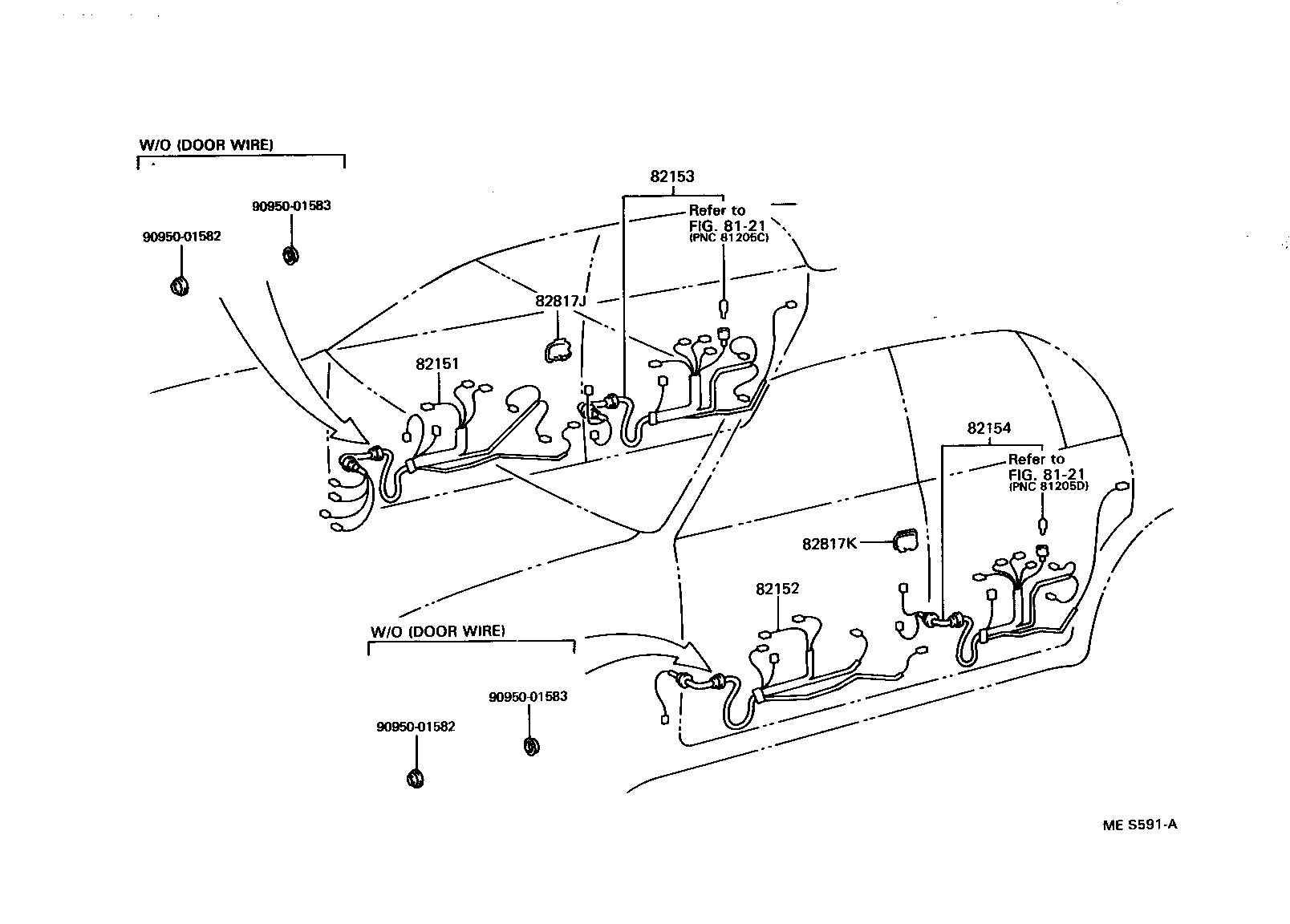

ﾄﾞｱ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-30710 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC) ｱﾘ(*57) |
1 | ||
| 82151-30700 |
GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-30520 |
GS130..WG..SDX;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX) |
1 | ||
| 82152-30530 |
GS130..WG..SDX;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) ｱﾘ(*57) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-30390 |
JZS131..SALEX;GS130,131,JZS130,LS130,131..ROY,SALEX,SDX |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-30290 |
JZS131..SALEX;GS130,131,JZS130,LS130,131..ROY,SALEX,SDX |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-3A220 |
GS13#,JZS13#,LS13# |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-3A230 |
YS130;GS130,131,JZS13#,LS130,131..DLX,ROY,ROYG,SALEX,SDX |
1 | ||
| 82817-3A230 |
GS130,131,JZS13#,LS130,131..DLX,ROY,ROYG,SALEX,SDX |
1 | ||
| Common parts | ||||
| 90950-01582 | ||||
| 90950-01583 | ||||
| Linked diagrams | ||||
| 8121 | ||||

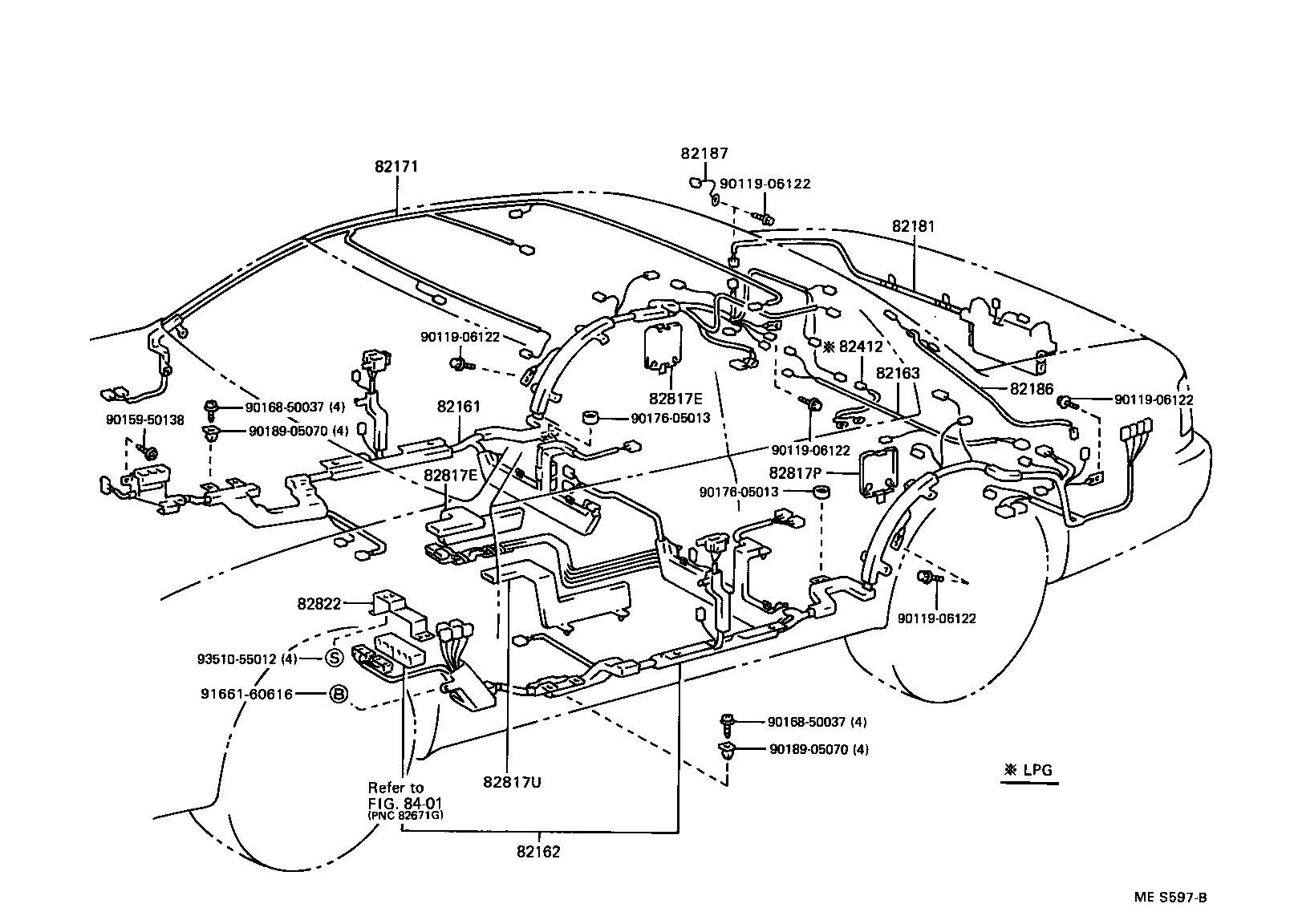

ILLUST NO. 4 OF 8(9110-9512)SED
ﾙ-ﾌ,ﾌﾛｱ & ﾄﾗﾝｸﾊﾟﾈﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-3A470 |
GS130,131,JZS131,LS130,131..SED..(DLX,SALEX,SDX,STD) |
1 | ||
| 82161-3A471 |
GS130,131,JZS131,LS130,131..SED..(DLX,SALEX,SDX,STD)..(HTWC,TDEC,TWC) |
1 | ||
| 82161-3A472 |
GS130,131,JZS131,LS130,131..SED..(DLX,SALEX,SDX,STD)..(HTWC,TDEC,TWC) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-30840 |
JZS131..4FC..SALEX;GS130,131,LS130,131..SED..(4FC,5F)..(ROY,SALEX,SDX) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-30430 |
GS130..SED..(ROY,SALEX,SDX);GS131,JZS131,LS130,131..SED..(SALEX,SDX) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-30060 |
GS130,131,JZS131,133,135,LS130,131..SED..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-30090 |
GS130,131,JZS131,LS130,131..SED..(DLX,SALEX,SDX,STD) |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-3A260 |
JZS131..4FC..ROY;JZS131,135..ROYG,SALEX;GS130,131,JZS133,LS130,131..SED..(4FC,4H,5F) |
1 | ||
| 82817-3A260 |
JZS131..SALEX;JZS131,133..4FC..ROY;GS130,131,JZS135,LS130,131,YS130..SED |
1 | ||
| 82822 - BRACKET,CONNECTOR BLOCK | ||||
| 82822-30010 |
GS130..SED..(ROY,SDX);GS131,136,JZS131,LS13#..(SED,V)..(DLX,SALEX,SDX,STD) |
1 | ||
| 82822-30010 |
GS130..SED..(ROY,SALEX,SDX);GS131,JZS131,LS130,131..SED..(SALEX,SDX) |
1 | ||
| Common parts | ||||
| 90119-06122 | ||||
| 90159-50138 | ||||
| 90168-50037 | ||||
| 90176-05013 | ||||
| 90189-05070 | ||||
| 91661-60616 | ||||
| 93510-55012 | ||||
| Linked diagrams | ||||
| 8401 | ||||

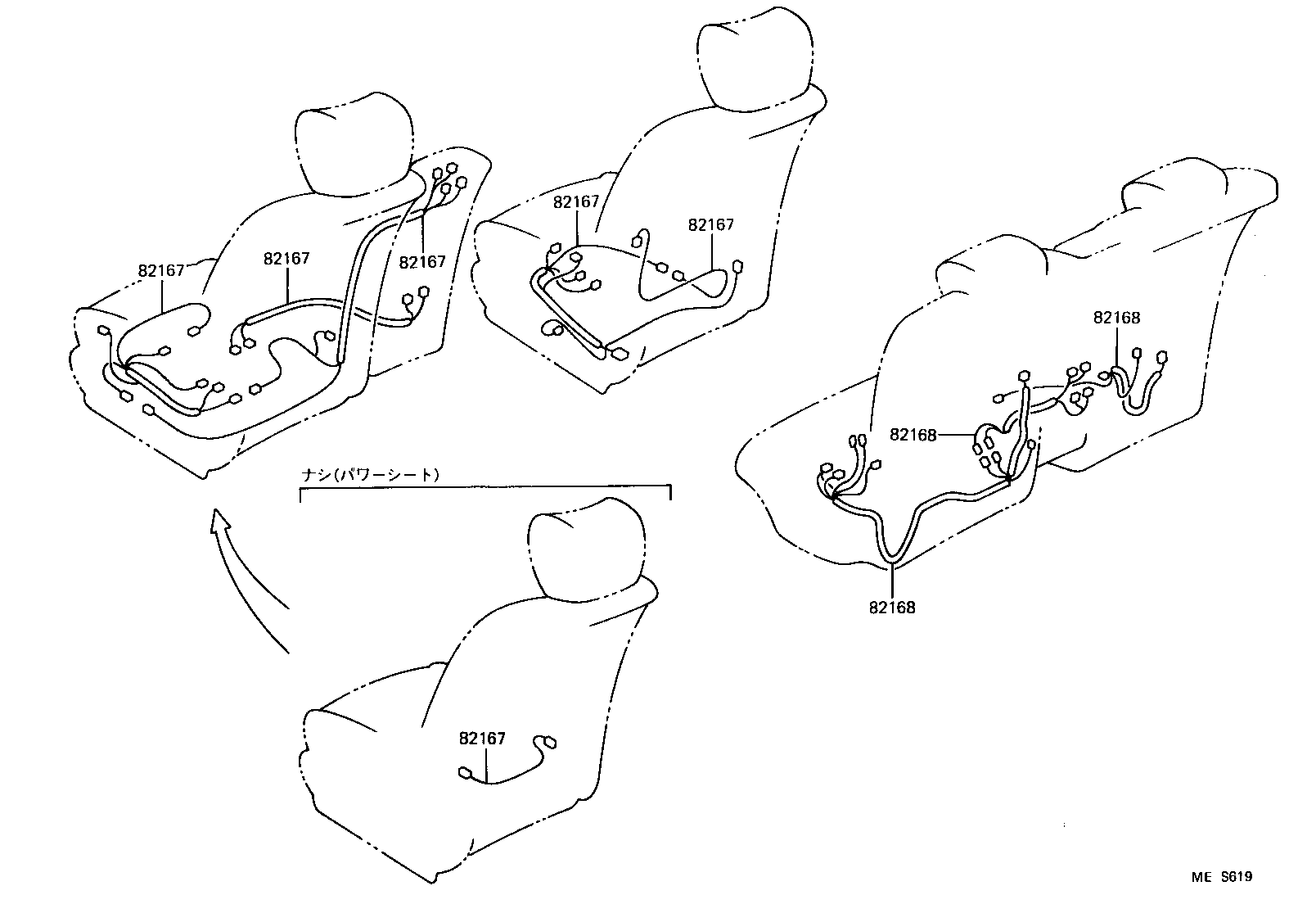

ILLUST NO. 5 OF 8(9110- )
ｼ-ﾄ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30600 |
GS130,136,LS130,136,YS130..(4FC,5F)..(DLX,ROY,SDX,STD) |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30600 |
GS130,136,LS130,136,YS130..(4FC,5F)..(DLX,ROY,SDX,STD) |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30600 |
GS130,136,LS130,136,YS130..(4FC,5F)..(DLX,ROY,SDX,STD) |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30600 |
GS130,136,LS130,136,YS130..(4FC,5F)..(DLX,ROY,SDX,STD) |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30600 |
GS130,136,LS130,136,YS130..(4FC,5F)..(DLX,ROY,SDX,STD) |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30600 |
GS130,136,LS130,136,YS130..(4FC,5F)..(DLX,ROY,SDX,STD) |
1 | ||
ILLUST NO. 7 OF 8(9110- )
ﾀﾞｲｵ-ﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-32020 |
GS130..DLX,ROY,STD;JZS131..4HC..SALEX;GS130,JZS130,LS130,131,YS130..(DLX,DLXA,SALEX,SDX,STD)..(LPEFI,TDEC,TWC,TWLPG) NO.3 |
1 | ||
| 82345-32020 |
LS130;JZS131..4HC..SALEX;GS130,JZS130,LS131..DLX,SALEX,STD NO.3 |
1 | ||
| 82345-30010 |
GS130,131,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC NO.6 |
1 | ||
| 82345-12030 |
GS130,131,JZS13#,LS130,131 NO.5 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
GS130..DLX,ROY,STD;JZS131..4HC..SALEX;GS130,JZS130,LS130,131,YS130..(DLX,DLXA,SALEX,SDX,STD)..(LPEFI,TDEC,TWC,TWLPG) NO.3 |
1 | ||
| 82345-32020 |
LS130;JZS131..4HC..SALEX;GS130,JZS130,LS131..DLX,SALEX,STD NO.3 |
1 | ||
| 82345-30010 |
GS130,131,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC NO.6 |
1 | ||
| 82345-12030 |
GS130,131,JZS13#,LS130,131 NO.5 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
GS130..DLX,ROY,STD;JZS131..4HC..SALEX;GS130,JZS130,LS130,131,YS130..(DLX,DLXA,SALEX,SDX,STD)..(LPEFI,TDEC,TWC,TWLPG) NO.3 |
1 | ||
| 82345-32020 |
LS130;JZS131..4HC..SALEX;GS130,JZS130,LS131..DLX,SALEX,STD NO.3 |
1 | ||
| 82345-30010 |
GS130,131,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC NO.6 |
1 | ||
| 82345-12030 |
GS130,131,JZS13#,LS130,131 NO.5 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
GS130..DLX,ROY,STD;JZS131..4HC..SALEX;GS130,JZS130,LS130,131,YS130..(DLX,DLXA,SALEX,SDX,STD)..(LPEFI,TDEC,TWC,TWLPG) NO.3 |
1 | ||
| 82345-32020 |
LS130;JZS131..4HC..SALEX;GS130,JZS130,LS131..DLX,SALEX,STD NO.3 |
1 | ||
| 82345-30010 |
GS130,131,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC NO.6 |
1 | ||
| 82345-12030 |
GS130,131,JZS13#,LS130,131 NO.5 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
GS130..DLX,ROY,STD;JZS131..4HC..SALEX;GS130,JZS130,LS130,131,YS130..(DLX,DLXA,SALEX,SDX,STD)..(LPEFI,TDEC,TWC,TWLPG) NO.3 |
1 | ||
| 82345-32020 |
LS130;JZS131..4HC..SALEX;GS130,JZS130,LS131..DLX,SALEX,STD NO.3 |
1 | ||
| 82345-30010 |
GS130,131,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC NO.6 |
1 | ||
| 82345-12030 |
GS130,131,JZS13#,LS130,131 NO.5 |
1 | ||
| Common parts | ||||
| 82345-12030 | ||||
| 82345-12050 | ||||
| 82345-22051 | ||||
| 82345-30010 | ||||
| 82345-32020 | ||||
ILLUST NO. 8 OF 8(9110- )
ｴｱﾊﾞﾂｸﾞ ﾘﾍﾟｱ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82988 - WIRE, AIR BAG REPAIR | ||||
| 82988-24010 |
GS13#,JZS13#,LS13# |
1 | ||
| 82988-24010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| Common parts | ||||
| 82988-24010 | ||||

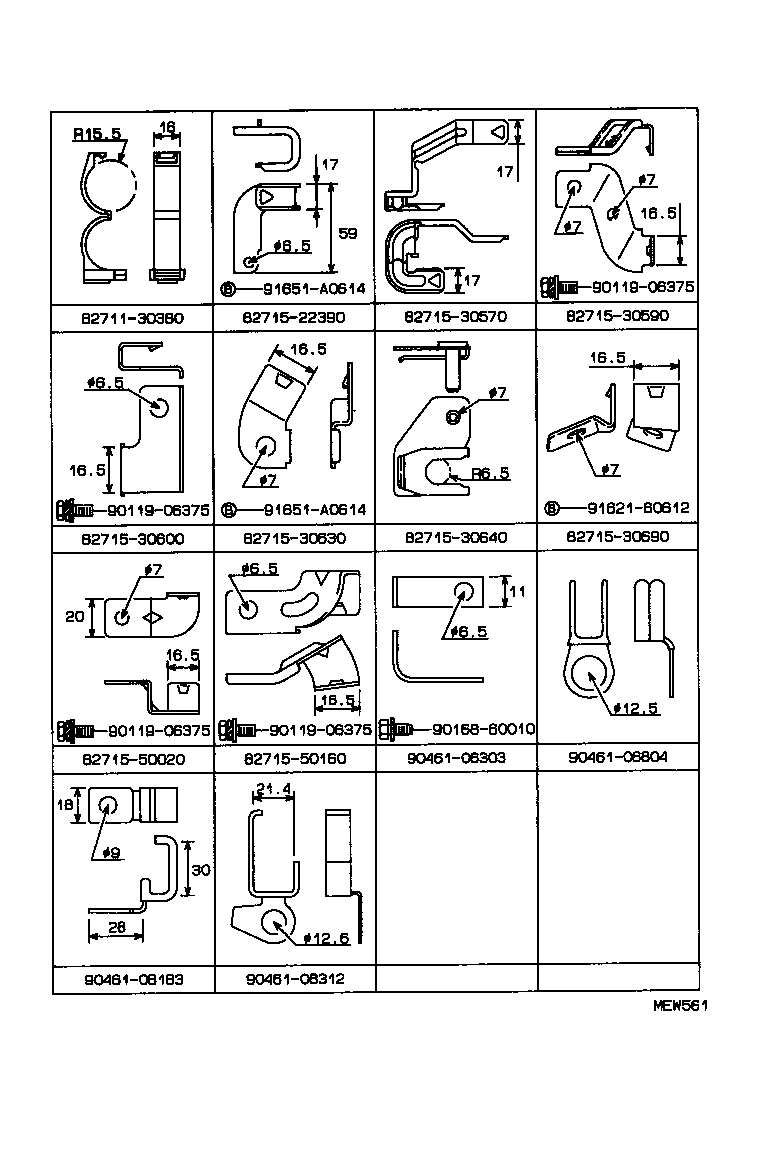

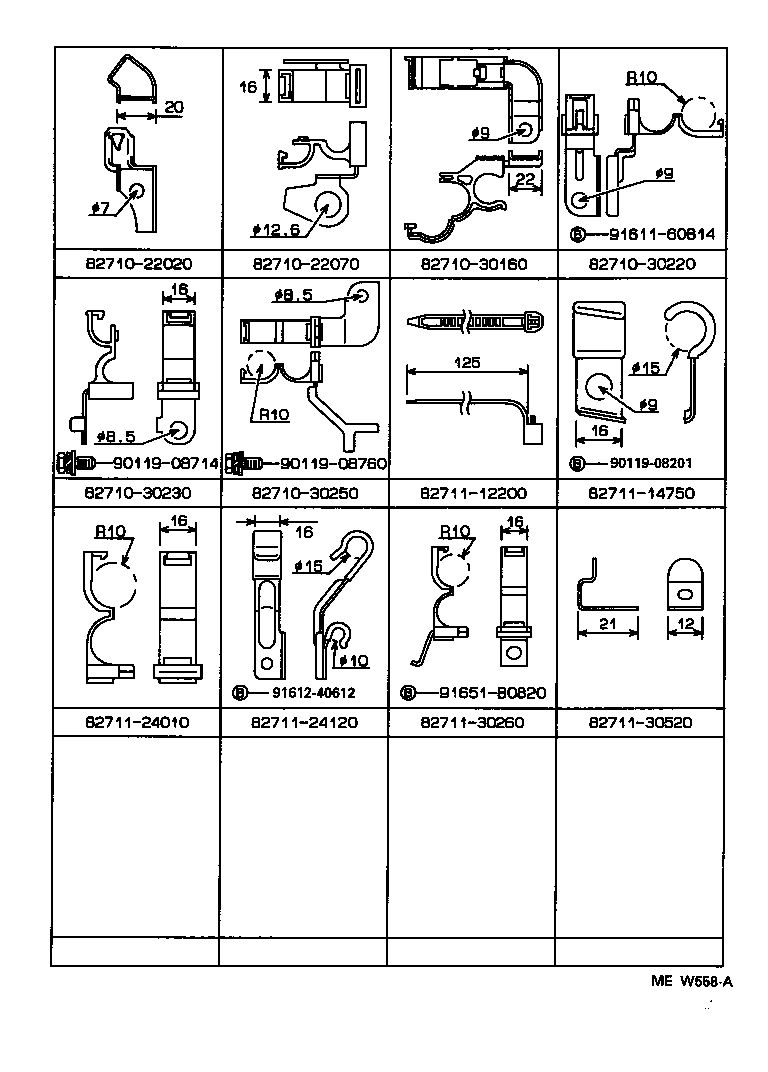

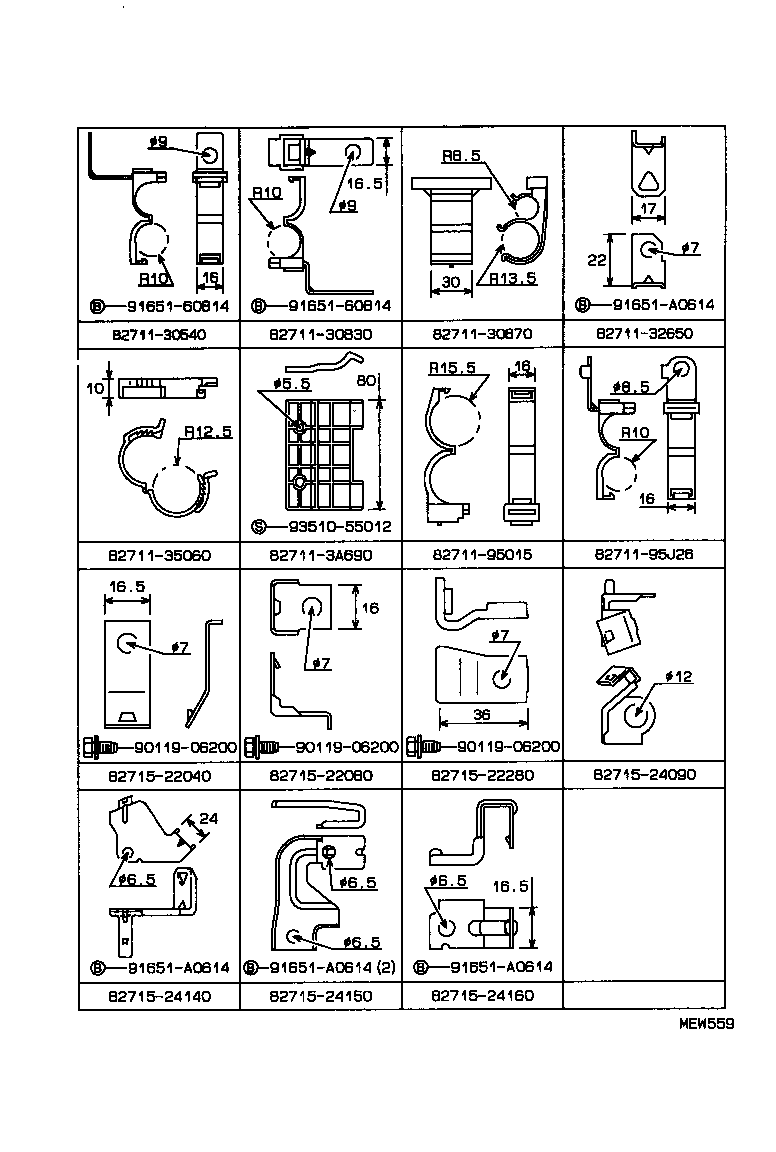

ILLUST NO. 6 OF 8(9110- )
ｸﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-22020 | ||||
| 82710-22070 | ||||
| 82710-30160 | ||||
| 82710-30220 | ||||
| 82710-30230 | ||||
| 82710-30250 | ||||
| 82711-12200 | ||||
| 82711-14750 | ||||
| 82711-24010 | ||||
| 82711-24120 | ||||
| 82711-30260 | ||||
| 82711-30520 | ||||
| 90119-08201 | ||||
| 90119-08714 | ||||
| 90119-08760 | ||||
| 91611-60814 | ||||
| 91612-40612 | ||||
| 91651-B0820 | ||||
ILLUST NO. 6 OF 8(9110- )

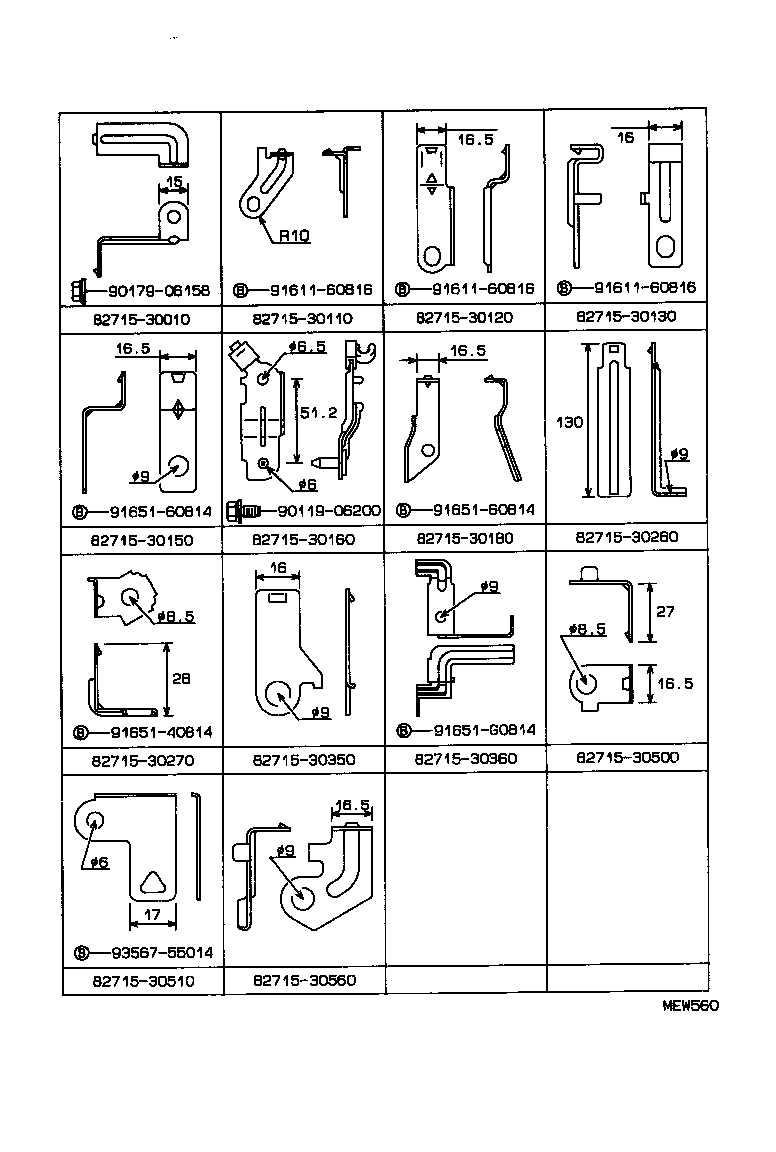

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-30540 | ||||
| 82711-30830 | ||||
| 82711-30870 | ||||
| 82711-32650 | ||||
| 82711-35060 | ||||
| 82711-3A690 | ||||
| 82711-95015 | ||||
| 82711-95J26 | ||||
| 82715-22040 | ||||
| 82715-22080 | ||||
| 82715-22280 | ||||
| 82715-24090 | ||||
| 82715-24140 | ||||
| 82715-24150 | ||||
| 82715-24160 | ||||
| 90119-06200 | ||||
| 91651-60814 | ||||
| 91651-A0614 | ||||
| 93510-55012 | ||||
ILLUST NO. 6 OF 8(9110- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-30010 | ||||
| 82715-30110 | ||||
| 82715-30120 | ||||
| 82715-30130 | ||||
| 82715-30150 | ||||
| 82715-30160 | ||||
| 82715-30180 | ||||
| 82715-30260 | ||||
| 82715-30270 | ||||
| 82715-30350 | ||||
| 82715-30360 | ||||
| 82715-30500 | ||||
| 82715-30510 | ||||
| 82715-30560 | ||||
| 90119-06200 | ||||
| 90179-06158 | ||||
| 91611-60816 | ||||
| 91651-40814 | ||||
| 91651-60814 | ||||
| 91651-G0814 | ||||
| 93567-55014 | ||||
ILLUST NO. 6 OF 8(9110- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-30380 | ||||
| 82715-22390 | ||||
| 82715-30570 | ||||
| 82715-30590 | ||||
| 82715-30600 | ||||
| 82715-30630 | ||||
| 82715-30640 | ||||
| 82715-30690 | ||||
| 82715-50020 | ||||
| 82715-50160 | ||||
| 90119-06375 | ||||
| 90168-60010 | ||||
| 90461-06303 | ||||
| 90461-06804 | ||||
| 90461-08183 | ||||
| 90461-08312 | ||||
| 91621-60612 | ||||
| 91651-A0614 | ||||
ILLUST NO. 6 OF 8(9110- )

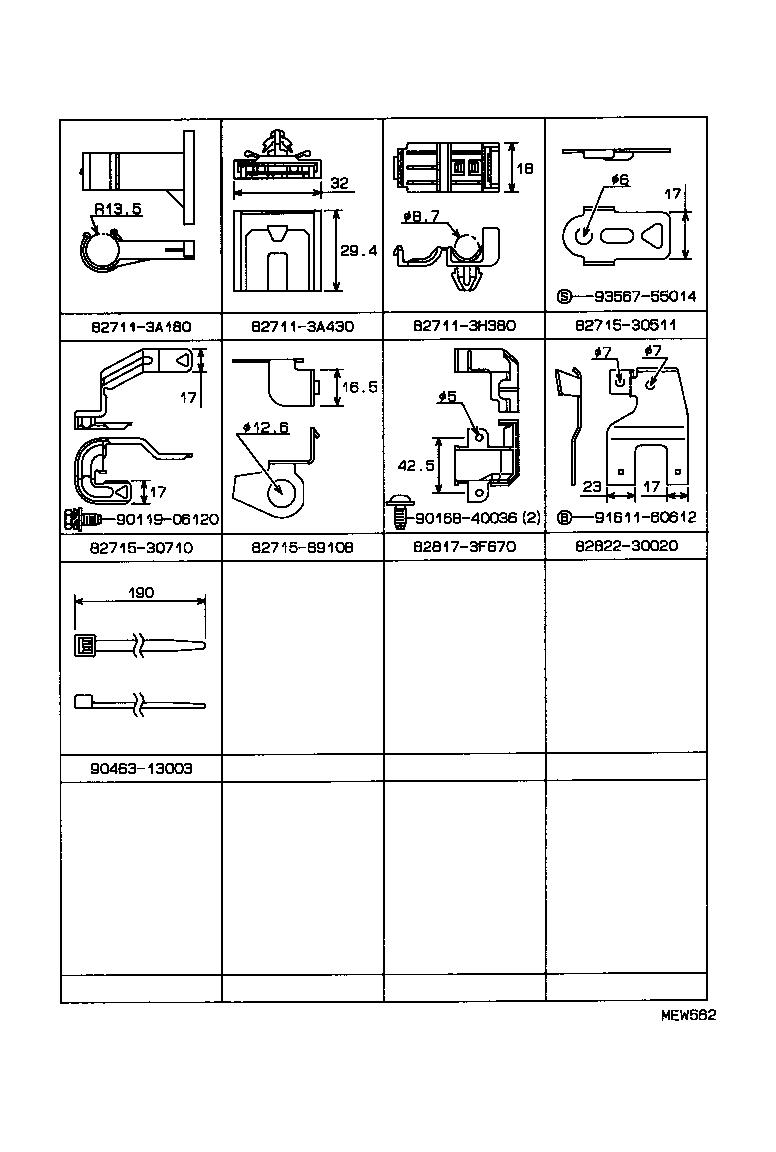

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-3A180 | ||||
| 82711-3A430 | ||||
| 82711-3H380 | ||||
| 82715-30511 | ||||
| 82715-30710 | ||||
| 82715-89108 | ||||
| 82817-3F670 | ||||
| 82822-30020 | ||||
| 90119-06120 | ||||
| 90168-40036 | ||||
| 90463-13003 | ||||
| 91611-60612 | ||||
| 93567-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
