LS130-AEPFJ (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 2LTHE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )2LT#,2L

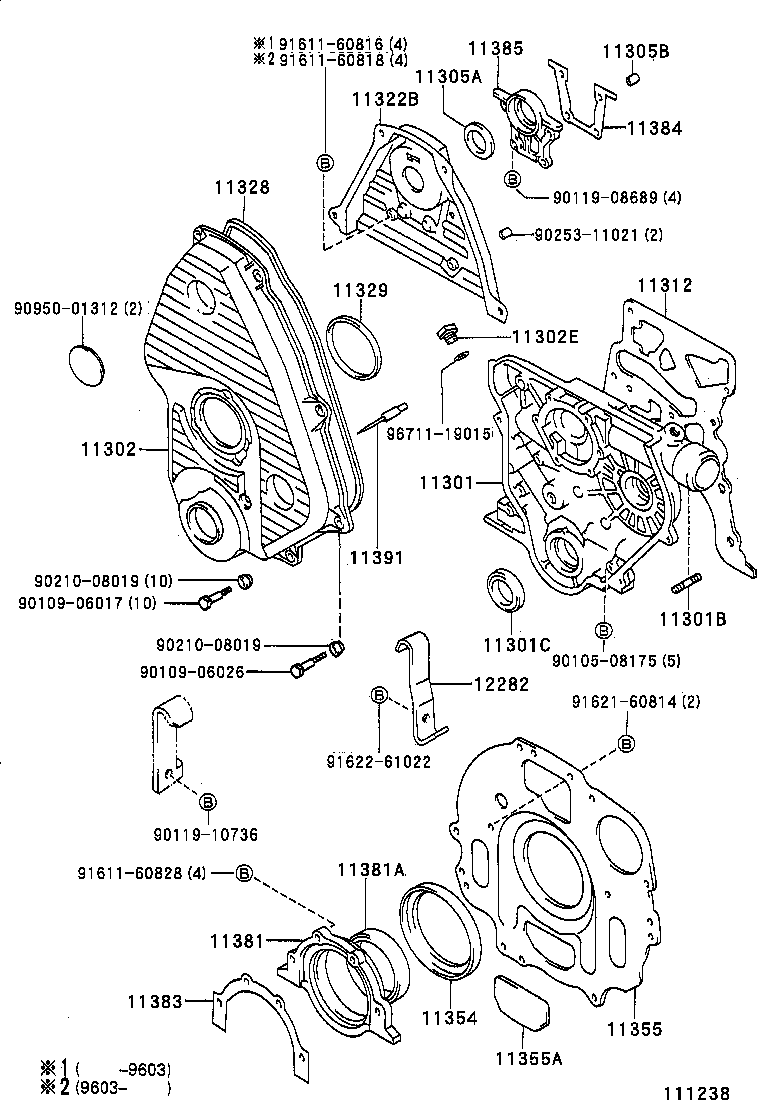

Click highlighted areas on diagram

diagram 11301 11301B 11301C 11302 11302E 11305A 11305B 11312 11322B 11328 11329 11354 11355 11355A 11381 11381A 11383 11384 11385 11391 12282 9010508175 9010906017 9010906026 9011908689 9011910736 9021008019 9021008019 9025311021 9095001312 9161160816 9161160818 9161160828 9162160814 9162261022 9671119015
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11311-54051

2LT#,2L..LS13#

 1
11301B - BOLT,STUD(FOR TIMING GEAR CASE)
92132-60828

2LT#,2L..LS13#

 2
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42026

2LT#,2L..LS13#

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-54020

2LT#,2L..LS13#

 1
11302E - PLUG, STRAIGHT(FOR TIMING GEAR COVER)
90341-18004

2LT#,2L..LS13#

 1
11305A - SEAL, OIL(FOR OIL SEAL RETAINER, NO.2)
90311-32017

2LT#,2L..LS13#

 1
11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2)
90253-11021

2LT#,2L..LS13#

 2
11312 - GASKET, FRONT END PLATE
11312-54021

2LT#,2L..LS13#

 1
11322B - COVER, TIMING BELT, NO.2
11322-54020

2LT#,2L..LS13#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-54021

2LT#,2L..LS13#

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-54021

2LT#,2L..LS13#

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-54010

2LT#,2L..LS13#

 1
11355 - PLATE, REAR END
11355-54040

2LT#,2L..LS13#..4FC

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01263

2LT#,2L..LS13#..4FC

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-54020

2LT#,2L..LS13#

 1
11381A - SEAL, ENGINE REAR OIL
90311-85006

2L#..LS13#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-54030

2LT#,2L..LS13#

 1
11384 - GASKET, OIL SEAL RETAINER, NO.2
11384-54030

2LT#,2L..LS13#

 1
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-54020

2LT#,2L..LS13#

 1
11391 - POINTER, TIMING
11391-54020

2LT#,2L..LS13#

 1
Common parts
90105-08175
90109-06017
90109-06026
90119-08689
90119-10736
90210-08019
90253-11021
90950-01312
91611-60816
91611-60818
91611-60828
91621-60814
91622-61022
96711-19015
