LS130-AEPFJ (1987)
Toyota Crown
(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-3001004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG BLUE,TRIM8# |
2 | ||
| 73200-3001006 |
GS130,136,LS130,136,YS130..DLX,SDX SABLE,TRIM3# |
2 | ||
| 73200-3001006 |
GS130..(4HC,5F)..SDX..HTWC;GS130..(4FC,4H)..(DLX,SDX)..HTWC;GS130,136,LS13#,MS130,YS130..(DLX,SDX)..(DSL,EFI,LPG,TD,TDE) SABLE,TRIM3# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-3001004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG BLUE,TRIM8# |
2 | ||
| 73200-3001006 |
GS130,136,LS130,136,YS130..DLX,SDX SABLE,TRIM3# |
2 | ||
| 73200-3001006 |
GS130..(4HC,5F)..SDX..HTWC;GS130..(4FC,4H)..(DLX,SDX)..HTWC;GS130,136,LS13#,MS130,YS130..(DLX,SDX)..(DSL,EFI,LPG,TD,TDE) SABLE,TRIM3# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-3001004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG BLUE,TRIM8# |
2 | ||
| 73200-3001006 |
GS130,136,LS130,136,YS130..DLX,SDX SABLE,TRIM3# |
2 | ||
| 73200-3001006 |
GS130..(4HC,5F)..SDX..HTWC;GS130..(4FC,4H)..(DLX,SDX)..HTWC;GS130,136,LS13#,MS130,YS130..(DLX,SDX)..(DSL,EFI,LPG,TD,TDE) SABLE,TRIM3# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-3001004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG BLUE,TRIM8# |
2 | ||
| 73200-3001006 |
GS130,136,LS130,136,YS130..DLX,SDX SABLE,TRIM3# |
2 | ||
| 73200-3001006 |
GS130..(4HC,5F)..SDX..HTWC;GS130..(4FC,4H)..(DLX,SDX)..HTWC;GS130,136,LS13#,MS130,YS130..(DLX,SDX)..(DSL,EFI,LPG,TD,TDE) SABLE,TRIM3# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-3038004 |
GS130,131,LS130,MS13#..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) BLUE,TRIM8# |
1 | ||
| 73210-3036002 |
GS130,136,LS13#,MS130,YS130..DLX,SAL,SDX MAROON,TRIM3# |
1 | ||
| 73210-3036004 |
GS130,136,LS13#,MS130,YS130..DLX,SAL,SDX,STD BLUE,TRIM8# |
1 | ||
| 73210-3038002 |
GS130,131,LS130,MS13#..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) MAROON,TRIM3# |
1 | ||
| 73210-3042004 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) BLUE,TRIM8# |
1 | ||
| 73210-3042002 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) MAROON,TRIM3# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-3036002 |
GS130,136,LS13#,MS130,YS130..DLX,SAL,SDX MAROON,TRIM3# |
1 | ||
| 73210-3036004 |
GS130,136,LS13#,MS130,YS130..DLX,SAL,SDX,STD BLUE,TRIM8# |
1 | ||
| 73210-3038002 |
GS130,131,LS130,MS13#..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) MAROON,TRIM3# |
1 | ||
| 73210-3038004 |
GS130,131,LS130,MS13#..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) BLUE,TRIM8# |
1 | ||
| 73210-3042004 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) BLUE,TRIM8# |
1 | ||
| 73210-3042002 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) MAROON,TRIM3# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-3020002 |
GS130,136,LS13#,MS130,YS130..DLX,SAL,SDX MAROON,TRIM3# |
1 | ||
| 73220-3020004 |
GS130,136,LS13#,MS130,YS130..DLX,SAL,SDX,STD BLUE,TRIM8# |
1 | ||
| 73220-3022004 |
GS130,LS130,MS130..SAL,SDX BLUE,TRIM8# |
1 | ||
| 73220-3022002 |
GS130,LS130,MS130..SAL,SDX MAROON,TRIM3# |
1 | ||
| 73220-3028002 |
GS130,131,LS130..SAL,SDX MAROON,TRIM3# |
1 | ||
| 73220-3028004 |
GS130,131,LS130..SAL,SDX BLUE,TRIM8# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-3020002 |
GS130,136,LS13#,MS130,YS130..DLX,SAL,SDX MAROON,TRIM3# |
1 | ||
| 73220-3020004 |
GS130,136,LS13#,MS130,YS130..DLX,SAL,SDX,STD BLUE,TRIM8# |
1 | ||
| 73220-3022004 |
GS130,LS130,MS130..SAL,SDX BLUE,TRIM8# |
1 | ||
| 73220-3022002 |
GS130,LS130,MS130..SAL,SDX MAROON,TRIM3# |
1 | ||
| 73220-3028002 |
GS130,131,LS130..SAL,SDX MAROON,TRIM3# |
1 | ||
| 73220-3028004 |
GS130,131,LS130..SAL,SDX BLUE,TRIM8# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-3045004 |
GS13#,LS13#,MS130,YS130..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 73230-3045002 |
GS13#,LS13#,MS130..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 73230-3044004 |
GS131..SED..4FC..SPC;GS131,JZS131,LS130,MS135..(SALEX,SDX,SPE,SSL)..(DSL,SPC,TD,TDE,TWC);GS130,131,JZS131,LS131,MS13#..(4FC,5F)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,LPG,TD,TDE,TWC,TWLPG)..NOB BLUE,TRIM8# |
1 | ||
| 73230-3044002 |
GS131..SED..4FC..SPC;GS131,JZS131,LS130,MS135..(SALEX,SDX,SPE,SSL)..(DSL,SPC,TD,TDE,TWC);GS130,131,JZS131,LS131,MS13#..(4FC,5F)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,LPG,TD,TDE,TWC,TWLPG)..NOB MAROON,TRIM3# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-3045004 |
GS13#,LS13#,MS130,YS130..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 73230-3045002 |
GS13#,LS13#,MS130..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 73230-3044004 |
GS131..SED..4FC..SPC;GS131,JZS131,LS130,MS135..(SALEX,SDX,SPE,SSL)..(DSL,SPC,TD,TDE,TWC);GS130,131,JZS131,LS131,MS13#..(4FC,5F)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,LPG,TD,TDE,TWC,TWLPG)..NOB BLUE,TRIM8# |
1 | ||
| 73230-3044002 |
GS131..SED..4FC..SPC;GS131,JZS131,LS130,MS135..(SALEX,SDX,SPE,SSL)..(DSL,SPC,TD,TDE,TWC);GS130,131,JZS131,LS131,MS13#..(4FC,5F)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,LPG,TD,TDE,TWC,TWLPG)..NOB MAROON,TRIM3# |
1 | ||
| 73237A - COVER, SHOULDER BELT ANCHOR | ||||
| 73237-3001006 |
GS130,136,LS130,136,YS130..DLX,SDX SABLE,TRIM3# |
2 | ||
| 73237-3001006 |
GS130..(4HC,5F)..SDX..HTWC;GS130..(4FC,4H)..(DLX,SDX)..HTWC;GS130,136,LS13#,MS130,YS130..(DLX,SDX)..(DSL,EFI,LPG,TD,TDE) SABLE,TRIM3# |
2 | ||
| 73237-3001004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 BLUE,TRIM8# |
2 | ||
| 73237A - COVER, SHOULDER BELT ANCHOR | ||||
| 73237-3001006 |
GS130,136,LS130,136,YS130..DLX,SDX SABLE,TRIM3# |
2 | ||
| 73237-3001006 |
GS130..(4HC,5F)..SDX..HTWC;GS130..(4FC,4H)..(DLX,SDX)..HTWC;GS130,136,LS13#,MS130,YS130..(DLX,SDX)..(DSL,EFI,LPG,TD,TDE) SABLE,TRIM3# |
2 | ||
| 73237-3001004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 BLUE,TRIM8# |
2 | ||
| 73237A - COVER, SHOULDER BELT ANCHOR | ||||
| 73237-3001006 |
GS130,136,LS130,136,YS130..DLX,SDX SABLE,TRIM3# |
2 | ||
| 73237-3001006 |
GS130..(4HC,5F)..SDX..HTWC;GS130..(4FC,4H)..(DLX,SDX)..HTWC;GS130,136,LS13#,MS130,YS130..(DLX,SDX)..(DSL,EFI,LPG,TD,TDE) SABLE,TRIM3# |
2 | ||
| 73237-3001004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 BLUE,TRIM8# |
2 | ||
| 73237A - COVER, SHOULDER BELT ANCHOR | ||||
| 73237-3001006 |
GS130,136,LS130,136,YS130..DLX,SDX SABLE,TRIM3# |
2 | ||
| 73237-3001006 |
GS130..(4HC,5F)..SDX..HTWC;GS130..(4FC,4H)..(DLX,SDX)..HTWC;GS130,136,LS13#,MS130,YS130..(DLX,SDX)..(DSL,EFI,LPG,TD,TDE) SABLE,TRIM3# |
2 | ||
| 73237-3001004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 BLUE,TRIM8# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-3015004 |
GS13#,LS13#,MS130,YS130..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 73240-3015002 |
GS13#,LS13#,MS130..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 73240-3013002 |
GS130,131,JZS131,LS130,131,MS130..(4FC,5F)..(SAL,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 73240-3013004 |
GS130,131,JZS131,LS130,131,MS130..(4FC,5F)..(SAL,SDX,SPE,SSL) BLUE,TRIM8# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-3015004 |
GS13#,LS13#,MS130,YS130..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 73240-3015002 |
GS13#,LS13#,MS130..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 73240-3013002 |
GS130,131,JZS131,LS130,131,MS130..(4FC,5F)..(SAL,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 73240-3013004 |
GS130,131,JZS131,LS130,131,MS130..(4FC,5F)..(SAL,SDX,SPE,SSL) BLUE,TRIM8# |
1 | ||
| 73330 - BELT ASSY, REAR SEAT LAP TYPE, RH | ||||
| 73330-3012002 |
LS130..HT..SALEX;GS130..(4FC,4H)..DLX..HTWC;GS131,MS130,YS130..DLX,SALEX,SDX,SSL;GS130..(HT,SED)..(SAL,SDX,SPE)..HTWC;GS130,LS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) MAROON,TRIM3# |
1 | ||
| 73330-3013002 |
GS131..SAL;GS131,LS131..HT..(SALEX,SPE,SSL);GS130,LS130,MS135,YS130..(HT,SED)..(DLX,SALEX,SDX) MAROON,TRIM3# |
1 | ||
| 73330-3012004 |
LS130..HT..SALEX;GS131,MS130,YS130..DLX,SALEX,SDX,SSL,STD;GS130,LS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 73330-3013004 |
GS131..SAL;GS131,LS131..HT..(SALEX,SPE,SSL);GS130,LS130,MS135,YS130..(HT,SED)..(DLX,SALEX,SDX,STD) BLUE,TRIM8# |
1 | ||
| 73340 - BELT ASSY, REAR SEAT LAP TYPE, LH | ||||
| 73330-3012004 |
LS130..HT..SALEX;GS131,MS130,YS130..DLX,SALEX,SDX,SSL,STD;GS130,LS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 73330-3012002 |
LS130..HT..SALEX;GS130..(4FC,4H)..DLX..HTWC;GS131,MS130,YS130..DLX,SALEX,SDX,SSL;GS130..(HT,SED)..(SAL,SDX,SPE)..HTWC;GS130,LS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) MAROON,TRIM3# |
1 | ||
| 73330-3013004 |
GS131..SAL;GS131,LS131..HT..(SALEX,SPE,SSL);GS130,LS130,MS135,YS130..(HT,SED)..(DLX,SALEX,SDX,STD) BLUE,TRIM8# |
1 | ||
| 73330-3013002 |
GS131..SAL;GS131,LS131..HT..(SALEX,SPE,SSL);GS130,LS130,MS135,YS130..(HT,SED)..(DLX,SALEX,SDX) MAROON,TRIM3# |
1 | ||
| 73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER | ||||
| 73350-3006002 |
GS131..HT;GS130..(4FC,4H)..DLX..HTWC;GS130..(HT,SED)..(SAL,SALEX,SDX,SPE)..HTWC;GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE) MAROON,TRIM3# |
1 | ||
| 73350-3006004 |
GS131..HT;GS130,LS130,MS130,YS130..HT,SED BLUE,TRIM8# |
1 | ||
| 73350-3008002 |
JZS131..WIB;GS131..HT..ROY;GS130,131,LS130,131,MS135,YS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 73350-3008004 |
JZS131..WIB;GS131..HT..ROY;GS130,131,LS130,131,MS135,YS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER | ||||
| 73350-3006002 |
GS131..HT;GS130..(4FC,4H)..DLX..HTWC;GS130..(HT,SED)..(SAL,SALEX,SDX,SPE)..HTWC;GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE) MAROON,TRIM3# |
1 | ||
| 73350-3006004 |
GS131..HT;GS130,LS130,MS130,YS130..HT,SED BLUE,TRIM8# |
1 | ||
| 73350-3008002 |
JZS131..WIB;GS131..HT..ROY;GS130,131,LS130,131,MS135,YS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 73350-3008004 |
JZS131..WIB;GS131..HT..ROY;GS130,131,LS130,131,MS135,YS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-3010002 |
GS130,131,LS130,131,YS130..SED..(DLX,SAL,SALEX,SDX) MAROON,TRIM3# |
1 | ||
| 73360-3010004 |
GS130,131,LS130,131,YS130..SED..(DLX,SAL,SALEX,SDX,STD) BLUE,TRIM8# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-3006004 |
GS130,131,LS130,131,YS130..SED..(DLX,SAL,SALEX,SDX,STD) BLUE,TRIM8# |
1 | ||
| 73370-3006002 |
GS130,131,LS130,131,YS130..SED..(DLX,SAL,SALEX,SDX) MAROON,TRIM3# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-3008004 |
GS130,131,JZS131,LS130,131,MS135,YS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| 73380-3008002 |
GS130,131,JZS131,LS130,131,MS135,YS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73380-3008002 |
GS130,131,JZS131,LS130,131,MS135,YS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 73380-3008004 |
GS130,131,JZS131,LS130,131,MS135,YS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL,STD) BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90109-11012 | ||||
| 90119-08436 | ||||
| 90119-08570 | ||||
| 90164-50031 | ||||
| 90189-06022 | ||||
| 90205-10003 | ||||
| 90206-15002 | ||||
| 93319-15010 | ||||
| 93560-14010 | ||||
| 94511-01200 | ||||

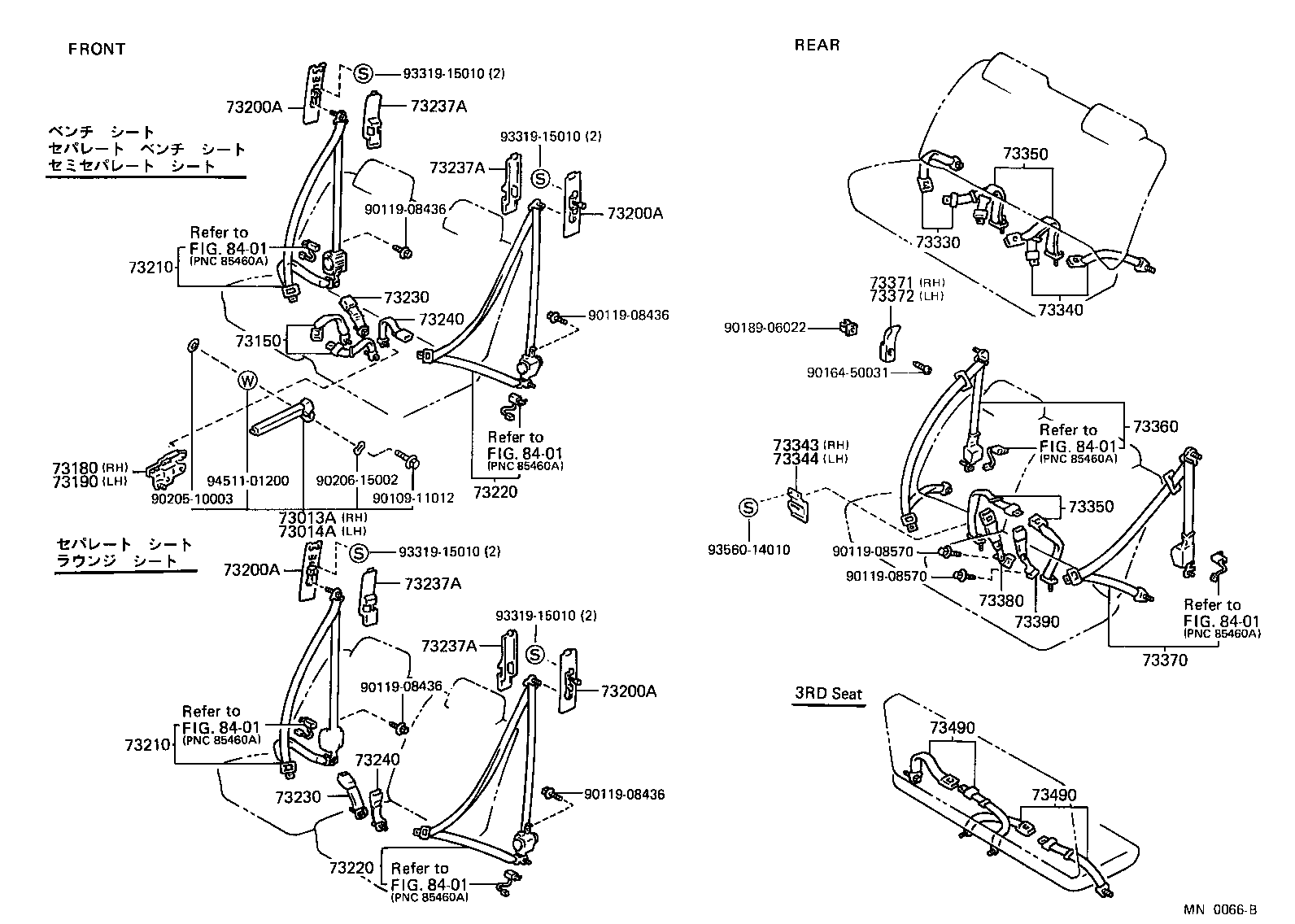

| Linked diagrams | ||||
| 8401 | ||||
