Toyota Crown LS130 STARTER - JDM Part Detective

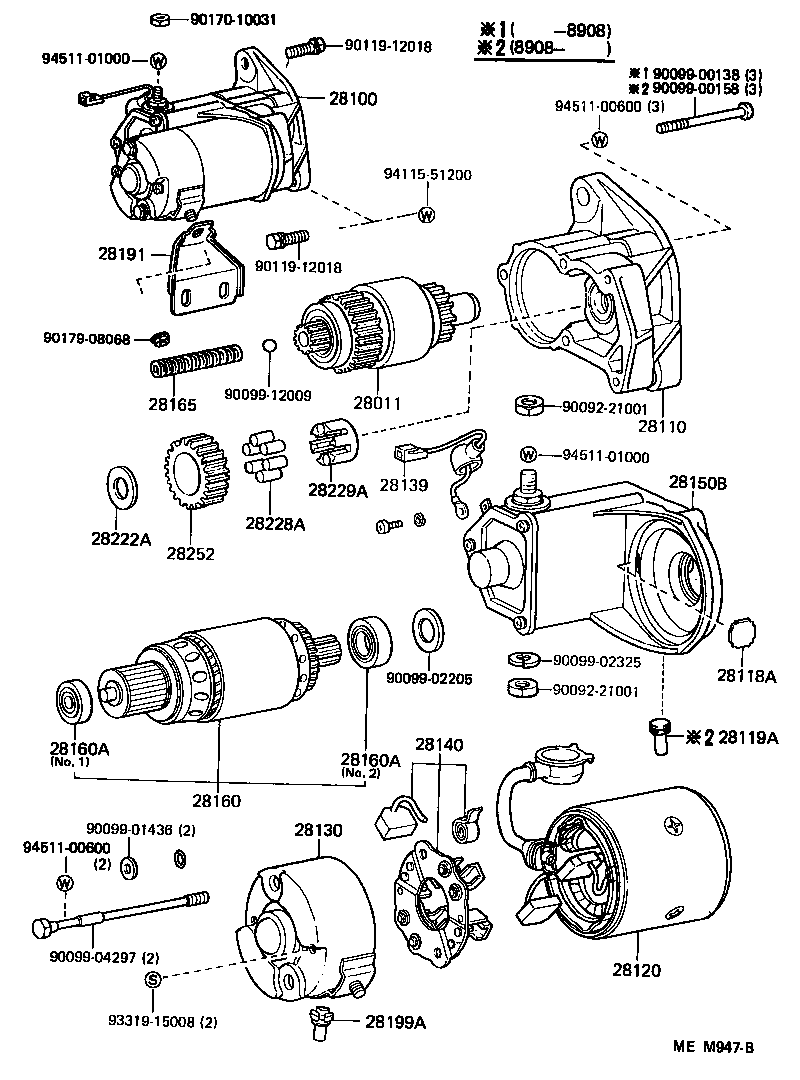

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-54010	2L,2LTHE..LS13#..4FC	09/1987 - 10/1991	1
28011-54010	2L,2LT..LS130 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	09/1988 - 08/1989	1
28100 - STARTER ASSY
28100-54052	2L,2LT#..LS13# 12V 2.5KW,ｶﾝﾚｲﾁｼﾖｳ	09/1987 - 09/1988	1
28100-54061	2L,2LTHE..LS13#..4FC 12V 2.5KW	09/1987 - 08/1989	1
28100-54052	2L,2LT#..LS130..HT,SED 12V 2.5KW,ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	09/1988 - 08/1989	1
28100-54140	2L,2LTHE..LS13#..4FC 12V 2.7KW	08/1989 - 10/1991	1
28100-54220	2L,2LT#..LS13# 12V 2.7KW,ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	08/1989 - 10/1991	1
28110 - HOUSING ASSY, STARTER DRIVE
28115-54011	2L,2LT..LS130 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	09/1988 - 08/1989	1
28115-54011	2L,2LTHE..LS13#..4FC	09/1987 - 10/1991	1
28118A - PLATE(FOR STARTER YOKE)
28118-77090	2L,2LTHE..LS13#..4FC	09/1987 - 10/1991	1
28118-77090	2L,2LT..LS130 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	09/1988 - 08/1989	1
28119A - COVER, STARTER END FRAME
28119-47070	2L,2LTHE..LS13#..4FC	08/1989 - 10/1991	1
28120 - YOKE ASSY, STARTER
28120-56081	2L,2LT..LS130 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	09/1988 - 08/1989	1
28120-56081	2L,2LTHE..LS13#..4FC	09/1987 - 10/1991	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-54060	2L,2LTHE..LS13#..4FC	09/1987 - 10/1991	1
28130-54060	2L,2LT..LS130 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	09/1988 - 08/1989	1
28139 - WIRE, LEAD, NO.1(FOR STARTER)
28139-77110	2L,2LT#..LS130..HT,SED ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	09/1988 - 08/1989	1
28139-77110	2L,2LT#..LS13# ｶﾝﾚｲﾁｼﾖｳ	09/1987 - 09/1988	1
28139-77110	2L,2LT#..LS13# ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	08/1989 - 10/1991	1
28139-54023	2L,2LTHE..LS13#..4FC	09/1987 - 10/1991	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090	2L,2LT..LS130 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	09/1988 - 08/1989	1
28140-77090	2L,2LTHE..LS13#..4FC	09/1987 - 10/1991	1
28150B - SWITCH ASSY, MAGNETIC
28150-54051	2L,2LT#..LS130..HT,SED ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	09/1988 - 08/1989	1
28150-54051	2L,2LT#..LS13# ｶﾝﾚｲﾁｼﾖｳ	09/1987 - 09/1988	1
28150-54011	2L,2LTHE..LS13#..4FC	09/1987 - 08/1989	1
28150-54140	2L,2LTHE..LS13#..4FC	08/1989 - 10/1991	1
28150-54220	2L,2LT#..LS13# ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	08/1989 - 10/1991	1
28160 - ARMATURE ASSY, STARTER
28160-47040	2L,2LTHE..LS13#..4FC	09/1987 - 08/1989	1
28160-47040	2L,2LT..LS130 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	09/1988 - 08/1989	1
28160-54140	2L,2LTHE..LS13#..4FC	08/1989 - 10/1991	1
28160A - BEARING, STARTER ARMATURE
90099-10107	2L,2LT..LS130 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,NO.1	09/1988 - 08/1989	1
90099-10119	2L,2LT..LS130 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,NO.2	09/1988 - 08/1989	1
90099-10119	2L,2LTHE..LS13#..4FC NO.2	09/1987 - 10/1991	1
90099-10107	2L,2LTHE..LS13#..4FC NO.1	09/1987 - 10/1991	1
28160A - BEARING, STARTER ARMATURE
90099-10107	2L,2LT..LS130 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,NO.1	09/1988 - 08/1989	1
90099-10119	2L,2LT..LS130 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,NO.2	09/1988 - 08/1989	1
90099-10119	2L,2LTHE..LS13#..4FC NO.2	09/1987 - 10/1991	1
90099-10107	2L,2LTHE..LS13#..4FC NO.1	09/1987 - 10/1991	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040	2L..LS136..MTM;1GGP,2L,2LT,7MGE,MP,1UZFE,3YP#..GS130,LS130,131,MS13#,UZS131,YS130	09/1987 - 10/1991	1
28165-77090	2L,2LTHE..LS13#..4FC	09/1987 - 10/1991	1
28165-77090	2L,2LT..LS130 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	09/1988 - 08/1989	1
28191 - STAY, STARTER
28191-54010	2L,2LTHE..LS13#..4FC	09/1987 - 10/1991	1
28191-54010	2L,2LT..LS130 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	09/1988 - 08/1989	1
28199A - PROTECTOR, DUST STARTER
28199-77090	2L,2LTHE..LS13#..4FC	09/1987 - 06/1988	1
28199-77090	2L,2LT#..LS13#	06/1988 - 10/1991	1
28222A - WASHER, STARTER IDLE GEAR CLUTCH
28222-77090	2L,2LT..LS130 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	09/1988 - 08/1989	1
28222-77090	2L,2LTHE..LS13#..4FC	09/1987 - 10/1991	1
28228A - ROLLER, STARTER CLUTCH
28228-56080	2L,2LTHE..LS13#..4FC	09/1987 - 10/1991	5
28228-56080	2L,2LT..LS130 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	09/1988 - 08/1989	5
28228-26040	2L..LS136..MTM;1GGP,2L,2LT,7MGE,MP,1UZFE,3YP#..GS130,LS130,131,MS13#,UZS131,YS130	09/1987 - 10/1991	5
28229A - RETAINER, STARTER IDLE GEAR
28229-26040	2L..LS136..MTM;1GGP,2L,2LT,7MGE,MP,1UZFE,3YP#..GS130,LS130,131,MS13#,UZS131,YS130	09/1987 - 10/1991	1
28229-56080	2L,2LTHE..LS13#..4FC	09/1987 - 10/1991	1
28229-56080	2L,2LT..LS130 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	09/1988 - 08/1989	1
28252 - GEAR, STARTER IDLE
28254-77090	2L,2LT..LS130 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	09/1988 - 08/1989	1
28254-77090	2L,2LTHE..LS13#..4FC	09/1987 - 10/1991	1
Common parts
90092-21001
90099-00138
90099-00158
90099-01436
90099-02205
90099-02325
90099-04297
90099-12009
90119-12018
90170-10031
90179-08068
93319-15008
94115-51200
94511-00600
94511-01000

LS130-AEPFJ (1987)

(8709- )2L,2LT#

(9110-9512)2LT#,2L

Part Price Details

Part #	Description	Period	Qty	Price
Common parts
28171-87702
29362-87701
90099-04473
90099-05129
90099-12009
90099-14058
90119-12018
90179-08146
94110-40800
94115-51200
94511-00800
96711-19006
