LS130-AEMRS (1987)
Toyota Crown
Production
Sep 1987
-
Oct 1991
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8709- )LS13#,YS130

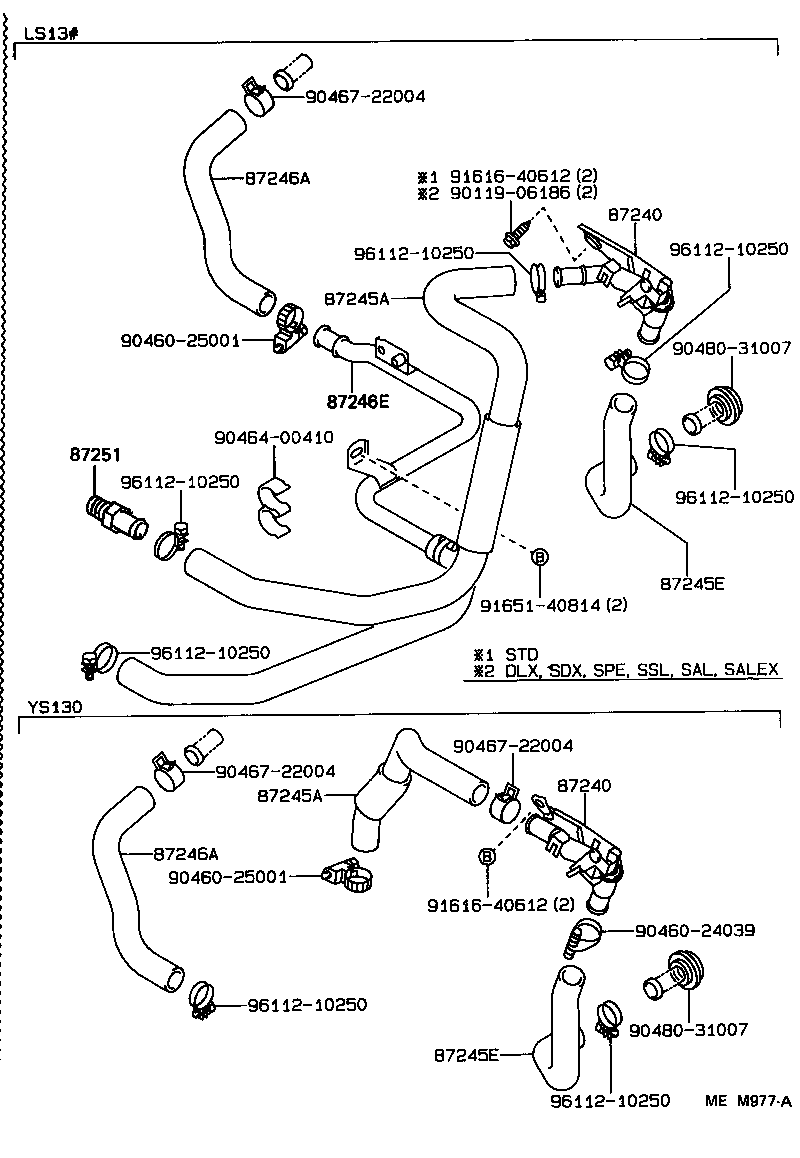

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-30530 |
LS130,136..STD |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-30530 |
LS130,136..STD |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-3A250 |
LS13# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-3A250 |
LS13# |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-3A260 |
GS13#,LS13#,MS13#,YS130 |
1 | ||
| 87245-3A260 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 87245-3A260 |
GS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-3A260 |
GS13#,LS13#,MS13#,YS130 |
1 | ||
| 87245-3A260 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 87245-3A260 |
GS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3A270 |
LS13# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3A270 |
LS13# |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87209-30272 |
LS13# |
1 | ||
| 87209-30273 |
LS13# |
1 | ||
| 87209-30320 |
LS13# |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-30200 |
LS13#,MS13# |
1 | ||
| Common parts | ||||
| 90119-06186 | ||||
| 90460-24039 | ||||
| 90460-25001 | ||||
| 90464-00410 | ||||
| 90467-22004 | ||||
| 90480-31007 | ||||
| 91616-40612 | ||||
| 91651-40814 | ||||
| 96112-10250 | ||||
(8710- )
Click highlighted areas on diagram
WATER PANEL HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245X - HOSE, HEATER WATER | ||||
| 99556-12500 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 長さ=500 |
1 | ||
| 99556-10110 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 *H,L=110 |
1 | ||
| 87248 - PIPE SUB-ASSY, WATER | ||||
| 87248-20300 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 NO.1 |
1 | ||
| 87248-30260 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 NO.2 |
1 | ||
| 87248 - PIPE SUB-ASSY, WATER | ||||
| 87248-20300 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 NO.1 |
1 | ||
| 87248-30260 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 NO.2 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90339-07001 | ||||
| 90445-23006 | ||||
| 90460-14085 | ||||
| 90467-13001 | ||||
| 90467-22004 | ||||
| Linked diagrams | ||||
| 7502 | ||||
