LS130-AEMRS (1987)
Toyota Crown

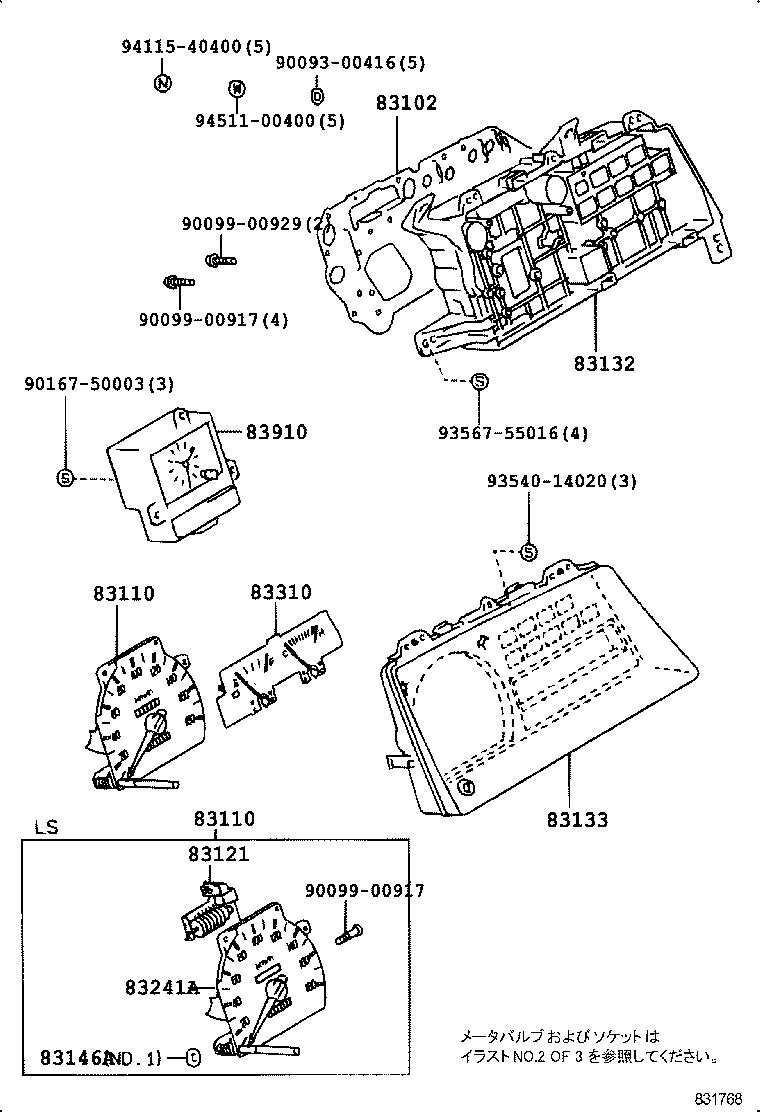

ILLUST NO. 1 OF 3(8709- )YS130 ; (8709- )GS130,136,LS130,136..STD
ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-3A620 |
LS130..STD |
1 | ||
| 83149-30410 |
LS130,131..(SED,WG)..(TD,TDE) NO.2 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3A520 |
LS13#..STD |
1 | ||
| 83110-3A061 |
LS130,131..(SED,WG)..(TD,TDE) |
1 | ||
| 83110-3A521 |
LS130,136..STD |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3A520 |
LS13#..STD |
1 | ||
| 83110-3A061 |
LS130,131..(SED,WG)..(TD,TDE) |
1 | ||
| 83110-3A521 |
LS130,136..STD |
1 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-30270 |
LS130..HT;LS13#..DSL |
1 | ||
| 83121-30310 |
LS130,131..(SED,WG)..(TD,TDE) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-3A310 |
LS130..STD |
1 | ||
| 83132-3A230 |
JZS131..4HC;JZS131..4FC..NOB;GS131,MS135..HT..4HC..ROY;GS130,131,JZS130,LS130,131..(SED,WG)..(SPC,TD,TDE,TWC) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30430 |
LS130,131..(SED,WG)..(TD,TDE) |
1 | ||
| 83133-3A010 |
LS130,136..STD |
1 | ||
| 83146A - COVER, SPEEDMETER | ||||
| 83153-30800 |
LS130..STD NO.1 |
2 | ||
| 83241A - BODY ASSY, SPEEDOMETER | ||||
| 83241-30651 |
LS130,131..(SED,WG)..(TD,TDE) |
1 | ||
| 83241-30650 |
LS130..(SED,WG)..(TD,TDE) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30470 |
LS130..(SED,WG)..(TD,TDE) |
1 | ||
| 83243-30710 |
LS130..STD |
1 | ||
| 83243-30790 |
LS130..STD |
1 | ||
| 83243-3A110 |
LS130,131..(SED,WG)..(TD,TDE) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30480 |
YS130..MTM;GS130,136,LS130,136..STD |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90167-50003 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||

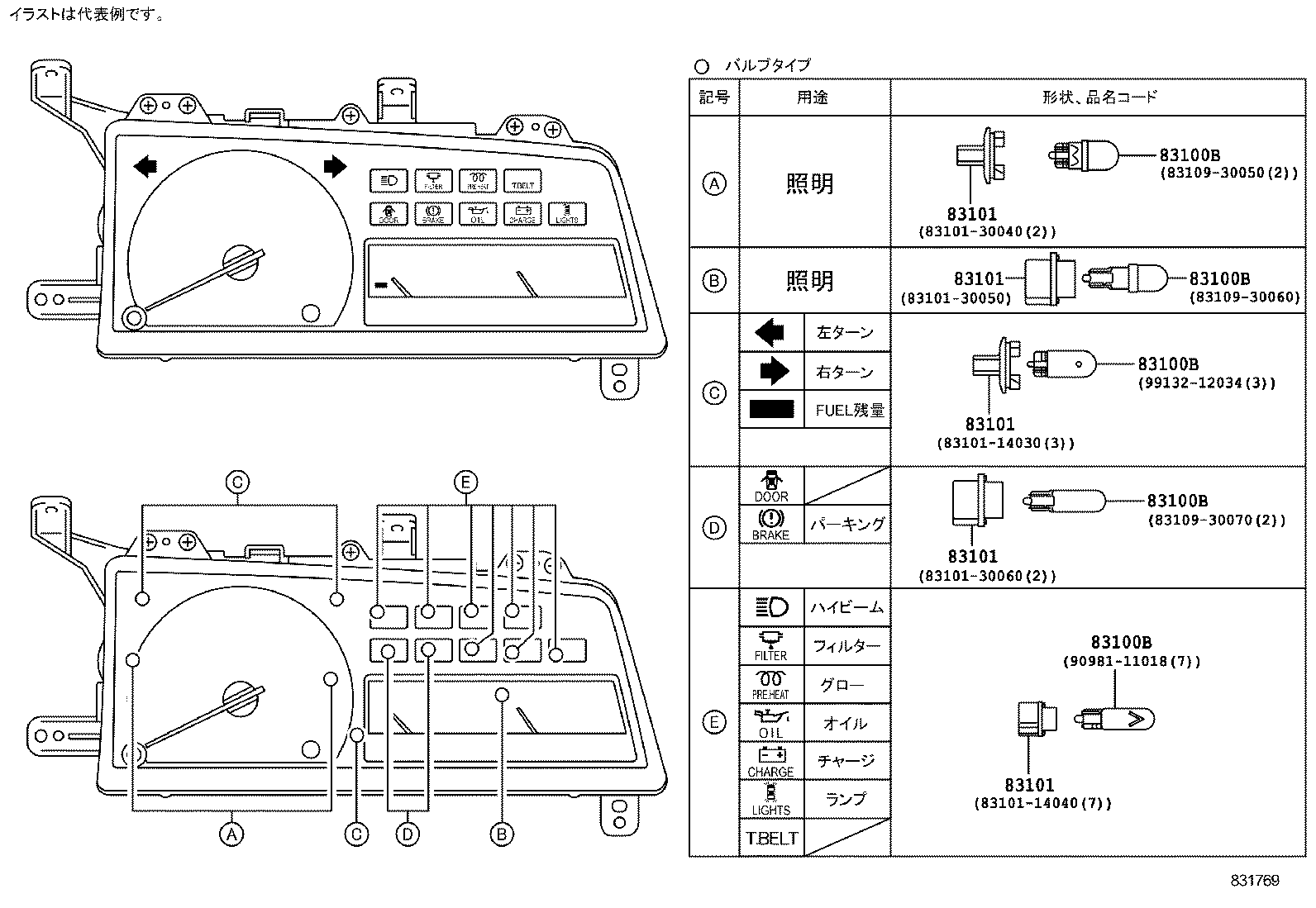

ILLUST NO. 2 OF 3(8709- )YS130 ; (8709- )GS130,136,LS130,136..STD
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS131,MS135,137..4HC..(SPC,TWC);GS131,LS130..(4FC,5F)..(EFI,SPC,TD,TDE,TWC);GS130,MS135,137..(4FC,5F)..(ROY,ROYG,SPE)..NOB 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30050 |
YS130;GS130,136,LS130,136..STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 83109-30060 |
YS130;GS130,136,LS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
YS130;GS130,136,LS130,136..STD 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS131,MS135,137..4HC..(SPC,TWC);GS131,LS130..(4FC,5F)..(EFI,SPC,TD,TDE,TWC);GS130,MS135,137..(4FC,5F)..(ROY,ROYG,SPE)..NOB 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30050 |
YS130;GS130,136,LS130,136..STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 83109-30060 |
YS130;GS130,136,LS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
YS130;GS130,136,LS130,136..STD 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS131,MS135,137..4HC..(SPC,TWC);GS131,LS130..(4FC,5F)..(EFI,SPC,TD,TDE,TWC);GS130,MS135,137..(4FC,5F)..(ROY,ROYG,SPE)..NOB 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30050 |
YS130;GS130,136,LS130,136..STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 83109-30060 |
YS130;GS130,136,LS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
YS130;GS130,136,LS130,136..STD 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS131,MS135,137..4HC..(SPC,TWC);GS131,LS130..(4FC,5F)..(EFI,SPC,TD,TDE,TWC);GS130,MS135,137..(4FC,5F)..(ROY,ROYG,SPE)..NOB 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30050 |
YS130;GS130,136,LS130,136..STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 83109-30060 |
YS130;GS130,136,LS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
YS130;GS130,136,LS130,136..STD 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS131,MS135,137..4HC..(SPC,TWC);GS131,LS130..(4FC,5F)..(EFI,SPC,TD,TDE,TWC);GS130,MS135,137..(4FC,5F)..(ROY,ROYG,SPE)..NOB 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30050 |
YS130;GS130,136,LS130,136..STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 83109-30060 |
YS130;GS130,136,LS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
YS130;GS130,136,LS130,136..STD 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-30050 |
YS130;GS130,136,LS130,136..STD ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30040 |
YS130;GS130,136,LS130,136..STD OD=18.5,BLUE |
2 | ||
| 83101-30060 |
YS130;GS130,136,LS130,136..STD OD=11.3,BLUE |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-30050 |
YS130;GS130,136,LS130,136..STD ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30040 |
YS130;GS130,136,LS130,136..STD OD=18.5,BLUE |
2 | ||
| 83101-30060 |
YS130;GS130,136,LS130,136..STD OD=11.3,BLUE |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-30050 |
YS130;GS130,136,LS130,136..STD ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30040 |
YS130;GS130,136,LS130,136..STD OD=18.5,BLUE |
2 | ||
| 83101-30060 |
YS130;GS130,136,LS130,136..STD OD=11.3,BLUE |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-30050 |
YS130;GS130,136,LS130,136..STD ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30040 |
YS130;GS130,136,LS130,136..STD OD=18.5,BLUE |
2 | ||
| 83101-30060 |
YS130;GS130,136,LS130,136..STD OD=11.3,BLUE |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-30050 |
YS130;GS130,136,LS130,136..STD ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30040 |
YS130;GS130,136,LS130,136..STD OD=18.5,BLUE |
2 | ||
| 83101-30060 |
YS130;GS130,136,LS130,136..STD OD=11.3,BLUE |
2 | ||

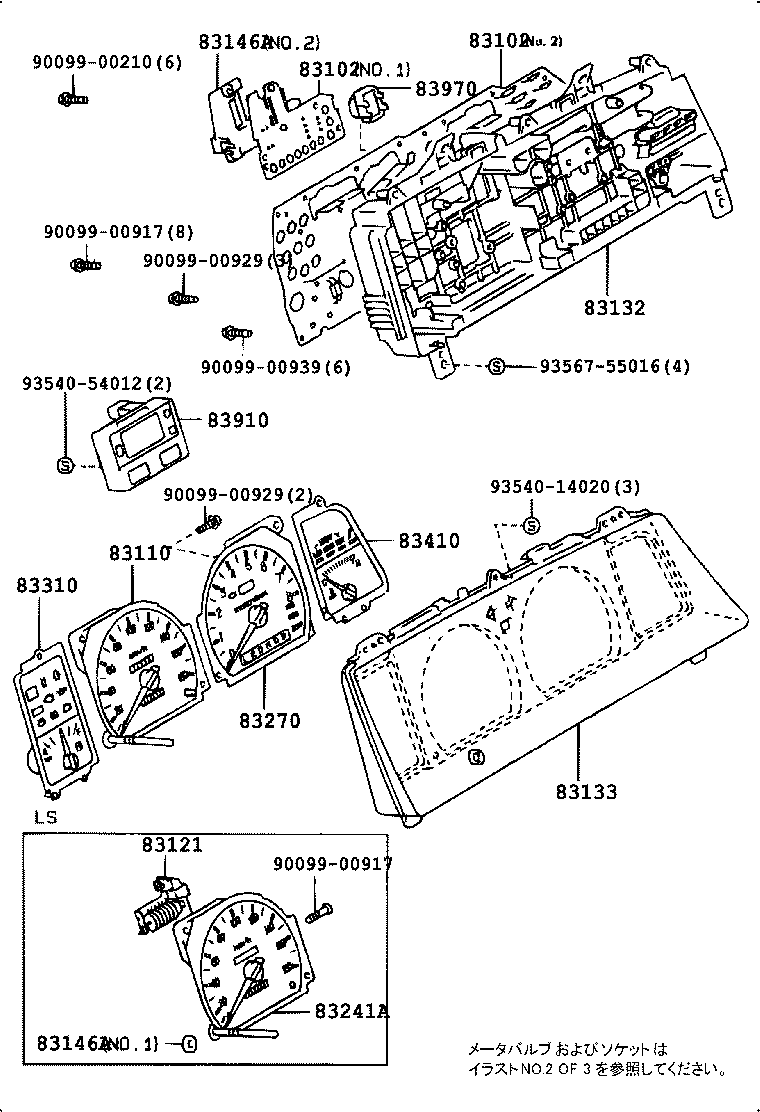

ILLUST NO. 1 OF 3(8709- )GS130,131,JZS130,LS130,131..SED,WG..SPC,TD,TDE,TWC
ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ:ｱﾘ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-3A620 |
LS130..STD |
1 | ||
| 83247-3A620 |
LS130..STD |
1 | ||
| 83149-30410 |
LS130,131..(SED,WG)..(TD,TDE) NO.2 |
1 | ||
| 83149-30410 |
LS130,131..(SED,WG)..(TD,TDE) NO.2 |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-3A620 |
LS130..STD |
1 | ||
| 83247-3A620 |
LS130..STD |
1 | ||
| 83149-30410 |
LS130,131..(SED,WG)..(TD,TDE) NO.2 |
1 | ||
| 83149-30410 |
LS130,131..(SED,WG)..(TD,TDE) NO.2 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3A520 |
LS13#..STD |
1 | ||
| 83110-3A520 |
LS13#..STD |
1 | ||
| 83110-3A061 |
LS130,131..(SED,WG)..(TD,TDE) |
1 | ||
| 83110-3A061 |
LS130,131..(SED,WG)..(TD,TDE) |
1 | ||
| 83110-3A521 |
LS130,136..STD |
1 | ||
| 83110-3A521 |
LS130,136..STD |
1 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-30270 |
LS130..HT;LS13#..DSL |
1 | ||
| 83121-30270 |
LS130..HT;LS13#..DSL |
1 | ||
| 83121-30310 |
LS130,131..(SED,WG)..(TD,TDE) |
1 | ||
| 83121-30310 |
LS130,131..(SED,WG)..(TD,TDE) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-3A310 |
LS130..STD |
1 | ||
| 83132-3A310 |
LS130..STD |
1 | ||
| 83132-3A230 |
JZS131..4HC;JZS131..4FC..NOB;GS131,MS135..HT..4HC..ROY;GS130,131,JZS130,LS130,131..(SED,WG)..(SPC,TD,TDE,TWC) |
1 | ||
| 83132-3A230 |
JZS131..4HC;JZS131..4FC..NOB;GS131,MS135..HT..4HC..ROY;GS130,131,JZS130,LS130,131..(SED,WG)..(SPC,TD,TDE,TWC) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30430 |
LS130,131..(SED,WG)..(TD,TDE) |
1 | ||
| 83133-30430 |
LS130,131..(SED,WG)..(TD,TDE) |
1 | ||
| 83133-3A010 |
LS130,136..STD |
1 | ||
| 83133-3A010 |
LS130,136..STD |
1 | ||
| 83146A - COVER, SPEEDMETER | ||||
| 83153-30800 |
LS130..STD NO.1 |
2 | ||
| 83153-30800 |
LS130..STD NO.1 |
2 | ||
| 83146A - COVER, SPEEDMETER | ||||
| 83153-30800 |
LS130..STD NO.1 |
2 | ||
| 83153-30800 |
LS130..STD NO.1 |
2 | ||
| 83241A - BODY ASSY, SPEEDOMETER | ||||
| 83241-30651 |
LS130,131..(SED,WG)..(TD,TDE) |
1 | ||
| 83241-30651 |
LS130,131..(SED,WG)..(TD,TDE) |
1 | ||
| 83241-30650 |
LS130..(SED,WG)..(TD,TDE) |
1 | ||
| 83241-30650 |
LS130..(SED,WG)..(TD,TDE) |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-3A650 |
LS130..TD |
1 | ||
| 83242-3A650 |
LS130..TD |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30470 |
LS130..(SED,WG)..(TD,TDE) |
1 | ||
| 83243-30470 |
LS130..(SED,WG)..(TD,TDE) |
1 | ||
| 83243-30710 |
LS130..STD |
1 | ||
| 83243-30710 |
LS130..STD |
1 | ||
| 83243-30790 |
LS130..STD |
1 | ||
| 83243-30790 |
LS130..STD |
1 | ||
| 83243-3A110 |
LS130,131..(SED,WG)..(TD,TDE) |
1 | ||
| 83243-3A110 |
LS130,131..(SED,WG)..(TD,TDE) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-30510 |
GS131,MS135..HT..4HC..ROY;GS130,131,LS130..(SED,WG)..(SPC,TD,TDE,TWC) |
1 | ||
| 83244-30510 |
GS131,MS135..HT..4HC..ROY;GS130,131,LS130..(SED,WG)..(SPC,TD,TDE,TWC) |
1 | ||
| 83244-30730 |
JZS131..4HC;JZS131..4FC..NOB;GS131,MS135..HT..4HC..ROY;GS130,131,JZS130,LS130,131..(SED,WG)..(SPC,TD,TDE,TWC) |
1 | ||
| 83244-30730 |
JZS131..4HC;JZS131..4FC..NOB;GS131,MS135..HT..4HC..ROY;GS130,131,JZS130,LS130,131..(SED,WG)..(SPC,TD,TDE,TWC) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30480 |
YS130..MTM;GS130,136,LS130,136..STD |
1 | ||
| 83910-30480 |
YS130..MTM;GS130,136,LS130,136..STD |
1 | ||
| Common parts | ||||
| 90099-00210 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 93540-14020 | ||||
| 93540-54012 | ||||
| 93567-55016 | ||||

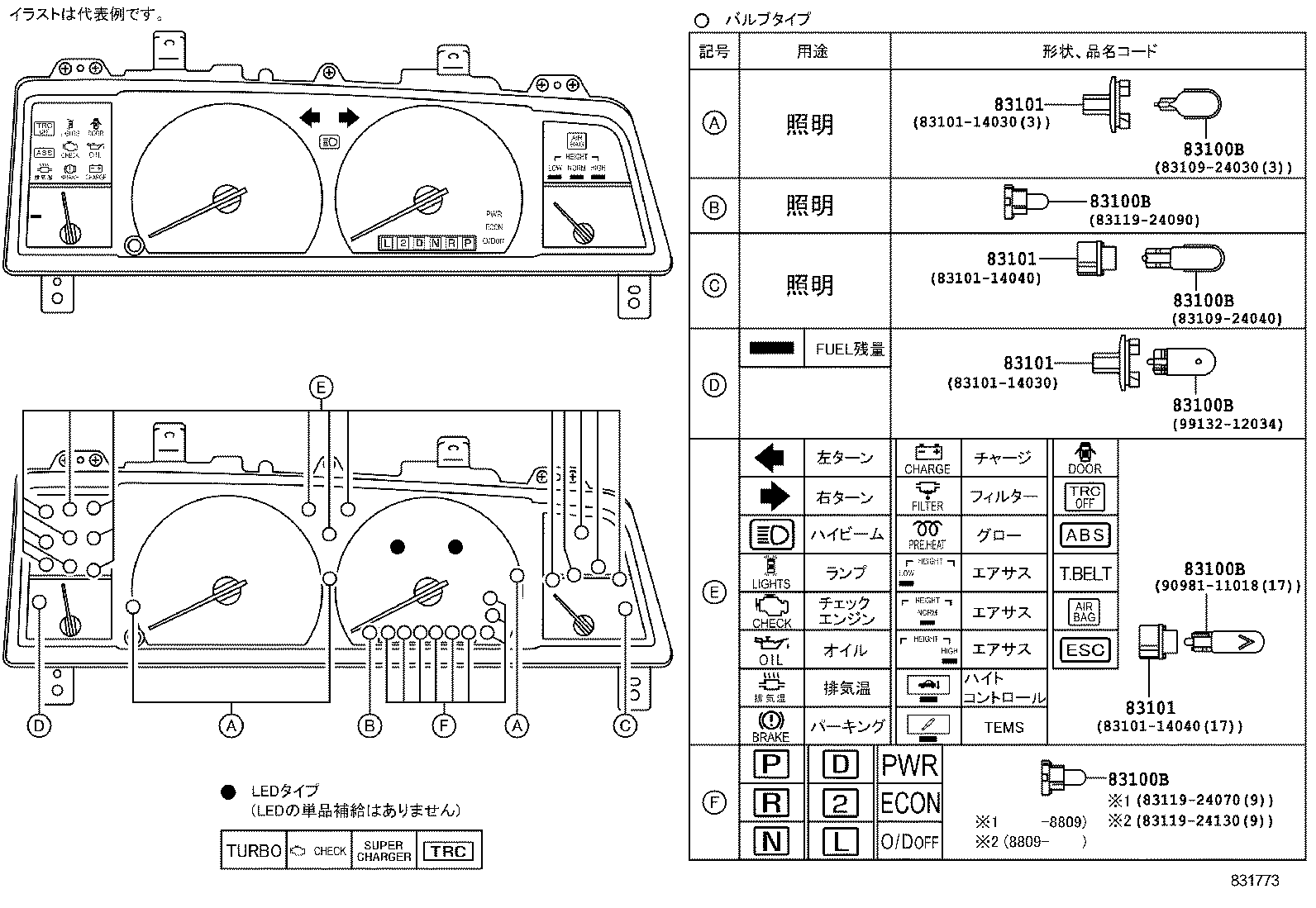

ILLUST NO. 2 OF 3(8709- )GS130,131,JZS130,LS130,131..SED,WG..SPC,TD,TDE,TWC
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ:ｱﾘ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS131,MS135,137..4HC..(SPC,TWC);GS131,LS130..(4FC,5F)..(EFI,SPC,TD,TDE,TWC);GS130,MS135,137..(4FC,5F)..(ROY,ROYG,SPE)..NOB 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83119-24070 |
GS131,MS135,137..4HC..(SPC,TWC);GS131,LS130..(4FC,5F)..(EFI,SPC,TD,TDE,TWC);GS130,MS135,137..(4FC,5F)..(ROY,ROYG,SPE)..NOB 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30050 |
YS130;GS130,136,LS130,136..STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 83109-30050 |
YS130;GS130,136,LS130,136..STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 83109-30060 |
YS130;GS130,136,LS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30060 |
YS130;GS130,136,LS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
YS130;GS130,136,LS130,136..STD 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83109-30070 |
YS130;GS130,136,LS130,136..STD 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS131,MS135,137..4HC..(SPC,TWC);GS131,LS130..(4FC,5F)..(EFI,SPC,TD,TDE,TWC);GS130,MS135,137..(4FC,5F)..(ROY,ROYG,SPE)..NOB 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83119-24070 |
GS131,MS135,137..4HC..(SPC,TWC);GS131,LS130..(4FC,5F)..(EFI,SPC,TD,TDE,TWC);GS130,MS135,137..(4FC,5F)..(ROY,ROYG,SPE)..NOB 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30050 |
YS130;GS130,136,LS130,136..STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 83109-30050 |
YS130;GS130,136,LS130,136..STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 83109-30060 |
YS130;GS130,136,LS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30060 |
YS130;GS130,136,LS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
YS130;GS130,136,LS130,136..STD 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83109-30070 |
YS130;GS130,136,LS130,136..STD 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS131,MS135,137..4HC..(SPC,TWC);GS131,LS130..(4FC,5F)..(EFI,SPC,TD,TDE,TWC);GS130,MS135,137..(4FC,5F)..(ROY,ROYG,SPE)..NOB 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83119-24070 |
GS131,MS135,137..4HC..(SPC,TWC);GS131,LS130..(4FC,5F)..(EFI,SPC,TD,TDE,TWC);GS130,MS135,137..(4FC,5F)..(ROY,ROYG,SPE)..NOB 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30050 |
YS130;GS130,136,LS130,136..STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 83109-30050 |
YS130;GS130,136,LS130,136..STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 83109-30060 |
YS130;GS130,136,LS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30060 |
YS130;GS130,136,LS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
YS130;GS130,136,LS130,136..STD 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83109-30070 |
YS130;GS130,136,LS130,136..STD 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS131,MS135,137..4HC..(SPC,TWC);GS131,LS130..(4FC,5F)..(EFI,SPC,TD,TDE,TWC);GS130,MS135,137..(4FC,5F)..(ROY,ROYG,SPE)..NOB 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83119-24070 |
GS131,MS135,137..4HC..(SPC,TWC);GS131,LS130..(4FC,5F)..(EFI,SPC,TD,TDE,TWC);GS130,MS135,137..(4FC,5F)..(ROY,ROYG,SPE)..NOB 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30050 |
YS130;GS130,136,LS130,136..STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 83109-30050 |
YS130;GS130,136,LS130,136..STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 83109-30060 |
YS130;GS130,136,LS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30060 |
YS130;GS130,136,LS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
YS130;GS130,136,LS130,136..STD 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83109-30070 |
YS130;GS130,136,LS130,136..STD 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS131,MS135,137..4HC..(SPC,TWC);GS131,LS130..(4FC,5F)..(EFI,SPC,TD,TDE,TWC);GS130,MS135,137..(4FC,5F)..(ROY,ROYG,SPE)..NOB 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83119-24070 |
GS131,MS135,137..4HC..(SPC,TWC);GS131,LS130..(4FC,5F)..(EFI,SPC,TD,TDE,TWC);GS130,MS135,137..(4FC,5F)..(ROY,ROYG,SPE)..NOB 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30050 |
YS130;GS130,136,LS130,136..STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 83109-30050 |
YS130;GS130,136,LS130,136..STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 83109-30060 |
YS130;GS130,136,LS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30060 |
YS130;GS130,136,LS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
YS130;GS130,136,LS130,136..STD 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83109-30070 |
YS130;GS130,136,LS130,136..STD 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24070 |
GS131,MS135,137..4HC..(SPC,TWC);GS131,LS130..(4FC,5F)..(EFI,SPC,TD,TDE,TWC);GS130,MS135,137..(4FC,5F)..(ROY,ROYG,SPE)..NOB 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83119-24070 |
GS131,MS135,137..4HC..(SPC,TWC);GS131,LS130..(4FC,5F)..(EFI,SPC,TD,TDE,TWC);GS130,MS135,137..(4FC,5F)..(ROY,ROYG,SPE)..NOB 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-30050 |
YS130;GS130,136,LS130,136..STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 83109-30050 |
YS130;GS130,136,LS130,136..STD 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
2 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 83109-30060 |
YS130;GS130,136,LS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30060 |
YS130;GS130,136,LS130,136..STD 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
YS130;GS130,136,LS130,136..STD 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83109-30070 |
YS130;GS130,136,LS130,136..STD 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-30050 |
YS130;GS130,136,LS130,136..STD ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30050 |
YS130;GS130,136,LS130,136..STD ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30040 |
YS130;GS130,136,LS130,136..STD OD=18.5,BLUE |
2 | ||
| 83101-30040 |
YS130;GS130,136,LS130,136..STD OD=18.5,BLUE |
2 | ||
| 83101-30060 |
YS130;GS130,136,LS130,136..STD OD=11.3,BLUE |
2 | ||
| 83101-30060 |
YS130;GS130,136,LS130,136..STD OD=11.3,BLUE |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-30050 |
YS130;GS130,136,LS130,136..STD ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30050 |
YS130;GS130,136,LS130,136..STD ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30040 |
YS130;GS130,136,LS130,136..STD OD=18.5,BLUE |
2 | ||
| 83101-30040 |
YS130;GS130,136,LS130,136..STD OD=18.5,BLUE |
2 | ||
| 83101-30060 |
YS130;GS130,136,LS130,136..STD OD=11.3,BLUE |
2 | ||
| 83101-30060 |
YS130;GS130,136,LS130,136..STD OD=11.3,BLUE |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-30050 |
YS130;GS130,136,LS130,136..STD ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30050 |
YS130;GS130,136,LS130,136..STD ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30040 |
YS130;GS130,136,LS130,136..STD OD=18.5,BLUE |
2 | ||
| 83101-30040 |
YS130;GS130,136,LS130,136..STD OD=18.5,BLUE |
2 | ||
| 83101-30060 |
YS130;GS130,136,LS130,136..STD OD=11.3,BLUE |
2 | ||
| 83101-30060 |
YS130;GS130,136,LS130,136..STD OD=11.3,BLUE |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-30050 |
YS130;GS130,136,LS130,136..STD ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30050 |
YS130;GS130,136,LS130,136..STD ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30040 |
YS130;GS130,136,LS130,136..STD OD=18.5,BLUE |
2 | ||
| 83101-30040 |
YS130;GS130,136,LS130,136..STD OD=18.5,BLUE |
2 | ||
| 83101-30060 |
YS130;GS130,136,LS130,136..STD OD=11.3,BLUE |
2 | ||
| 83101-30060 |
YS130;GS130,136,LS130,136..STD OD=11.3,BLUE |
2 | ||
ILLUST NO. 3 OF 3(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-30011 |
LS130..MTM |
1 | ||
| 83180-30011 |
LS13#..DSL,TD |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
MS135..SALEX;MS13#,UZS131..4HC;MS13#,UZS131..4FC..NOB;GS13#,JZS13#,LS13#,YS130 NO.1 |
1 | ||
| 83189-20020 |
MS135,137..4HC;MS135,137..4FC..NOB;GS13#,LS13#,MS130,YS130 NO.1 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
MS135..SALEX;MS13#,UZS131..4HC;MS13#,UZS131..4FC..NOB;GS13#,JZS13#,LS13#,YS130 NO.1 |
1 | ||
| 83189-20020 |
MS135,137..4HC;MS135,137..4FC..NOB;GS13#,LS13#,MS130,YS130 NO.1 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
MS135..SALEX;MS13#,UZS131..4HC;MS13#,UZS131..4FC..NOB;GS13#,JZS13#,LS13#,YS130 NO.1 |
1 | ||
| 83189-20020 |
MS135,137..4HC;MS135,137..4FC..NOB;GS13#,LS13#,MS130,YS130 NO.1 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30750 |
GS13#,LS13#,MS130,YS130..MTM |
1 | ||
| 83710-30751 |
GS13#,LS13#..MTM |
1 | ||
| 83710-30870 |
YS130..MTM;GS130,136,LS130,136..STD |
1 | ||
| 83710-30750 |
GS13#,LS13#,MS130..MTM |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30750 |
GS13#,LS13#,MS130,YS130..MTM |
1 | ||
| 83710-30751 |
GS13#,LS13#..MTM |
1 | ||
| 83710-30870 |
YS130..MTM;GS130,136,LS130,136..STD |
1 | ||
| 83710-30750 |
GS13#,LS13#,MS130..MTM |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30750 |
GS13#,LS13#,MS130,YS130..MTM |
1 | ||
| 83710-30751 |
GS13#,LS13#..MTM |
1 | ||
| 83710-30870 |
YS130..MTM;GS130,136,LS130,136..STD |
1 | ||
| 83710-30750 |
GS13#,LS13#,MS130..MTM |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 83791-30050 | ||||
| 83791-30101 | ||||
| 90950-01345 | ||||
ILLUST NO. 3 OF 3(8709-8908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-30011 |
LS130..MTM |
1 | ||
| 83180-30011 |
LS13#..DSL,TD |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
MS135..SALEX;MS13#,UZS131..4HC;MS13#,UZS131..4FC..NOB;GS13#,JZS13#,LS13#,YS130 NO.1 |
1 | ||
| 83189-20020 |
MS135,137..4HC;MS135,137..4FC..NOB;GS13#,LS13#,MS130,YS130 NO.1 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
MS135..SALEX;MS13#,UZS131..4HC;MS13#,UZS131..4FC..NOB;GS13#,JZS13#,LS13#,YS130 NO.1 |
1 | ||
| 83189-20020 |
MS135,137..4HC;MS135,137..4FC..NOB;GS13#,LS13#,MS130,YS130 NO.1 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
MS135..SALEX;MS13#,UZS131..4HC;MS13#,UZS131..4FC..NOB;GS13#,JZS13#,LS13#,YS130 NO.1 |
1 | ||
| 83189-20020 |
MS135,137..4HC;MS135,137..4FC..NOB;GS13#,LS13#,MS130,YS130 NO.1 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30750 |
GS13#,LS13#,MS130,YS130..MTM |
1 | ||
| 83710-30751 |
GS13#,LS13#..MTM |
1 | ||
| 83710-30870 |
YS130..MTM;GS130,136,LS130,136..STD |
1 | ||
| 83710-30750 |
GS13#,LS13#,MS130..MTM |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30750 |
GS13#,LS13#,MS130,YS130..MTM |
1 | ||
| 83710-30751 |
GS13#,LS13#..MTM |
1 | ||
| 83710-30870 |
YS130..MTM;GS130,136,LS130,136..STD |
1 | ||
| 83710-30750 |
GS13#,LS13#,MS130..MTM |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30750 |
GS13#,LS13#,MS130,YS130..MTM |
1 | ||
| 83710-30751 |
GS13#,LS13#..MTM |
1 | ||
| 83710-30870 |
YS130..MTM;GS130,136,LS130,136..STD |
1 | ||
| 83710-30750 |
GS13#,LS13#,MS130..MTM |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 83791-30050 | ||||
| 83791-30101 | ||||
| 90950-01029 | ||||
| 90950-01345 | ||||
ILLUST NO. 1 OF 2(9110-9512)SED
ﾀｸｼ- ｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90159-40027 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
