LS130-AEMFX (1987)
Toyota Crown

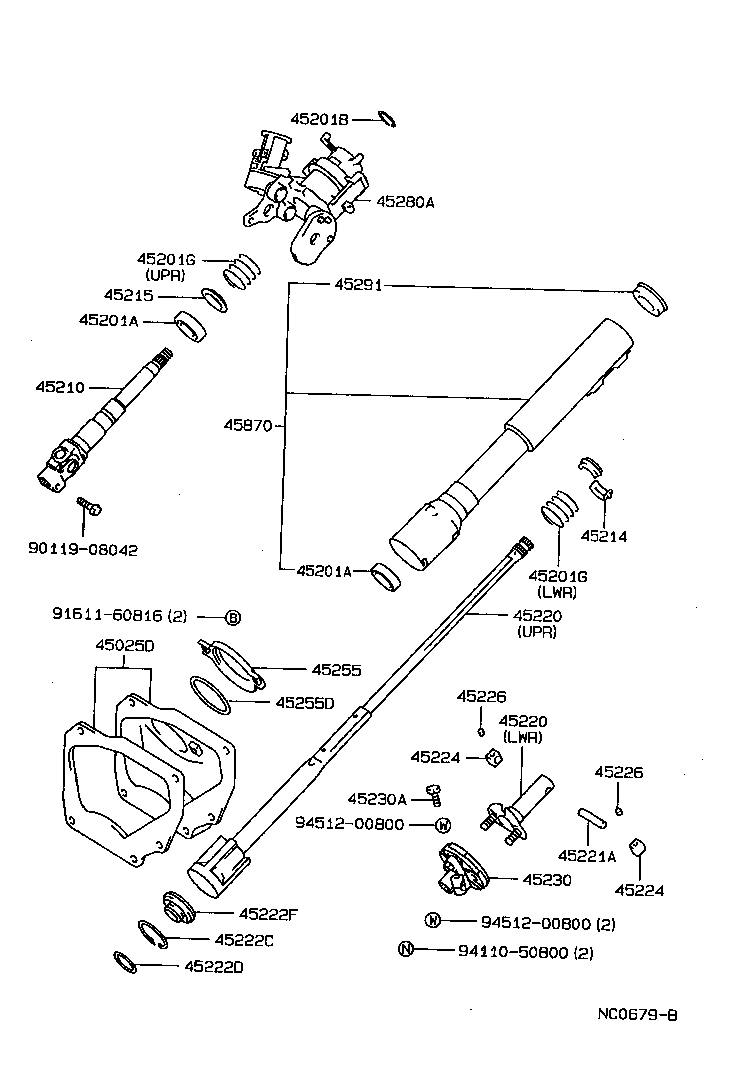

ILLUST NO. 1 OF 3(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30180 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#,MS130,YS130..(4FC,5F)..(DLX,SDX,SPE,STD) |
1 | ||
| 45025-30180 |
GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,LPG,TD,TDE) |
1 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-30120 |
GS131..4FC..ROY..SPC;GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130,MS135..(4FC,5F)..(ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWC) |
1 | ||
| 45082-30120 |
GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135..(4FC,5F)..(ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
GS131..4FC..ROY..SPC;GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130,MS135..(4FC,5F)..(ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWC) 上側 |
1 | ||
| 90369-43004 |
GS13#,LS13#,MS13#,YS130 下側 |
1 | ||
| 90369-43004 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 下側 |
1 | ||
| 90369-43004 |
MS137,UZS131..4HC;GS13#,JZS13#,LS13#,MS135,YS130 下側 |
1 | ||
| 90363-28001 |
GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135..(4FC,5F)..(ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
GS131..4FC..ROY..SPC;GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130,MS135..(4FC,5F)..(ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWC) 上側 |
1 | ||
| 90369-43004 |
GS13#,LS13#,MS13#,YS130 下側 |
1 | ||
| 90369-43004 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 下側 |
1 | ||
| 90369-43004 |
MS137,UZS131..4HC;GS13#,JZS13#,LS13#,MS135,YS130 下側 |
1 | ||
| 90363-28001 |
GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135..(4FC,5F)..(ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-23034 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) 厚さ=1.5 |
1 | ||
| 90520-23034 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) 厚さ=1.5 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-23034 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) 厚さ=1.5 |
1 | ||
| 90520-23034 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) 厚さ=1.5 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 下側 |
1 | ||
| 90501-45011 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 90501-29388 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC) 下側 |
1 | ||
| 90501-45011 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 上側 |
1 | ||
| 90501-29388 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 下側 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-30060 |
GS130..WG..4FC..SALEX;GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130..(4FC,5F)..(SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) |
1 | ||
| 45210-30060 |
GS130,LS130..WG..4FC..SALEX;GS130,131,LS130,131..(HT,SED)..(4FC,5F)..(SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45214-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30070 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 45220-30070 |
GS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 45220-30040 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 下側 |
1 | ||
| 45220-30070 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC) 上側 |
1 | ||
| 45220-30040 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 下側 |
1 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 90250-10059 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 90521-52003 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 90301-23054 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-30030 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45224-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 15.97−16.00 |
2 | ||
| 45225-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 16.00−16.03 |
2 | ||
| 45225-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 16.00−16.03 |
2 | ||
| 45224-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 15.97−16.00 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45224-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 15.97−16.00 |
2 | ||
| 45225-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 16.00−16.03 |
2 | ||
| 45225-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 16.00−16.03 |
2 | ||
| 45224-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 15.97−16.00 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45226-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45226-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30110 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45230-30110 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45230-30160 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08230 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45255-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) | ||||
| 90301-59005 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 90301-59001 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 90301-59005 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-30430 |
GS130,LS130..SED..(4FC,5F)..(SAL,SDX) |
1 | ||
| 45280-30430 |
LS130..SDX,SPE;GS130..(HT,SED)..5F..(SDX,SPE);GS130,LS130..WG..4FC..SALEX..(EFI,TDE) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45280-30430 |
GS130,LS130..SED..5F..SDX |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-30190 |
GS131..4FC..ROY..SPC;GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130,MS135..(4FC,5F)..(ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWC) |
1 | ||
| 45870-30190 |
GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130,MS135..(4FC,5F)..(ROY,SALEX,SDX,SPE,SSL) |
1 | ||
| 45870-30230 |
GS130..4FC..(ROY,SALEX);GS130..SED..(4FC,5F)..SDX..HTWC;GS131,JZS13#,LS130,131..(4FC,5F)..(ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| Common parts | ||||
| 90119-08185 | ||||
| 90179-10053 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||

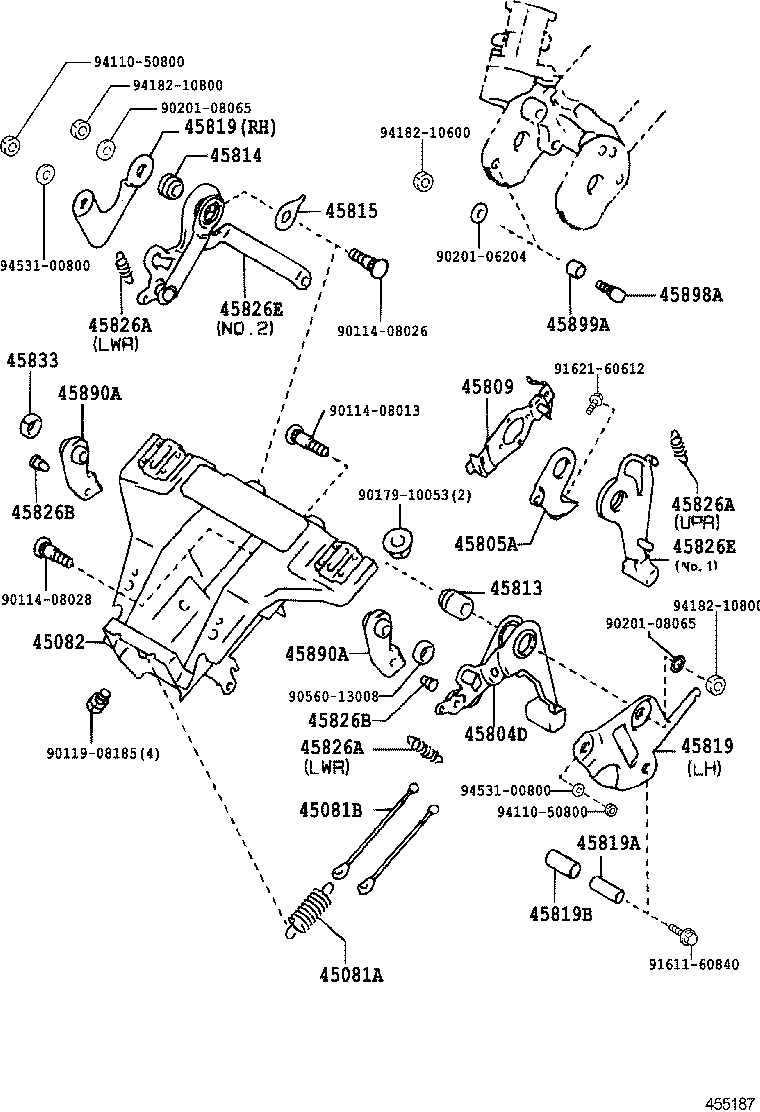

ILLUST NO. 2 OF 2(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-29005 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) |
2 | ||
| 90506-29005 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02043 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 長さ=130 |
2 | ||
| 90945-02070 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 長さ=133 |
2 | ||
| 90945-02043 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 長さ=130 |
2 | ||
| 90945-02070 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 長さ=133 |
2 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-30120 |
GS131..4FC..ROY..SPC;GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130,MS135..(4FC,5F)..(ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWC) |
1 | ||
| 45082-30120 |
GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135..(4FC,5F)..(ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 45804D - LEVER SUB-ASSY, STEERING TILT(FOR TILT UP CONTROL) | ||||
| 45804-30030 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 45804-30030 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 45809 - COVER SUB-ASSY, ADJUSTER MEMORY | ||||
| 45809-30040 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 45809-30040 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-20030 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=18.003−18.010 |
1 | ||
| 45813-20060 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=17.989−17.996 |
1 | ||
| 45813-20020 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=17.996−18.003 |
1 | ||
| 45813-20050 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=18.017−18.024 |
1 | ||
| 45813-20040 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=18.010−18.017 |
1 | ||
| 45813-20020 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=17.996−18.003 |
1 | ||
| 45813-20050 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=18.017−18.024 |
1 | ||
| 45813-20030 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=18.003−18.010 |
1 | ||
| 45813-20060 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=17.989−17.996 |
1 | ||
| 45813-20040 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=18.010−18.017 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-20010 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=17.996−18.003 |
1 | ||
| 45814-20040 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=18.017−18.024 |
1 | ||
| 45814-20050 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=17.989−17.996 |
1 | ||
| 45814-20020 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=18.003−18.010 |
1 | ||
| 45814-20030 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=18.010−18.017 |
1 | ||
| 45814-20040 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=18.017−18.024 |
1 | ||
| 45814-20010 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=17.996−18.003 |
1 | ||
| 45814-20030 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=18.010−18.017 |
1 | ||
| 45814-20050 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=17.989−17.996 |
1 | ||
| 45814-20020 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=18.003−18.010 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22060 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=0.2 |
1 | ||
| 45815-22100 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=1.8 |
1 | ||
| 45815-22070 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=0.5 |
1 | ||
| 45815-22090 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=1.4 |
1 | ||
| 45815-20020 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=0.5 |
1 | ||
| 45815-22080 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=0.8 |
1 | ||
| 45815-20010 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL) 厚さ=0.2 |
1 | ||
| 45815-20040 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=1.4 |
1 | ||
| 45815-20010 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=0.2 |
1 | ||
| 45815-20050 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=1.8 |
1 | ||
| 45815-20030 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 厚さ=0.8 |
1 | ||
| 45815-20030 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=0.8 |
1 | ||
| 45815-20050 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 厚さ=1.8 |
1 | ||
| 45815-20010 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 厚さ=0.2 |
1 | ||
| 45815-20040 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 厚さ=1.4 |
1 | ||
| 45815-20020 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 厚さ=0.5 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-30010 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 45819-30010 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08040 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 90387-08040 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 45819B - CUSHION(FOR TILT LEVER RETAINER) | ||||
| 90540-08010 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 90540-08010 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-10011 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 90506-13001 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) 下側 |
1 | ||
| 90506-13001 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) 下側 |
1 | ||
| 90507-10011 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 上側 |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-10011 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 90506-13001 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) 下側 |
1 | ||
| 90506-13001 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) 下側 |
1 | ||
| 90507-10011 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 上側 |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 90241-06039 |
GS131,136,LS131,136..(4FC,5F)..(DLX,SDX,SPE);GS130,LS130..(4FC,5F)..(DLX,SALEX,SDX)..(DSL,HTWC,TD,TDE) |
1 | ||
| 72538-12010 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) |
1 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45826-30070 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 45826-30070 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-30040 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) |
1 | ||
| 45890-30040 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 45898A - BOLT, RETURN SPRING SET | ||||
| 45898-30010 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 45898-30010 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-30010 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 45899-30010 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| Common parts | ||||
| 90114-08013 | ||||
| 90114-08026 | ||||
| 90114-08028 | ||||
| 90119-08185 | ||||
| 90179-10053 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90560-13008 | ||||
| 90560-18007 | ||||
| 90561-15004 | ||||
| 91611-60840 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||

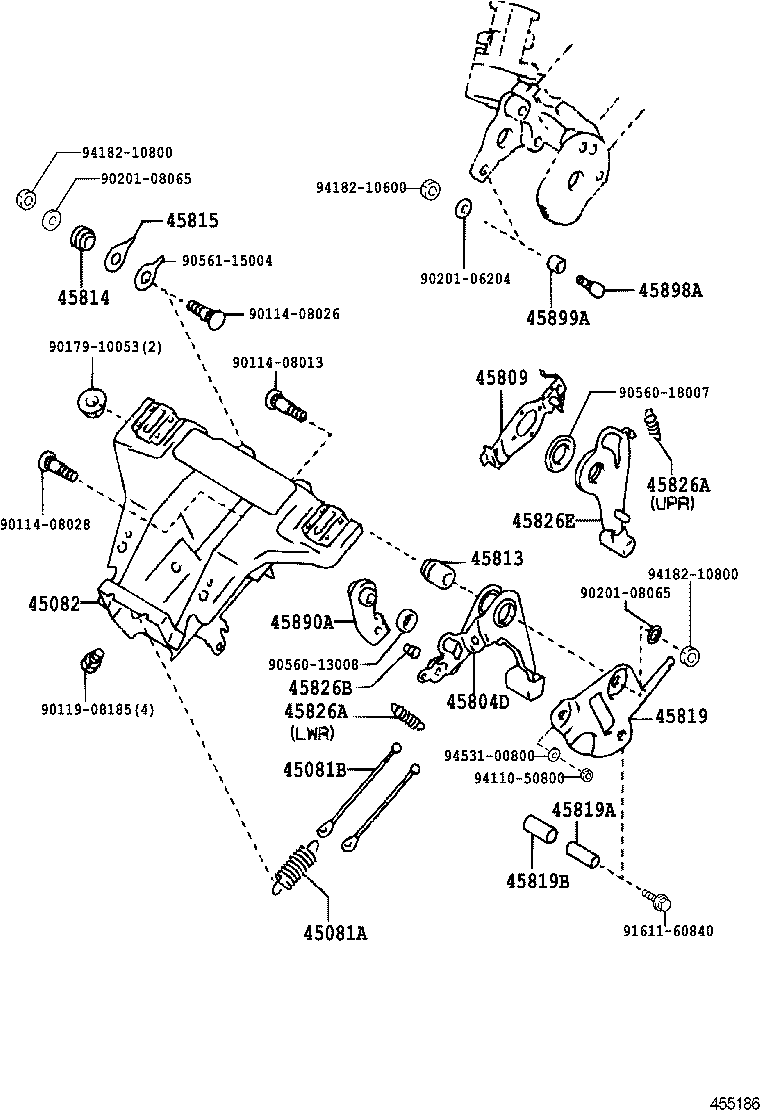

ILLUST NO. 2 OF 2(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-29005 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) |
2 | ||
| 90506-29005 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02043 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 長さ=130 |
2 | ||
| 90945-02070 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 長さ=133 |
2 | ||
| 90945-02043 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 長さ=130 |
2 | ||
| 90945-02070 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 長さ=133 |
2 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-30120 |
GS131..4FC..ROY..SPC;GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130,MS135..(4FC,5F)..(ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWC) |
1 | ||
| 45082-30120 |
GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135..(4FC,5F)..(ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 45804D - LEVER SUB-ASSY, STEERING TILT(FOR TILT UP CONTROL) | ||||
| 45804-30030 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 45804-30030 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 45809 - COVER SUB-ASSY, ADJUSTER MEMORY | ||||
| 45809-30040 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 45809-30040 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-20030 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=18.003−18.010 |
1 | ||
| 45813-20060 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=17.989−17.996 |
1 | ||
| 45813-20020 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=17.996−18.003 |
1 | ||
| 45813-20050 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=18.017−18.024 |
1 | ||
| 45813-20040 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=18.010−18.017 |
1 | ||
| 45813-20020 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=17.996−18.003 |
1 | ||
| 45813-20050 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=18.017−18.024 |
1 | ||
| 45813-20030 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=18.003−18.010 |
1 | ||
| 45813-20060 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=17.989−17.996 |
1 | ||
| 45813-20040 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=18.010−18.017 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-20010 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=17.996−18.003 |
1 | ||
| 45814-20040 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=18.017−18.024 |
1 | ||
| 45814-20050 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=17.989−17.996 |
1 | ||
| 45814-20020 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=18.003−18.010 |
1 | ||
| 45814-20030 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=18.010−18.017 |
1 | ||
| 45814-20040 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=18.017−18.024 |
1 | ||
| 45814-20010 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=17.996−18.003 |
1 | ||
| 45814-20030 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=18.010−18.017 |
1 | ||
| 45814-20050 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 外径=17.989−17.996 |
1 | ||
| 45814-20020 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 外径=18.003−18.010 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22060 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=0.2 |
1 | ||
| 45815-22100 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=1.8 |
1 | ||
| 45815-22070 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=0.5 |
1 | ||
| 45815-22090 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=1.4 |
1 | ||
| 45815-20020 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=0.5 |
1 | ||
| 45815-22080 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=0.8 |
1 | ||
| 45815-20010 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL) 厚さ=0.2 |
1 | ||
| 45815-20040 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=1.4 |
1 | ||
| 45815-20010 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=0.2 |
1 | ||
| 45815-20050 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=1.8 |
1 | ||
| 45815-20030 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 厚さ=0.8 |
1 | ||
| 45815-20030 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 厚さ=0.8 |
1 | ||
| 45815-20050 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 厚さ=1.8 |
1 | ||
| 45815-20010 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 厚さ=0.2 |
1 | ||
| 45815-20040 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 厚さ=1.4 |
1 | ||
| 45815-20020 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 厚さ=0.5 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-30010 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 45819-30010 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-30010 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 45819-30010 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08040 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 90387-08040 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 45819B - CUSHION(FOR TILT LEVER RETAINER) | ||||
| 90540-08010 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 90540-08010 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-10011 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 90506-13001 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) 下側 |
1 | ||
| 90506-13001 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) 下側 |
1 | ||
| 90507-10011 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 上側 |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-10011 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 90506-13001 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) 下側 |
1 | ||
| 90506-13001 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) 下側 |
1 | ||
| 90507-10011 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 上側 |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-10011 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 90506-13001 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) 下側 |
1 | ||
| 90506-13001 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) 下側 |
1 | ||
| 90507-10011 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 上側 |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 90241-06039 |
GS131,136,LS131,136..(4FC,5F)..(DLX,SDX,SPE);GS130,LS130..(4FC,5F)..(DLX,SALEX,SDX)..(DSL,HTWC,TD,TDE) |
1 | ||
| 72538-12010 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 90241-06039 |
GS131,136,LS131,136..(4FC,5F)..(DLX,SDX,SPE);GS130,LS130..(4FC,5F)..(DLX,SALEX,SDX)..(DSL,HTWC,TD,TDE) |
1 | ||
| 72538-12010 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) |
1 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45826-30070 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 45826-30070 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) |
1 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45826-30070 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 45826-30070 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-30040 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) |
1 | ||
| 45890-30040 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-30040 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) |
1 | ||
| 45890-30040 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 45898A - BOLT, RETURN SPRING SET | ||||
| 45898-30010 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 45898-30010 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-30010 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 45899-30010 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| Common parts | ||||
| 90114-08013 | ||||
| 90114-08026 | ||||
| 90114-08028 | ||||
| 90119-08185 | ||||
| 90179-10053 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90560-13008 | ||||
| 91611-60840 | ||||
| 91621-60612 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||

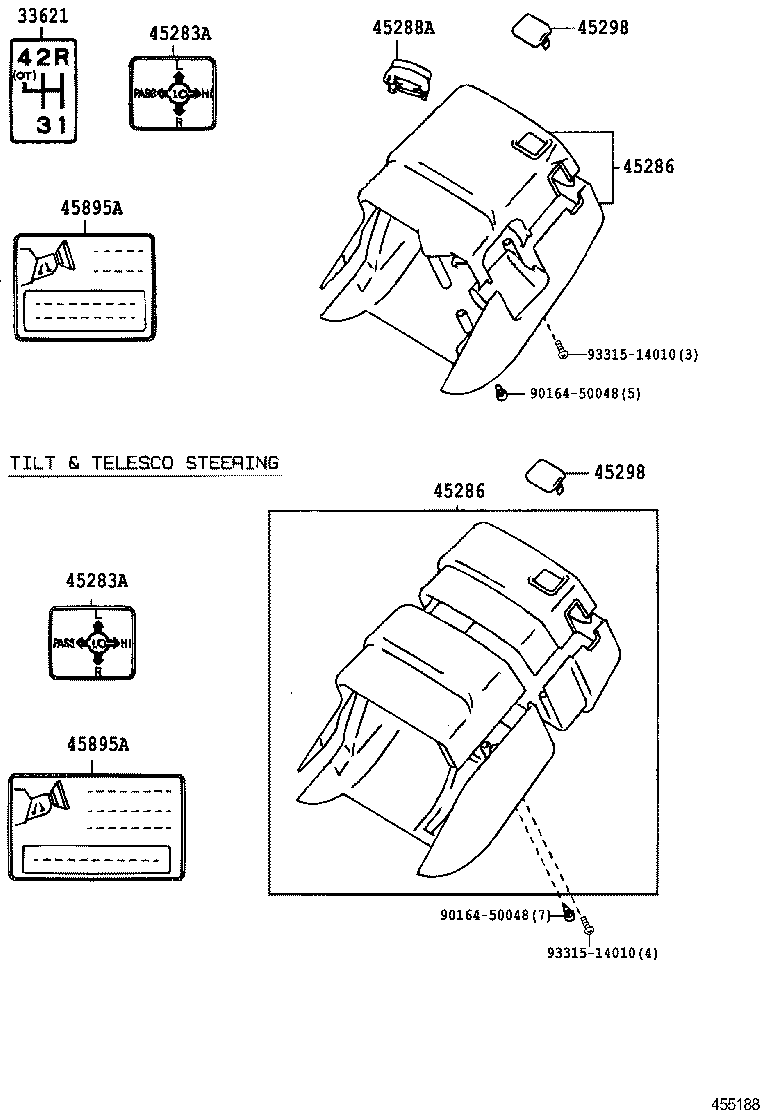

ILLUST NO. 3 OF 3(8709- )GS13#,JZS13#,LS13#,MS130,135,YS130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-3091802 |
GS130..WG..4FC..SALEX;GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130..(4FC,5F)..(SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) MAROON,TRIM3# |
1 | ||
| 45287-3091804 |
GS130..WG..4FC..SALEX;GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130..(4FC,5F)..(SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) BLUE,TRIM8# |
1 | ||
| 45287-3091802 |
LS130..SDX,SPE;GS130..(HT,SED)..5F..(SDX,SPE);GS130,LS130..WG..4FC..SALEX..(EFI,TDE) MAROON,TRIM3# |
1 | ||
| 45287-3091804 |
LS130..SDX,SPE;GS130..(HT,SED)..5F..(SDX,SPE);GS130,LS130..WG..4FC..SALEX..(EFI,TDE) BLUE,TRIM8# |
1 | ||
| 45287-3091804 |
GS130,LS130..SED..5F..SDX BLUE,TRIM8# |
1 | ||
| 45287-3091802 |
GS130,LS130..SED..5F..SDX MAROON,TRIM3# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-3091802 |
GS130..WG..4FC..SALEX;GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130..(4FC,5F)..(SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) MAROON,TRIM3# |
1 | ||
| 45287-3091804 |
GS130..WG..4FC..SALEX;GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130..(4FC,5F)..(SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) BLUE,TRIM8# |
1 | ||
| 45287-3091802 |
LS130..SDX,SPE;GS130..(HT,SED)..5F..(SDX,SPE);GS130,LS130..WG..4FC..SALEX..(EFI,TDE) MAROON,TRIM3# |
1 | ||
| 45287-3091804 |
LS130..SDX,SPE;GS130..(HT,SED)..5F..(SDX,SPE);GS130,LS130..WG..4FC..SALEX..(EFI,TDE) BLUE,TRIM8# |
1 | ||
| 45287-3091804 |
GS130,LS130..SED..5F..SDX BLUE,TRIM8# |
1 | ||
| 45287-3091802 |
GS130,LS130..SED..5F..SDX MAROON,TRIM3# |
1 | ||
| 45895A - PLATE, TILT STEERING CAUTION | ||||
| 45895-22050 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) |
1 | ||
| 45895-22050 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 45895A - PLATE, TILT STEERING CAUTION | ||||
| 45895-22050 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) |
1 | ||
| 45895-22050 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 93315-14010 | ||||

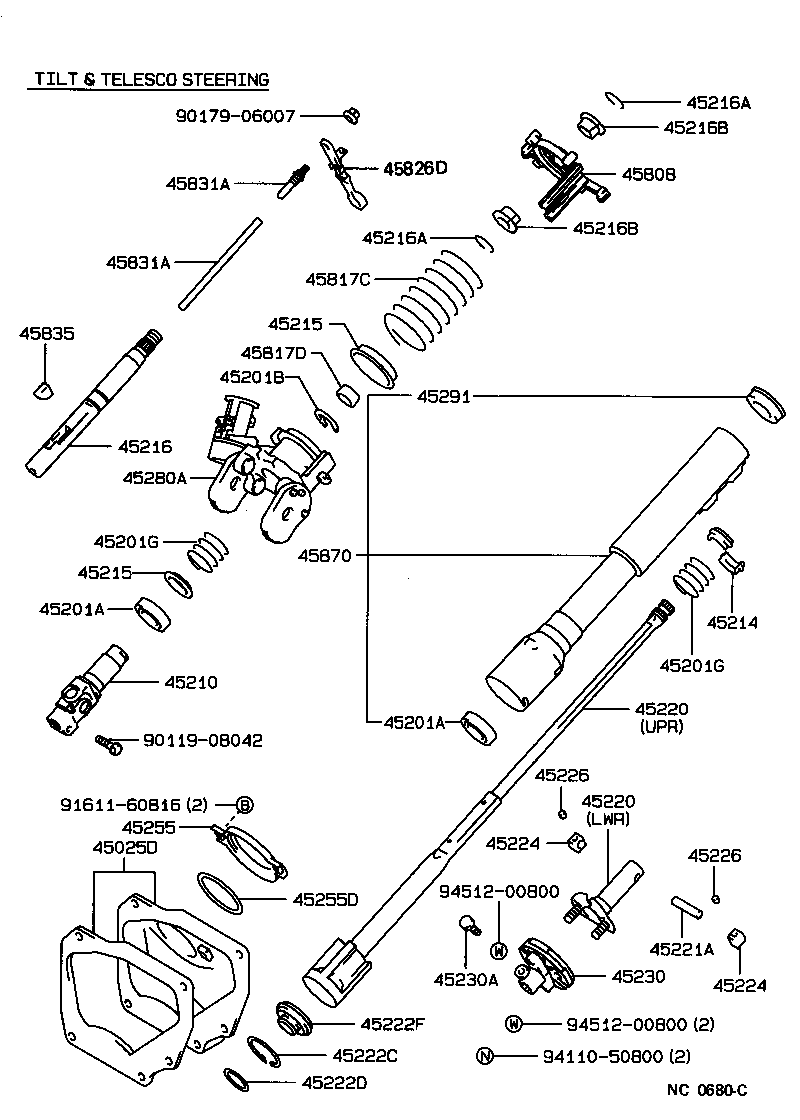

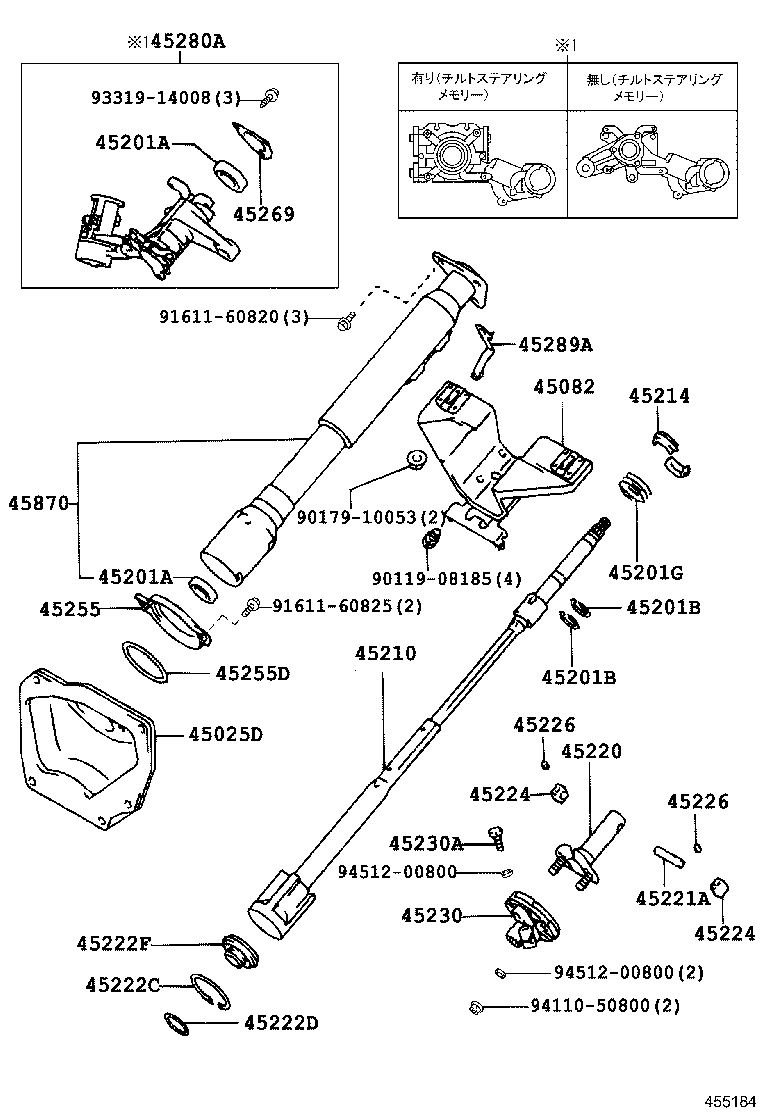

ILLUST NO. 1 OF 3(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30180 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#,MS130,YS130..(4FC,5F)..(DLX,SDX,SPE,STD) |
1 | ||
| 45025-30180 |
GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,LPG,TD,TDE) |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
GS131..4FC..ROY..SPC;GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130,MS135..(4FC,5F)..(ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWC) 上側 |
1 | ||
| 90369-43004 |
GS13#,LS13#,MS13#,YS130 下側 |
1 | ||
| 90369-43004 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 下側 |
1 | ||
| 90369-43004 |
MS137,UZS131..4HC;GS13#,JZS13#,LS13#,MS135,YS130 下側 |
1 | ||
| 90363-28001 |
GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135..(4FC,5F)..(ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
GS131..4FC..ROY..SPC;GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130,MS135..(4FC,5F)..(ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWC) 上側 |
1 | ||
| 90369-43004 |
GS13#,LS13#,MS13#,YS130 下側 |
1 | ||
| 90369-43004 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 下側 |
1 | ||
| 90369-43004 |
MS137,UZS131..4HC;GS13#,JZS13#,LS13#,MS135,YS130 下側 |
1 | ||
| 90363-28001 |
GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135..(4FC,5F)..(ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-23034 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) 厚さ=1.5 |
1 | ||
| 90520-23034 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) 厚さ=1.5 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 下側 |
1 | ||
| 90501-45011 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 90501-29388 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC) 下側 |
1 | ||
| 90501-45011 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 上側 |
1 | ||
| 90501-29388 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 下側 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 下側 |
1 | ||
| 90501-45011 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 90501-29388 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC) 下側 |
1 | ||
| 90501-45011 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 上側 |
1 | ||
| 90501-29388 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 下側 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-30060 |
GS130..WG..4FC..SALEX;GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130..(4FC,5F)..(SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) |
1 | ||
| 45210-30060 |
GS130,LS130..WG..4FC..SALEX;GS130,131,LS130,131..(HT,SED)..(4FC,5F)..(SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45214-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) |
1 | ||
| 45215-22011 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30070 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 45220-30070 |
GS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 45220-30040 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 下側 |
1 | ||
| 45220-30070 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC) 上側 |
1 | ||
| 45220-30040 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 下側 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30070 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 45220-30070 |
GS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 45220-30040 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 下側 |
1 | ||
| 45220-30070 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC) 上側 |
1 | ||
| 45220-30040 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 下側 |
1 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 90250-10059 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 90521-52003 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 90301-23054 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-30030 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45224-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 15.97−16.00 |
2 | ||
| 45225-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 16.00−16.03 |
2 | ||
| 45225-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 16.00−16.03 |
2 | ||
| 45224-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 15.97−16.00 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45224-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 15.97−16.00 |
2 | ||
| 45225-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 16.00−16.03 |
2 | ||
| 45225-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 16.00−16.03 |
2 | ||
| 45224-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 15.97−16.00 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45226-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45226-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30110 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45230-30110 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45230-30160 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08230 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45255-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) | ||||
| 90301-59005 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 90301-59001 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 90301-59005 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-30430 |
GS130,LS130..SED..(4FC,5F)..(SAL,SDX) |
1 | ||
| 45280-30430 |
LS130..SDX,SPE;GS130..(HT,SED)..5F..(SDX,SPE);GS130,LS130..WG..4FC..SALEX..(EFI,TDE) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45280-30430 |
GS130,LS130..SED..5F..SDX |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 45282-22010 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-30190 |
GS131..4FC..ROY..SPC;GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130,MS135..(4FC,5F)..(ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWC) |
1 | ||
| 45870-30190 |
GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130,MS135..(4FC,5F)..(ROY,SALEX,SDX,SPE,SSL) |
1 | ||
| 45870-30230 |
GS130..4FC..(ROY,SALEX);GS130..SED..(4FC,5F)..SDX..HTWC;GS131,JZS13#,LS130,131..(4FC,5F)..(ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 91611-60816 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
ILLUST NO. 1 OF 3(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30180 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#,MS130,YS130..(4FC,5F)..(DLX,SDX,SPE,STD) |
1 | ||
| 45025-30180 |
GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,LPG,TD,TDE) |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
GS131..4FC..ROY..SPC;GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130,MS135..(4FC,5F)..(ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWC) 上側 |
1 | ||
| 90369-43004 |
GS13#,LS13#,MS13#,YS130 下側 |
1 | ||
| 90369-43004 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 下側 |
1 | ||
| 90369-43004 |
MS137,UZS131..4HC;GS13#,JZS13#,LS13#,MS135,YS130 下側 |
1 | ||
| 90363-28001 |
GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135..(4FC,5F)..(ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
GS131..4FC..ROY..SPC;GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130,MS135..(4FC,5F)..(ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWC) 上側 |
1 | ||
| 90369-43004 |
GS13#,LS13#,MS13#,YS130 下側 |
1 | ||
| 90369-43004 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 下側 |
1 | ||
| 90369-43004 |
MS137,UZS131..4HC;GS13#,JZS13#,LS13#,MS135,YS130 下側 |
1 | ||
| 90363-28001 |
GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135..(4FC,5F)..(ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-23034 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) 厚さ=1.5 |
1 | ||
| 90520-23034 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) 厚さ=1.5 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 下側 |
1 | ||
| 90501-45011 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 90501-29388 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC) 下側 |
1 | ||
| 90501-45011 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 上側 |
1 | ||
| 90501-29388 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 下側 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 下側 |
1 | ||
| 90501-45011 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 90501-29388 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC) 下側 |
1 | ||
| 90501-45011 |
GS13#,JZS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 上側 |
1 | ||
| 90501-29388 |
GS13#,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 下側 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-30060 |
GS130..WG..4FC..SALEX;GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130..(4FC,5F)..(SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) |
1 | ||
| 45210-30060 |
GS130,LS130..WG..4FC..SALEX;GS130,131,LS130,131..(HT,SED)..(4FC,5F)..(SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45214-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) |
1 | ||
| 45215-22011 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
GS13#,LS13#..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) |
1 | ||
| 45215-22011 |
GS130,LS130..WG..4FC..SALEX;GS13#,LS13#..(4FC,5F)..(DLX,SDX,SPE)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30070 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 45220-30070 |
GS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 45220-30040 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 下側 |
1 | ||
| 45220-30070 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC) 上側 |
1 | ||
| 45220-30040 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 下側 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30070 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 45220-30070 |
GS13#,LS13#,MS135..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL) 上側 |
1 | ||
| 45220-30040 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) 下側 |
1 | ||
| 45220-30070 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC) 上側 |
1 | ||
| 45220-30040 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) 下側 |
1 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 90250-10059 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 90521-52003 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 90301-23054 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-30030 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45222-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45224-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 15.97−16.00 |
2 | ||
| 45225-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 16.00−16.03 |
2 | ||
| 45225-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 16.00−16.03 |
2 | ||
| 45224-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 15.97−16.00 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45224-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 15.97−16.00 |
2 | ||
| 45225-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 16.00−16.03 |
2 | ||
| 45225-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 16.00−16.03 |
2 | ||
| 45224-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 15.97−16.00 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45226-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
2 | ||
| 45226-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30110 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45230-30110 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45230-30160 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08230 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 45255-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) | ||||
| 90301-59005 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 90301-59001 |
GS131..EFI,TWC;GS131..ROY..SPC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 90301-59005 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-30430 |
GS130,LS130..SED..(4FC,5F)..(SAL,SDX) |
1 | ||
| 45280-30430 |
LS130..SDX,SPE;GS130..(HT,SED)..5F..(SDX,SPE);GS130,LS130..WG..4FC..SALEX..(EFI,TDE) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45280-30430 |
GS130,LS130..SED..5F..SDX |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 45282-22010 |
GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,TWC);GS130,136,LS13#,MS135,137..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-30190 |
GS131..4FC..ROY..SPC;GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130,MS135..(4FC,5F)..(ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWC) |
1 | ||
| 45870-30190 |
GS130..WG..4FC..(ROY,SALEX);GS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SDX,SPE);GS131,LS130,MS135..(4FC,5F)..(ROY,SALEX,SDX,SPE,SSL) |
1 | ||
| 45870-30230 |
GS130..4FC..(ROY,SALEX);GS130..SED..(4FC,5F)..SDX..HTWC;GS131,JZS13#,LS130,131..(4FC,5F)..(ROY,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 90179-06007 | ||||
| 91611-60816 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
