LS130-AEMFX (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )2LT#

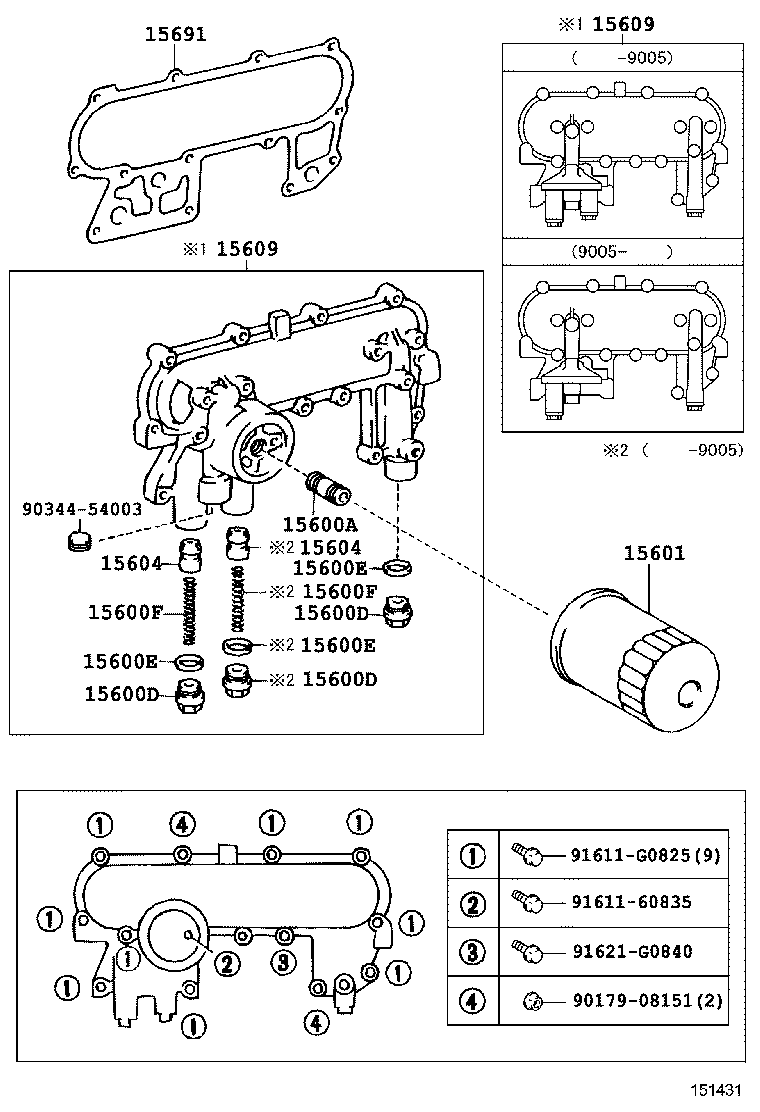

Click highlighted areas on diagram

diagram 15600A 15600D 15600D 15600D 15600E 15600E 15600E 15600F 15600F 15601 15604 15604 15609 15609 15691 9017908151 9034454003 9161160835 91611G0825 91621G0840
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
15116-54020

2L,2LT#..LS130,131

 1
15116-54021

2L,2LT#..LS130,131

 1
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L,2LT#..LS13#

 3
90072-34402

2L,2LT#..LS130

NO.2

 1
90341-18015

2L,2LT#..LS130

NO.1

 3
90341-18015

2LT#..LS130,131

 2
90341-18015

2L..LS130,136

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L,2LT#..LS13#

 3
90072-34402

2L,2LT#..LS130

NO.2

 1
90341-18015

2L,2LT#..LS130

NO.1

 3
90341-18015

2LT#..LS130,131

 2
90341-18015

2L..LS130,136

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L,2LT#..LS13#

 3
90072-34402

2L,2LT#..LS130

NO.2

 1
90341-18015

2L,2LT#..LS130

NO.1

 3
90341-18015

2LT#..LS130,131

 2
90341-18015

2L..LS130,136

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

2L,2LT#..LS13#

 3
90430-18001

2L..LS130,136

 3
90430-18001

2LT#..LS130,131

 2
90430-18011

2L,2LT#..LS13#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

2L,2LT#..LS13#

 3
90430-18001

2L..LS130,136

 3
90430-18001

2LT#..LS130,131

 2
90430-18011

2L,2LT#..LS13#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

2L,2LT#..LS13#

 3
90430-18001

2L..LS130,136

 3
90430-18001

2LT#..LS130,131

 2
90430-18011

2L,2LT#..LS13#

 3
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2LT#..LS130,131

 1
90501-16026

2L..LS130,136

 2
90501-16026

2L,2LT#..LS13#

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2LT#..LS130,131

 1
90501-16026

2L..LS130,136

 2
90501-16026

2L,2LT#..LS13#

 2
15601 - FILTER SUB-ASSY, OIL
90915-30002

2L,2LT#..LS130,131

 1
90915-03006

2L,2LT#..LS130,131

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L,2LT#..LS13#

 2
15131-54010

2LT#..LS130,131

 1
15131-54010

2L..LS130,136

 2
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L,2LT#..LS13#

 2
15131-54010

2LT#..LS130,131

 1
15131-54010

2L..LS130,136

 2
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-54061

2LT#..LS130

 1
15609-54060

2LT#..LS130

 1
15609-54070

2L..LS130

 1
15609-54111

2LT#..LS130,131

 1
15609-54110

2LT#..LS130,131

 1
15609-54071

2L..LS130

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-54061

2LT#..LS130

 1
15609-54060

2LT#..LS130

 1
15609-54070

2L..LS130

 1
15609-54111

2LT#..LS130,131

 1
15609-54110

2LT#..LS130,131

 1
15609-54071

2L..LS130

 1
15691 - GASKET, OIL FILTER
15692-54020

2L,2LT#..LS13#

 1
15692-54030

2L,2LT#..LS13#

 1
Common parts
90179-08151
90344-54003
91611-60835
91611-G0825
91621-G0840

(8709-8908)2L,2LT#

Click highlighted areas on diagram

diagram 1105 1105 15600A 15600D 15600D 15600D 15600D 15600E 15600E 15600E 15600F 15600F 15601 15604 15604 15609 15691 9017908151 9017908151 91611G0825 91611G0825 91611G0835 91611G0835 91611G0840
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
15116-54020

2L,2LT#..LS130,131

 1
15116-54021

2L,2LT#..LS130,131

 1
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L,2LT#..LS13#

 3
90072-34402

2L,2LT#..LS130

NO.2

 1
90341-18015

2L,2LT#..LS130

NO.1

 3
90341-18015

2LT#..LS130,131

 2
90341-18015

2L..LS130,136

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L,2LT#..LS13#

 3
90072-34402

2L,2LT#..LS130

NO.2

 1
90341-18015

2L,2LT#..LS130

NO.1

 3
90341-18015

2LT#..LS130,131

 2
90341-18015

2L..LS130,136

 3
15600D - PLUG(FOR OIL FILTER)
90072-34402

2L,2LT#..LS130

NO.2

 1
90341-18015

2L,2LT#..LS13#

 3
90341-18015

2L,2LT#..LS130

NO.1

 3
90341-18015

2LT#..LS130,131

 2
90341-18015

2L..LS130,136

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L,2LT#..LS13#

 3
90072-34402

2L,2LT#..LS130

NO.2

 1
90341-18015

2L,2LT#..LS130

NO.1

 3
90341-18015

2LT#..LS130,131

 2
90341-18015

2L..LS130,136

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

2L,2LT#..LS13#

 3
90430-18001

2L..LS130,136

 3
90430-18001

2LT#..LS130,131

 2
90430-18011

2L,2LT#..LS13#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

2L,2LT#..LS13#

 3
90430-18001

2L..LS130,136

 3
90430-18001

2LT#..LS130,131

 2
90430-18011

2L,2LT#..LS13#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

2L,2LT#..LS13#

 3
90430-18001

2L..LS130,136

 3
90430-18001

2LT#..LS130,131

 2
90430-18011

2L,2LT#..LS13#

 3
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2LT#..LS130,131

 1
90501-16026

2L..LS130,136

 2
90501-16026

2L,2LT#..LS13#

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2LT#..LS130,131

 1
90501-16026

2L..LS130,136

 2
90501-16026

2L,2LT#..LS13#

 2
15601 - FILTER SUB-ASSY, OIL
90915-30002

2L,2LT#..LS130,131

 1
90915-03006

2L,2LT#..LS130,131

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L,2LT#..LS13#

 2
15131-54010

2LT#..LS130,131

 1
15131-54010

2L..LS130,136

 2
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L,2LT#..LS13#

 2
15131-54010

2LT#..LS130,131

 1
15131-54010

2L..LS130,136

 2
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-54061

2LT#..LS130

 1
15609-54060

2LT#..LS130

 1
15609-54070

2L..LS130

 1
15609-54111

2LT#..LS130,131

 1
15609-54110

2LT#..LS130,131

 1
15609-54071

2L..LS130

 1
15691 - GASKET, OIL FILTER
15692-54020

2L,2LT#..LS13#

 1
15692-54030

2L,2LT#..LS13#

 1
Common parts
90179-08151
91611-G0825
91611-G0835
91611-G0840
Linked diagrams
1105

(8908- )2L

Click highlighted areas on diagram

diagram 15600A 15600D 15600D 15600D 15600E 15600E 15600E 15600F 15600F 15601 15604 15604 15609 15691 9017908151 9034454003 9161160835 91611G0825
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
15116-54020

2L,2LT#..LS130,131

 1
15116-54021

2L,2LT#..LS130,131

 1
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L,2LT#..LS13#

 3
90072-34402

2L,2LT#..LS130

NO.2

 1
90341-18015

2L,2LT#..LS130

NO.1

 3
90341-18015

2LT#..LS130,131

 2
90341-18015

2L..LS130,136

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L,2LT#..LS13#

 3
90072-34402

2L,2LT#..LS130

NO.2

 1
90341-18015

2L,2LT#..LS130

NO.1

 3
90341-18015

2LT#..LS130,131

 2
90341-18015

2L..LS130,136

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L,2LT#..LS13#

 3
90072-34402

2L,2LT#..LS130

NO.2

 1
90341-18015

2L,2LT#..LS130

NO.1

 3
90341-18015

2LT#..LS130,131

 2
90341-18015

2L..LS130,136

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

2L,2LT#..LS13#

 3
90430-18001

2L..LS130,136

 3
90430-18001

2LT#..LS130,131

 2
90430-18011

2L,2LT#..LS13#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

2L,2LT#..LS13#

 3
90430-18001

2L..LS130,136

 3
90430-18001

2LT#..LS130,131

 2
90430-18011

2L,2LT#..LS13#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

2L,2LT#..LS13#

 3
90430-18001

2L..LS130,136

 3
90430-18001

2LT#..LS130,131

 2
90430-18011

2L,2LT#..LS13#

 3
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2LT#..LS130,131

 1
90501-16026

2L..LS130,136

 2
90501-16026

2L,2LT#..LS13#

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2LT#..LS130,131

 1
90501-16026

2L..LS130,136

 2
90501-16026

2L,2LT#..LS13#

 2
15601 - FILTER SUB-ASSY, OIL
90915-30002

2L,2LT#..LS130,131

 1
90915-03006

2L,2LT#..LS130,131

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L,2LT#..LS13#

 2
15131-54010

2LT#..LS130,131

 1
15131-54010

2L..LS130,136

 2
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L,2LT#..LS13#

 2
15131-54010

2LT#..LS130,131

 1
15131-54010

2L..LS130,136

 2
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-54061

2LT#..LS130

 1
15609-54060

2LT#..LS130

 1
15609-54070

2L..LS130

 1
15609-54111

2LT#..LS130,131

 1
15609-54110

2LT#..LS130,131

 1
15609-54071

2L..LS130

 1
15691 - GASKET, OIL FILTER
15692-54020

2L,2LT#..LS13#

 1
15692-54030

2L,2LT#..LS13#

 1
Common parts
90179-08151
90344-54003
91611-60835
91611-G0825

(9110-9409)2L

Click highlighted areas on diagram

diagram 1105 15600A 15600D 15600D 15600D 15600E 15600E 15600E 15600F 15600F 15601 15604 15604 15609 15691 9017908150 9161160825 9161160835
Part # Description Qty Price
Common parts
90179-08150
91611-60825
91611-60835
Linked diagrams
1105
