LS130-AEMDS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

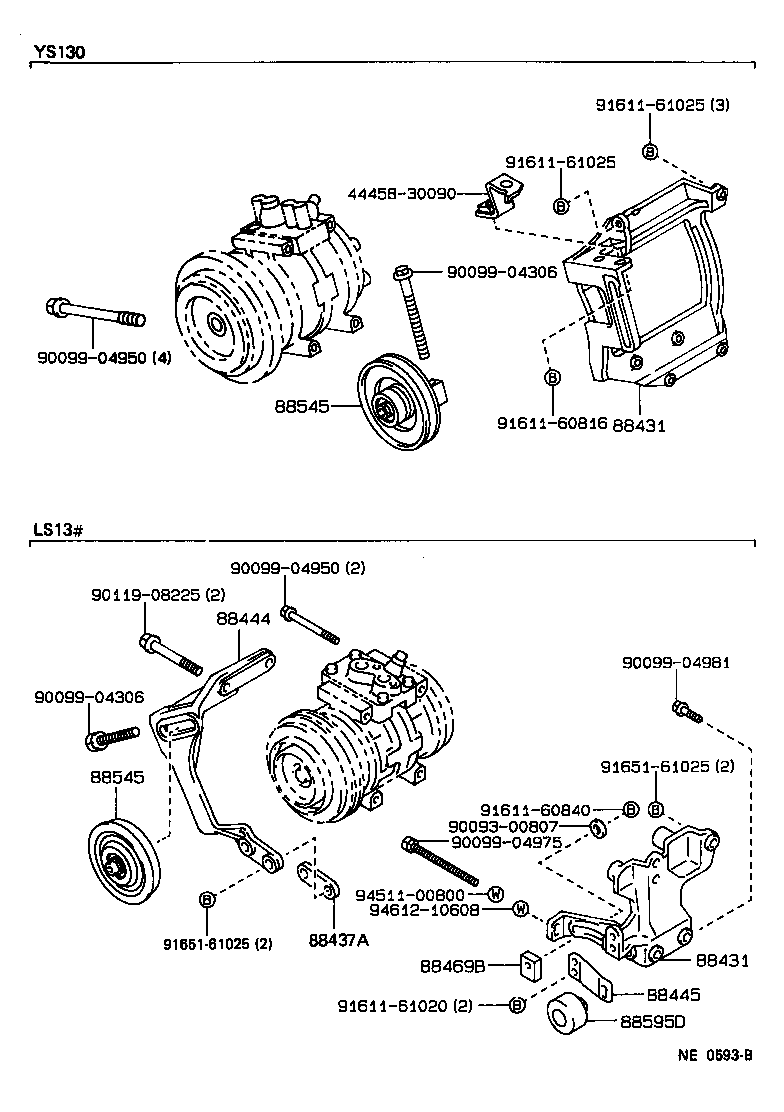

ILLUST NO. 1 OF 2(8709- )LS13#,YS130

Click highlighted areas on diagram

diagram 4445830090 88431 88431 88437A 88444 88445 88469B 88545 88545 88595D 9009300807 9009904306 9009904306 9009904950 9009904950 9009904975 9009904981 9011908225 9161160816 9161160840 9161161020 9161161025 9161161025 9165161025 9165161025 9451100800 9461210608
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-22270

LS13#

 1
88431-26170

LS130..DLX,SDX,SPE,SSL

 1
88431-22270

LS130,136..DLX,SALEX,STD

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-22270

LS13#

 1
88431-26170

LS130..DLX,SDX,SPE,SSL

 1
88431-22270

LS130,136..DLX,SALEX,STD

 1
88437A - ATTACHMENT, COMPRESSOR
88437-22050

LS130..DLX,SDX,SPE,SSL

 1
88437-22050

LS130..DLX

 1
88444 - BRACKET, IDLE PULLEY
88444-22060

LS130..DLX,SDX,SPE,SSL

 1
88444-30280

LS130..DLX

 1
88445 - BRACKET, IDLE PULLEY
88444-26070

LS130..DLX,SDX,SPE,SSL

 1
88469B - COLLAR
88469-30280

LS13#

 1
88469-30280

LS130..DLX,SDX,SPE,SSL

 1
88545 - PULLEY ASSY, IDLE
88440-35010

LS130..DLX,SDX,SPE,SSL

 1
88440-35010

LS130..DLX

 1
88545 - PULLEY ASSY, IDLE
88440-35010

LS130..DLX,SDX,SPE,SSL

 1
88440-35010

LS130..DLX

 1
88595D - PULLEY ASSY, IDLE
88440-26070

LS13#

 1
88440-26070

LS130..DLX,SDX,SPE,SSL

 1
Common parts
44458-30090
90093-00807
90099-04306
90099-04950
90099-04975
90099-04981
90119-08225
91611-60816
91611-60840
91611-61020
91611-61025
91651-61025
94511-00800
94612-10608

ILLUST NO. 2 OF 2(8709- )

Click highlighted areas on diagram

diagram 88301 88301 88301A 88302 88302 88320 88330A 88330A 88375 88403 88403 88410 88410 8871822420 9009904349 9009907087 9009907094 9009907114 9009907114 9009907125 9411040800 9451100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-22030

LS130..DLX,SDX,SPE,SSL

 1
88412-27010

LS130..DLX

 1
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-22030

LS130..DLX,SDX,SPE,SSL

 1
88412-27010

LS130..DLX

 1
88301A - BEARING (FOR MAGNET CLUTCH)
90099-10133

LS130..DLX,SDX,SPE,SSL

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-30510

LS130..DLX

 1
88411-14050

LS130..DLX,SDX,SPE,SSL

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-30510

LS130..DLX

 1
88411-14050

LS130..DLX,SDX,SPE,SSL

 1
88320 - COMPRESSOR ASSY, COOLER
88320-30470

LS130..DLX,SDX,SPE,SSL

 1
88320-30550

LS130..DLX

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-12030

LS130..DLX,SDX

 1
88403-16011

LS130..DLX

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-12030

LS130..DLX,SDX

 1
88403-16011

LS130..DLX

 1
88410 - CLUTCH ASSY, MAGNET
88410-22080

LS130..DLX,SDX,SPE,SSL

 1
88410-27020

LS130..DLX

 1
88410 - CLUTCH ASSY, MAGNET
88410-22080

LS130..DLX,SDX,SPE,SSL

 1
88410-27020

LS130..DLX

 1
Common parts
88718-22420
90099-04349
90099-07087
90099-07094
90099-07114
90099-07125
94110-40800
94511-00800
