LS130-AEMDS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )LS130,MS130

Click highlighted areas on diagram

DEALER OPT

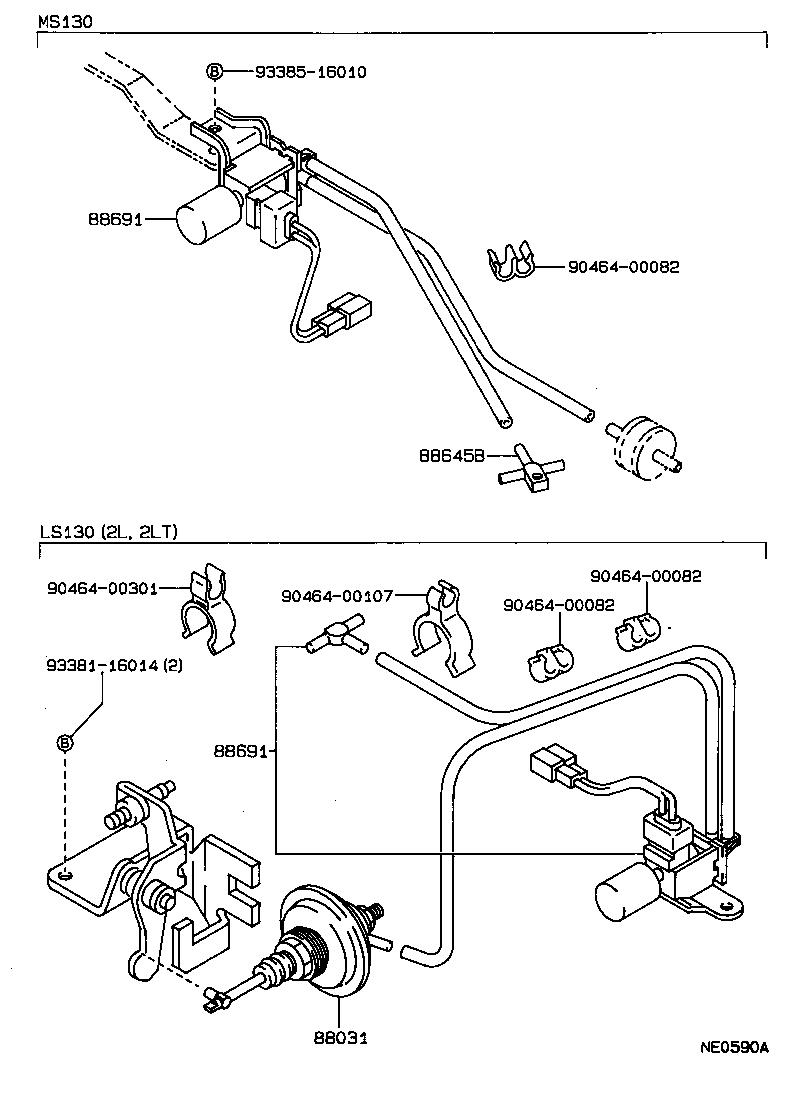

diagram 88031 88645B 88691 88691 9046400082 9046400082 9046400082 9046400107 9046400301 9338116014 9338516010
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-12150

LS130..MTM..(DLX,SDX,SPE,SSL)

 1
88031-25020

LS130..DLX

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-30740

LS130..MTM..(DLX,SDX,SPE,SSL)

 1
88690-30680

LS130..MTM..(DLX,SDX)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88690-30750

LS130..DLX

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-30740

LS130..MTM..(DLX,SDX,SPE,SSL)

 1
88690-30680

LS130..MTM..(DLX,SDX)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88690-30750

LS130..DLX

 1
Common parts
90464-00082
90464-00107
90464-00301
93381-16014
93385-16010
