LS130-AEMDS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

Click highlighted areas on diagram

FRONT(DEALER OPT)

diagram 87116A 88501 88508 88510 88515 88539 8856930880 88608 88625 88630 88630A 88650 886883A070 886883A080 88891 8889995A14 88899K 9009490405 9017908123 9354014010 9354014010
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

LS130..DLX,SDX,SPE,SSL

FRONT

 3
87116-14010

LS130..DLX

FRONT

 3
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30630

LS130..DLX,SDX,SPE,SSL

FRONT

 1
88501-30630

LS130..DLX

FRONT

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-30010

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88510 - UNIT ASSY, COOLER
88510-3A270

MS130..SDX;GS130,131,LS130..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE)

ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,FRONT

 1
88510-3A280

MS130..SDX;LS130..DLX,SDX;LS130..(SPE,SSL)..TDE;GS130,131,LS136..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,HTWC)

ﾏﾆﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,FRONT

 1
88510-3A270

GS130..WG..SDX;GS130,LS130..DLX..(DSL,HTWC)

ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,FRONT

 1
88510-3A280

GS130..WG..SDX;GS130,LS130,136..DLX..(DSL,HTWC)

ﾏﾆﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,FRONT

 1
88515 - VALVE, COOLER EXPANSION
88515-30330

LS130..DLX,SDX,SPE,SSL

FRONT

 1
88515-30332

LS130..DLX

FRONT

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30610

LS130..DLX

FRONT

 1
88539-30610

LS130..DLX,SDX,SPE,SSL

FRONT

 1
88625 - THERMISTOR, COOLER, NO.1
88625-30750

LS130..DLX

 1
88625-30750

LS130..DLX,SDX;LS130..(SPE,SSL)..TDE

 1
88625-30750

GS130,LS130..SED

 1
88630 - RELAY ASSY, COOLER
90987-02004

LS130..DLX

 1
88899K - PLATE, COVER
88899-30660

LS130..DLX,SDX,SPE,SSL

 1
88899-30660

LS130..DLX

 1
Common parts
88569-30880
88688-3A070
88688-3A080
88899-95A14
90094-90405
90179-08123
93540-14010

(8709- )GS130,131,JZS131,LS130

Click highlighted areas on diagram

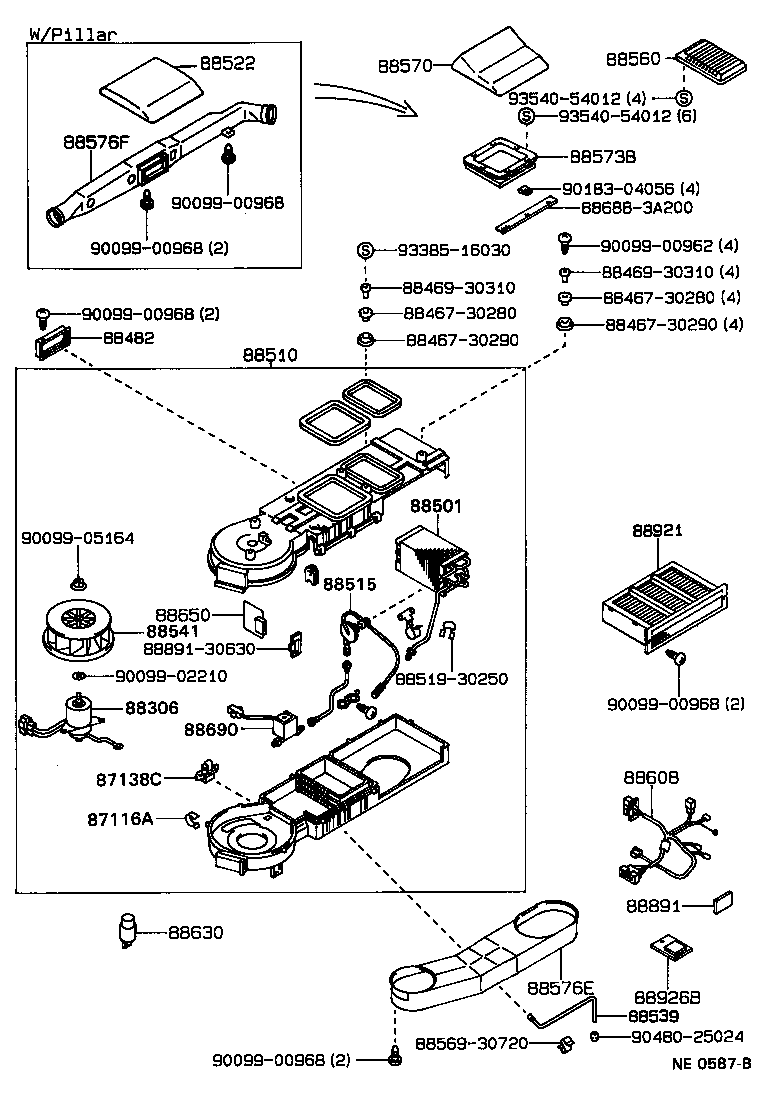

REAR(DEALER OPT)

diagram 87116A 87138C 88306 8846730280 8846730280 8846730290 8846730290 8846930310 8846930310 88482 88501 88510 88515 8851930250 88522 88539 88541 88560 8856930720 88570 88573B 88576E 88576F 88608 88630 88650 886883A200 88690 88891 8889130630 88921 88926B 9009900962 9009900968 9009900968 9009900968 9009900968 9009900968 9009902210 9009905164 9018304056 9048025024 9338516030 9354054012 9354054012
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

LS130..DLX,SDX,SPE,SSL

FRONT

 3
87116-14010

LS130..DLX

FRONT

 3
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30630

LS130..DLX,SDX,SPE,SSL

FRONT

 1
88501-30630

LS130..DLX

FRONT

 1
88510 - UNIT ASSY, COOLER
88510-3A270

MS130..SDX;GS130,131,LS130..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE)

ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,FRONT

 1
88510-3A280

MS130..SDX;LS130..DLX,SDX;LS130..(SPE,SSL)..TDE;GS130,131,LS136..(DLX,SAL,SDX,SPE,SSL)..(DSL,EFI,HTWC)

ﾏﾆﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,FRONT

 1
88510-3A270

GS130..WG..SDX;GS130,LS130..DLX..(DSL,HTWC)

ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,FRONT

 1
88510-3A280

GS130..WG..SDX;GS130,LS130,136..DLX..(DSL,HTWC)

ﾏﾆﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,FRONT

 1
88515 - VALVE, COOLER EXPANSION
88515-30330

LS130..DLX,SDX,SPE,SSL

FRONT

 1
88515-30332

LS130..DLX

FRONT

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30610

LS130..DLX

FRONT

 1
88539-30610

LS130..DLX,SDX,SPE,SSL

FRONT

 1
88630 - RELAY ASSY, COOLER
90987-02004

LS130..DLX

 1
Common parts
88467-30280
88467-30290
88469-30310
88519-30250
88569-30720
88688-3A200
88891-30630
90099-00962
90099-00968
90099-02210
90099-05164
90183-04056
90480-25024
93385-16030
93540-54012

ILLUST NO. 1 OF 4(9110-9308)GS130,131,JZS13#,LS130,131..DLX,ROY,ROYG,SALEX,SDX ; (9308- )GS130,13

Click highlighted areas on diagram

ﾌﾛﾝﾄ--ﾒ-ｶ- ｵﾌﾟｼﾖﾝ

diagram 827113A690 8711614010 88501 88508 88508 88510 88515 88539 88549B 88625 8862633010 88630 88630A 88630B 88650 88650C 886883A250 88723A 88880B 88899K 9011906246 9015960195 9017906239 9354014012 9354015010 9354015010
Part # Description Qty Price
Common parts
82711-3A690
87116-14010
88626-33010
88688-3A250
90119-06246
90159-60195
90179-06239
93540-14012
93540-15010

ILLUST NO. 2 OF 4(9110-9512)GS131,JZS131,133,135,LS130,131..SED ;(9110- )GS130..SED..HTWC

Click highlighted areas on diagram

ﾘﾔ

diagram 8711614010 88306 88501R 88510T 88515B 88522 88539C 88541 88560 8856930720 88573B 88576E 88576F 88608 88635 88650 88650E 88660A 886883A200 88690 8889730700 8889930590 8889930600 88921 88931A 9009902210 9009905164 9018304056 9354054014 9356014012
Part # Description Qty Price
Common parts
87116-14010
88569-30720
88688-3A200
88897-30700
88899-30590
88899-30600
90099-02210
90099-05164
90183-04056
93540-54014
93560-14012
