LS130-AEMDS (1987)
Toyota Crown
ILLUST NO. 2 OF 8(8709- )GS130,136,JZS130,LS13#,MS130..SED,V,WG..DLX,ROY,SAL,SALEX,SDX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84091 - SWITCH SET, SATELLITE | ||||
| 84091-30040 |
GS131..4HC..SALEX;GS130,136,LS13#,MS130..(SED,V,WG)..(DLX,SAL,SALEX,SDX) |
1 | ||
| 84091-30040 |
GS131..4HC..SALEX;GS130,136,LS13#,MS130..(SED,V,WG)..(DLX,SAL,SALEX,SDX) |
1 | ||
| 84091-30180 |
GS130,136,LS130,136..DLX,SALEX,SDX |
1 | ||
| 84091-30180 |
GS130,136,LS130,136..DLX,SALEX,SDX |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
GS136..SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 84242-20030 |
GS136..SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-30200 |
GS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX) |
1 | ||
| 84332-30200 |
GS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX) |
1 | ||
| 84332-30220 |
GS131,JZS131,MS13#,UZS131..4HC;GS131,JZS131,MS13#,UZS131..SED..(4FC,5F);GS130,136,JZS130,LS13#..(SED,V,WG)..(DLX,ROY,SALEX,SDX) |
1 | ||
| 84332-30220 |
GS131,JZS131,MS13#,UZS131..4HC;GS131,JZS131,MS13#,UZS131..SED..(4FC,5F);GS130,136,JZS130,LS13#..(SED,V,WG)..(DLX,ROY,SALEX,SDX) |
1 | ||
| 84332-30221 |
GS131,JZS131,MS13#,UZS131..4HC;GS131,JZS131,MS13#,UZS131..SED..(4FC,5F);GS130,136,JZS130,LS13#..(SED,V,WG)..(DLX,ROY,SALEX,SDX) |
1 | ||
| 84332-30221 |
GS131,JZS131,MS13#,UZS131..4HC;GS131,JZS131,MS13#,UZS131..SED..(4FC,5F);GS130,136,JZS130,LS13#..(SED,V,WG)..(DLX,ROY,SALEX,SDX) |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10090 |
GS13#,LS13#,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 12V 1.8W |
1 | ||
| 84999-10090 |
GS13#,LS13#,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 12V 1.8W |
1 | ||
| 84999-10310 |
GS13#,LS13#,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 14V 0.91W |
1 | ||
| 84999-10310 |
GS13#,LS13#,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 14V 0.91W |
1 | ||
| 84999-10170 |
GS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX) 12V 1.12W |
1 | ||
| 84999-10170 |
GS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX) 12V 1.12W |
1 | ||
| 84999-10420 |
GS131,JZS131,MS13#,UZS131..4HC;GS131,JZS131,MS13#,UZS131..SED..(4FC,5F);GS130,136,JZS130,LS13#..(SED,V,WG)..(DLX,ROY,SALEX,SDX) 14V 0.84W |
1 | ||
| 84999-10420 |
GS131,JZS131,MS13#,UZS131..4HC;GS131,JZS131,MS13#,UZS131..SED..(4FC,5F);GS130,136,JZS130,LS13#..(SED,V,WG)..(DLX,ROY,SALEX,SDX) 14V 0.84W |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30060 |
GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) GROVE BOX |
1 | ||
| 84840-30060 |
GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) GROVE BOX |
1 | ||
| 84840-3010002 |
GS130..(4FC,4H)..DLX..HTWC;GS130,LS130..DLX..(DSL,EFI) MAROON,TRIM3#,FRONT DOOR TRIM |
1 | ||
| 84840-3010002 |
GS130..(4FC,4H)..DLX..HTWC;GS130,LS130..DLX..(DSL,EFI) MAROON,TRIM3#,FRONT DOOR TRIM |
1 | ||
| 84840-3010002 |
GS130,LS130..DLX..(DSL,HTWC) MAROON,TRIM3#,FRONT DOOR TRIM |
1 | ||
| 84840-3010002 |
GS130,LS130..DLX..(DSL,HTWC) MAROON,TRIM3#,FRONT DOOR TRIM |
1 | ||
| 84840-3010004 |
GS130,LS130..DLX..(DSL,EFI,HTWC) BLUE,TRIM8#,FRONT DOOR TRIM |
1 | ||
| 84840-3010004 |
GS130,LS130..DLX..(DSL,EFI,HTWC) BLUE,TRIM8#,FRONT DOOR TRIM |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-17010 |
YS130;GS136..SDX;LS130..4H..STD;GS130,LS130,MS130..DLX INSTRUMENT PANEL |
1 | ||
| 84870-17010 |
YS130;GS136..SDX;LS130..4H..STD;GS130,LS130,MS130..DLX INSTRUMENT PANEL |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30410 |
GS131..5F..TWC;GS13#,LS13#,MS130,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) REAR |
1 | ||
| 85500-30410 |
GS131..5F..TWC;GS13#,LS13#,MS130,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) REAR |
1 | ||
| 85500-30440 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 FRONT |
1 | ||
| 85500-30440 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 FRONT |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30040 |
LS136;GS130,LS130..4H..STD;GS131,136,YS130..(4H,4HC,5F)..(ROY,STD)..(EFI,LPG,TWC);GS130,136,LS130,MS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) ﾅｼ(ﾗｲﾄ) |
1 | ||
| 85533-30040 |
LS136;GS130,LS130..4H..STD;GS131,136,YS130..(4H,4HC,5F)..(ROY,STD)..(EFI,LPG,TWC);GS130,136,LS130,MS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) ﾅｼ(ﾗｲﾄ) |
1 | ||
| 85533-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.1,FRONT |
1 | ||
| 85533-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.1,FRONT |
1 | ||
| 85533-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2,FRONT |
1 | ||
| 85533-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2,FRONT |
1 | ||
| 85533-26010 |
GS131..5F..TWC;GS13#,LS13#,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) |
1 | ||
| 85533-26010 |
GS131..5F..TWC;GS13#,LS13#,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) |
1 | ||
| 85533-30040 |
GS131..5F..TWC;GS13#,LS13#,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) ﾅｼ(ﾗｲﾄ) |
1 | ||
| 85533-30040 |
GS131..5F..TWC;GS13#,LS13#,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) ﾅｼ(ﾗｲﾄ) |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30040 |
LS136;GS130,LS130..4H..STD;GS131,136,YS130..(4H,4HC,5F)..(ROY,STD)..(EFI,LPG,TWC);GS130,136,LS130,MS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) ﾅｼ(ﾗｲﾄ) |
1 | ||
| 85533-30040 |
LS136;GS130,LS130..4H..STD;GS131,136,YS130..(4H,4HC,5F)..(ROY,STD)..(EFI,LPG,TWC);GS130,136,LS130,MS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) ﾅｼ(ﾗｲﾄ) |
1 | ||
| 85533-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.1,FRONT |
1 | ||
| 85533-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.1,FRONT |
1 | ||
| 85533-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2,FRONT |
1 | ||
| 85533-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2,FRONT |
1 | ||
| 85533-26010 |
GS131..5F..TWC;GS13#,LS13#,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) |
1 | ||
| 85533-26010 |
GS131..5F..TWC;GS13#,LS13#,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) |
1 | ||
| 85533-30040 |
GS131..5F..TWC;GS13#,LS13#,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) ﾅｼ(ﾗｲﾄ) |
1 | ||
| 85533-30040 |
GS131..5F..TWC;GS13#,LS13#,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) ﾅｼ(ﾗｲﾄ) |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86640-30070 |
MS135..ROY;JZS131,MS137,UZS131;GS13#,JZS130,LS13#,MS130,YS130..NOB |
1 | ||
| 86640-30070 |
MS135..ROY;JZS131,MS137,UZS131;GS13#,JZS130,LS13#,MS130,YS130..NOB |
1 | ||
| Common parts | ||||
| 91665-60616 | ||||
| 93540-54012 | ||||
ILLUST NO. 4 OF 8(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83650 - FUSEE | ||||
| 90986-01005 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-30030 |
GS130,LS13#,MS130,YS130..DSL,LPG,TD,TWLPG |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-30030 |
GS130,LS13#,MS130,YS130..DSL,LPG,TD,TWLPG |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-30030 |
GS130,LS13#,MS130,YS130..DSL,LPG,TD,TWLPG |
1 | ||
| 89551 - COMPUTER, EMISSION CONTROL | ||||
| 89551-30010 |
LS130..DSL |
1 | ||
| 89551-30070 |
LS130..DSL |
1 | ||
| 89551 - COMPUTER, EMISSION CONTROL | ||||
| 89551-30010 |
LS130..DSL |
1 | ||
| 89551-30070 |
LS130..DSL |
1 | ||
| 89669D - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-30020 |
LS130,131..MTM |
1 | ||
| Common parts | ||||
| 90149-50032 | ||||
| 90159-50240 | ||||
| 90179-06069 | ||||
| 91651-40612 | ||||
| 91666-40618 | ||||
| 93319-15010 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
ILLUST NO. 5 OF 8(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39465 |
GS130,136,LS13#,MS130..DLX,SAL,SDX |
1 | ||
| 84112-39465 |
GS130..(4FC,5F)..(DLX,SDX);GS136,LS130,136,MS130..DLX,SDX;GS130,131..(4H,4HC)..(DLX,SAL,SDX) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-30080 |
GS131,MS135,137..4HC..(SPC,TWC);GS13#,LS13#,MS130..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,TD,TDE) |
1 | ||
| 84140-30080 |
GS130,LS130..WG..4FC..SALEX;GS130..(4FC,5F)..(DLX,SDX,SPE);GS131,LS13#,MS130..DLX,SDX,SPE;GS130,131..(4H,4HC)..(DLX,ROY,SAL,SALEX,SDX);GS136,JZS131,MS135,137,UZS131..(4H,4HC,5F)..(DLX,ROY,ROYG,SDX) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-30550 |
GS130,136,LS13#,MS130..DLX,SAL,SDX |
1 | ||
| 84310-30550 |
GS136,LS13#,MS130..DLX,SDX;GS130..(4FC,5F)..(DLX,SDX);GS130..(4H,4HC)..(DLX,SAL,SDX) |
1 | ||
| 84310-30780 |
GS131..4HC..SAL;GS130,136,LS130,136..DLX,SDX |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
GS131..4HC..SPC;GS131..SSL..SPC;GS13#,LS13#,MS130,YS130..DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 84312-12040 |
JZS131..SSL;GS13#,LS13#,YS130..DLX,SAL,SALEX,SDX,SPE,SSL,STD |
1 | ||
| 84312-12040 |
GS131..4HC..SPC;GS13#,LS13#,MS130,YS130..DLX,SAL,SALEX,SDX,SPE,SSL,STD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-30181 |
GS136;GS130,LS13#,MS130,YS130..DLX,STD |
1 | ||
| 84450-30191 |
GS136,LS136..4FC,5F;GS130,LS130..(4FC,5F)..DLX ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 84450-30230 |
GS130,136,LS130,136..(4FC,5F)..DLX ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 84450-30200 |
GS136,LS136..4FC,5F;GS130,LS130..(4FC,5F)..DLX ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 84450-30230 |
GS136,LS136..4FC,5F;GS130,LS130..(4FC,5F)..DLX ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 84450-30220 |
GS136;GS130,LS130,136,YS130..DLX,STD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-30190 |
GS13#,LS13#,MS130,YS130..DSL,EFI,LPG,TD,TDE |
1 | ||
| 84652-30190 |
GS130,LS130..WG..4FC..SALEX;GS130..(4FC,5F)..(DLX,SDX,SPE,STD);GS130,131..(4H,4HC)..(EFI,HTWC,TWLPG);GS131,136,LS13#,MS130,YS130..DLX,SDX,SPE,STD |
1 | ||
| Common parts | ||||
| 82711-20200 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
ILLUST NO. 6 OF 8(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12060 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 84231-16060 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
GS13#,LS13#,MS130,YS130..DSL,EFI,LPG,TD,TDE,TWC MATSUSHITA |
1 | ||
| 84340-30030 |
GS13#,LS13#,MS130,YS130..DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 84340-32010 |
GS13#,LS13#,MS130,YS130..DSL,EFI,LPG,TD,TDE,TWC 東海理化 |
1 | ||
| 84340-30030 |
GS130,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,TD,TDE MATSUSHITA |
1 | ||
| 84340-30040 |
GS131..SSL..SPC;GS13#,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,TD,TDE,TWC 東海理化 |
1 | ||
| 84340-30030 |
GS130,LS13#,MS130,YS130..DSL,EFI,HTWC,LPG,TD,TDE |
1 | ||
| 84340-32030 |
GS131..HTWC,TWC;GS131..SSL..SPC;GS130,136,JZS131,LS13#,MS135,YS130..DLX,SALEX,SDX,SPE,SSL,STD |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
LS136..DLX;GS13#,LS130,131,YS130..5F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
LS136..DLX;GS13#,LS130,131,YS130..5F |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30060 |
GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) GROVE BOX |
1 | ||
| 84840-3010002 |
GS130..(4FC,4H)..DLX..HTWC;GS130,LS130..DLX..(DSL,EFI) MAROON,TRIM3#,FRONT DOOR TRIM |
1 | ||
| 84840-3010002 |
GS130,LS130..DLX..(DSL,HTWC) MAROON,TRIM3#,FRONT DOOR TRIM |
1 | ||
| 84840-3010004 |
GS130,LS130..DLX..(DSL,EFI,HTWC) BLUE,TRIM8#,FRONT DOOR TRIM |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-17010 |
YS130;GS136..SDX;LS130..4H..STD;GS130,LS130,MS130..DLX INSTRUMENT PANEL |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-17010 |
YS130;GS136..SDX;LS130..4H..STD;GS130,LS130,MS130..DLX INSTRUMENT PANEL |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1601014 |
YS130;GS136..SDX;LS130..4H..STD;GS130,LS130,MS130..DLX DARK BLUE,TRIM8# |
1 | ||
| 84930-16010J0 |
YS130;GS136..SDX;LS130..4H..STD;GS130,LS130,MS130..DLX DARK BLUE,TRIM8# |
1 | ||
| 84930-1601012 |
GS136..SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130,YS130..DLX..(DSL,EFI,LPG) MAROON,TRIM3# |
1 | ||
| 84930-16010D0 |
GS136..SDX;GS130,LS130,YS130..DLX MAROON,TRIM3# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30410 |
GS131..5F..TWC;GS13#,LS13#,MS130,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) REAR |
1 | ||
| 85500-30440 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 FRONT |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30410 |
GS131..5F..TWC;GS13#,LS13#,MS130,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) REAR |
1 | ||
| 85500-30440 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 FRONT |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
GS131..5F..TWC;GS13#,LS13#,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) E-2 ﾊﾟﾂｹ-ｼﾞ OR ｱﾘ(CD ﾂｷ ﾗｼﾞｵ) |
1 | ||
| 85513-12020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30040 |
LS136;GS130,LS130..4H..STD;GS131,136,YS130..(4H,4HC,5F)..(ROY,STD)..(EFI,LPG,TWC);GS130,136,LS130,MS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) ﾅｼ(ﾗｲﾄ) |
1 | ||
| 85533-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.1,FRONT |
1 | ||
| 85533-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2,FRONT |
1 | ||
| 85533-26010 |
GS131..5F..TWC;GS13#,LS13#,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) |
1 | ||
| 85533-30040 |
GS131..5F..TWC;GS13#,LS13#,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) ﾅｼ(ﾗｲﾄ) |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30040 |
LS136;GS130,LS130..4H..STD;GS131,136,YS130..(4H,4HC,5F)..(ROY,STD)..(EFI,LPG,TWC);GS130,136,LS130,MS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) ﾅｼ(ﾗｲﾄ) |
1 | ||
| 85533-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.1,FRONT |
1 | ||
| 85533-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2,FRONT |
1 | ||
| 85533-26010 |
GS131..5F..TWC;GS13#,LS13#,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) |
1 | ||
| 85533-30040 |
GS131..5F..TWC;GS13#,LS13#,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) ﾅｼ(ﾗｲﾄ) |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30040 |
LS136;GS130,LS130..4H..STD;GS131,136,YS130..(4H,4HC,5F)..(ROY,STD)..(EFI,LPG,TWC);GS130,136,LS130,MS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) ﾅｼ(ﾗｲﾄ) |
1 | ||
| 85533-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.1,FRONT |
1 | ||
| 85533-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2,FRONT |
1 | ||
| 85533-26010 |
GS131..5F..TWC;GS13#,LS13#,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) |
1 | ||
| 85533-30040 |
GS131..5F..TWC;GS13#,LS13#,YS130..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX,STD) ﾅｼ(ﾗｲﾄ) |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06601 | ||||
| 90168-40043 | ||||
| 90463-12570 | ||||
| 90468-05014 | ||||
| 91611-60612 | ||||
| 93315-14014 | ||||
| 93385-16014 | ||||
| 93385-16018 | ||||
| 93540-14012 | ||||
| 94120-41000 | ||||

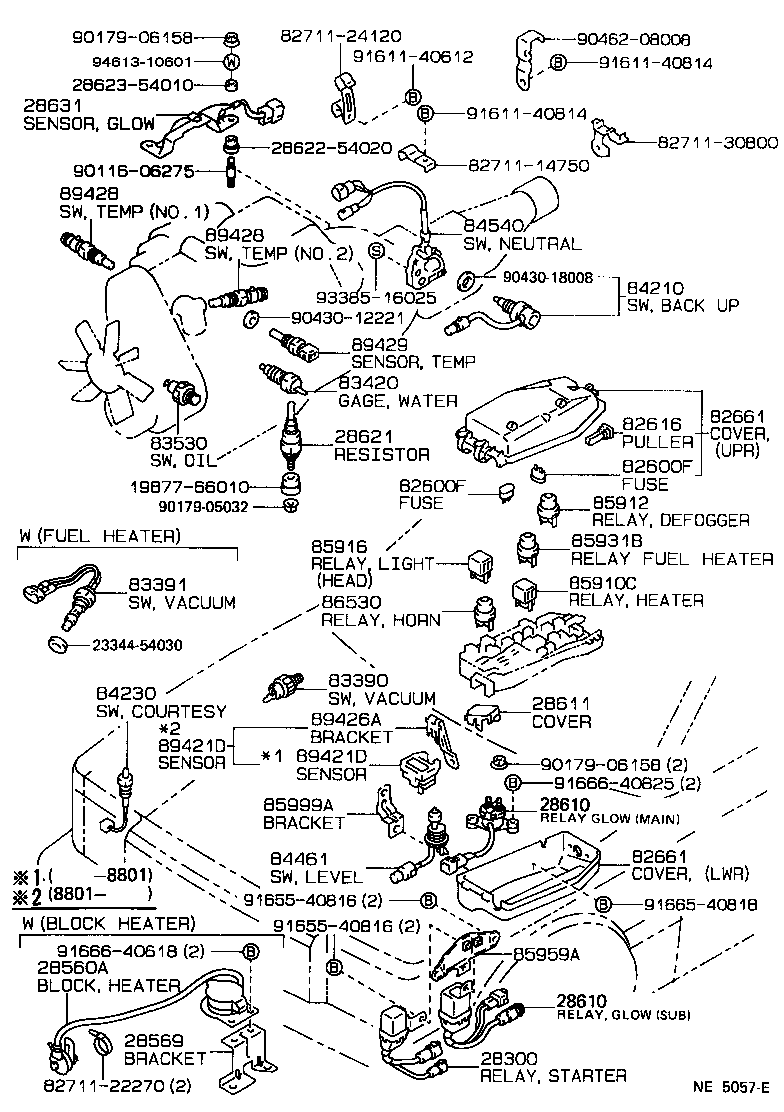

ILLUST NO. 1 OF 8(8709- )LS13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-54080 |
2L,2LT#..LS13# |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54250 |
2L,2LT#..LS13# SUB |
1 | ||
| 28610-54300 |
2L,2LT#..LS13# SUB |
1 | ||
| 28610-54260 |
2L,2LT#..LS13# MAIN |
1 | ||
| 28610-54320 |
2L,2LT#..LS13# MAIN |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54250 |
2L,2LT#..LS13# SUB |
1 | ||
| 28610-54300 |
2L,2LT#..LS13# SUB |
1 | ||
| 28610-54260 |
2L,2LT#..LS13# MAIN |
1 | ||
| 28610-54320 |
2L,2LT#..LS13# MAIN |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-55010 |
2L,2LT#..LS13# |
1 | ||
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-54031 |
2L..LS13# |
1 | ||
| 28621-54080 |
2L,2LT#..LS13# |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-54080 |
2L,2LT#..LS13# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
LS13#,MS137 30A,緑 |
1 | ||
| 90982-09005 |
GS13#,LS13#,MS13#,UZS131,YS130 7.5A |
1 | ||
| 90982-09003 |
GS13#,LS13#,MS13#,YS130 15A |
1 | ||
| 90982-07011 |
LS130,136,MS13# 30A,緑 |
1 | ||
| 90982-09003 |
GS13#,LS13#,MS13#,UZS131,YS130 15A |
1 | ||
| 90982-09004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 20A,黄 |
1 | ||
| 90982-09003 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 15A |
1 | ||
| 90982-09005 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
LS13#,MS137 30A,緑 |
1 | ||
| 90982-09005 |
GS13#,LS13#,MS13#,UZS131,YS130 7.5A |
1 | ||
| 90982-07011 |
LS130,136,MS13# 30A,緑 |
1 | ||
| 90982-09003 |
GS13#,LS13#,MS13#,YS130 15A |
1 | ||
| 90982-09003 |
GS13#,LS13#,MS13#,UZS131,YS130 15A |
1 | ||
| 90982-09004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 20A,黄 |
1 | ||
| 90982-09003 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 15A |
1 | ||
| 90982-09005 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 7.5A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-30020 |
LS13# UPPER |
1 | ||
| 82663-30020 |
UZS131..4HC;GS13#,JZS13#,LS13#,MS135,137..DSL,EFI,HTWC,SPC,TD,TDE,TWC LOWER |
1 | ||
| 82662-30021 |
LS13# UPPER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-30020 |
LS13# UPPER |
1 | ||
| 82663-30020 |
UZS131..4HC;GS13#,JZS13#,LS13#,MS135,137..DSL,EFI,HTWC,SPC,TD,TDE,TWC LOWER |
1 | ||
| 82662-30021 |
LS13# UPPER |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
LS13# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-32020 |
LS13# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
GS13#,JZS13#,LS13#,MS13#,YS130 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
LS13# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-30060 |
GS13#,LS13#,YS130..5F |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-35030 |
LS13# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
GS136,LS136..DLX,SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
GS13#,LS13#,MS13#,YS130 TAIL LAMP |
1 | ||
| 90987-02006 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 HEADLAMP |
1 | ||
| 90987-02008 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 TAIL LAMP |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-04002 |
LS13# |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-30040 |
LS13# |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-30260 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE LOWER |
1 | ||
| 85999-30250 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH COWL SIDE UPPER |
1 | ||
| 85999-30261 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH COWL SIDE LOWER |
1 | ||
| 85999-30281 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 CONTROL UNIT |
1 | ||
| 85999-30290 |
GS13#,LS130,MS130,YS130..DSL,EFI,LPG,TD,TDE E/G RELAY BLOCK |
1 | ||
| 85999-30290 |
GS13#,JZS13#,LS130,131,MS13#,YS130..DSL,EFI,HTWC,LPEFI,LPG,SPC,TD,TDE,TWC E/G RELAY BLOCK |
1 | ||
| 85999-30280 |
GS13#,LS13#,MS13#,UZS131,YS130 CONTROL UNIT |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 89421D - SENSOR, TURBO PRESSURE | ||||
| 89420-22070 |
LS130..DSL |
1 | ||
| 89420-30030 |
LS130..DSL |
1 | ||
| 89420-30040 |
LS130,131 |
1 | ||
| 89421D - SENSOR, TURBO PRESSURE | ||||
| 89420-22070 |
LS130..DSL |
1 | ||
| 89420-30030 |
LS130..DSL |
1 | ||
| 89420-30040 |
LS130,131 |
1 | ||
| 89426A - BRACKET, VACUUM SENSOR | ||||
| 89426-30040 |
LS130..MTM |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-30031 |
LS13#..DLX,SDX,SPE,SSL,STD ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 89428-30070 |
LS13#..DLX,SDX,SPE,SSL,STD ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-30031 |
LS13#..DLX,SDX,SPE,SSL,STD ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 89428-30070 |
LS13#..DLX,SDX,SPE,SSL,STD ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-20010 |
LS13# |
1 | ||
| 89422-30020 |
LS13# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 23344-54030 | ||||
| 28622-54020 | ||||
| 28623-54010 | ||||
| 82711-14750 | ||||
| 82711-22270 | ||||
| 82711-24120 | ||||
| 82711-30800 | ||||
| 90116-06275 | ||||
| 90179-05032 | ||||
| 90179-06158 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 90462-08008 | ||||
| 91611-40612 | ||||
| 91611-40814 | ||||
| 91655-40816 | ||||
| 91665-40818 | ||||
| 91666-40618 | ||||
| 91666-40825 | ||||
| 93385-16025 | ||||
| 94613-10601 | ||||
ILLUST NO. 3 OF 8(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136..(DLX,ROY,SDX,STD)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
LS13#,MS137 30A,緑 |
1 | ||
| 90982-09005 |
GS13#,LS13#,MS13#,UZS131,YS130 7.5A |
1 | ||
| 90982-09003 |
GS13#,LS13#,MS13#,YS130 15A |
1 | ||
| 90982-07011 |
LS130,136,MS13# 30A,緑 |
1 | ||
| 90982-09003 |
GS13#,LS13#,MS13#,UZS131,YS130 15A |
1 | ||
| 90982-09004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 20A,黄 |
1 | ||
| 90982-09003 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 15A |
1 | ||
| 90982-09005 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 7.5A |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-30030 |
MS130;GS130..SDX..TWLPG;GS130,LS130,YS130..DLX |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 30A |
2 | ||
| 85900 - RELAY ASSY, CONTROL UNIT | ||||
| 85900-30130 |
YS130;LS130..4H..STD;GS130,LS130,MS130..DLX |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
GS13#,LS13#,MS13#,YS130 TAIL LAMP |
1 | ||
| 90987-02006 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 HEADLAMP |
1 | ||
| 90987-02008 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
GS13#,LS13#,MS13#,YS130 TAIL LAMP |
1 | ||
| 90987-02006 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 HEADLAMP |
1 | ||
| 90987-02008 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
GS13#,LS13#,MS13#,YS130 TAIL LAMP |
1 | ||
| 90987-02006 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 HEADLAMP |
1 | ||
| 90987-02008 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
GS13#,LS13#,MS13#,YS130 TAIL LAMP |
1 | ||
| 90987-02006 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 HEADLAMP |
1 | ||
| 90987-02008 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
GS13#,LS13#,MS13#,YS130 TAIL LAMP |
1 | ||
| 90987-02006 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 HEADLAMP |
1 | ||
| 90987-02008 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
GS13#,LS13#,MS13#,YS130 TAIL LAMP |
1 | ||
| 90987-02006 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 HEADLAMP |
1 | ||
| 90987-02008 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 TAIL LAMP |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-30110 |
YS130;LS130..4H..STD;GS130,131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-30110 |
YS130;LS130..4H..STD;GS130,131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-30300 |
YS130;LS130..4H..STD;GS130,LS130,MS130..DLX |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-30260 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE LOWER |
1 | ||
| 85999-30250 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH COWL SIDE UPPER |
1 | ||
| 85999-30261 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH COWL SIDE LOWER |
1 | ||
| 85999-30281 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 CONTROL UNIT |
1 | ||
| 85999-30290 |
GS13#,LS130,MS130,YS130..DSL,EFI,LPG,TD,TDE E/G RELAY BLOCK |
1 | ||
| 85999-30290 |
GS13#,JZS13#,LS130,131,MS13#,YS130..DSL,EFI,HTWC,LPEFI,LPG,SPC,TD,TDE,TWC E/G RELAY BLOCK |
1 | ||
| 85999-30280 |
GS13#,LS13#,MS13#,UZS131,YS130 CONTROL UNIT |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-30260 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE LOWER |
1 | ||
| 85999-30250 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH COWL SIDE UPPER |
1 | ||
| 85999-30261 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH COWL SIDE LOWER |
1 | ||
| 85999-30281 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 CONTROL UNIT |
1 | ||
| 85999-30290 |
GS13#,LS130,MS130,YS130..DSL,EFI,LPG,TD,TDE E/G RELAY BLOCK |
1 | ||
| 85999-30290 |
GS13#,JZS13#,LS130,131,MS13#,YS130..DSL,EFI,HTWC,LPEFI,LPG,SPC,TD,TDE,TWC E/G RELAY BLOCK |
1 | ||
| 85999-30280 |
GS13#,LS13#,MS13#,UZS131,YS130 CONTROL UNIT |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-30260 |
GS13#,LS13#,MS13#,YS130 RH COWL SIDE LOWER |
1 | ||
| 85999-30250 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH COWL SIDE UPPER |
1 | ||
| 85999-30261 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH COWL SIDE LOWER |
1 | ||
| 85999-30281 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 CONTROL UNIT |
1 | ||
| 85999-30290 |
GS13#,LS130,MS130,YS130..DSL,EFI,LPG,TD,TDE E/G RELAY BLOCK |
1 | ||
| 85999-30290 |
GS13#,JZS13#,LS130,131,MS13#,YS130..DSL,EFI,HTWC,LPEFI,LPG,SPC,TD,TDE,TWC E/G RELAY BLOCK |
1 | ||
| 85999-30280 |
GS13#,LS13#,MS13#,UZS131,YS130 CONTROL UNIT |
1 | ||
| 89390 - RELAY, BRAKE WARNING | ||||
| 89390-30010 |
LS13# |
1 | ||
| Common parts | ||||
| 90119-06061 | ||||
| 91651-40612 | ||||
| 91655-40620 | ||||
| 91665-40616 | ||||
ILLUST NO. 7 OF 8(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-20120 |
GS13#,LS13#,MS13#,YS130 |
2 | ||
| 84231-30110 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 84231-30080 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-20120 |
GS13#,LS13#,MS13#,YS130 |
2 | ||
| 84231-30110 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 84231-30080 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06601 | ||||
| 93319-15012 | ||||
ILLUST NO. 8 OF 8(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39835 |
LS130..HT,SED |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39835 |
LS130..HT,SED |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..DSL,EFI,HTWC,SPC,TD,TDE,TWC |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..DSL,EFI,HTWC,SPC,TD,TDE,TWC |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..DSL,EFI,HTWC,SPC,TD,TDE,TWC |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-30090 |
GS130,LS130..SED..(DLX,SDX);GS131,JZS13#,LS131,MS13#,UZS131,YS130 |
1 | ||
| 84231-30070 |
GS131,MS13#,YS130;GS130,LS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-30090 |
GS130,LS130..SED..(DLX,SDX);GS131,JZS13#,LS131,MS13#,UZS131,YS130 |
1 | ||
| 84231-30070 |
GS131,MS13#,YS130;GS130,LS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 85410 - SOLENOID ASSY, LUGGAGE DOOR LOCK | ||||
| 85410-30070 |
GS131,JZS13#,LS131,MS135,137,UZS131;GS130,LS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| Common parts | ||||
| 90159-40155 | ||||
| 90159-50048 | ||||
| 90170-10179 | ||||
| 91651-40612 | ||||
| 91661-40612 | ||||
| 93319-14010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
