LS130-AEMDS (1987)
Toyota Crown

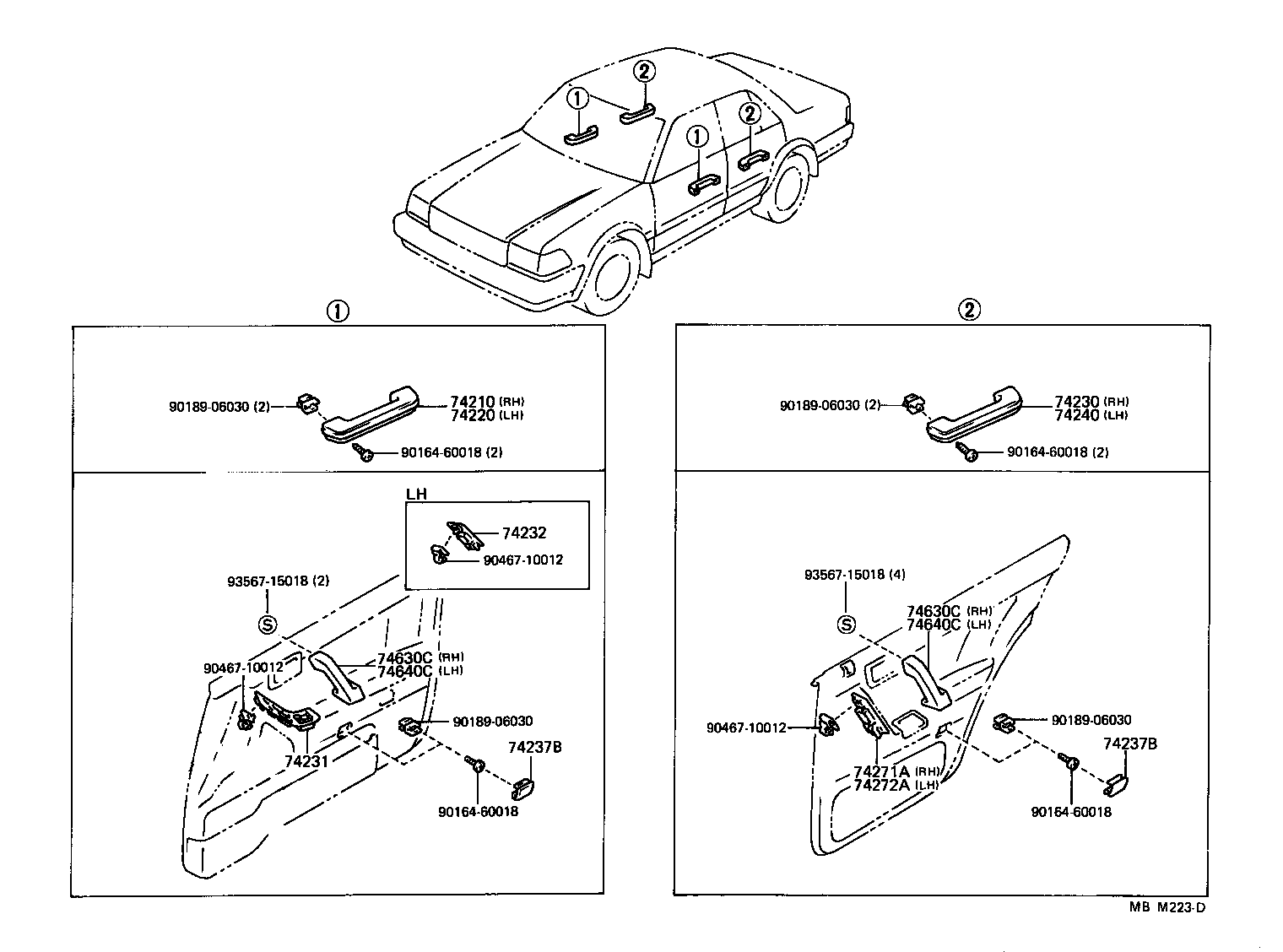

ILLUST NO. 1 OF 2(8709- )SED,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-2206122 |
GS136,LS136,YS130..DLX,SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130..DLX..(DSL,EFI,LPG) MAROON,TRIM3# |
1 | ||
| 74210-2206122 |
GS130,136,LS130,136,YS130..DLX MAROON,TRIM3# |
1 | ||
| 74210-2206124 |
GS136..EFI;GS136..(DLX,STD)..HTWC;GS130,LS130,136,MS130,YS130..DLX,STD DARK BLUE,TRIM8# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74210-2206122 |
GS136,LS136,YS130..DLX,SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130..DLX..(DSL,EFI,LPG) MAROON,TRIM3# |
1 | ||
| 74210-2206122 |
GS130,136,LS130,136,YS130..DLX MAROON,TRIM3# |
1 | ||
| 74210-2206124 |
GS136..EFI;GS136..(DLX,STD)..HTWC;GS130,LS130,136,MS130,YS130..DLX,STD DARK BLUE,TRIM8# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-2206122 |
GS136,LS136,YS130..DLX,SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130..DLX..(DSL,EFI,LPG) MAROON,TRIM3# |
1 | ||
| 74210-2206124 |
GS136..EFI;GS136..(DLX,STD)..HTWC;GS130,LS130,136,MS130,YS130..DLX,STD DARK BLUE,TRIM8# |
1 | ||
| 74210-2206122 |
GS130,136,LS130,136,YS130..DLX MAROON,TRIM3# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74210-2206122 |
GS130,136,LS130,136,YS130..DLX MAROON,TRIM3# |
1 | ||
| 74210-2206122 |
GS136,LS136,YS130..DLX,SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130..DLX..(DSL,EFI,LPG) MAROON,TRIM3# |
1 | ||
| 74210-2206124 |
GS136..EFI;GS136..(DLX,STD)..HTWC;GS130,LS130,136,MS130,YS130..DLX,STD DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90164-60018 | ||||
| 90189-06030 | ||||
| 90467-10012 | ||||
| 93567-15018 | ||||
ILLUST NO. 2 OF 2(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-3042006 |
GS130..(4HC,5F)..SDX..HTWC;GS130..(4FC,4H)..(DLX,SDX)..HTWC;GS130,136,LS13#,MS130,YS130..(DLX,SDX)..(DSL,EFI,LPG,TD,TDE) SABLE,TRIM3# |
1 | ||
| 74310-3042004 |
GS130,136,LS130,136,MS130,YS130..DLX,SDX,STD BLUE,TRIM8# |
1 | ||
| 74310-3042006 |
GS130,136,LS130,136,YS130..DLX,SDX SABLE,TRIM3# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-3037006 |
GS130..(4HC,5F)..SDX..HTWC;GS130..(4FC,4H)..(DLX,SDX)..HTWC;GS130,136,LS13#,MS130,YS130..(DLX,SDX)..(DSL,EFI,LPG,TD,TDE) SABLE,TRIM3# |
1 | ||
| 74320-3037004 |
GS130,136,LS130,136,MS130,YS130..DLX,SDX,STD BLUE,TRIM8# |
1 | ||
| 74320-3037006 |
GS130,136,LS130,136,YS130..DLX,SDX SABLE,TRIM3# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-3001004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 BLUE,TRIM8# |
2 | ||
| 74348-3001006 |
GS130..(4HC,5F)..SDX..HTWC;GS130..(4FC,4H)..(DLX,SDX)..HTWC;GS130,136,LS13#,MS130,YS130..(DLX,SDX)..(DSL,EFI,LPG,TD,TDE) SABLE,TRIM3# |
2 | ||
| 74348-3001006 |
GS130,136,LS130,136,YS130..DLX,SDX SABLE,TRIM3# |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-3001004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 BLUE,TRIM8# |
2 | ||
| 74348-3001006 |
GS130..(4HC,5F)..SDX..HTWC;GS130..(4FC,4H)..(DLX,SDX)..HTWC;GS130,136,LS13#,MS130,YS130..(DLX,SDX)..(DSL,EFI,LPG,TD,TDE) SABLE,TRIM3# |
2 | ||
| 74348-3001006 |
GS130,136,LS130,136,YS130..DLX,SDX SABLE,TRIM3# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-3010004 |
GS130..WG..SDX;GS136,LS136,YS130;GS130,LS130,MS130..DLX,STD BLUE,TRIM8# |
3 | ||
| 74610-3010006 |
GS130..WG..SDX;GS130,LS130..DLX;GS136,LS136,YS130..DLX,SDX SABLE,TRIM3# |
3 | ||
| 74610-3010006 |
GS130..WG..SDX;GS136,LS136,YS130..DLX,SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130..DLX..(DSL,EFI,LPG) SABLE,TRIM3# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-3010004 |
GS130..WG..SDX;GS136,LS136,YS130;GS130,LS130,MS130..DLX,STD BLUE,TRIM8# |
3 | ||
| 74610-3010006 |
GS130..WG..SDX;GS130,LS130..DLX;GS136,LS136,YS130..DLX,SDX SABLE,TRIM3# |
3 | ||
| 74610-3010006 |
GS130..WG..SDX;GS136,LS136,YS130..DLX,SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130..DLX..(DSL,EFI,LPG) SABLE,TRIM3# |
3 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-3003006 |
GS130..WG..SDX;GS136,LS136,YS130..DLX,SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130..DLX..(DSL,EFI,LPG) SABLE,TRIM3# |
3 | ||
| 74617-3003004 |
GS130..WG..SDX;GS136,LS136,YS130;GS130,LS130,MS130..DLX,STD BLUE,TRIM8# |
3 | ||
| 74617-3003006 |
GS130..WG..SDX;GS130,LS130..DLX;GS136,LS136,YS130..DLX,SDX SABLE,TRIM3# |
3 | ||
| 74627 - PLUG, REAR ASSIST GRIP | ||||
| 74627-3004006 |
GS130..WG..SDX;GS136,LS136,YS130..DLX,SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130..DLX..(DSL,EFI,LPG) SABLE,TRIM3# |
3 | ||
| 74627-3004006 |
GS130..WG..SDX;GS130,LS130..DLX;GS136,LS136,YS130..DLX,SDX SABLE,TRIM3# |
3 | ||
| 74627-3004004 |
GS130..WG..SDX;GS136,LS136,YS130;GS130,LS130,MS130..DLX,STD BLUE,TRIM8# |
3 | ||
| Common parts | ||||
| 90159-60254 | ||||
| 90159-60345 | ||||
| 90162-50010 | ||||
| 93240-16014 | ||||
