LS130-AEMDS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )GS130,LS130,MS130,YS130..DLX,STD

Click highlighted areas on diagram

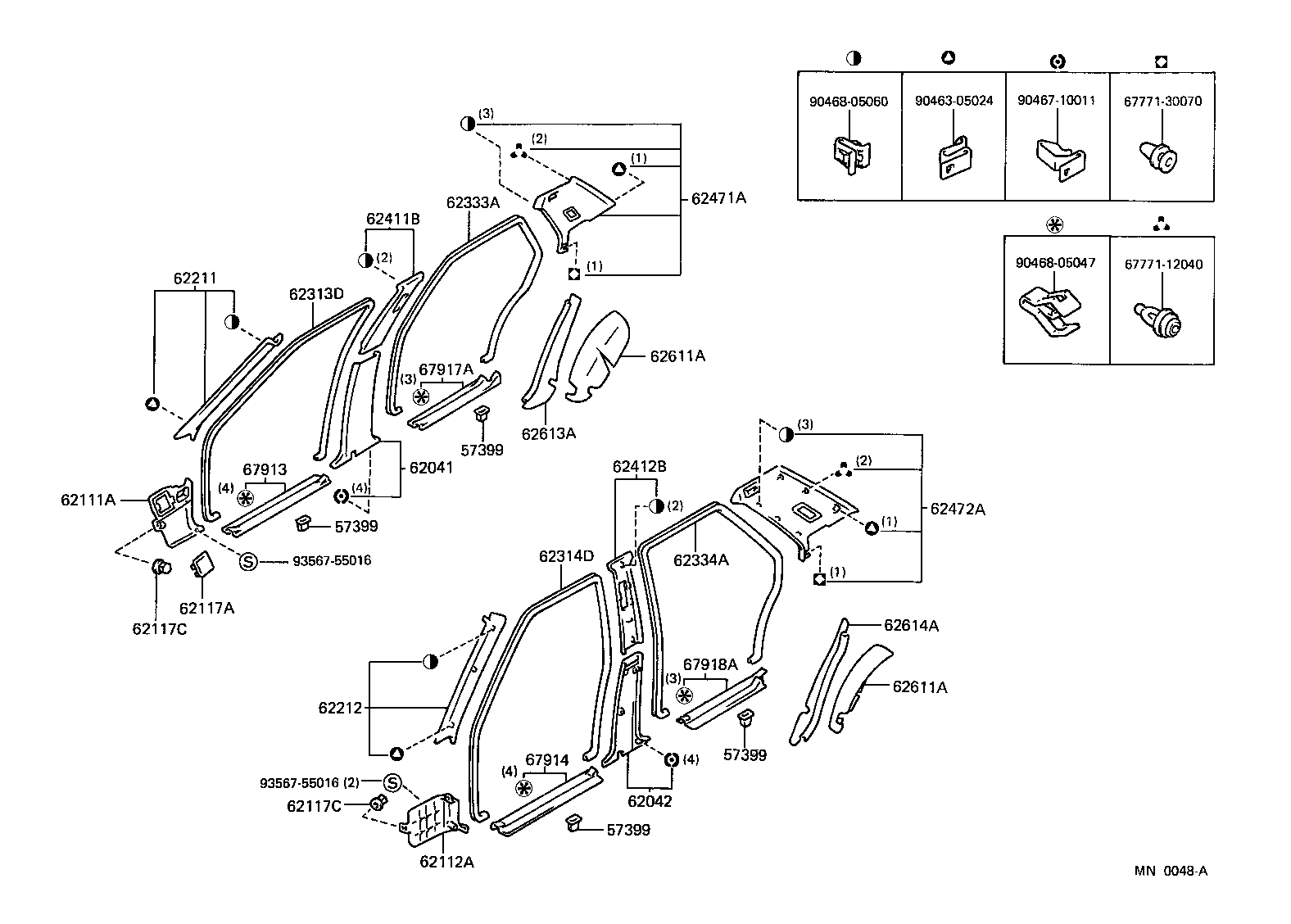

diagram 57399 57399 57399 57399 62041 62042 62111A 62112A 62117A 62117C 62117C 62211 62212 62313D 62314D 62333A 62334A 62411B 62412B 62471A 62472A 62611A 62611A 62613A 62614A 6777112040 6777130070 67913 67914 67917A 67918A 9046305024 9046710011 9046805047 9046805060 9356755016 9356755016
Part # Description Qty Price
57399 - COVER, FRONT STEP HOLE
57399-24010

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 14
57399-24010

GS131..ROY..SPC;GS131..EFI,HTWC,TWC;GS130,136,LS13#,MS13#,YS130

 14
57399 - COVER, FRONT STEP HOLE
57399-24010

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 14
57399-24010

GS131..ROY..SPC;GS131..EFI,HTWC,TWC;GS130,136,LS13#,MS13#,YS130

 14
57399 - COVER, FRONT STEP HOLE
57399-24010

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 14
57399-24010

GS131..ROY..SPC;GS131..EFI,HTWC,TWC;GS130,136,LS13#,MS13#,YS130

 14
57399 - COVER, FRONT STEP HOLE
57399-24010

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 14
57399-24010

GS131..ROY..SPC;GS131..EFI,HTWC,TWC;GS130,136,LS13#,MS13#,YS130

 14
62041 - PANEL SUB-ASSY, CENTER PILLAR GARNISH, LOWER RH
62413-3014002

GS136,LS136,YS130..DLX,SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130..DLX..(DSL,EFI,LPG)

MAROON,TRIM3#

 1
62413-3014004

GS136;GS130,LS130,136,MS130,YS130..DLX,STD

BLUE,TRIM8#

 1
62413-3014002

GS136..DLX,SDX;GS130,LS130,136,YS130..DLX

MAROON,TRIM3#

 1
62042 - PANEL SUB-ASSY, CENTER PILLAR GARNISH, LOWER LH
62414-3007002

GS136,LS136,YS130..DLX,SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130..DLX..(DSL,EFI,LPG)

MAROON,TRIM3#

 1
62414-3007004

GS136;GS130,LS130,136,MS130,YS130..DLX,STD

BLUE,TRIM8#

 1
62414-3007002

GS136..DLX,SDX;GS130,LS130,136,YS130..DLX

MAROON,TRIM3#

 1
62111A - TRIM SUB-ASSY, COWL SIDE, RH
62101-3027004

GS13#,LS13#,MS130,YS130..DLX,SAL,SDX,SPE,SSL,STD

BLUE,TRIM8#

 1
62101-3027002

GS130..(SAL,SDX,SPE)..HTWC;GS130..(4FC,4H)..DLX..HTWC;GS130..(DLX,SAL,SDX,SPE)..EFI;GS131,136,LS13#,MS130,YS130..DLX,SDX,SPE,SSL

MAROON,TRIM3#

 1
62101-3027004

GS13#,LS13#,YS130..DLX,SAL,SDX,SPE,SSL,STD

BLUE,TRIM8#

 1
62101-3027002

GS13#,LS13#,YS130..DLX,SAL,SDX,SPE,SSL

MAROON,TRIM3#

 1
62101-3029002

GS13#,JZS131,LS13#,YS130..DLX,SAL,SDX,SPE,SSL

MAROON,TRIM3#

 1
62101-3029004

GS13#,JZS131,LS13#,YS130..DLX,SAL,SDX,SPE,SSL,STD

BLUE,TRIM8#

 1
62112A - TRIM SUB-ASSY, COWL SIDE, LH
62102-3034002

GS130..(SAL,SDX,SPE)..HTWC;GS130..(4FC,4H)..DLX..HTWC;GS130..(DLX,SAL,SDX,SPE)..EFI;GS131,136,LS13#,MS130,YS130..DLX,SDX,SPE,SSL

MAROON,TRIM3#

 1
62102-3034004

GS13#,JZS131,LS13#,MS130,YS130..DLX,SAL,SDX,SPE,SSL,STD

BLUE,TRIM8#

 1
62102-3034002

GS13#,JZS131,LS13#,YS130..DLX,SAL,SDX,SPE,SSL

MAROON,TRIM3#

 1
62117A - COVER, COWL SIDE TRIM SERVICE HOLE
62117-3003002

GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS13#,YS130..DLX,ROY,ROYG,SALEX,SDX,SPE,SSL

MAROON,TRIM3#

 1
62117-3003102

GS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL

MAROON,TRIM3#

 1
62117-3003202

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL

MAROON,TRIM3#

 1
62117-3003104

GS13#,LS13#,MS13#,UZS131,YS130

BLUE,TRIM8#

 1
62117-3003004

GS13#,LS13#,MS13#,YS130

BLUE,TRIM8#

 1
62117-3003204

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

BLUE,TRIM8#

 1
62117C - CLIP, NO.2(FOR COWL SIDE TRIM)
90467-05050

GS13#,LS13#,MS13#,UZS131,YS130

 2
90467-05050

GS13#,LS13#,MS13#,YS130

 2
90467-05050

GS13#,LS13#,YS130..DLX,SAL,SDX,SPE,SSL,STD

 2
90467-0505001

GS130,136,LS130,136,YS130..DLX,SDX

BLACK,TRIM3#,8#

 2
62117C - CLIP, NO.2(FOR COWL SIDE TRIM)
90467-05050

GS13#,LS13#,MS13#,UZS131,YS130

 2
90467-05050

GS13#,LS13#,MS13#,YS130

 2
90467-05050

GS13#,LS13#,YS130..DLX,SAL,SDX,SPE,SSL,STD

 2
90467-0505001

GS130,136,LS130,136,YS130..DLX,SDX

BLACK,TRIM3#,8#

 2
62211 - GARNISH, FRONT PILLAR, RH
62211-3015006

GS136,LS136,YS130..DLX,SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130..DLX..(DSL,EFI,LPG)

SABLE,TRIM3#

 1
62211-3015004

GS136;GS130,LS130,136,MS130,YS130..DLX,STD

BLUE,TRIM8#

 1
62211-3015006

GS136..DLX,SDX;GS130,LS130,136,YS130..DLX

SABLE,TRIM3#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-3015004

GS136;GS130,LS130,136,MS130,YS130..DLX,STD

BLUE,TRIM8#

 1
62212-3015006

GS136,LS136,YS130..DLX,SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130..DLX..(DSL,EFI,LPG)

SABLE,TRIM3#

 1
62212-3015006

GS136..DLX,SDX;GS130,LS130,136,YS130..DLX

SABLE,TRIM3#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-3012002

GS130..WG..SDX;GS136,LS136,YS130..DLX,SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130..DLX..(DSL,EFI,LPG)

MAROON,TRIM3#

 1
62313-3012004

GS130..WG..SDX;GS136,LS136,YS130;GS130,LS130,MS130..DLX,STD

BLUE,TRIM8#

 1
62313-3012002

GS130..WG..SDX;GS130,LS130..DLX;GS136,LS136,YS130..DLX,SDX

MAROON,TRIM3#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-3004002

GS130..WG..SDX;GS136,LS136,YS130..DLX,SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130..DLX..(DSL,EFI,LPG)

MAROON,TRIM3#

 1
62314-3004002

GS130..WG..SDX;GS130,LS130..DLX;GS136,LS136,YS130..DLX,SDX

MAROON,TRIM3#

 1
62314-3004004

GS130..WG..SDX;GS136,LS136,YS130;GS130,LS130,MS130..DLX,STD

BLUE,TRIM8#

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-3007002

GS130,LS130,YS130..DLX

MAROON,TRIM3#

 1
62333-3007004

GS130,LS130,MS130,YS130..DLX,STD

BLUE,TRIM8#

 1
62333-3007002

GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130,YS130..DLX..(DSL,EFI,LPG)

MAROON,TRIM3#

 1
62334A - TRIM, REAR DOOR OPENING, LH
62334-3001004

GS130,LS130,MS130,YS130..DLX,STD

BLUE,TRIM8#

 1
62334-3001002

GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130,YS130..DLX..(DSL,EFI,LPG)

MAROON,TRIM3#

 1
62334-3001002

GS130,LS130,YS130..DLX

MAROON,TRIM3#

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-3025006

GS136,LS136,YS130..DLX,SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130..DLX..(DSL,EFI,LPG)

SABLE,TRIM3#

 1
62411-3025004

GS136;GS130,LS130,136,MS130,YS130..DLX,STD

BLUE,TRIM8#

 1
62411-3025006

GS136..DLX,SDX;GS130,LS130,136,YS130..DLX

SABLE,TRIM3#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-3025006

GS136,LS136,YS130..DLX,SDX;GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130..DLX..(DSL,EFI,LPG)

SABLE,TRIM3#

 1
62412-3025004

GS136;GS130,LS130,136,MS130,YS130..DLX,STD

BLUE,TRIM8#

 1
62412-3025006

GS136..DLX,SDX;GS130,LS130,136,YS130..DLX

SABLE,TRIM3#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-3021006

GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130,YS130..DLX..(DSL,EFI,LPG)

SABLE,TRIM3#

 1
62471-3021006

GS130,LS130,YS130..DLX

SABLE,TRIM3#

 1
62471-3021004

GS130,LS130,MS130,YS130..DLX,STD

BLUE,TRIM8#

 1
62471-3030006

GS130,LS130,YS130..DLX

ｱﾘ(ﾘﾔ 3ﾎﾟｲﾝﾄ ｼ-ﾄﾍﾞﾙﾄ),SABLE,TRIM3#

 1
62471-3030004

GS130,LS130,YS130..DLX,STD

ｱﾘ(ﾘﾔ 3ﾎﾟｲﾝﾄ ｼ-ﾄﾍﾞﾙﾄ),BLUE,TRIM8#

 1
62472A - GARNISH, ROOF SIDE, INNER LH
62472-3017006

GS130..(4FC,4H)..DLX..HTWC;GS130,LS130,MS130,YS130..DLX..(DSL,EFI,LPG)

SABLE,TRIM3#

 1
62472-3017004

GS130,LS130,MS130,YS130..DLX,STD

BLUE,TRIM8#

 1
62472-3026004

GS130,LS130,YS130..DLX,STD

ｱﾘ(ﾘﾔ 3ﾎﾟｲﾝﾄ ｼ-ﾄﾍﾞﾙﾄ),BLUE,TRIM8#

 1
62472-3017006

GS130,LS130,YS130..DLX

SABLE,TRIM3#

 1
62472-3026006

GS130,LS130,YS130..DLX

ｱﾘ(ﾘﾔ 3ﾎﾟｲﾝﾄ ｼ-ﾄﾍﾞﾙﾄ),SABLE,TRIM3#

 1
62611A - PAD, QUARTER WHEEL HOUSE
62611-30020

GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED

 2
62611A - PAD, QUARTER WHEEL HOUSE
62611-30020

GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED

 2
62613A - COVER, QUARTER WHEEL HOUSE, RH
62610-30030

GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)

 1
62614A - COVER, QUARTER WHEEL HOUSE, LH
62620-30030

GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-3016002

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL

MAROON,TRIM3#

 1
67913-3016002

GS131..ROY..SPC;GS131..EFI,HTWC,TWC;GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX,SPE)..HTWC;GS130,136,LS13#,MS13#,YS130..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,SPC,TD,TDE,TWC)

MAROON,TRIM3#

 1
67913-3016004

GS131..ROY..SPC;GS131..EFI,HTWC,TWC;GS130,136,LS13#,MS13#,YS130

BLUE,TRIM8#

 1
67913-3016004

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

BLUE,TRIM8#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67913-3016002

GS131..ROY..SPC;GS131..EFI,HTWC,TWC;GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX,SPE)..HTWC;GS130,136,LS13#,MS13#,YS130..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,SPC,TD,TDE,TWC)

MAROON,TRIM3#

 1
67913-3016004

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

BLUE,TRIM8#

 1
67913-3016004

GS131..ROY..SPC;GS131..EFI,HTWC,TWC;GS130,136,LS13#,MS13#,YS130

BLUE,TRIM8#

 1
67913-3016002

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL

MAROON,TRIM3#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-3011002

GS131..ROY..SPC;GS131..EFI,HTWC,TWC;GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX,SPE)..HTWC;GS130,136,LS13#,MS13#,YS130..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,SPC,TD,TDE,TWC)

MAROON,TRIM3#

 1
67917-3011004

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

BLUE,TRIM8#

 1
67917-3011002

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL

MAROON,TRIM3#

 1
67917-3011004

GS131..ROY..SPC;GS131..EFI,HTWC,TWC;GS130,136,LS13#,MS13#,YS130

BLUE,TRIM8#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-3009002

GS131..ROY..SPC;GS131..EFI,HTWC,TWC;GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX,SPE)..HTWC;GS130,136,LS13#,MS13#,YS130..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,LPG,SPC,TD,TDE,TWC)

MAROON,TRIM3#

 1
67918-3009004

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

BLUE,TRIM8#

 1
67918-3009002

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL

MAROON,TRIM3#

 1
67918-3009004

GS131..ROY..SPC;GS131..EFI,HTWC,TWC;GS130,136,LS13#,MS13#,YS130

BLUE,TRIM8#

 1
Common parts
67771-12040
67771-30070
90463-05024
90467-10011
90468-05047
90468-05060
93567-55016

(9110-9512)JZS130,LS130..WG ; (9512- )JZS130,LS130

Click highlighted areas on diagram

diagram 55521D 57399 57399 57399 57399 62041 62042 62111A 62112A 62117A 62117C 62117C 62211 62212 62213 62213 62311B 62312B 62331A 62332A 62353C 62354A 62357B 62357B 62411B 62412B 62430A 62431C 62432C 62471A 62471J 62471J 62472A 62520P 62520P 62555 62606A 62614A 62630P 62630Q 62640L 62640P 6404 6404 64702A 64740A 64759C 64759D 64768A 64768B 64770A 64784A 64784B 6777116020 6777120022 6777222010 67913 67914 67917A 67918A 9046305024 904670501501 904670803101 9046710011 9046804013 9046805047 9046805060 9324954012 9353053008 9353053008 9354054010 9356755014 9356755014
Part # Description Qty Price
Common parts
67771-16020
67771-20022
67772-22010
90463-05024
90467-0501501
90467-0803101
90467-10011
90468-04013
90468-05047
90468-05060
93249-54012
93530-53008
93540-54010
93567-55014
Linked diagrams
6404
