LS130-AEMDS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

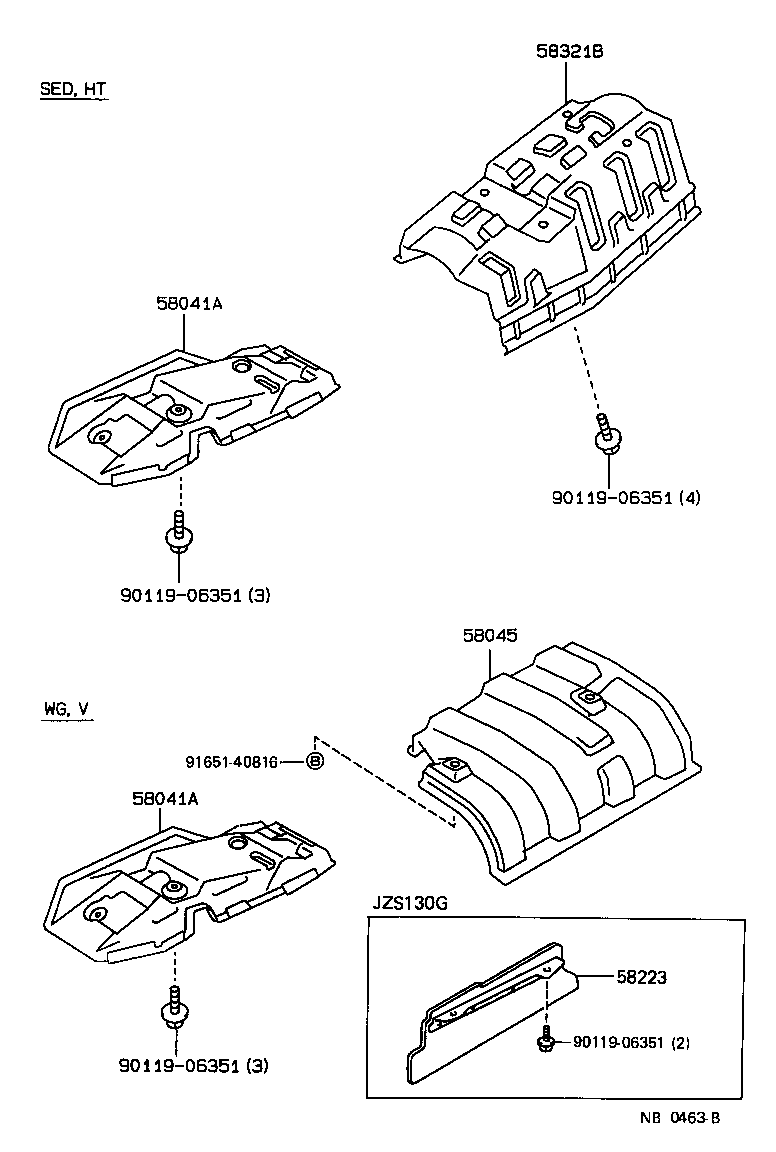

Click highlighted areas on diagram

diagram 58041A 58041A 58045 58223 58321B 9011906351 9011906351 9011906351 9011906351 9165140816
Part # Description Qty Price
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-30050

GS130,LS130,MS130,YS130..HT,SED

 1
Common parts
90119-06351
91651-40816
