LS130-AEMDS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

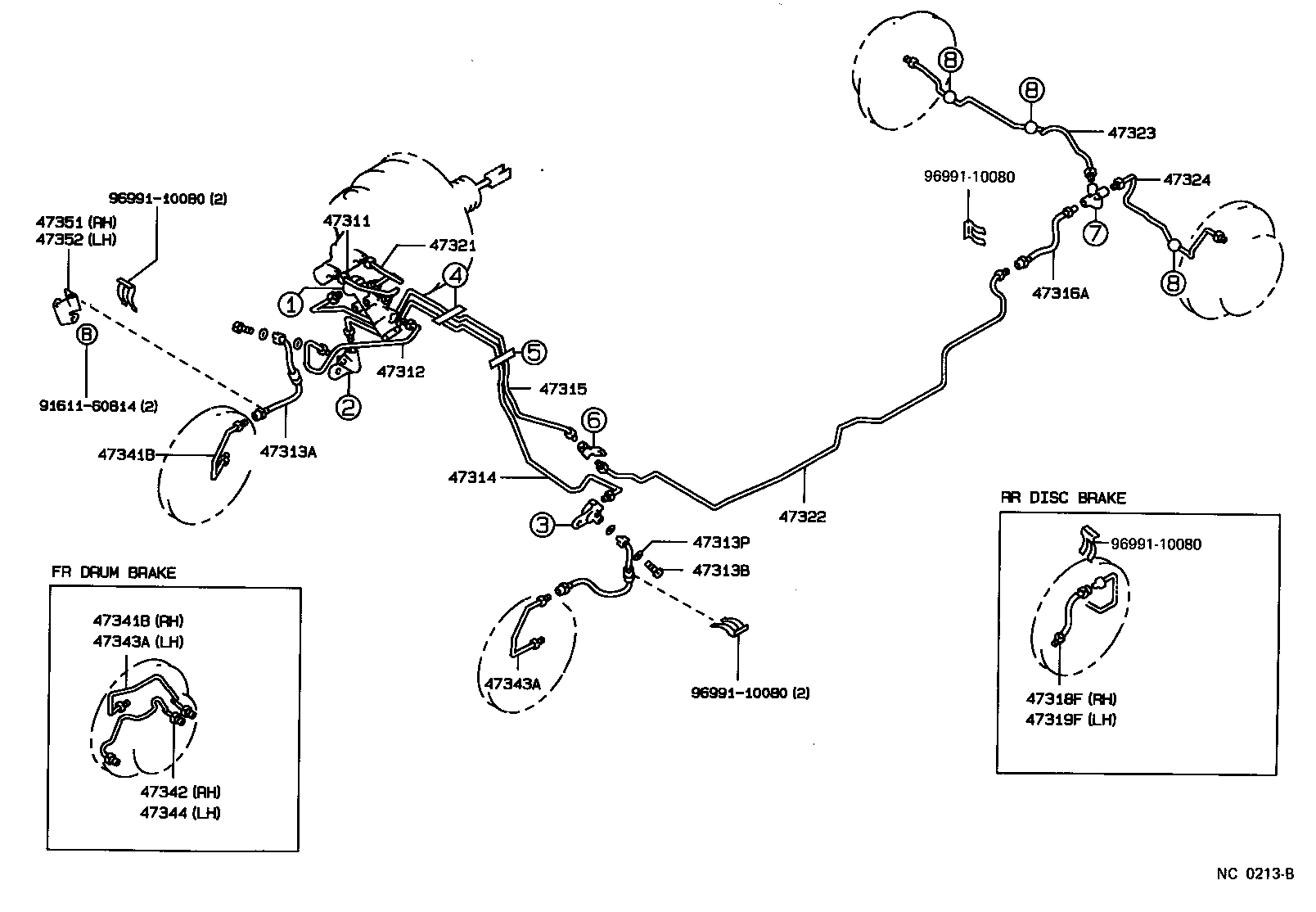

ILLUST NO. 1 OF 3(8709- )GS130,JZS130,LS130,MS130,YS130

Click highlighted areas on diagram

diagram 47311 47312 47313A 47313B 47313P 47314 47315 47316A 47318F 47319F 47321 47322 47323 47324 47341B 47341B 47342 47343A 47343A 47344 47351 47352 9161160814 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-30430

YS130..4HC;YS130..4H..DLX;GS130..STD..HTWC;GS131,136,LS136,MS130,135;GS130,LS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL

 1
47311-30431

YS130..4HC;GS13#,JZS13#,LS131,136,MS135;LS130,YS130..(4FC,4H,5F)..(DLX,SALEX,SDX)

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-30230

GS136;GS130,131,LS13#,MS130,YS130..DSL,EFI,LPEFI,LPG,TD,TDE,TWLPG

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02543

YS130..4HC;YS130..4H..DLX;GS130..STD..HTWC;GS131,136,JZS13#,LS131,136,MS13#,UZS131;GS130,LS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-30200

GS13#,LS13#,MS130,YS130..DSL,EFI,LPG,TD,TDE

 1
47314-30201

GS136;GS130,LS13#,YS130..DSL,LPEFI,TD,TDE,TWLPG

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-30360

GS13#,LS13#,MS130,YS130..DSL,EFI,LPG,TD,TDE

 1
47315-30361

GS136;GS130,LS13#,YS130..DSL,LPEFI,TD,TDE,TWLPG

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32855

GS130,JZS130,LS130,MS130,YS130

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-30150

YS130..4HC;YS130..4H..DLX;GS130..STD..HTWC;GS131,136,LS136,MS130,135;GS130,LS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL

 1
47321-30151

YS130..4HC;GS13#,JZS13#,LS131,136,MS135;LS130,YS130..(4FC,4H,5F)..(DLX,SALEX,SDX)

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-30110

GS130,JZS130,LS130,MS130,YS130

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-30130

GS130,LS130..WG..SALEX;GS130,JZS130,LS130,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-30090

GS130,LS130..WG..SALEX;GS130,JZS130,LS130,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-30030

YS130..4HC;GS13#,JZS13#,LS131,136,MS13#,UZS131;LS130,YS130..(4FC,4H,5F)..(DLX,SALEX,SDX)

 1
47341-30030

YS130..4HC;YS130..4H..DLX;GS130,LS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL;GS130,131..(HT,SED)..(ROY,STD)..(HTWC,SPC);GS131,136,LS136,MS13#..DSL,EFI,HTWC,LPG,TWC

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-30030

YS130..4HC;GS13#,JZS13#,LS131,136,MS13#,UZS131;LS130,YS130..(4FC,4H,5F)..(DLX,SALEX,SDX)

 1
47341-30030

YS130..4HC;YS130..4H..DLX;GS130,LS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL;GS130,131..(HT,SED)..(ROY,STD)..(HTWC,SPC);GS131,136,LS136,MS13#..DSL,EFI,HTWC,LPG,TWC

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-30030

YS130..4HC;YS130..4H..DLX;GS130,LS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL;GS130,131..(HT,SED)..(ROY,STD)..(HTWC,SPC);GS131,136,LS136,MS13#..DSL,EFI,HTWC,LPG,TWC

 1
47343-30030

YS130..4HC;GS13#,JZS13#,LS131,136,MS13#,UZS131;LS130,YS130..(4FC,4H,5F)..(DLX,SALEX,SDX)

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-30030

YS130..4HC;YS130..4H..DLX;GS130,LS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL;GS130,131..(HT,SED)..(ROY,STD)..(HTWC,SPC);GS131,136,LS136,MS13#..DSL,EFI,HTWC,LPG,TWC

 1
47343-30030

YS130..4HC;GS13#,JZS13#,LS131,136,MS13#,UZS131;LS130,YS130..(4FC,4H,5F)..(DLX,SALEX,SDX)

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-30210

GS131..ROY..SPC;GS131..EFI,HTWC,TWC;GS130,136,LS13#,MS13#,YS130

 1
47351-30210

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-30090

GS131..ROY..SPC;GS131..EFI,HTWC,TWC;GS130,136,LS13#,MS13#,YS130

 1
47352-30090

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 1
Common parts
91611-60814
96991-10080

ILLUST NO. 2 OF 3(8709- )

Click highlighted areas on diagram

diagram 47159B 47190 47311B 47312E 47321D 47322B 47371A 47372 47373B 9011906005 9011906398 9046106041 9046106051 9046106902 9046400208 9161160612 9161160612 9161160640 9165540616 9165540616 9165540616 9165540816 9165540820 9165540820
Part # Description Qty Price
47159B - BRACKET, PROPORTIONING & BY-PASS VALVE
47159-30170

GS13#,LS13#,MS13#,YS130

 1
47159-30171

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 1
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-30190

YS130..4HC;YS130..4H..DLX;GS136,LS136,MS130;GS130,LS130..WG..SALEX..(EFI,TDE);GS130,LS130..(DLX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWLPG)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10211

GS13#,JZS13#,LS13#,MS130,135,YS130

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10146

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10144

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10156

GS130,136,JZS130,LS130,136,MS130,YS130

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-30150

GS13#,LS13#,MS130..MTM

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-30130

GS13#,LS13#,MS13#,YS130

 1
47371-30120

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 1
Common parts
90119-06005
90119-06398
90461-06041
90461-06051
90461-06902
90464-00208
91611-60612
91611-60640
91655-40616
91655-40816
91655-40820

(9110-9609)GS130,JZS130,135,LS130,YS130

Click highlighted areas on diagram

diagram 47159B 47190 47311 47311B 47312 47312 47312E 47313A 47313A 47313B 47313B 47313P 47313P 47314 47314 47315 47315 47316A 47321 47321D 47322 47322B 47323 47324 47341B 47343A 47351 47352 47371A 47371A 47372 9011906005 9011906005 9011906635 9046106041 9046808034 9046808034 9046808034 9048001555 9161160612 9161160814 9161160814 9161160825 91611B0640 9165160816 9165160816 91651G0614
Part # Description Qty Price
Common parts
90119-06005
90119-06635
90461-06041
90468-08034
90480-01555
91611-60612
91611-60814
91611-60825
91611-B0640
91651-60816
91651-G0614

ILLUST NO. 1 OF 2(9110-9609)JZS130 ; (9609- )GS130,JZS130,LS130

Click highlighted areas on diagram

ｱﾘ(ABS)

diagram 47311B 47312 47312E 47313 47313A 47313A 47313B 47313B 47313P 47313P 47314 47315 47316 47316A 47321D 47322 47322B 47323 47324 47341B 47343A 47351 47352 47371B 47371C 47374B 47375 9011906635 9011906733 9011908800 9046106041 9046808034 9046808034 9046808034 9048001555 9161160612 9161160814 9161160814 9161160825 9165160816 9165160816 91651G0614
Part # Description Qty Price
Common parts
90119-06635
90119-06733
90119-08800
90461-06041
90468-08034
90480-01555
91611-60612
91611-60814
91611-60825
91651-60816
91651-G0614
