LS130-AEMDS (1987)
Toyota Crown
Production
Sep 1987
-
Oct 1991
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8709-8908)2L,2LT#

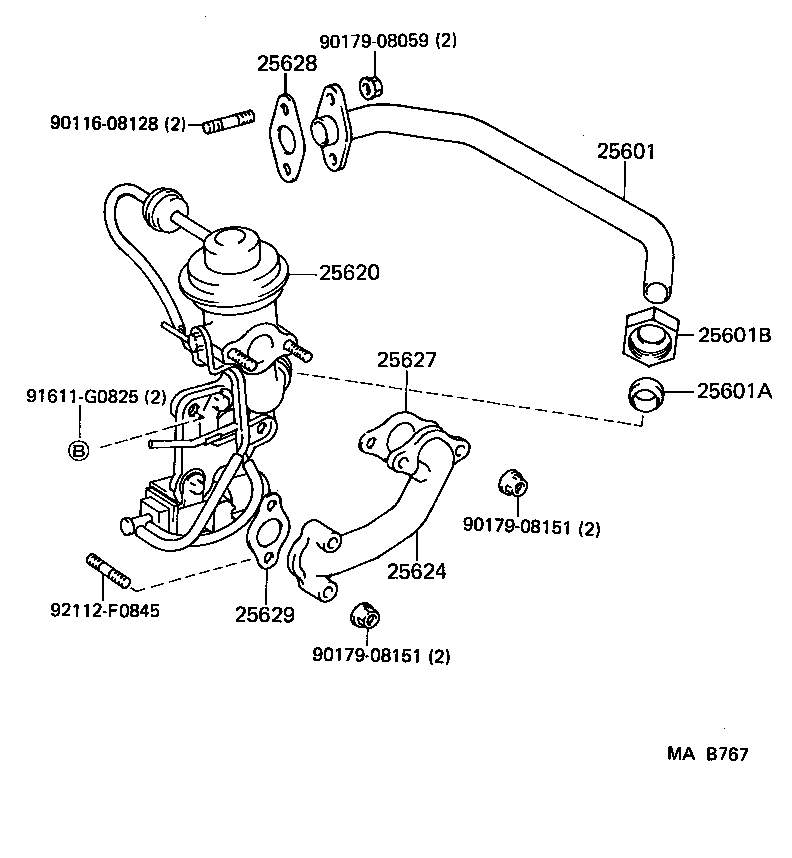

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-54061 |
2L..LS130 |
1 | ||
| 25601-54030 |
2L..LS130 |
1 | ||
| 25601A - SLEEVE, BALL, EGR PIPE, NO.1 | ||||
| 90410-25001 |
2L,2LT#..LS130,131 |
1 | ||
| 25601B - NUT, UNION, EGR PIPE, NO.1 | ||||
| 90402-33001 |
2L,2LT#..LS130,131 |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25800-54020 |
2L,2LT#..LS130 |
1 | ||
| 25620-54080 |
2L,2LT..LS130,131 |
1 | ||
| 25624 - ADAPTER, EGR VALVE | ||||
| 25624-54040 |
2L,2LT#..LS130,131 |
1 | ||
| 25624-54020 |
2L,2LT#..LS130 |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-54010 |
2L,2LT#..LS130 |
1 | ||
| 25627-54011 |
2L,2LT#..LS130,131 |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-54012 |
2L,2LT#..LS130,131 |
1 | ||
| 25628-54011 |
2L,2LT#..LS130 |
1 | ||
| 25629 - GASKET, EGR VALVE ADAPTER | ||||
| 25629-54011 |
2L,2LT#..LS130,131 |
1 | ||
| 25629-54010 |
2L,2LT#..LS130 |
1 | ||
| Common parts | ||||
| 90116-08128 | ||||
| 90179-08059 | ||||
| 90179-08151 | ||||
| 91611-G0825 | ||||
| 92112-F0845 | ||||
(8908- )2L,2LT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-54061 |
2L..LS130 |
1 | ||
| 25601-54030 |
2L..LS130 |
1 | ||
| 25601A - SLEEVE, BALL, EGR PIPE, NO.1 | ||||
| 90410-25001 |
2L,2LT#..LS130,131 |
1 | ||
| 25601B - NUT, UNION, EGR PIPE, NO.1 | ||||
| 90402-33001 |
2L,2LT#..LS130,131 |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25800-54020 |
2L,2LT#..LS130 |
1 | ||
| 25620-54080 |
2L,2LT..LS130,131 |
1 | ||
| 25624 - ADAPTER, EGR VALVE | ||||
| 25624-54040 |
2L,2LT#..LS130,131 |
1 | ||
| 25624-54020 |
2L,2LT#..LS130 |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-54010 |
2L,2LT#..LS130 |
1 | ||
| 25627-54011 |
2L,2LT#..LS130,131 |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-54012 |
2L,2LT#..LS130,131 |
1 | ||
| 25628-54011 |
2L,2LT#..LS130 |
1 | ||
| 25629 - GASKET, EGR VALVE ADAPTER | ||||
| 25629-54011 |
2L,2LT#..LS130,131 |
1 | ||
| 25629-54010 |
2L,2LT#..LS130 |
1 | ||
| 25800 - VALVE ASSY, ELECTRIC EGR CONTROL | ||||
| 25800-54130 |
2L,2LT..LS130,131 |
1 | ||
| Common parts | ||||
| 90116-08260 | ||||
| 90116-08289 | ||||
| 90179-08059 | ||||
| 90179-08151 | ||||
| 91611-G0825 | ||||
| 92112-F0845 | ||||
| Linked diagrams | ||||
| 1708 | ||||
(9110-9512)2LT#,2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-08260 | ||||
| 90179-08059 | ||||
| 90179-08150 | ||||
| 91611-G0825 | ||||
| 91612-60830 | ||||
| 92112-F0845 | ||||
