Toyota Crown LS130 INJECTION PUMP ASSEMBLY

Manufacturers Home
Toyota
JP
CROWN
LS130-AEMDS (1987)
2202 - INJECTION PUMP ASSEMBLY

LS130-AEMDS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991

Engine 2L

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

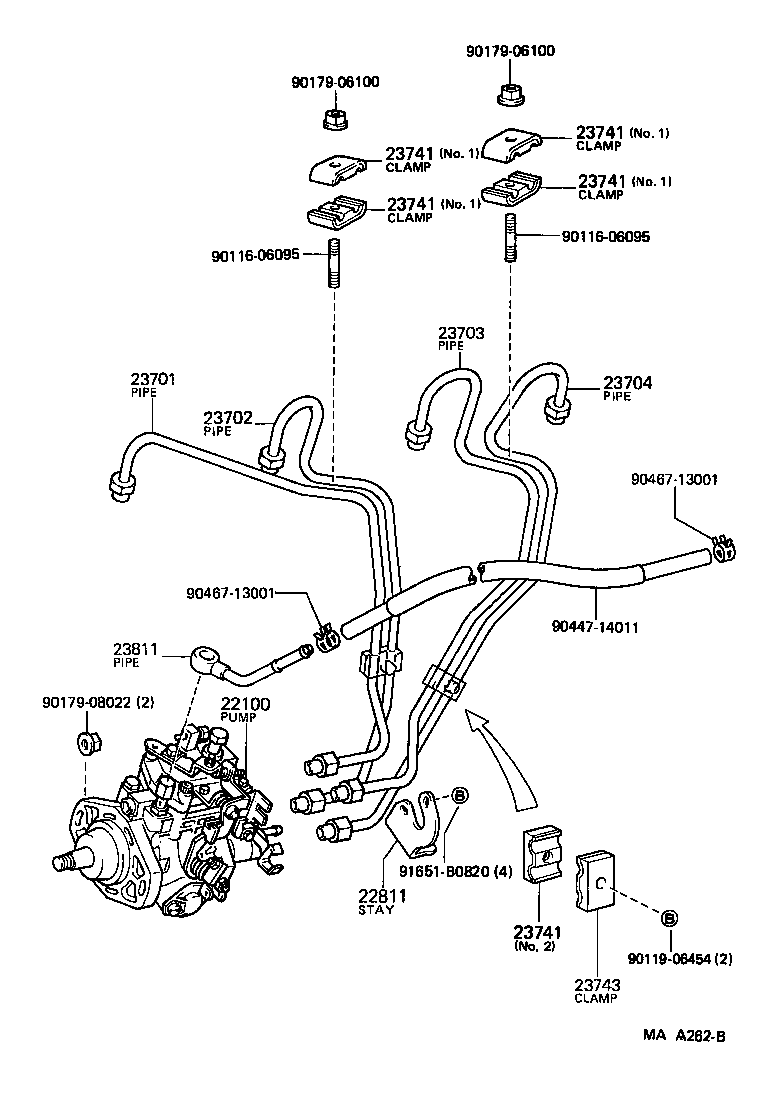

(8709-8908)2L,2LT

Click highlighted areas on diagram

Part #	Description	Period	Qty
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-54620	2L..LS130	09/1987 - 08/1989	1
22100-5B230	2L..LS130	08/1989 - 10/1991	1
22811 - STAY, INJECTION PUMP, NO.1
22811-54041	2L..LS130	08/1989 - 10/1991	1
22811-54040	2L,2LT..LS13#	09/1987 - 01/1988	1
22811-54041	2L,2LT..LS13#	08/1988 - 08/1989	1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-54140	2L,2LT..LS13#	08/1989 - 10/1991	1
23701-54072	2L,2LT..LS13#	03/1989 - 08/1989	1
23701-54082	2L,2LT..LS13#	09/1987 - 03/1989	1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-54071	2L,2LT..LS13#	03/1989 - 08/1989	1
23702-54140	2L..LS130,136	08/1989 - 10/1991	1
23702-54081	2L,2LT..LS13#	09/1987 - 03/1989	1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-54072	2L,2LT#..LS13#	03/1989 - 08/1989	1
23703-54100	2L,2LT#..LS13#	08/1989 - 10/1991	1
23703-54082	2L,2LT#..LS13#	09/1987 - 03/1989	1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-54082	2L,2LT#..LS13#	09/1987 - 01/1989	1
23704-54072	2L,2LT#..LS13#	01/1989 - 08/1989	1
23704-54100	2L,2LT#..LS13#	08/1989 - 10/1991	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010	2L,2LT#..LS13# NO.2	09/1987 - 10/1991	2
23741-56010	2L,2LT#..LS13# NO.1	09/1987 - 10/1991	4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010	2L,2LT#..LS13# NO.2	09/1987 - 10/1991	2
23741-56010	2L,2LT#..LS13# NO.1	09/1987 - 10/1991	4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010	2L,2LT#..LS13# NO.2	09/1987 - 10/1991	2
23741-56010	2L,2LT#..LS13# NO.1	09/1987 - 10/1991	4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010	2L,2LT#..LS13# NO.2	09/1987 - 10/1991	2
23741-56010	2L,2LT#..LS13# NO.1	09/1987 - 10/1991	4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010	2L,2LT#..LS13# NO.2	09/1987 - 10/1991	2
23741-56010	2L,2LT#..LS13# NO.1	09/1987 - 10/1991	4
23743 - CLAMP, INJECTION PIPE, NO.3
23742-54010	2L,2LT#..LS13#	09/1987 - 08/1989	2
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-54190	2L,2LT#..LS13#	08/1989 - 10/1991	1
23811-54100	2L,2LT#..LS13#	09/1987 - 08/1989	1
Common parts
90116-06095
90119-06454
90179-06100
90179-08022
90447-14011
90467-13001
91651-B0820

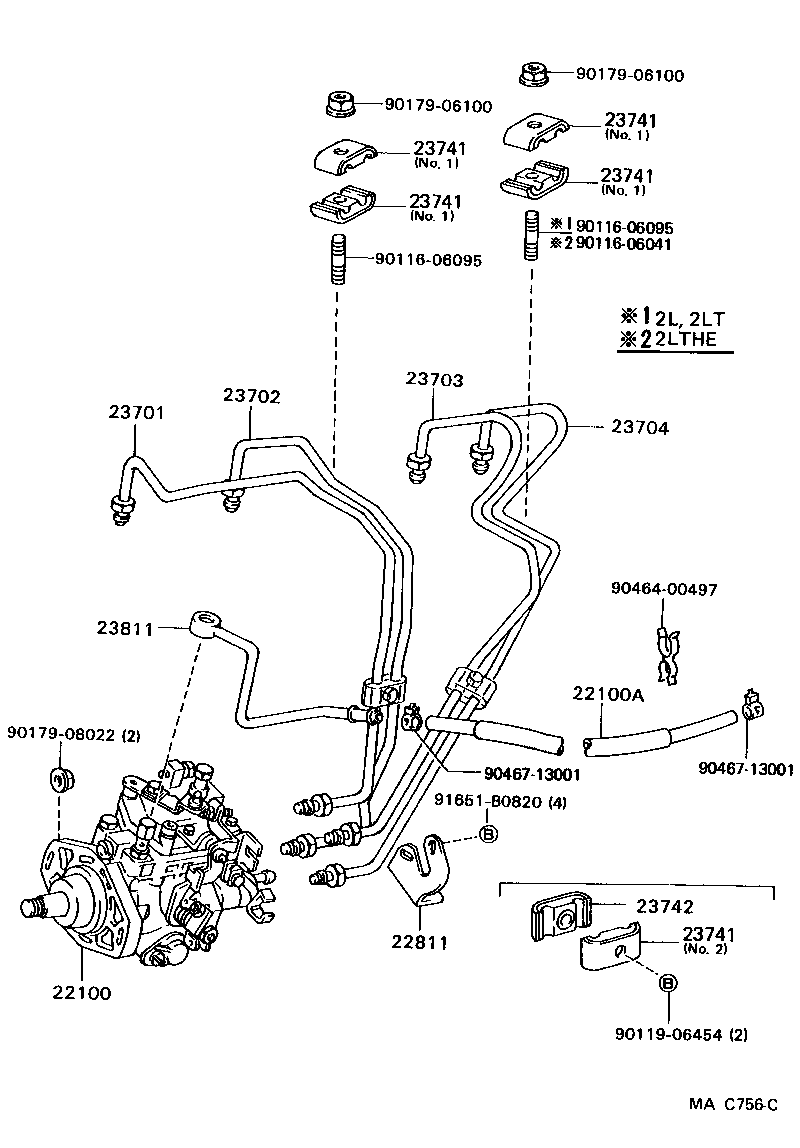

(8908- )2L,2LT#

Click highlighted areas on diagram

Part #	Description	Period	Qty
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-54620	2L..LS130	09/1987 - 08/1989	1
22100-5B230	2L..LS130	08/1989 - 10/1991	1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
90447-14011	2L,2LT#..LS13# 長さ=440	08/1989 - 10/1991	1
22811 - STAY, INJECTION PUMP, NO.1
22811-54041	2L..LS130	08/1989 - 10/1991	1
22811-54040	2L,2LT..LS13#	09/1987 - 01/1988	1
22811-54041	2L,2LT..LS13#	08/1988 - 08/1989	1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-54140	2L,2LT..LS13#	08/1989 - 10/1991	1
23701-54072	2L,2LT..LS13#	03/1989 - 08/1989	1
23701-54082	2L,2LT..LS13#	09/1987 - 03/1989	1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-54071	2L,2LT..LS13#	03/1989 - 08/1989	1
23702-54140	2L..LS130,136	08/1989 - 10/1991	1
23702-54081	2L,2LT..LS13#	09/1987 - 03/1989	1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-54072	2L,2LT#..LS13#	03/1989 - 08/1989	1
23703-54100	2L,2LT#..LS13#	08/1989 - 10/1991	1
23703-54082	2L,2LT#..LS13#	09/1987 - 03/1989	1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-54082	2L,2LT#..LS13#	09/1987 - 01/1989	1
23704-54072	2L,2LT#..LS13#	01/1989 - 08/1989	1
23704-54100	2L,2LT#..LS13#	08/1989 - 10/1991	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010	2L,2LT#..LS13# NO.2	09/1987 - 10/1991	2
23741-56010	2L,2LT#..LS13# NO.1	09/1987 - 10/1991	4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010	2L,2LT#..LS13# NO.2	09/1987 - 10/1991	2
23741-56010	2L,2LT#..LS13# NO.1	09/1987 - 10/1991	4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010	2L,2LT#..LS13# NO.2	09/1987 - 10/1991	2
23741-56010	2L,2LT#..LS13# NO.1	09/1987 - 10/1991	4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010	2L,2LT#..LS13# NO.2	09/1987 - 10/1991	2
23741-56010	2L,2LT#..LS13# NO.1	09/1987 - 10/1991	4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010	2L,2LT#..LS13# NO.2	09/1987 - 10/1991	2
23741-56010	2L,2LT#..LS13# NO.1	09/1987 - 10/1991	4
23742 - CLAMP, INJECTION PIPE, NO.2
23742-54010	2L,2LT#..LS13#	08/1989 - 10/1991	2
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-54190	2L,2LT#..LS13#	08/1989 - 10/1991	1
23811-54100	2L,2LT#..LS13#	09/1987 - 08/1989	1
Common parts
90116-06041
90116-06095
90119-06454
90179-06100
90179-08022
90464-00497
90467-13001
91651-B0820

(9110-9512)2LT#,2L

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90116-06041
90116-06095
90119-06454
90179-06100
90179-08022
90464-00497
90464-00665
90467-13001
91651-60818

LS130-AEMDS (1987)

(8709-8908)2L,2LT

(8908- )2L,2LT#

(9110-9512)2LT#,2L
