LS130-AEMDS (1987)
Toyota Crown
(8709-8908)2L,2LT#
12V 60A

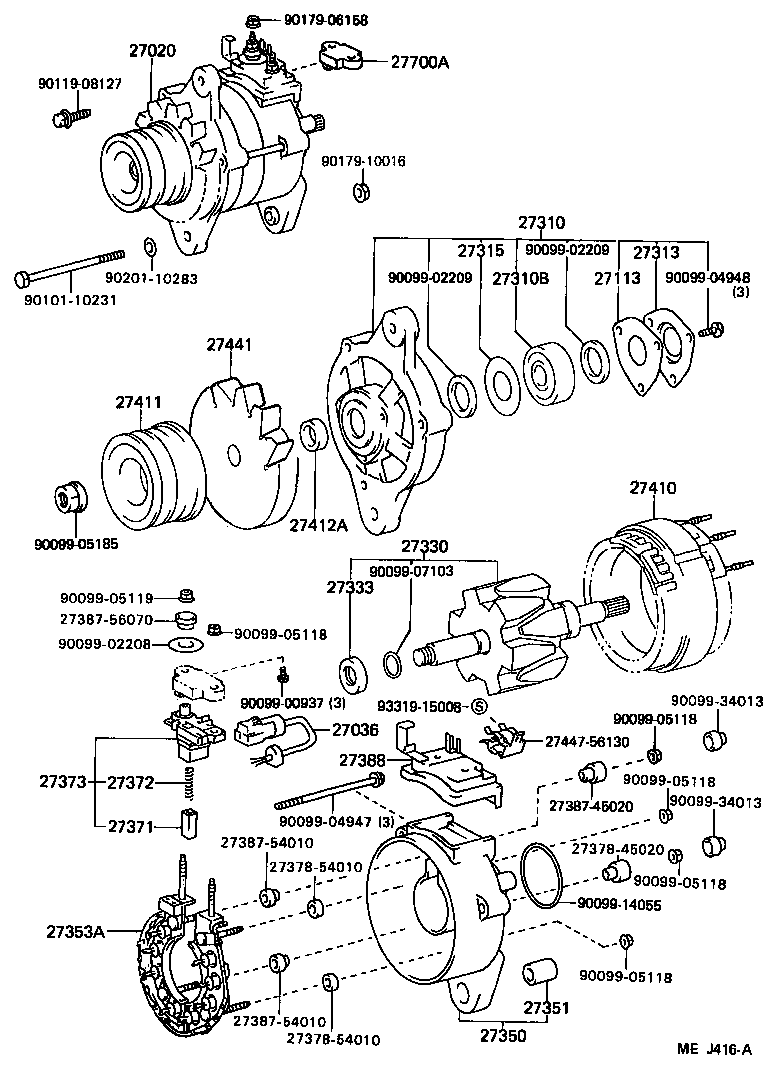

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-54310 |
2L,2LT#..LS13# 12V 60A |
1 | ||
| 27060-54080 |
2L,2LT..LS13# 12V 70A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54310 |
2L,2LT#..LS13# |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-57060 |
2L,2LT#..LS13# |
1 | ||
| 27312-64130 |
2L,2LT#..LS13# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-54130 |
2L,2LT#..LS13# |
1 | ||
| 27310-54500 |
2L,2LT..LS13# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
2L,2LT#..LS13# |
1 | ||
| 90099-10165 |
2L,2LT#..LS13# |
1 | ||
| 27313 - COVER, ALTERNATOR FELT, INNER NO.2 | ||||
| 27313-57060 |
2L,2LT#..LS13# |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
2L,2LT#..LS13# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-54310 |
2L,2LT#..LS13# |
1 | ||
| 27330-64130 |
2L,2LT..LS13# |
1 | ||
| 27333 - COLLAR, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
2L,2LT#..LS13# |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-54130 |
2L,2LT#..LS13# |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
2L,2LT#..LS13# |
1 | ||
| 27353A - HOLDER, W/RECTIFIER | ||||
| 27353-64170 |
2L,2LT#..LS13# |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
2L,2LT#..LS13# |
2 | ||
| 27371-70300 |
1GGP,2L,2LT,3YPE..GS130,LS13#,YS130 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
2L,2LT#..LS13# |
2 | ||
| 27372-72100 |
1GFE,1GGP,2L,2LT,3YPE..GS13#,LS13#,YS130 |
2 | ||
| 27373 - HOLDER, ALTERNATOR BRUSH, A | ||||
| 27373-64170 |
2L,2LT#..LS13# |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-54310 |
2L,2LT#..LS13# |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
2L,2LT#..LS13# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-54170 |
2L,2LT#..LS13# |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
2L,2LT#..LS13# |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-64030 |
2L,2LT#..LS13# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-10061 |
2L,2LT#..LS13# |
1 | ||
| 27700-64040 |
2L,2LT#..LS13# |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27387-45020 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 27447-56130 | ||||
| 90099-00937 | ||||
| 90099-02208 | ||||
| 90099-02209 | ||||
| 90099-04947 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05185 | ||||
| 90099-07103 | ||||
| 90099-14055 | ||||
| 90099-34013 | ||||
| 90101-10231 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 90201-10283 | ||||
| 93319-15008 | ||||
(8908- )2L,2LT
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-54310 |
2L,2LT#..LS13# 12V 60A |
1 | ||
| 27060-54080 |
2L,2LT..LS13# 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72010 |
1GFE,1GGP,2L,2LT,3YPE..GS130,131,LS13#,YS130 |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-57060 |
2L,2LT#..LS13# |
1 | ||
| 27312-64130 |
2L,2LT#..LS13# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-54130 |
2L,2LT#..LS13# |
1 | ||
| 27310-54500 |
2L,2LT..LS13# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
2L,2LT#..LS13# |
1 | ||
| 90099-10165 |
2L,2LT#..LS13# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-54310 |
2L,2LT#..LS13# |
1 | ||
| 27330-64130 |
2L,2LT..LS13# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1GFE,1GG#,2L,2LT#,7MGE,3YPE..GS13#,LS13#,MS13#,YS130 |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52115 |
2L,2LT#..LS13# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63020 |
1GFE,1GGP,2L,2LT,3YPE..GS130,131,LS13#,YS130 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16180 |
2L,2LT..LS13# |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54450 |
2L,2LT..LS13# |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
2L,2LT#..LS13# |
2 | ||
| 27371-70300 |
1GGP,2L,2LT,3YPE..GS130,LS13#,YS130 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
2L,2LT#..LS13# |
2 | ||
| 27372-72100 |
1GFE,1GGP,2L,2LT,3YPE..GS13#,LS13#,YS130 |
2 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1GFE,1GG#,1JZGE,2L,2LT#,7MGE,1UZFE,3YPE..GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-10061 |
2L,2LT#..LS13# |
1 | ||
| 27700-64040 |
2L,2LT#..LS13# |
1 | ||
| 29341 - SEAL, ALTERNATOR OIL | ||||
| 29341-64130 |
2L,2LT#..LS13# |
1 | ||
| Common parts | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 27445-54450 | ||||
| 90099-00167 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05172 | ||||
| 90105-10133 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
