LS130-AEMDS (1987)
Toyota Crown
Production
Sep 1987
-
Oct 1991
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8709- )2L,2LT#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||

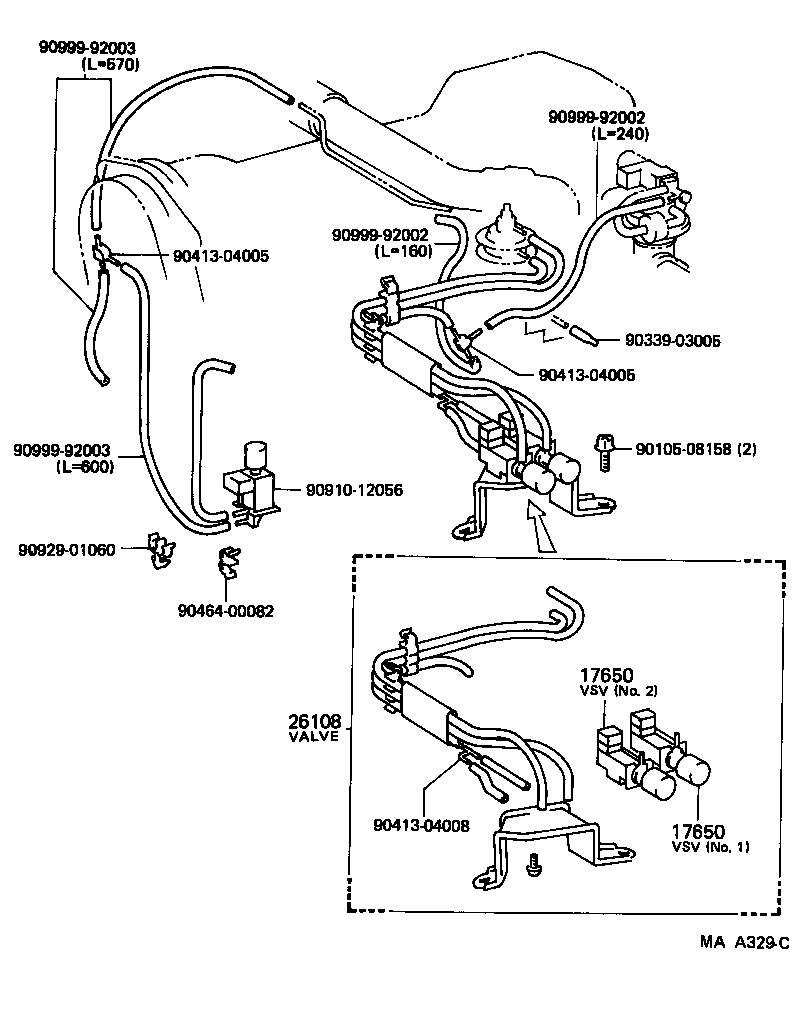

(8709-8908)2L..LS130
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12057 |
2L,2LT..LS130 NO.2 |
1 | ||
| 90910-12058 |
2L,2LT..LS130 NO.1 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12057 |
2L,2LT..LS130 NO.2 |
1 | ||
| 90910-12058 |
2L,2LT..LS130 NO.1 |
1 | ||
| 26108 - VALVE SET, INTAKE AIR CONTROL | ||||
| 26108-54090 |
2L,2LT..LS130,131 |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90413-04008 | ||||
| 90464-00082 | ||||
| 90910-12056 | ||||
| 90929-01060 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
(8908- )2L..LS130
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25819 - VALVE ASSY, VACUUM REGULATING | ||||
| 25819-54080 |
2L,2LT..LS130,131 |
1 | ||
| 25860A - VALVE, VACUUM SWITCHING, NO.1 | ||||
| 90910-12057 |
2L,2LT..LS130,131 NO.2 |
1 | ||
| 90910-12058 |
2L,2LT..LS130,131 NO.1 |
1 | ||
| 25860A - VALVE, VACUUM SWITCHING, NO.1 | ||||
| 90910-12057 |
2L,2LT..LS130,131 NO.2 |
1 | ||
| 90910-12058 |
2L,2LT..LS130,131 NO.1 |
1 | ||
| 26108 - VALVE SET, INTAKE AIR CONTROL | ||||
| 26108-54090 |
2L,2LT..LS130,131 |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90339-05018 | ||||
| 90413-04005 | ||||
| 90413-04008 | ||||
| 90413-04017 | ||||
| 90464-00082 | ||||
| 90464-00175 | ||||
| 90464-00208 | ||||
| 90467-07016 | ||||
| 90910-12056 | ||||
| 90929-01060 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
(9110-9409)2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08158 | ||||
| 90339-05018 | ||||
| 90413-04005 | ||||
| 90413-04008 | ||||
| 90445-11101 | ||||
| 90464-00082 | ||||
| 90464-00107 | ||||
| 90910-12056 | ||||
| 90917-11033 | ||||
| 90929-01060 | ||||
| 90929-01096 | ||||
| 90999-92003 | ||||
| 91621-40812 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 2606 | ||||
