LS130-AEMDS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )2L,2LT#

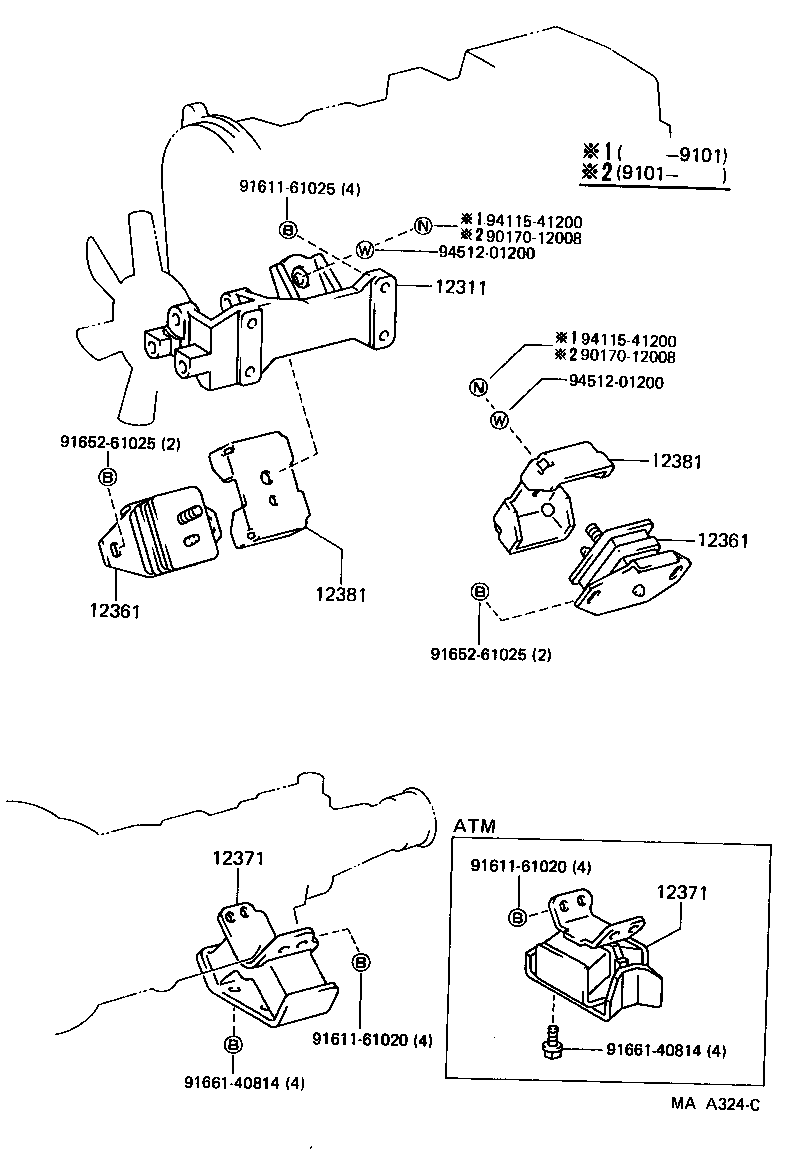

Click highlighted areas on diagram

diagram 12311 12361 12361 12371 12371 12381 12381 9017012008 9017012008 9161161020 9161161020 9161161025 9165261025 9165261025 9166140814 9166140814 9411541200 9411541200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54090

2L,2LT#..LS13#

 1
12311-54160

2L,2LT#..LS13#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54130

2L,2LT#..LS13#

右側

 1
12362-54020

2L,2LT#..LS13#

左側

 1
12362-54021

2L,2LT#..LS13#

左側

 1
12361-54131

2L,2LT#..LS13#

右側

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54130

2L,2LT#..LS13#

右側

 1
12362-54020

2L,2LT#..LS13#

左側

 1
12362-54021

2L,2LT#..LS13#

左側

 1
12361-54131

2L,2LT#..LS13#

右側

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

2L,2LT..LS13#..MTM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

2L,2LT..LS13#..MTM

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-54010

2L,2LT#..LS13#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54010

2L,2LT#..LS13#

 2
Common parts
90170-12008
91611-61020
91611-61025
91652-61025
91661-40814
94115-41200
94512-01200
