LS130-AEJDS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 2L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

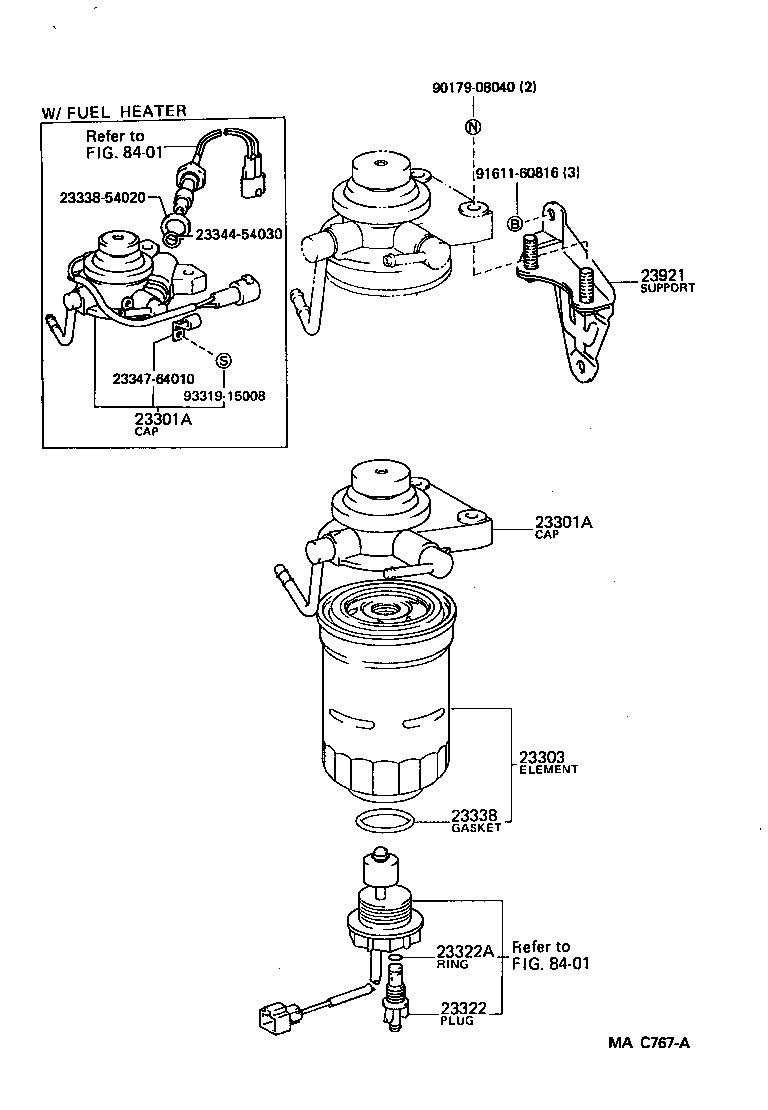

(8908- )2L,2LT#

Click highlighted areas on diagram

diagram 23301A 23301A 23303 23322 23322A 23338 2333854020 2334454030 2334764010 23921 8401 8401 9017908040 9161160816 9331915008
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23301-54360

2L,2LT#..LS13#

ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ)

 1
23301-54350

2L,2LT#..LS13#

 1
23301A - CAP ASSY, FUEL FILTER
23301-54360

2L,2LT#..LS13#

ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ)

 1
23301-54350

2L,2LT#..LS13#

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

2L,2LT#..LS13#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010

2L,2LT#..LS13#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

2L,2LT#..LS13#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

2L,2LT#..LS13#

 1
23921 - SUPPORT, FUEL FILTER
23921-54240

2L,2LT#..LS13#

 1
Common parts
23338-54020
23344-54030
23347-64010
90179-08040
91611-60816
93319-15008
Linked diagrams
8401

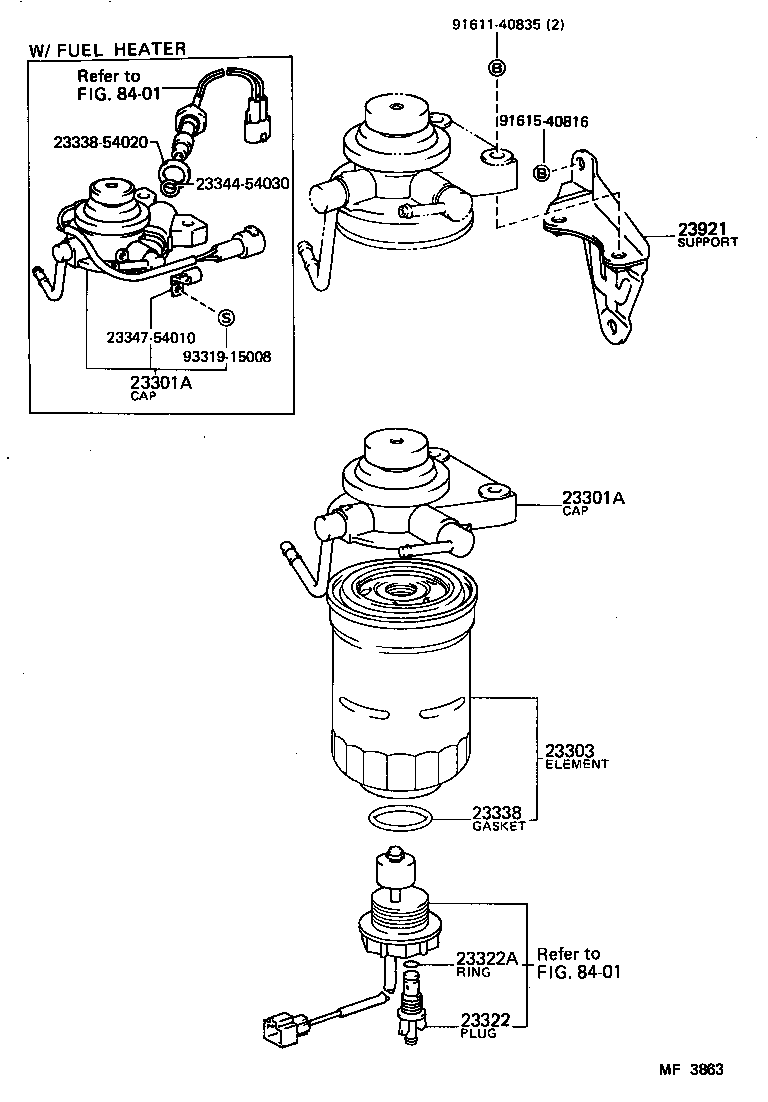

(8709-8908)2L,2LT#

Click highlighted areas on diagram

diagram 23301A 23301A 23303 23322 23322A 23338 2333854020 2334454030 2334754010 23921 8401 8401 9161140835 9161540816 9331915008
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23301-54360

2L,2LT#..LS13#

ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ)

 1
23301-54350

2L,2LT#..LS13#

 1
23301A - CAP ASSY, FUEL FILTER
23301-54360

2L,2LT#..LS13#

ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ)

 1
23301-54350

2L,2LT#..LS13#

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

2L,2LT#..LS13#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010

2L,2LT#..LS13#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

2L,2LT#..LS13#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

2L,2LT#..LS13#

 1
23921 - SUPPORT, FUEL FILTER
23921-54240

2L,2LT#..LS13#

 1
Common parts
23338-54020
23344-54030
23347-54010
91611-40835
91615-40816
93319-15008
Linked diagrams
8401
