LS126V-SXPDS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )GS126,LS126 ; (8308- )GS120,LS120,YS120..STD

Click highlighted areas on diagram

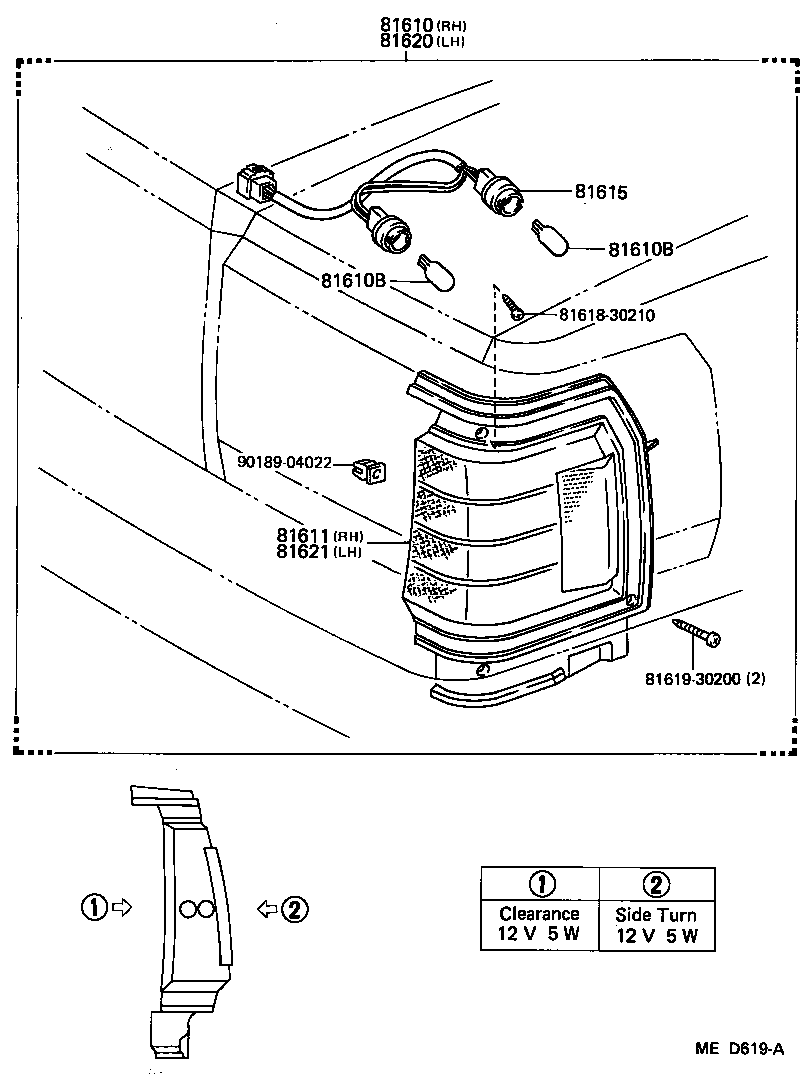

diagram 81610 81610B 81610B 81611 81615 8161830210 8161930200 81620 81621 9018904022
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-39805

GS126,LS126..DLX,STD;GS120,LS120,YS120..STD

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

GS12#,LS12#,MS12#,YS120

12V 5W,12V 5W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

GS12#,LS12#,MS12#,YS120

12V 5W,12V 5W

 4
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-30190

GS126,LS126..DLX,STD;GS120,LS120,YS120..STD

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-30200

GS126,LS126;GS120,LS120,YS120..STD

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-39805

GS126,LS126..DLX,STD;GS120,LS120,YS120..STD

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-30190

GS126,LS126..DLX,STD;GS120,LS120,YS120..STD

 1
Common parts
81618-30210
81619-30200
90189-04022
