LS126V-SXPDS (1983)
Toyota Crown

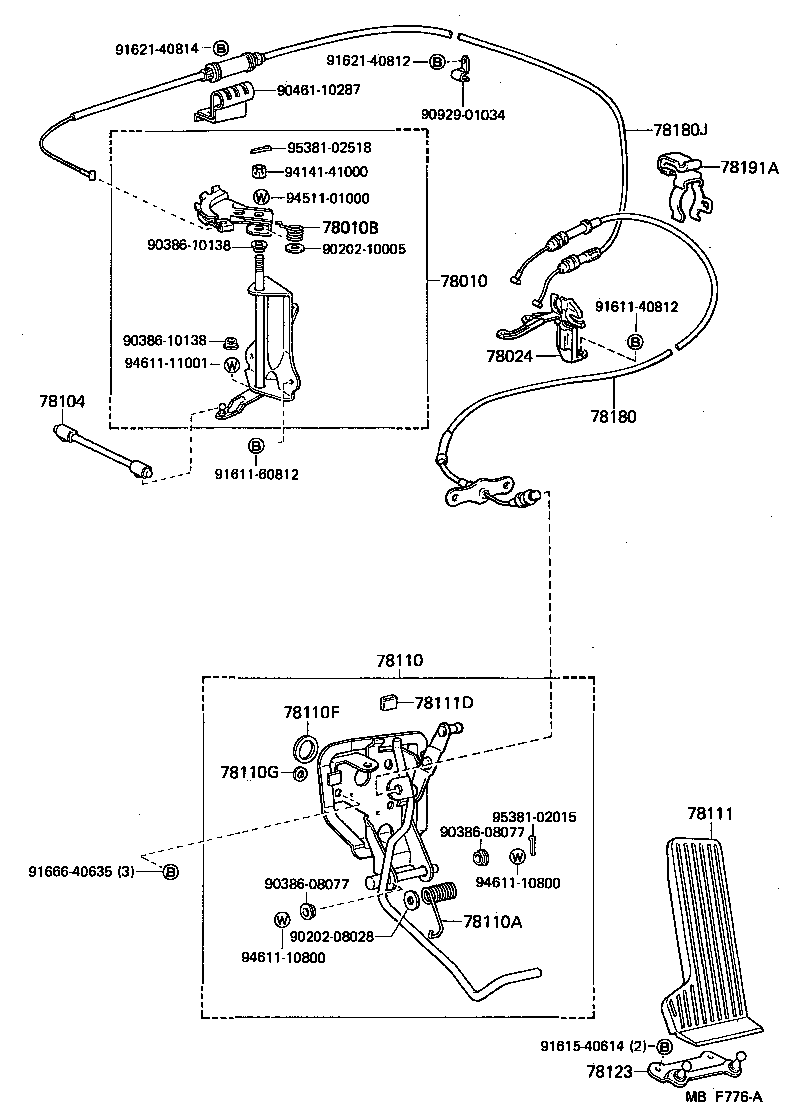

ILLUST NO. 1 OF 2(8308- )LS12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010 - LINK, ACCELERATOR | ||||
| 78100-30490 |
LS12#..DSL,TD |
1 | ||
| 78010B - SPRING, TORSION (FOR ACCELERATOR LINK) | ||||
| 90508-16010 |
LS12#..DSL,TD |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-30040 |
LS12# |
1 | ||
| 78024-30020 |
GS120,126 |
1 | ||
| 78024-30041 |
LS12# |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-30120 |
LS12#..DSL,TD |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-30440 |
GS120,121,LS12#,MS12#..ATM COLD SPEC |
1 | ||
| 78120-30460 |
GS120,121,LS12#,MS123,125..ATM |
1 | ||
| 78120-30500 |
GS120,121,LS12#..ATM COLD SPEC |
1 | ||
| 78120-30500 |
GS120,121,LS12#,MS123,125..ATM COLD SPEC |
1 | ||
| 78120-30460 |
GS120,121,LS12#..ATM |
1 | ||
| 78120-30440 |
GS120,121,LS12#..ATM COLD SPEC |
1 | ||
| 78120-30370 |
GS120,121,LS12#,MS120..ATM |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-23026 |
GS120,121,LS12#,MS12#..ATM COLD SPEC |
1 | ||
| 90508-18016 |
GS120,121,LS12#,MS12#..ATM |
1 | ||
| 78110F - SEAL, NO.1 (FOR ACCELERATOR PEDAL ROD) | ||||
| 78129-30050 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 78110G - SEAL, NO.2 (FOR ACCELERATOR PEDAL ROD) | ||||
| 78139-30050 |
GS12#,LS12#,MS12#,YS120 |
3 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-30080 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 78111-12100 |
GS12#,LS12#,MS12#,YS120 COLD SPEC |
1 | ||
| 78111D - STOPPER (FOR ACCELERATOR PEDAL) | ||||
| 78119-30050 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 78123 - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 78114-30050 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-30570 |
LS12# |
1 | ||
| 78180-30400 |
GS120,126 |
1 | ||
| 78180J - WIRE ASSY, ACCELERATOR, NO.2 | ||||
| 21960-54020 |
LS12#..4FC..DSL |
1 | ||
| 78191A - CLAMP (FOR ACCELERATOR WIRE SET) | ||||
| 78183-30070 |
GS121,LS12#,MS12#,YS120..DSL,LPG,SPC,TD,TDE,TWC |
1 | ||
| Common parts | ||||
| 90202-08028 | ||||
| 90202-10005 | ||||
| 90386-08077 | ||||
| 90386-10138 | ||||
| 90461-10287 | ||||
| 90929-01034 | ||||
| 91611-40812 | ||||
| 91611-60812 | ||||
| 91615-40614 | ||||
| 91621-40812 | ||||
| 91621-40814 | ||||
| 91666-40635 | ||||
| 94141-41000 | ||||
| 94511-01000 | ||||
| 94611-10800 | ||||
| 94611-11001 | ||||
| 95381-02015 | ||||
| 95381-02518 | ||||

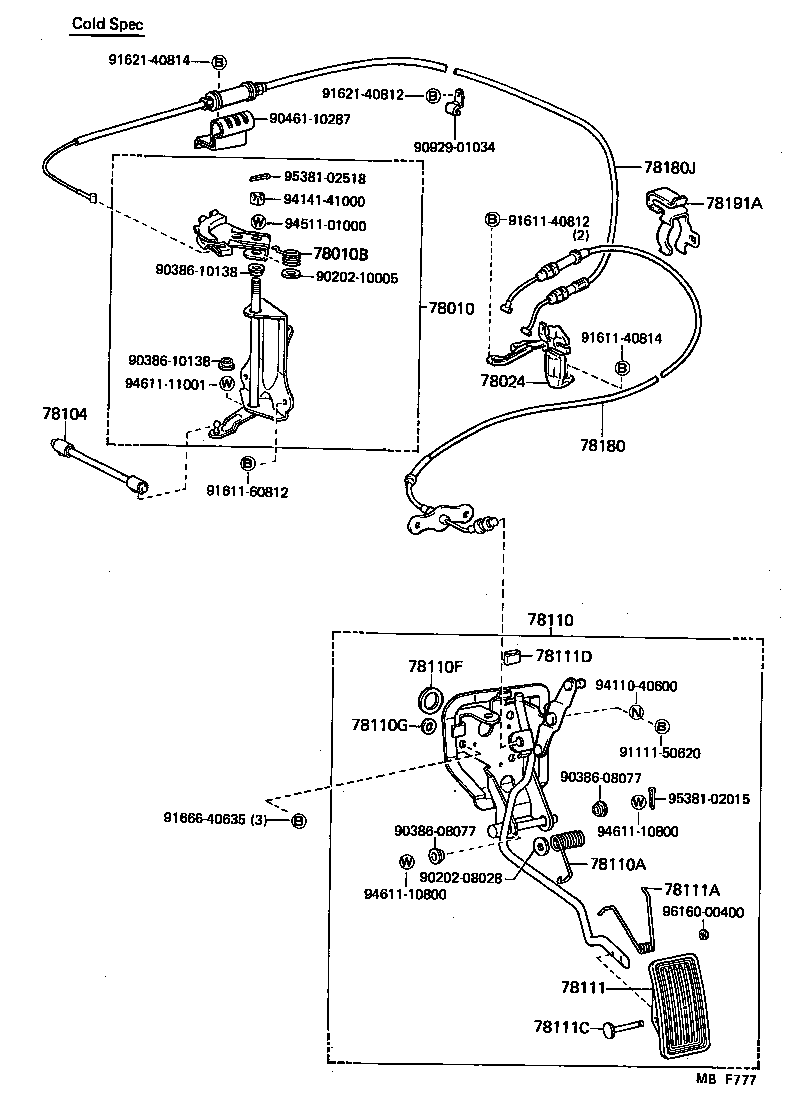

ILLUST NO. 2 OF 2(8308- )LS12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010 - LINK, ACCELERATOR | ||||
| 78100-30490 |
LS12#..DSL,TD |
1 | ||
| 78010B - SPRING, TORSION (FOR ACCELERATOR LINK) | ||||
| 90508-16010 |
LS12#..DSL,TD |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-30040 |
LS12# |
1 | ||
| 78024-30020 |
GS120,126 |
1 | ||
| 78024-30041 |
LS12# |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-30120 |
LS12#..DSL,TD |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-30440 |
GS120,121,LS12#,MS12#..ATM COLD SPEC |
1 | ||
| 78120-30460 |
GS120,121,LS12#,MS123,125..ATM |
1 | ||
| 78120-30500 |
GS120,121,LS12#..ATM COLD SPEC |
1 | ||
| 78120-30500 |
GS120,121,LS12#,MS123,125..ATM COLD SPEC |
1 | ||
| 78120-30460 |
GS120,121,LS12#..ATM |
1 | ||
| 78120-30440 |
GS120,121,LS12#..ATM COLD SPEC |
1 | ||
| 78120-30370 |
GS120,121,LS12#,MS120..ATM |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-23026 |
GS120,121,LS12#,MS12#..ATM COLD SPEC |
1 | ||
| 90508-18016 |
GS120,121,LS12#,MS12#..ATM |
1 | ||
| 78110F - SEAL, NO.1 (FOR ACCELERATOR PEDAL ROD) | ||||
| 78129-30050 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 78110G - SEAL, NO.2 (FOR ACCELERATOR PEDAL ROD) | ||||
| 78139-30050 |
GS12#,LS12#,MS12#,YS120 |
3 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-30080 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 78111-12100 |
GS12#,LS12#,MS12#,YS120 COLD SPEC |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-16064 |
GS12#,LS12#,MS12#,YS120 COLD SPEC |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
GS12#,LS12#,MS12#,YS120 COLD SPEC |
1 | ||
| 78111D - STOPPER (FOR ACCELERATOR PEDAL) | ||||
| 78119-30050 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-30570 |
LS12# |
1 | ||
| 78180-30400 |
GS120,126 |
1 | ||
| 78180J - WIRE ASSY, ACCELERATOR, NO.2 | ||||
| 21960-54020 |
LS12#..4FC..DSL |
1 | ||
| 78191A - CLAMP (FOR ACCELERATOR WIRE SET) | ||||
| 78183-30070 |
GS121,LS12#,MS12#,YS120..DSL,LPG,SPC,TD,TDE,TWC |
1 | ||
| Common parts | ||||
| 90202-08028 | ||||
| 90202-10005 | ||||
| 90386-08077 | ||||
| 90386-10138 | ||||
| 90461-10287 | ||||
| 90929-01034 | ||||
| 91111-50620 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91611-60812 | ||||
| 91621-40812 | ||||
| 91621-40814 | ||||
| 91666-40635 | ||||
| 94110-40600 | ||||
| 94141-41000 | ||||
| 94511-01000 | ||||
| 94611-10800 | ||||
| 94611-11001 | ||||
| 95381-02015 | ||||
| 95381-02518 | ||||
| 96160-00400 | ||||
