LS126V-SXPDS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )V,WG

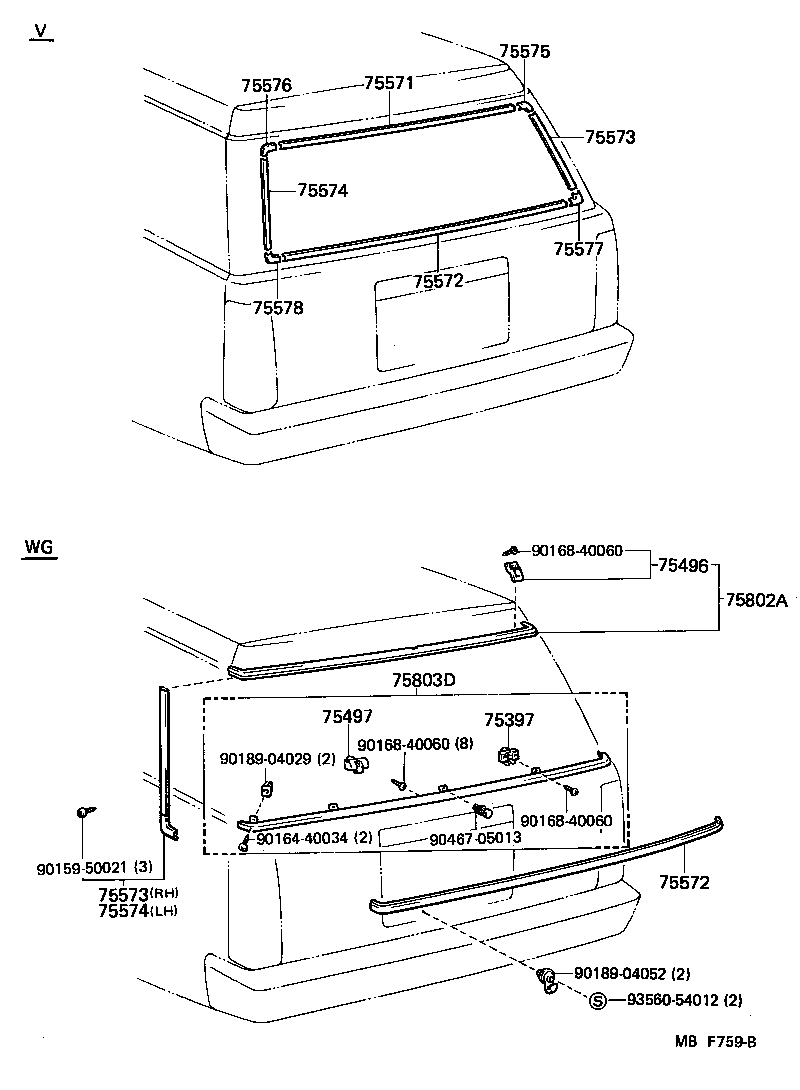

Click highlighted areas on diagram

diagram 75397 75496 75497 75571 75572 75572 75573 75573 75574 75574 75575 75576 75577 75578 75802A 75803D 9015950021 9016440034 9016840060 9016840060 9016840060 9018904029 9018904052 9046705013 9356054012
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-91704

GS126,LS126

 1
75572 - MOULDING, BACK WINDOW, LOWER
75575-91704

GS126,LS126

 1
75572 - MOULDING, BACK WINDOW, LOWER
75575-91704

GS126,LS126

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-91702

GS126,LS126

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-91702

GS126,LS126

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75573-91702

GS126,LS126

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75573-91702

GS126,LS126

 1
75575 - MOULDING, BACK WINDOW CORNER, UPPER RH
75581-91701

GS126,LS126

 1
75576 - MOULDING, BACK WINDOW CORNER, UPPER LH
75581-91701

GS126,LS126

 1
75577 - MOULDING, BACK WINDOW CORNER, LOWER RH
75583-91701

GS126,LS126

 1
75578 - MOULDING, BACK WINDOW CORNER, LOWER LH
75583-91701

GS126,LS126

 1
Common parts
90159-50021
90164-40034
90168-40060
90189-04029
90189-04052
90467-05013
93560-54012
