LS120G-SWPGT (1983)

Toyota Crown

Production Aug 1983 - Aug 1984
Engine 2LTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

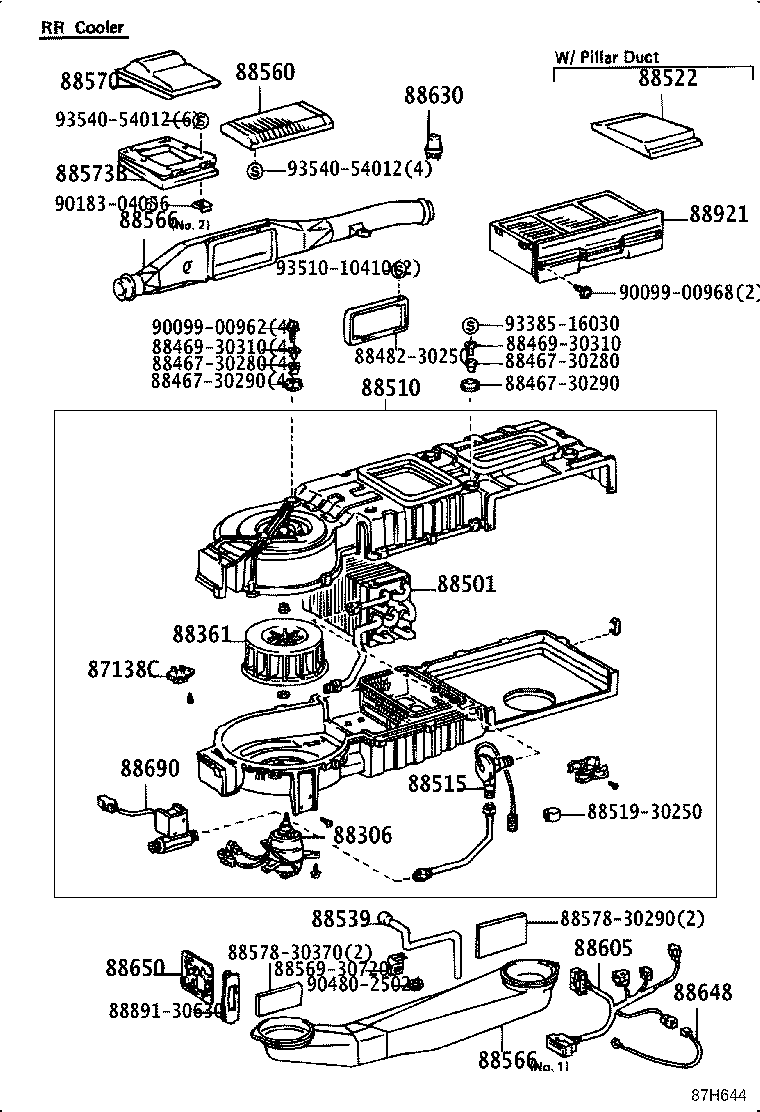

ILLUST NO. 2 OF 3(8308- )GS120,LS120,MS120 ; (8405- )GS121..SPE,SSL

Click highlighted areas on diagram

diagram 87138C 88306 88361 8846730280 8846730280 8846730290 8846730290 8846930310 8846930310 8848230250 88501 88510 88515 8851930250 88522 88539 88560 88566 88566 8856930720 88570 88573B 8857830290 8857830370 88605 88630 88648 88650 88690 8889130630 88921 9009900962 9009900968 9018304056 9048025024 9338516030 9351010410 9354054012 9354054012
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30590

LS12#,MS120..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,TBO,TD,TDE)

 1
88510 - UNIT ASSY, COOLER
88510-3A060

GS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)

 1
88515 - VALVE, COOLER EXPANSION
88515-22070

GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC)

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30590

GS12#,LS12#,MS12#,YS120

FR COOLER

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88608-30480

GS120,LS120..WG..SAL

FRONT COOLER W/*AAC

 1
88630 - RELAY ASSY, COOLER
90987-03001

GS12#,LS12#,MS123,125

B4 TYPE

 5
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-30470

GS120,LS120..WG..SAL

FR COOLER,W/*AAC

 1
Common parts
88467-30280
88467-30290
88469-30310
88482-30250
88519-30250
88569-30720
88578-30290
88578-30370
88891-30630
90099-00962
90099-00968
90183-04056
90480-25024
93385-16030
93510-10410
93540-54012

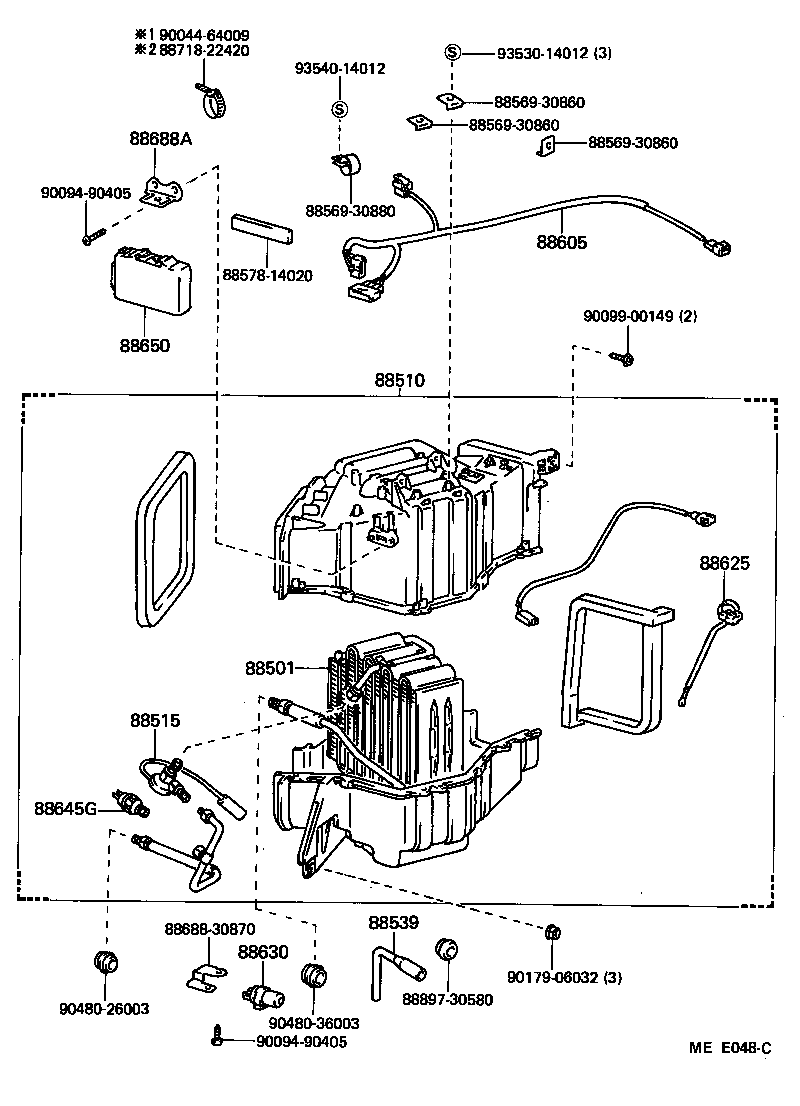

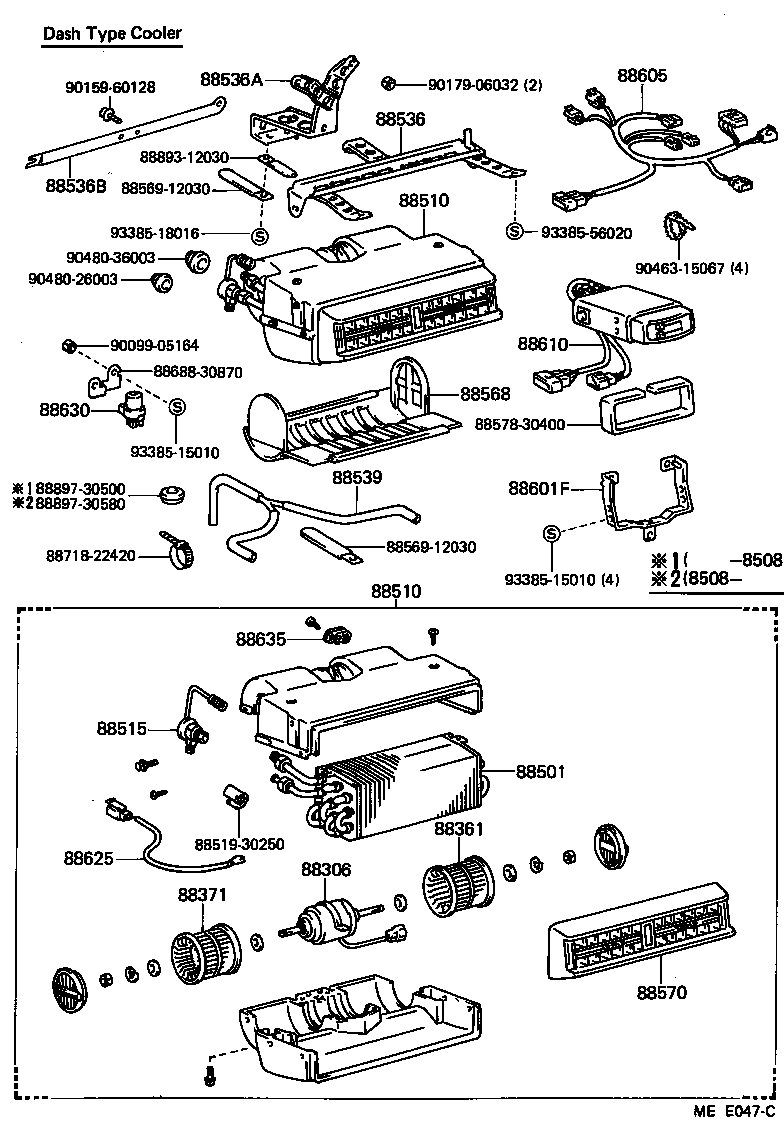

ILLUST NO. 1 OF 3(8308- )LPG ; (8308- )LS120..STD ; (8308-)GS120..5F..STD ; (8308- )LS1

Click highlighted areas on diagram

diagram 88306 88361 88371 88501 88510 88510 88515 8851930250 88536 88536A 88536B 88539 88568 8856912030 8856912030 88570 8857830400 88601F 88605 88610 88625 88630 88635 8868830870 8871822420 8889312030 8889730500 8889730580 9009905164 9015960128 9017906032 9046315067 9048026003 9048036003 9338515010 9338515010 9338518016 9338556020
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30590

LS12#,MS120..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,TBO,TD,TDE)

 1
88510 - UNIT ASSY, COOLER
88510-3A060

GS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)

 1
88510 - UNIT ASSY, COOLER
88510-3A060

GS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)

 1
88515 - VALVE, COOLER EXPANSION
88515-22070

GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC)

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30590

GS12#,LS12#,MS12#,YS120

FR COOLER

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88608-30480

GS120,LS120..WG..SAL

FRONT COOLER W/*AAC

 1
88630 - RELAY ASSY, COOLER
90987-03001

GS12#,LS12#,MS123,125

B4 TYPE

 5
Common parts
88519-30250
88569-12030
88578-30400
88688-30870
88718-22420
88893-12030
88897-30500
88897-30580
90099-05164
90159-60128
90179-06032
90463-15067
90480-26003
90480-36003
93385-15010
93385-18016
93385-56020

ILLUST NO. 1 OF 3(8308- )LPG ; (8308- )LS120..STD ; (8308-)GS120..5F..STD ; (8308- )LS1

Click highlighted areas on diagram

diagram 88501 88510 88515 88539 8856930860 8856930860 8856930860 8856930880 8857814020 88605 88625 88630 88645G 88650 8868830870 88688A 8871822420 8889730580 9004464009 9009490405 9009490405 9009900149 9017906032 9048026003 9048036003 9353014012 9354014012
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30590

LS12#,MS120..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,TBO,TD,TDE)

 1
88510 - UNIT ASSY, COOLER
88510-3A060

GS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)

 1
88515 - VALVE, COOLER EXPANSION
88515-22070

GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC)

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30590

GS12#,LS12#,MS12#,YS120

FR COOLER

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88608-30480

GS120,LS120..WG..SAL

FRONT COOLER W/*AAC

 1
88630 - RELAY ASSY, COOLER
90987-03001

GS12#,LS12#,MS123,125

B4 TYPE

 5
88645G - SWITCH, PRESSURE
88645-12010

GS120,126,LS12#,MS120,YS120

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-30470

GS120,LS120..WG..SAL

FR COOLER,W/*AAC

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-30830

GS120,LS120..WG..SAL

W/*AAC

 1
Common parts
88569-30860
88569-30880
88578-14020
88688-30870
88718-22420
88897-30580
90044-64009
90094-90405
90099-00149
90179-06032
90480-26003
90480-36003
93530-14012
93540-14012

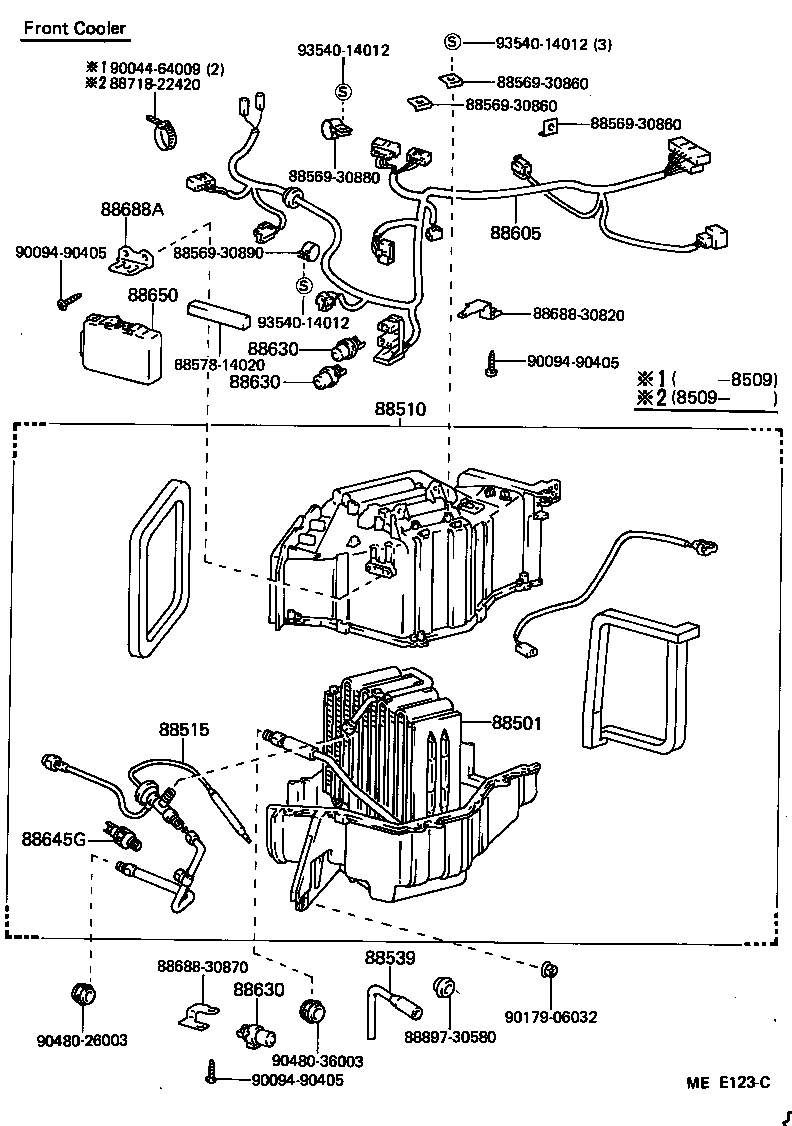

ILLUST NO. 1 OF 3(8308- )GS120,126,LS12#,MS120 ; (8405- )GS121..SPE

Click highlighted areas on diagram

diagram 88501 88510 88515 88539 8856930860 8856930860 8856930860 8856930880 8856930890 8857814020 88605 88630 88630 88630 88645G 88650 8868830820 8868830870 88688A 8871822420 8889730580 9004464009 9009490405 9009490405 9009490405 9017906032 9048026003 9048036003 9354014012 9354014012 9354014012
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30590

LS12#,MS120..(4FC,5F)..(DLX,SAL,SDX,SPE,SSL)..(DSL,TBO,TD,TDE)

 1
88510 - UNIT ASSY, COOLER
88510-3A060

GS12#,LS12#,MS120..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)

 1
88515 - VALVE, COOLER EXPANSION
88515-22070

GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC)

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30590

GS12#,LS12#,MS12#,YS120

FR COOLER

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88608-30480

GS120,LS120..WG..SAL

FRONT COOLER W/*AAC

 1
88630 - RELAY ASSY, COOLER
90987-03001

GS12#,LS12#,MS123,125

B4 TYPE

 5
88630 - RELAY ASSY, COOLER
90987-03001

GS12#,LS12#,MS123,125

B4 TYPE

 5
88630 - RELAY ASSY, COOLER
90987-03001

GS12#,LS12#,MS123,125

B4 TYPE

 5
88645G - SWITCH, PRESSURE
88645-12010

GS120,126,LS12#,MS120,YS120

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-30470

GS120,LS120..WG..SAL

FR COOLER,W/*AAC

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-30830

GS120,LS120..WG..SAL

W/*AAC

 1
Common parts
88569-30860
88569-30880
88569-30890
88578-14020
88688-30820
88688-30870
88718-22420
88897-30580
90044-64009
90094-90405
90179-06032
90480-26003
90480-36003
93540-14012
