LS120G-SWPGT (1983)
Toyota Crown
Production
Aug 1983
-
Aug 1984
Engine
2LTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )SED,WG..DLX,ROY,SAL,SDX

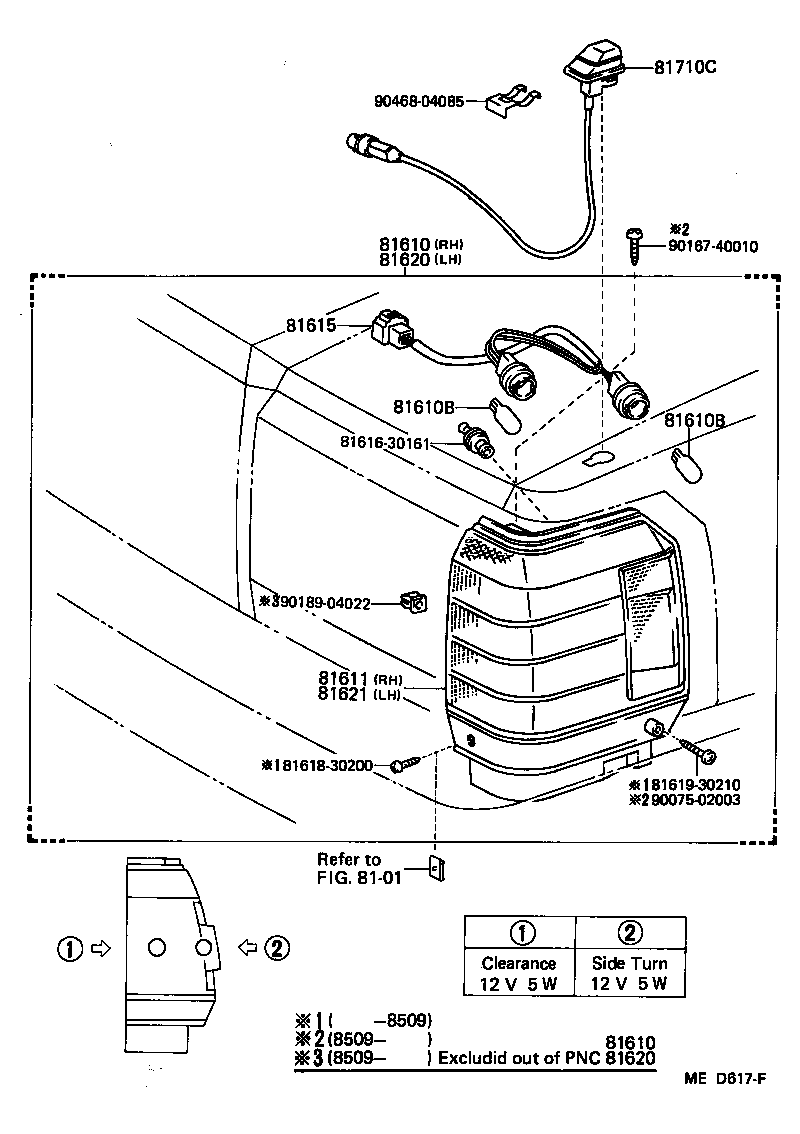

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-39775 |
GS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX) |
1 | ||
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-39775 |
GS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX) |
1 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
GS12#,LS12#,MS12#,YS120 12V 5W,12V 5W |
4 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
GS12#,LS12#,MS12#,YS120 12V 5W,12V 5W |
4 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-30210 |
GS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX) |
1 | ||
| 81615 - SOCKET AND WIRE, CLEARANCE LAMP | ||||
| 81615-30210 |
GS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX) |
2 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-39775 |
GS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX) |
1 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-39775 |
GS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX) |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-30210 |
GS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX) |
1 | ||
| Common parts | ||||
| 81616-30161 | ||||
| 81618-30200 | ||||
| 81619-30210 | ||||
| 90075-02003 | ||||
| 90167-40010 | ||||
| 90189-04022 | ||||
| 90468-04085 | ||||
| Linked diagrams | ||||
| 8101 | ||||
