LS120G-SWPGT (1983)

Toyota Crown

Production Aug 1983 - Aug 1984
Engine 2LTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

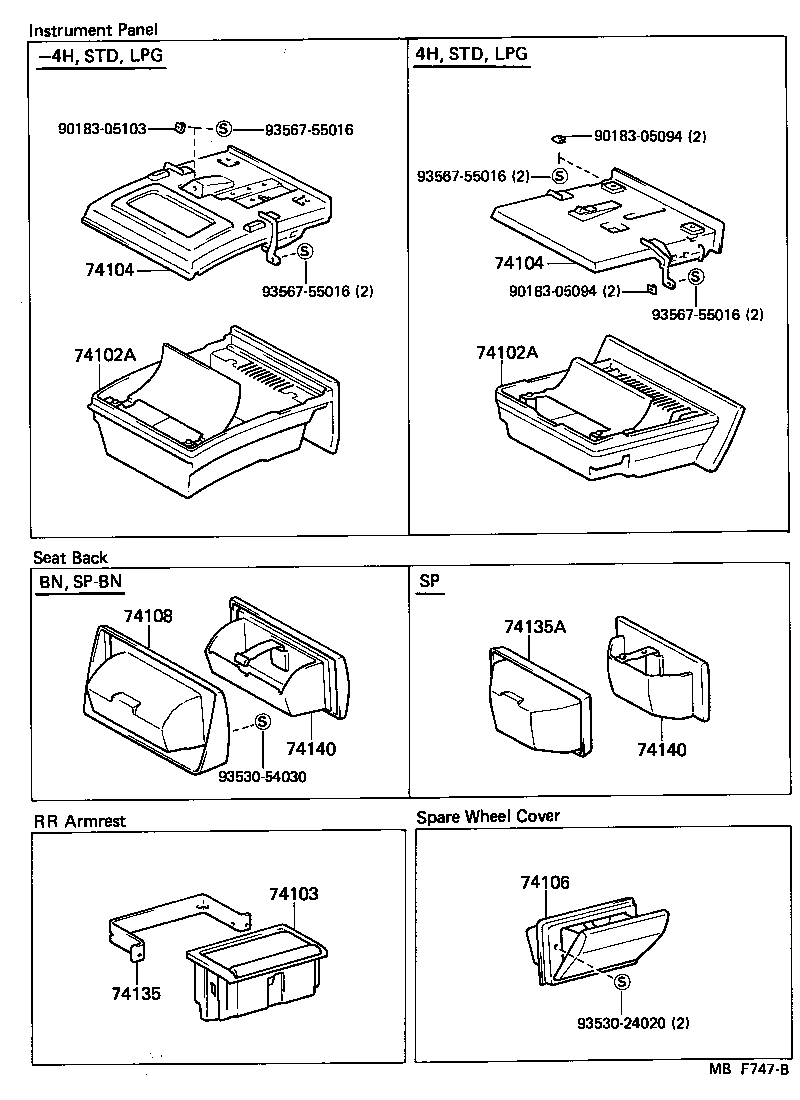

Click highlighted areas on diagram

diagram 74102A 74102A 74103 74104 74104 74106 74108 74135 74135A 74140 74140 9018305094 9018305094 9018305103 9353024020 9353054030 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-3009004

GS120,126,LS12#..(V,WG)..(4FC,4HC,5F)

BLUE,BLUE,TRIM8#

 1
74102-3009005

GS120,126,LS12#..(V,WG)..(4FC,4HC,5F)

BEIGE,BEIGE,TRIM4#

 1
74102A - RECEPTACLE ASSY, FRONT ASH
74102-3009004

GS120,126,LS12#..(V,WG)..(4FC,4HC,5F)

BLUE,BLUE,TRIM8#

 1
74102-3009005

GS120,126,LS12#..(V,WG)..(4FC,4HC,5F)

BEIGE,BEIGE,TRIM4#

 1
74103 - RECEPTACLE SUB-ASSY, ASH, NO.1
74130-3015004

GS120,121,LS120,MS12#..ROY,SAL,SPE,SSL

RH,BLUE,BLUE,TRIM8#

 1
74140-3004005

GS120,121,LS120,MS12#..ROY,SAL,SPE

LH,BEIGE,BEIGE,TRIM4#

 1
74130-3015005

GS120,121,LS120,MS12#..ROY,SAL,SPE

RH,BEIGE,BEIGE,TRIM4#

 1
74140-3004004

GS120,121,LS120,MS12#..ROY,SAL,SPE,SSL

LH,BLUE,BLUE,TRIM8#

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-30160

GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC)

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-30160

GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TDE,TWC)

 1
74106 - RECEPTACLE SUB-ASSY, ASH, NO.2
74130-1402014

GS120,LS120..WG

BLUE,BLUE,TRIM8#

 1
74130-1402045

GS120,LS120..WG..(4FC,4HC,5F)

BEIGE,BEIGE,TRIM4#

 1
74135 - BRACKET, REAR ASH RECEPTACLE
74135-30080

GS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL

 2
Common parts
90183-05094
90183-05103
93530-24020
93530-54030
93567-55016
