LS120G-SWPGT (1983)

Toyota Crown

Production Aug 1983 - Aug 1984
Engine 2LTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )2L,2LT#

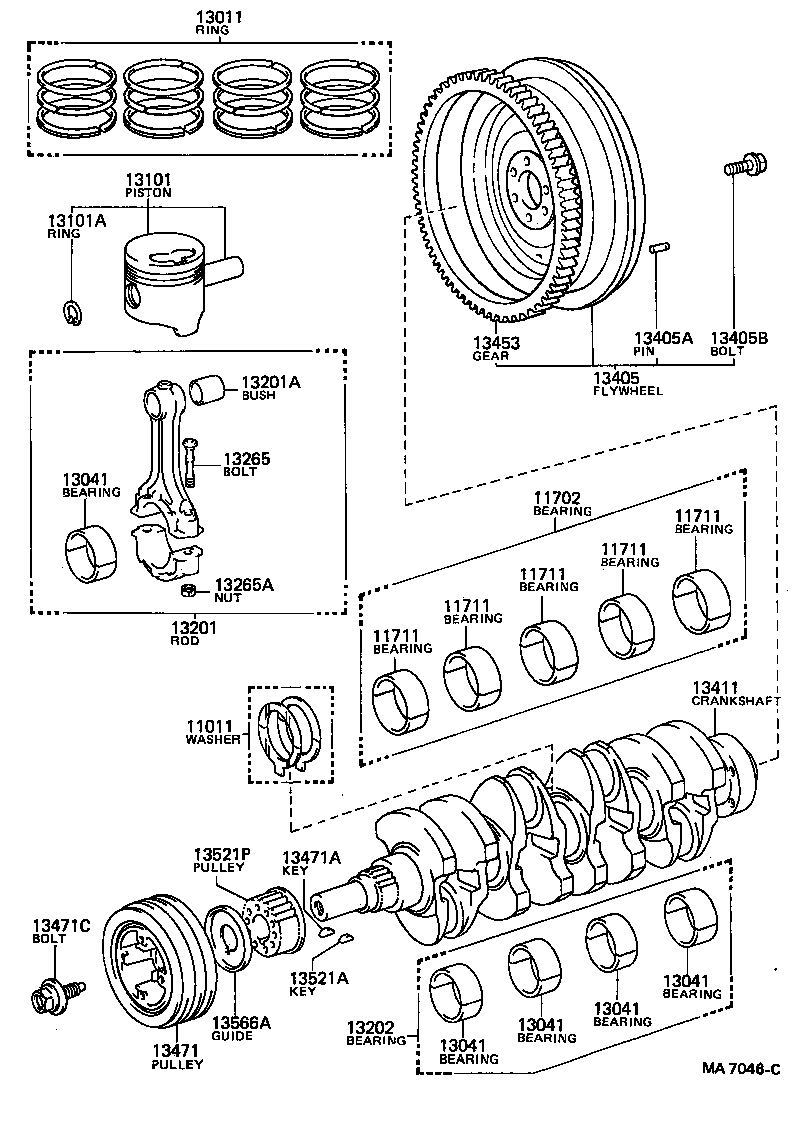

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13041 13101 13101A 13201 13201A 13202 13265 13265A 13405 13405A 13405B 13411 13453 13471 13471A 13471C 13521A 13521P 13566A
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11012-54010

2L,2LT#..LS12#

O/S 0.125,O/S 0.125

 1
11011-54010

2L,2LT#..LS12#

STD,STD

 1
11013-54010

2L,2LT#..LS12#

O/S 0.250,O/S 0.250

 1
11702 - BEARING SET, CRANKSHAFT
11704-54060

2L,2LT#..LS12#

U/S 0.25,U/S 0.25

 1
11705-54060

2L,2LT#..LS12#

U/S 0.50,U/S 0.50

 1
11711 - BEARING, CRANKSHAFT
11701-5406003

2L,2LT#..LS12#

MARK"3",MARK 3

 5
11701-5406001

2L,2LT#..LS12#

MARK"1",MARK 1

 5
11701-5406002

2L,2LT#..LS12#

MARK"2",MARK 2

 5
11711 - BEARING, CRANKSHAFT
11701-5406003

2L,2LT#..LS12#

MARK"3",MARK 3

 5
11701-5406001

2L,2LT#..LS12#

MARK"1",MARK 1

 5
11701-5406002

2L,2LT#..LS12#

MARK"2",MARK 2

 5
11711 - BEARING, CRANKSHAFT
11701-5406003

2L,2LT#..LS12#

MARK"3",MARK 3

 5
11701-5406001

2L,2LT#..LS12#

MARK"1",MARK 1

 5
11701-5406002

2L,2LT#..LS12#

MARK"2",MARK 2

 5
11711 - BEARING, CRANKSHAFT
11701-5406003

2L,2LT#..LS12#

MARK"3",MARK 3

 5
11701-5406001

2L,2LT#..LS12#

MARK"1",MARK 1

 5
11701-5406002

2L,2LT#..LS12#

MARK"2",MARK 2

 5
11711 - BEARING, CRANKSHAFT
11701-5406003

2L,2LT#..LS12#

MARK"3",MARK 3

 5
11701-5406001

2L,2LT#..LS12#

MARK"1",MARK 1

 5
11701-5406002

2L,2LT#..LS12#

MARK"2",MARK 2

 5
13011 - RING SET, PISTON
13011-54060

2L,2LT#..LS12#

STD,STD

 1
13013-54060

2L,2LT#..LS12#

O/S 0.50

 1
13041 - BEARING, CONNECTING ROD
13041-5401202

2L..LS12#

MARK"2",MARK 2

 4
13041-5401201

2L..LS12#

MARK"1",MARK 1

 4
13041-5404002

2LT#..LS120

MARK"2",MARK 2

 4
13041-5401203

2L..LS12#

MARK"3",MARK 3

 4
13041-5404001

2LT#..LS120

MARK"1",MARK 1

 4
13041-5404003

2LT#..LS120

MARK"3",MARK 3

 4
13041 - BEARING, CONNECTING ROD
13041-5401202

2L..LS12#

MARK"2",MARK 2

 4
13041-5401201

2L..LS12#

MARK"1",MARK 1

 4
13041-5404002

2LT#..LS120

MARK"2",MARK 2

 4
13041-5401203

2L..LS12#

MARK"3",MARK 3

 4
13041-5404001

2LT#..LS120

MARK"1",MARK 1

 4
13041-5404003

2LT#..LS120

MARK"3",MARK 3

 4
13041 - BEARING, CONNECTING ROD
13041-5401202

2L..LS12#

MARK"2",MARK 2

 4
13041-5401201

2L..LS12#

MARK"1",MARK 1

 4
13041-5404002

2LT#..LS120

MARK"2",MARK 2

 4
13041-5401203

2L..LS12#

MARK"3",MARK 3

 4
13041-5404001

2LT#..LS120

MARK"1",MARK 1

 4
13041-5404003

2LT#..LS120

MARK"3",MARK 3

 4
13041 - BEARING, CONNECTING ROD
13041-5401202

2L..LS12#

MARK"2",MARK 2

 4
13041-5401201

2L..LS12#

MARK"1",MARK 1

 4
13041-5404002

2LT#..LS120

MARK"2",MARK 2

 4
13041-5401203

2L..LS12#

MARK"3",MARK 3

 4
13041-5404001

2LT#..LS120

MARK"1",MARK 1

 4
13041-5404003

2LT#..LS120

MARK"3",MARK 3

 4
13041 - BEARING, CONNECTING ROD
13041-5401202

2L..LS12#

MARK"2",MARK 2

 4
13041-5401201

2L..LS12#

MARK"1",MARK 1

 4
13041-5404002

2LT#..LS120

MARK"2",MARK 2

 4
13041-5401203

2L..LS12#

MARK"3",MARK 3

 4
13041-5404001

2LT#..LS120

MARK"1",MARK 1

 4
13041-5404003

2LT#..LS120

MARK"3",MARK 3

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-54060

2L..LS12#

STD,STD

 4
13103-54030

2LT,2LTE..LS120

O/S 0.50,O/S 0.50

 4
13103-54060

2L..LS12#

O/S 0.50,O/S 0.50

 4
13101-54030

2LT,2LTE..LS120

STD,STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-31001

2LT#..LS120

 8
90521-29003

2L..LS12#

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-59025

2LT#..LS120

 4
13201-59016

2L..LS12#

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73083

2L..LS12#

 4
90999-73094

2LT#..LS120

 4
13202 - BEARING SET, CONNECTING ROD
13204-54012

2L..LS12#

U/S 0.25

 1
13205-54012

2L..LS12#

U/S 0.50

 1
13204-54040

2LT#..LS120

U/S 0.25,U/S 0.25

 1
13205-54040

2LT#..LS120

U/S 0.50,U/S 0.50

 1
13265 - BOLT, CONNECTING ROD
13265-54011

2L,2LT#..LS12#

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-10005

2L,2LT#..LS12#

 8
13411 - CRANKSHAFT
13401-54020

2LT#..LS120

 1
13401-54030

2L..LS12#

 1
13471 - PULLEY, CRANKSHAFT
13408-54020

2L,2LT#..LS12#

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
95161-20622

2L,2LT#..LS12#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-14005

2L,2LT#..LS12#

*14-1.5PX40-31

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
95161-20622

2L,2LT#..LS12#

 1
13521P - PULLEY, CRANKSHAFT TIMING
13521-54020

2L,2LT#..LS12#

 1
13566A - GUIDE, TIMING BELT
13566-54010

2L,2LT#..LS12#

 1
