LS120G-SWMFX (1983)
Toyota Crown
ILLUST NO. 1 OF 2(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-22030 |
LS12#,MS123,125,YS120 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
LS12#,MS120..DSL,LPG,TD,TDE |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-30320 |
LS12# |
1 | ||
| 88320-30321 |
LS12# |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-22080 |
LS12# |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 90099-01108 |
GS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG) T=0.5 |
1 | ||
| 90099-01350 |
GS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG) T=0.1 |
1 | ||
| 90099-01108 |
GS120,126,LS12#,MS120,YS120 T=0.5 |
1 | ||
| 90099-01350 |
GS120,126,LS12#,MS120,YS120 T=0.1 |
1 | ||
| 90099-01351 |
GS120,126,LS12#,MS120,YS120 T=0.2 |
1 | ||
| 90099-01351 |
GS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG) T=0.2 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 90099-01108 |
GS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG) T=0.5 |
1 | ||
| 90099-01350 |
GS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG) T=0.1 |
1 | ||
| 90099-01108 |
GS120,126,LS12#,MS120,YS120 T=0.5 |
1 | ||
| 90099-01350 |
GS120,126,LS12#,MS120,YS120 T=0.1 |
1 | ||
| 90099-01351 |
GS120,126,LS12#,MS120,YS120 T=0.2 |
1 | ||
| 90099-01351 |
GS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG) T=0.2 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 90099-01108 |
GS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG) T=0.5 |
1 | ||
| 90099-01350 |
GS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG) T=0.1 |
1 | ||
| 90099-01108 |
GS120,126,LS12#,MS120,YS120 T=0.5 |
1 | ||
| 90099-01350 |
GS120,126,LS12#,MS120,YS120 T=0.1 |
1 | ||
| 90099-01351 |
GS120,126,LS12#,MS120,YS120 T=0.2 |
1 | ||
| 90099-01351 |
GS120..4H;LS12#,YS120;GS120..5F..STD;GS126,MS120..(4FC,4H,4HC)..(EFI,LPG) T=0.2 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
GS121,LS12#,MS120,123,YS120 |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07114 |
LS12#,MS12#,YS120..DSL,LPG,TD,TDE,TWC |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14030 |
LS12#,MS12#,YS120..DSL,LPG,TD,TDE,TWC |
1 | ||
| 88403-14030 |
GS121,LS12#,MS12#,YS120..DSL,LPG,TD,TDE,TWC |
1 | ||
| Common parts | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 90099-35012 | ||||
| 93319-15008 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

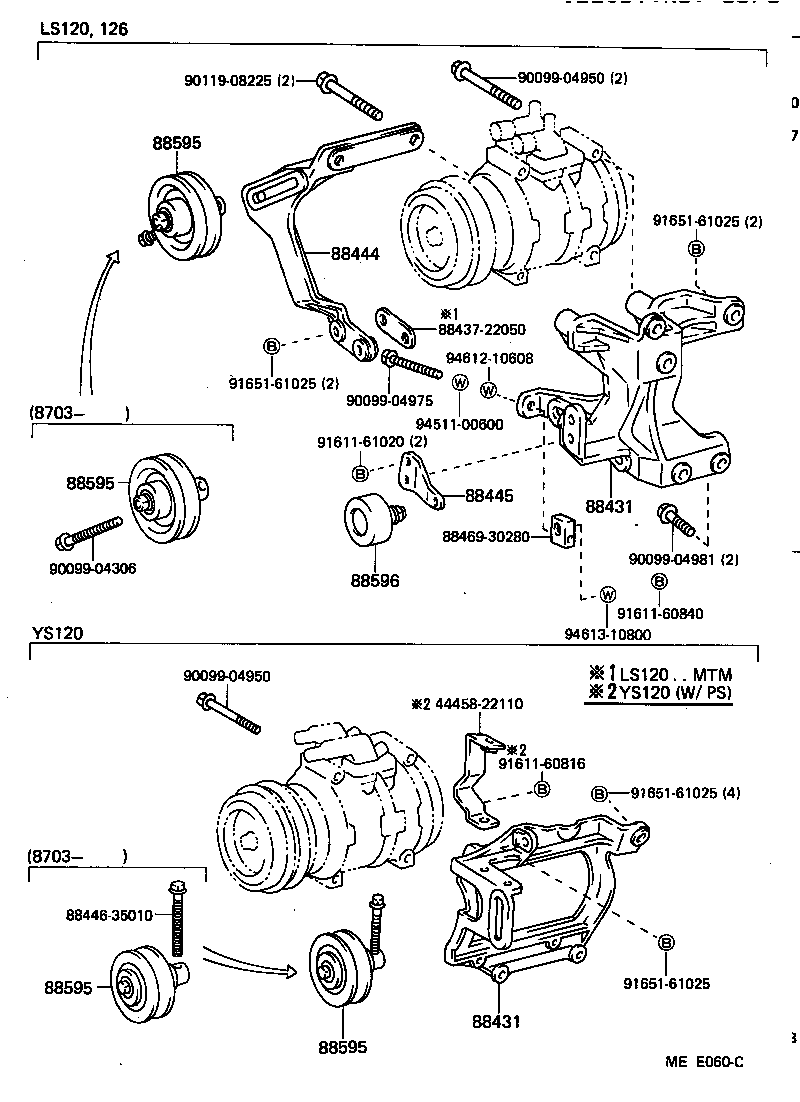

ILLUST NO. 2 OF 2(8308- )LS12#,YS120
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-26170 |
LS12# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-26170 |
LS12# |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-22060 |
LS12# |
1 | ||
| 88445 - BRACKET, IDLE PULLEY | ||||
| 88444-26070 |
LS12# |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-16010 |
LS12# |
1 | ||
| 88440-35010 |
LS12# |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-16010 |
LS12# |
1 | ||
| 88440-35010 |
LS12# |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-16010 |
LS12# |
1 | ||
| 88440-35010 |
LS12# |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-16010 |
LS12# |
1 | ||
| 88440-35010 |
LS12# |
1 | ||
| 88596 - PULLEY ASSY, IDLE, NO.2 | ||||
| 88440-26070 |
LS12# |
1 | ||
| Common parts | ||||
| 44458-22110 | ||||
| 88437-22050 | ||||
| 88446-35010 | ||||
| 88469-30280 | ||||
| 90099-04306 | ||||
| 90099-04950 | ||||
| 90099-04975 | ||||
| 90099-04981 | ||||
| 90119-08225 | ||||
| 91611-60816 | ||||
| 91611-60840 | ||||
| 91611-61020 | ||||
| 91651-61025 | ||||
| 94511-00600 | ||||
| 94612-10608 | ||||
| 94613-10800 | ||||
