LS120G-SWMFX (1983)
Toyota Crown

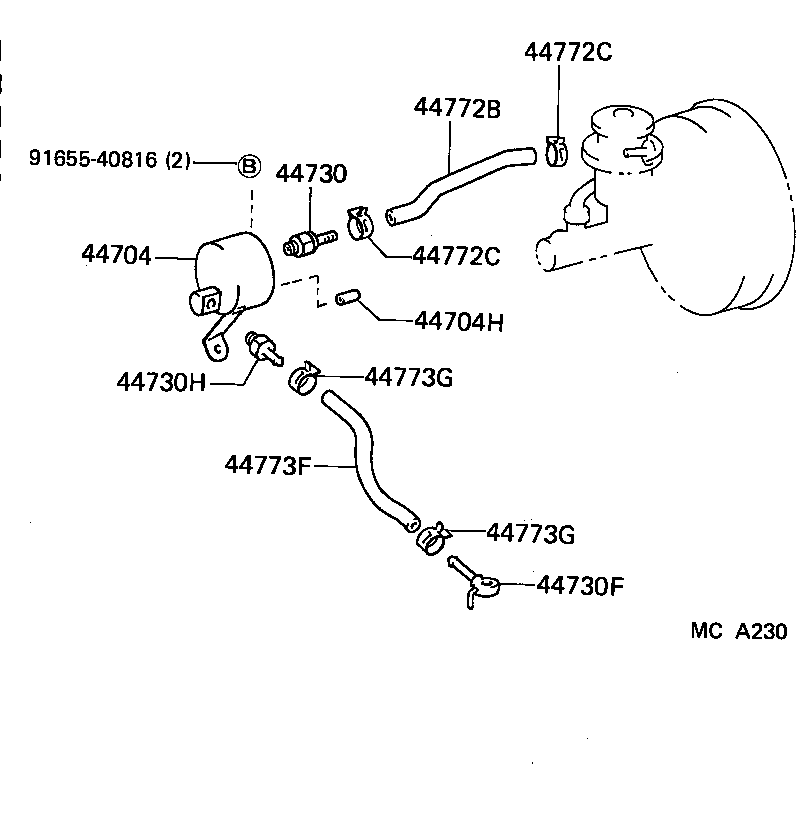

ILLUST NO. 2 OF 2(8308- )LS12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-30060 |
LS12# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-24010 |
LS12# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90405-09072 |
LS12# |
1 | ||
| 44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR) | ||||
| 44730-60040 |
LS12# |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-30100 |
LS12# |
1 | ||
| 44772-30040 |
LS12# |
1 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
LS12#,MS120..DSL,TBO,TD,TDE |
2 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
LS12#,MS120..DSL,TBO,TD,TDE |
2 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-30320 |
LS12# |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
YS120;GS120,126,LS12#,MS120..DSL,EFI,TBO,TD,TDE |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
YS120;GS120,126,LS12#,MS120..DSL,EFI,TBO,TD,TDE |
2 | ||
| Common parts | ||||
| 91655-40816 | ||||
ILLUST NO. 2 OF 2(8308- )LS12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-30450 |
LS12# FR DISC BRAKE,9 INCHES |
1 | ||
| 04443-30350 |
LS12# FR DISC BRAKE,9 INCHES |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-32010 |
LS12# |
1 | ||
| 44606-12520 |
LS12# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30420 |
LS12# AISIN,FR DISC BRAKE |
1 | ||
| 44610-30530 |
LS12# AISIN,FR DISC BRAKE |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
GS120,126,LS12#,MS120,YS120 |
1 | ||
| 44621-28120 |
GS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
GS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC AISIN |
1 | ||
| 44628-28120 |
GS120,126,LS12#,MS120,YS120 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-32010 |
LS12# FR DISC BRAKE |
1 | ||
| 44642-32030 |
LS12# FR DISC BRAKE |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
GS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 44635-28120 |
GS120,126,LS12#,MS120,YS120 |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-30060 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| Common parts | ||||
| 90179-08041 | ||||
| Linked diagrams | ||||
| 8401 | ||||
